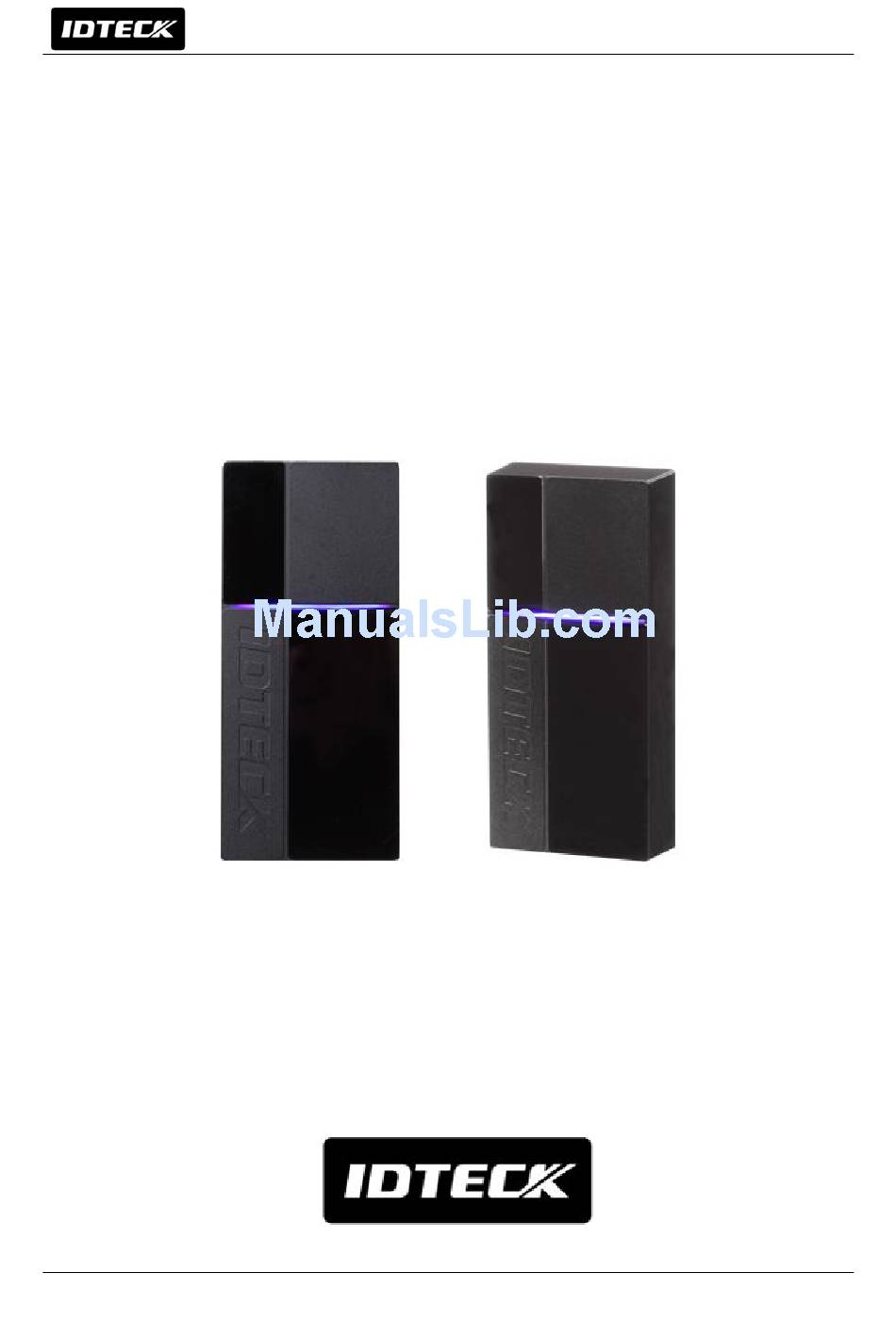

- Page 1 User Manual PROX10/10H Proximity Reader...
-
Page 2: Table Of Contents
User Manual Table of Contents 1. SAFETY INFORMATION ..............3 2. PRODUCT INTRODUCTION ..............5 3. IDENTIFYING SUPPLIED PARTS ............5 4. PRODUCT SPECIFICATION ..............6 5. PRODUCT INSTALLATION ..............7 6. WIRE COLOR TABLE ................. 8 7. WIRING DIAGRAM ................8 8. -
Page 3: Safety Information
User Manual 1. SAFETY INFORMATION This caution is for safety and preventing damage of property Please read these instructions and follow them. 1) Acquaint yourself with all instructions thoroughly. 2) Heed all warnings and follow the instruction on the product. Keep the instruction in a conspicuous place so administrator can see it always. - Page 4 User Manual When cleaning, do not spray water directly onto parts of the product nor benzene, thinner. - Doing so may cause fire or electric shock or damage on the unit. Operation Do not randomly change the wiring installed by engineer or expert.
-
Page 5: Product Introduction

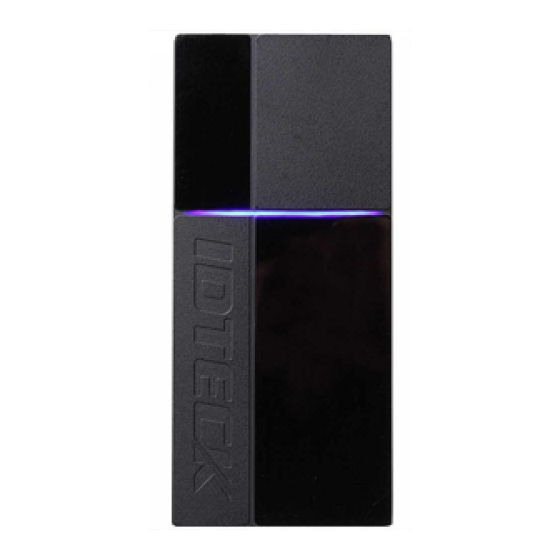

User Manual 2. PRODUCT INTRODUCTION PROX10 / PROX10H have sophisticated design as well as maximum recognition distance of 4 inch. This proximity reader can be easily attached to a metal or doorframe or the wall. Featured by the epoxy adhesion, PROX10 /PROX10H have high level of weather-proofing in any challenging weather conditions. -
Page 6: Product Specification
Low Active, DC 0 ~ 12V, Max. 50 mA LED/buzzer 2 Color LED(Red/Blue) / Piezo Buzzer Color Dark Pearl Gray 14℉ ~ 140℉(-10℃ ~ +60℃), Operating temperature/humidity 10~90%(Humidity) 1.92" x 4.33" x 0.85"(49x110x21.5mm) Size(WxHxD) PROX10 and PROX10H are the same size. Weight 0.26lb(120g) -
Page 7: Product Installation
User Manual 5. PRODUCT INSTALLATION . Inserting into doorframe / Attaching to wall The distance between two 6-32/M3 holes which are located vertically is 3.3"(8.38cm). One 1/2" hole between them is for cable from the reader and has 1.7"(4.31cm) of distance from upper hole. (If it has been attached already, you can skip this part) 5-2. -
Page 8: Wire Color Table
User Manual 6. WIRE COLOR TABLE Signal COLOR Main Power (+12V) Power Ground (GND) Black Wiegand Data 0 Out Green Wiegand Data 1 Out White Buzzer Control In Blue LED Control In Yellow RS232C (TX) Brown * Please cut out tail connector before installation. 7. -
Page 9: Operations
User Manual 8. OPERATIONS 8-1. When power is applied to the reader, buzzer that indicates initialization is generated. And the Blue LED is lit once the initialization is completed. And the reader becomes standby mode. 8-2. Put the card near the reader until LED light changes from blue to red and buzzer is generated. -
Page 10: Fcc Registration Information
User Manual 9. FCC REGISTRATION INFORMATION FCC REQUIREMENTS PART 15 Caution: Any changes or modifications in construction of this device which are not expressly approved by the responsible for compliance could void the user's authority to operate the equipment. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions;... -
Page 11: Product Manual Download Information
For registered users of our homepage 1. Visit IDTECK’s homepage (www.idteck.com). 2. Click the Sign in button at the top of the homepage and log in using your registered ID and P/W. - Page 12 User Manual MEMO...
- Page 13 The specifications contained in this manual are subject to change without notice at any time. 5F, Ace Techno Tower B/D, 468, Gangseo-ro, Gangseo-Gu, Seoul, 157-030, Korea Tel : +82-2-2659-0055 Fax : +82-2-2659-0086 E-mail : webmaster@idteck.com Sep. 2014 Copyright ©2014 IDTECK Co., Ltd.
