SuperTrak EX16650 Quick Start Guide
Task 4: Creating a Logical Drive
You can use the onboard SuperBuild BIOS utility to create a logical drive with the
attached physical drives. Even if you plan to use the WebPAM PRO software to
manage your logical drives, you can still create your first logical drive using the
SuperBuild Utility, as described here.

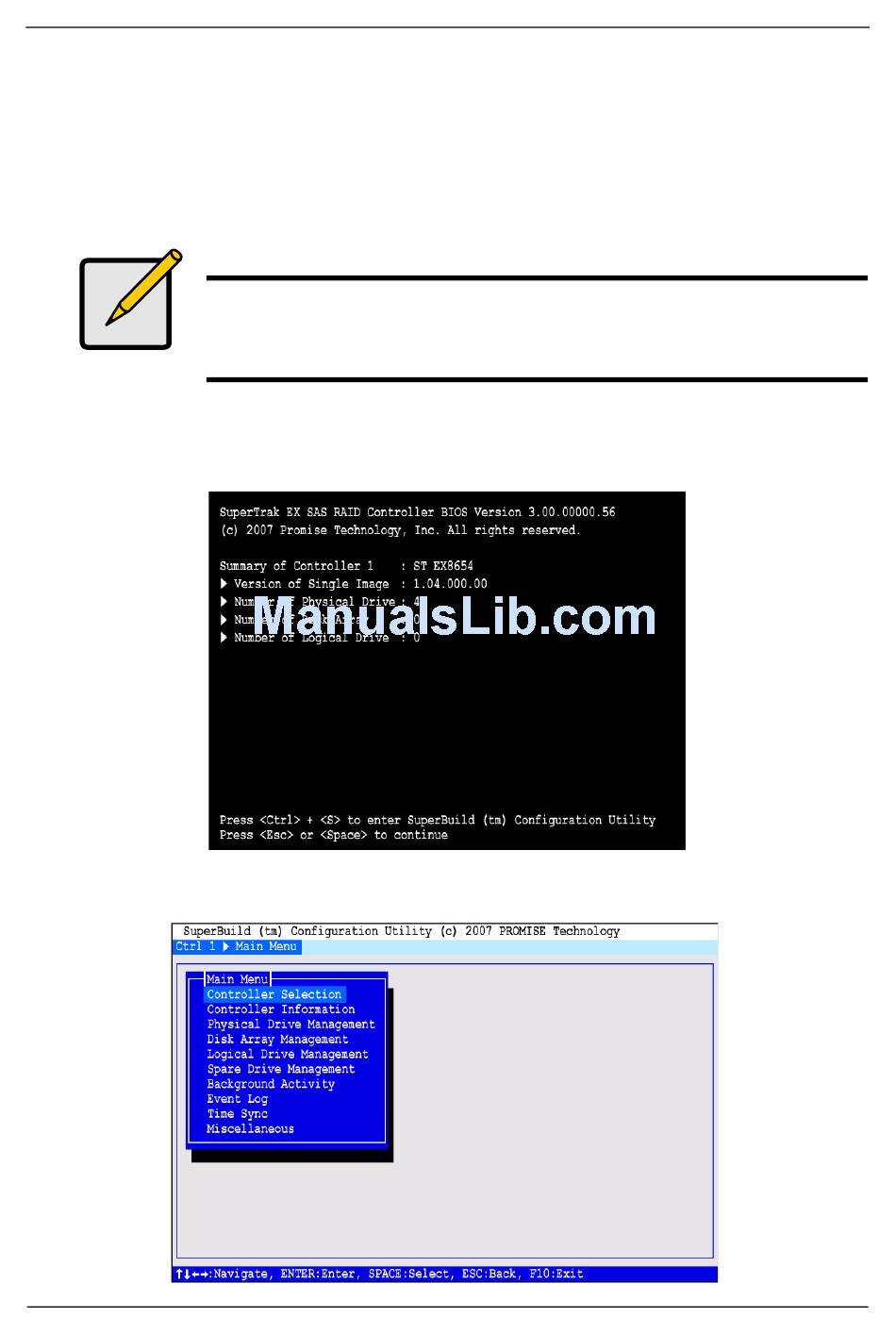

1. Boot your system. If this is the first time you have booted with the SuperTrak
card and drives installed, the Promise onboard BIOS will display the
following screen.
2. Press the Ctrl-S keys to display the SuperBuild Utility Main Menu.
For an explanation of the logical drive concepts and the choices
you can make when you create your logical drive, see Chapter 6
of the SuperTrak User Manual on the Software CD.
Note
8
