Task 2: Installing the SuperTrak Card
The SuperTrak EX Controller card fits into any available 3.3-volt PCI-Express X8
slot. You can also plug the SuperTrak card into a PCI-Express X16 slot.
1. Remove the cover of your PC or enclosure.
2. Remove the inside slot cover of an available PCI-Express slot on the
motherboard.

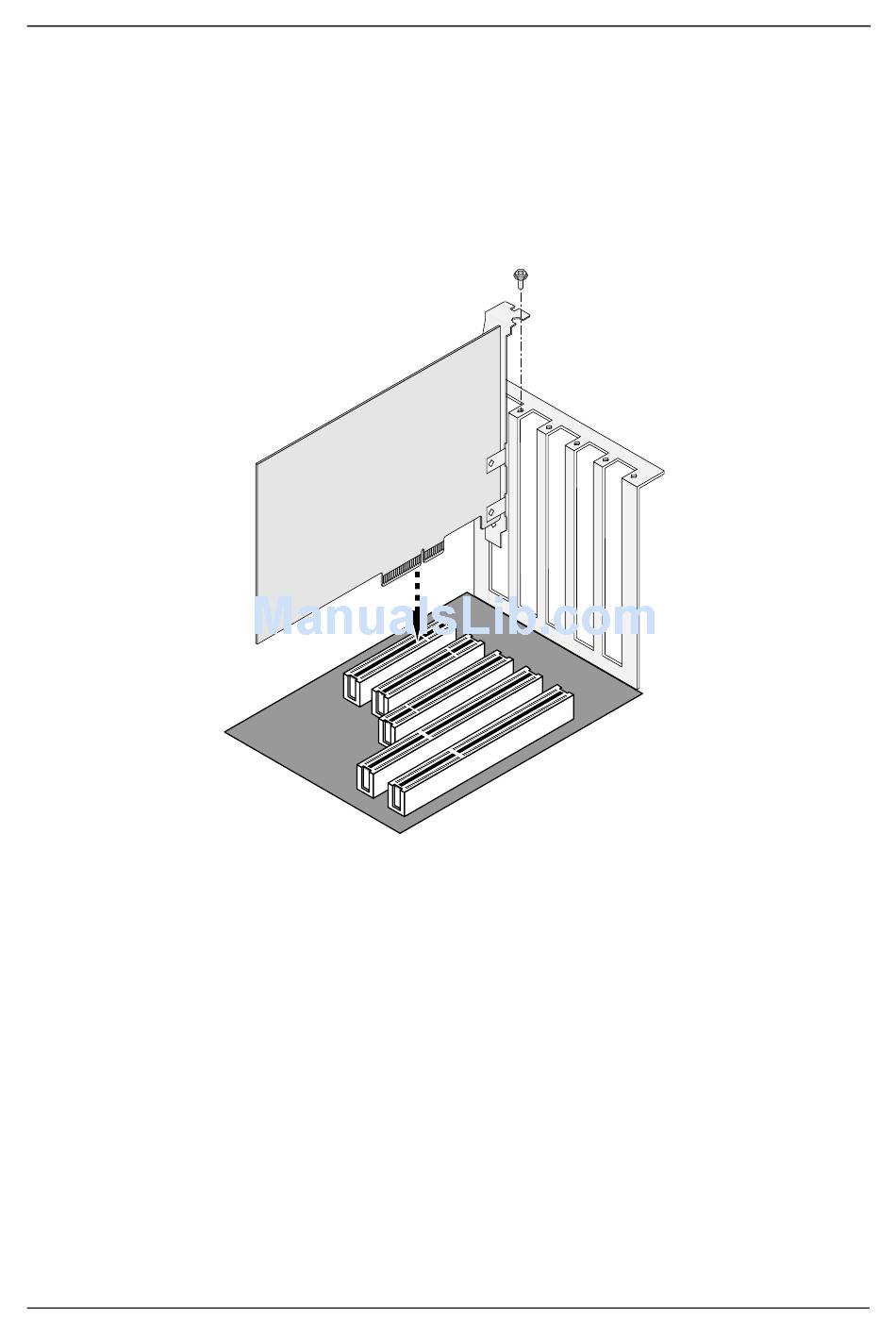

3. Install the SuperTrak card into the open PCI-Express slot.
4. Fasten the SuperTrak card bracket to the PC or enclosure case.
5. Attach t to one of the SAS ports on the SuperTrak card.
See Figure 1.
Task 2: Installing the SuperTrak Card
5
