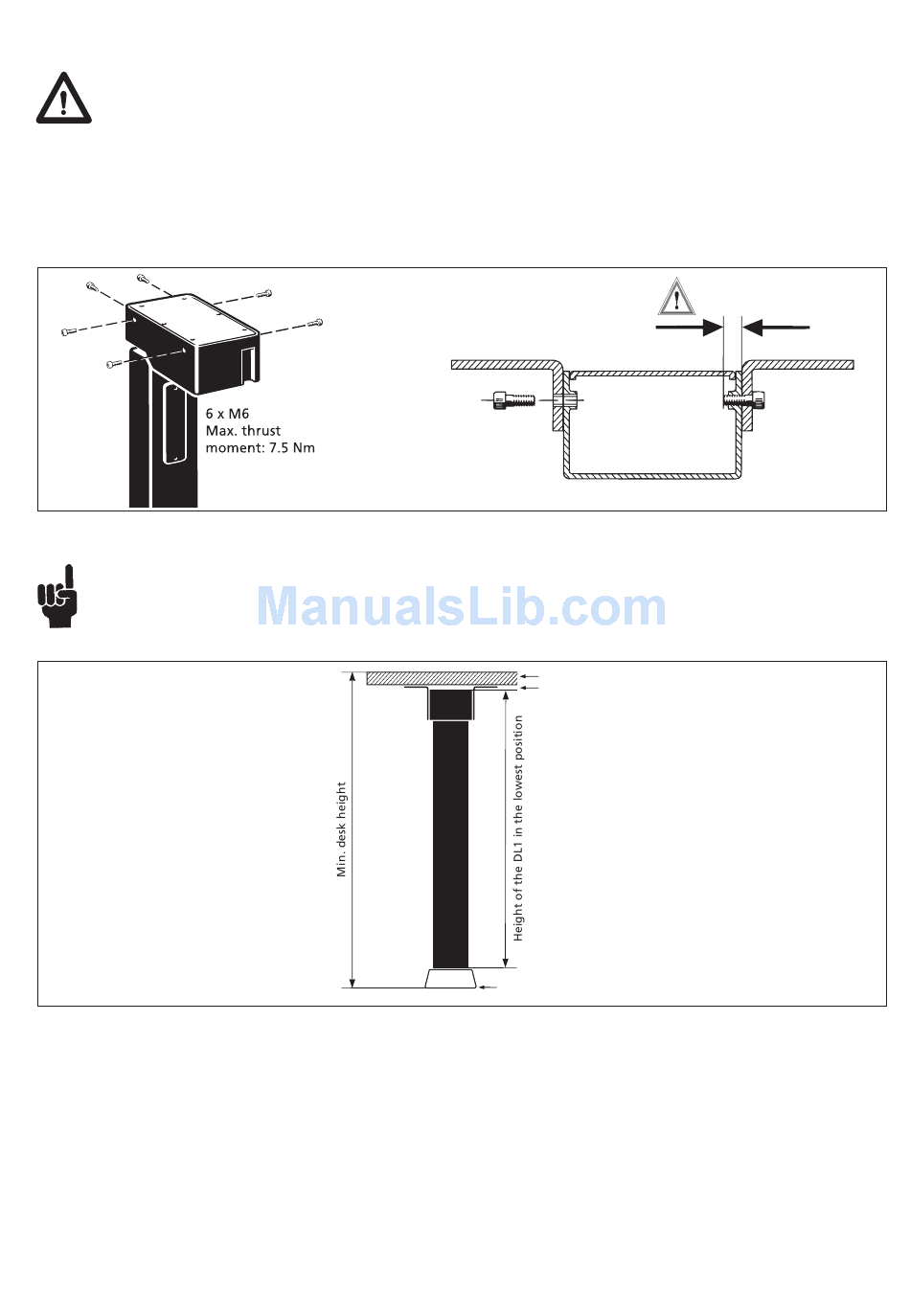

Mounting guidelines for the DESKLINE DL1A
The lifting units are normally mounted with the motor housings upwards and pointing towards each other
(see figure 2).
The aluminium motor housing is supplied with 6 pcs. of M6 threaded holes meant for mounting on the desk frame.
The threaded holes are rolled into the aluminium housing.
It is recommended to use all 6 M6 threaded holes. As the tabletop amplifies the sound we advise you to place a
vibration/shockabsorbing material between the tabletop and the table frame.
A suitable desk height in the lowest position can be obtained by mounting the lifting unit on a 6-8 mm bottom plate by means
of 4 pcs. of M6 countersinked screws. We recommend you to use screws of min. quality 8.8. The thrust moment must not
exceed 10 Nm in the bottom plate thread.
Figure 1
Tabletop
Absorbing
material
Floor level
Figure 2
Page 10 of 24
Max. 15 mm
DL1
motor housing
