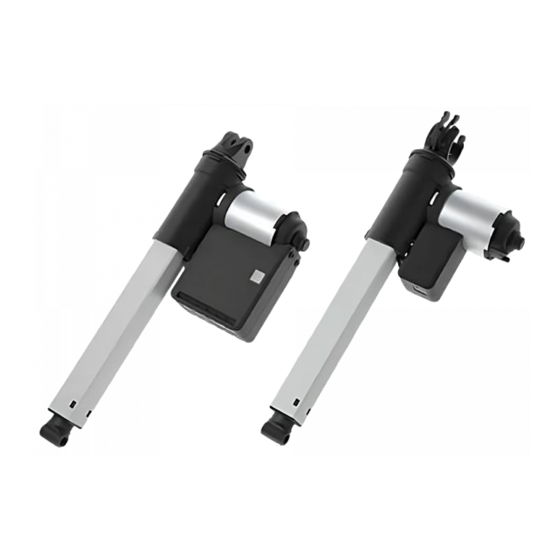

- Page 1 Actuator LA18 IC Standard User manual LINAK.COM/HOMELINE Page 1 of 26...
-
Page 2: Table Of Contents
Warranty............................10 Maintenance..........................10 ETL-marking .............................11 System overviews ..........................12 How to pair .............................13 How to mount the locking device ....................14 Disposal of LINAK’s products .......................15 Main groups of disposal ........................15 Disposal of batteries ........................15 Labels..............................16 Drawings ............................18 Addresses ............................26 Page 2 of 26... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Actuators: LA18 IC Standard Master and a LA18 IC Standard Follower Power supply: SMPS001, SMPS002 or SMPS006 Wireless controls: HC05, HC10, HB10, HC40 Standard Accessories: LEDLightRail001... -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Safety Issues
Assure free space for movement of application in both directions to avoid blockade. The appliance is only to be used with the power supply unit provided with the appliance. Safety issues The builder of the equipment shall ensure that the use of the component complies with relevant standards –... -
Page 7: Before Installation, Re-Installation Or Troubleshooting
• Make sure that the voltage of the actuator system/SMPS is correct before the system is connected to the mains. • System connection. The individual parts must be connected before the actuator system/SMPS is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation •... -
Page 8: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 9: Repairs
DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY 2006/42/EC ANNEX II B LINAK A/S Smedevænget 8 DK - 6430 Nordborg Herewith declares that LINAK HOMELINE® products as characterized by the following models and types: Control Boxes CB9H, CBH Advanced, CBH Basic Linear Actuators... -
Page 10: Misc. On The Homeline ® System
There is a 36 months’ warranty on the HOMELINE products against manufacturing faults from the production date of the individual products (see label). LINAK A/S’ warranty is only valid in so far as the equipment has been used and maintained correctly and has not been tampered with. -
Page 11: Etl-Marking
ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962... -
Page 12: System Overviews
System overviews The LA18 IC Standard system consists of an LA18 IC Standard Master and an LA18 IC Standard Follower. The system is connected to the mains via an SMPS001/002/006 and controlled by a Bluetooth hand control (HC05 Wireless, HC10 Wireless, ®... -
Page 13: How To Pair
How to pair The system features Bluetooth Low Energy technology, which makes it capable of being controlled via the wireless LINAK hand ® ® controls. Furthermore, it makes it possible to control the bed via the Bed Control App. However, it can only receive commands from one device at a time, so the user must wait 5 seconds without pushing a button before it is possible to use another control/mobile device. -
Page 14: How To Mount The Locking Device
How to mount the locking device (0705889) To ensure optimal cable relief on the SMPS001/002 a locking device (0705889) should be used. Follow the guide below on how to fix the locking device on the SMPS. 1. Take the SMPS 2. -
Page 15: Disposal Of Linak's Products
Disposal of LINAK products As LINAK customers often ask us how our products can be disposed of or scrapped, we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 16: Labels
Labels Label for LA18 IC Standard Master Label for LA18 IC Standard Follower Label for SMPS001 Label for SMPS002 Label for LED Light Rail Label for SMPS006 Page 16 of 26... - Page 17 Label for HC05BL Label for HC10BL Label for HB10 BL Label for HC40 FRAME Standard Label for HC40 TWIST Standard Page 17 of 26...
-
Page 18: Drawings
DRAWING APPENDIX LA18 IC Standard Master LA18 IC Standard Follower Page 18 of 26... - Page 19 LA18 IC Standard Master Click-on back fixture LA18 IC Standard Follower Click-on back fixture Page 19 of 26...
- Page 20 SMPS001 SMPS002 Page 20 of 26...
- Page 21 SMPS006 Page 21 of 26...
- Page 22 HC05 Wireless HC10 Wireless Page 22 of 26...
- Page 23 HC40 FRAME Standard HC40 TWIST Standard Page 23 of 26...
- Page 24 HB10 Wireless LED Light Rail Page 24 of 26...
- Page 25 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
-
Page 26: Addresses
® without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. The user is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.
