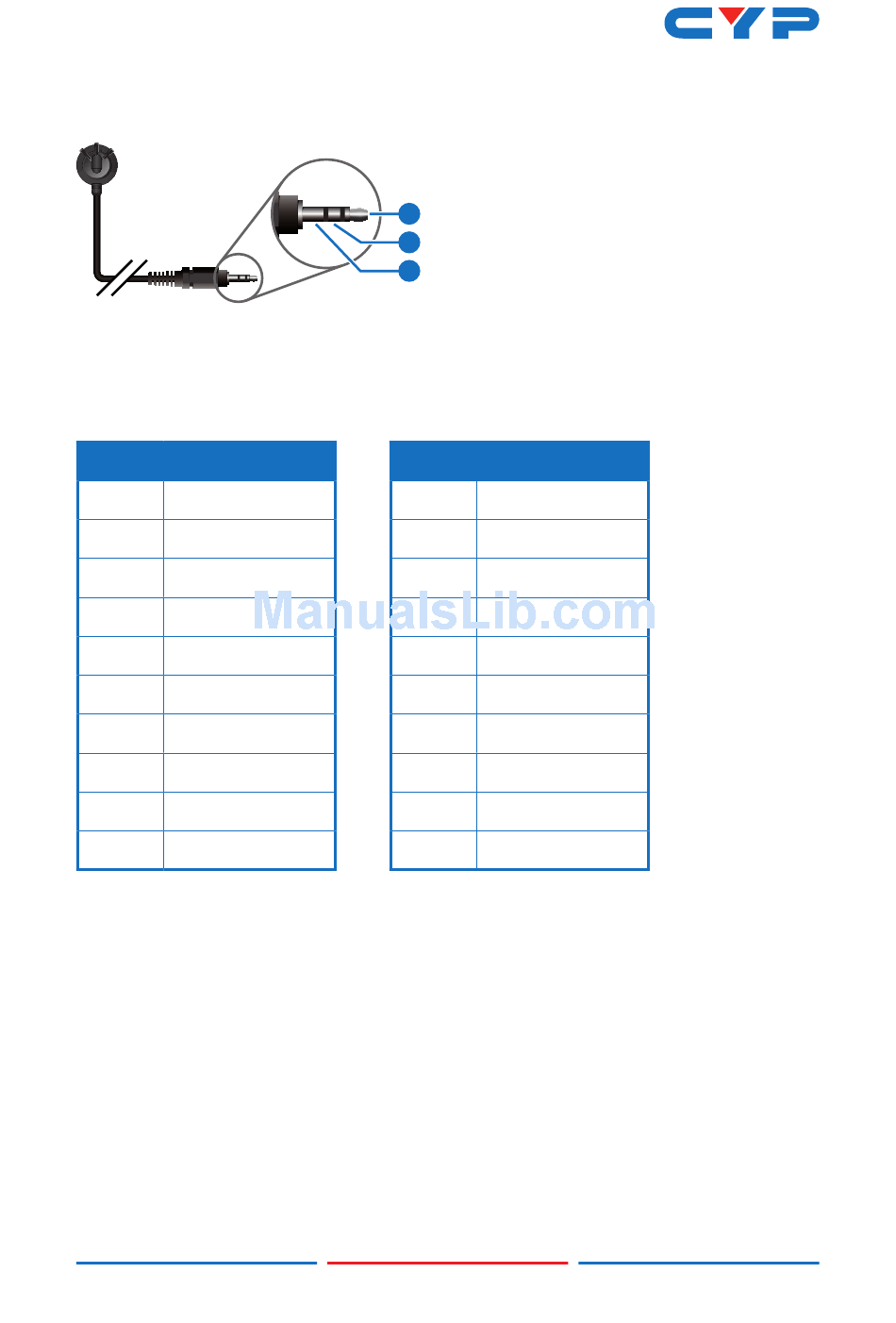

6.4 IR Cable Pin Assignments

IR Extender
6.5 RS-232 Protocol
UNIT
Pin Definition
1 NC
2 TxD
3 RxD
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC
Baud Rates: 115200bps
Data Bits: 8
Parity Bits: None
Stop Bit: 1
Flow Control: None
IR Signal
1
Power
2
Ground
3
REMOTE SYSTEM
Pin Definition
1
2
3
►
4
◄
5
6
7
8
9
NC
RxD
TxD
NC
GND
NC
NC
NC
NC
