5. FEATURES

• HDMI 2.0 with 18Gbps 4K UHD support, single-link DVI 1.0 compliant
• HDCP 2.2 and 1.4 compliant
• 4 HDMI inputs and 1 HDMI output
• Supports HDTV resolutions up to 4K UHD (3840×2160@50/60Hz &
4096×2160@50/60Hz)
• Supports data rates up to 18Gbps and Deep Color (16-bit) up to
1080p
• Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream
audio formats
• Remotely controllable via Ethernet (WebGUI & Telnet), RS-232 and
IR remote
6. OPERATION CONTROLS AND FUNCTIONS

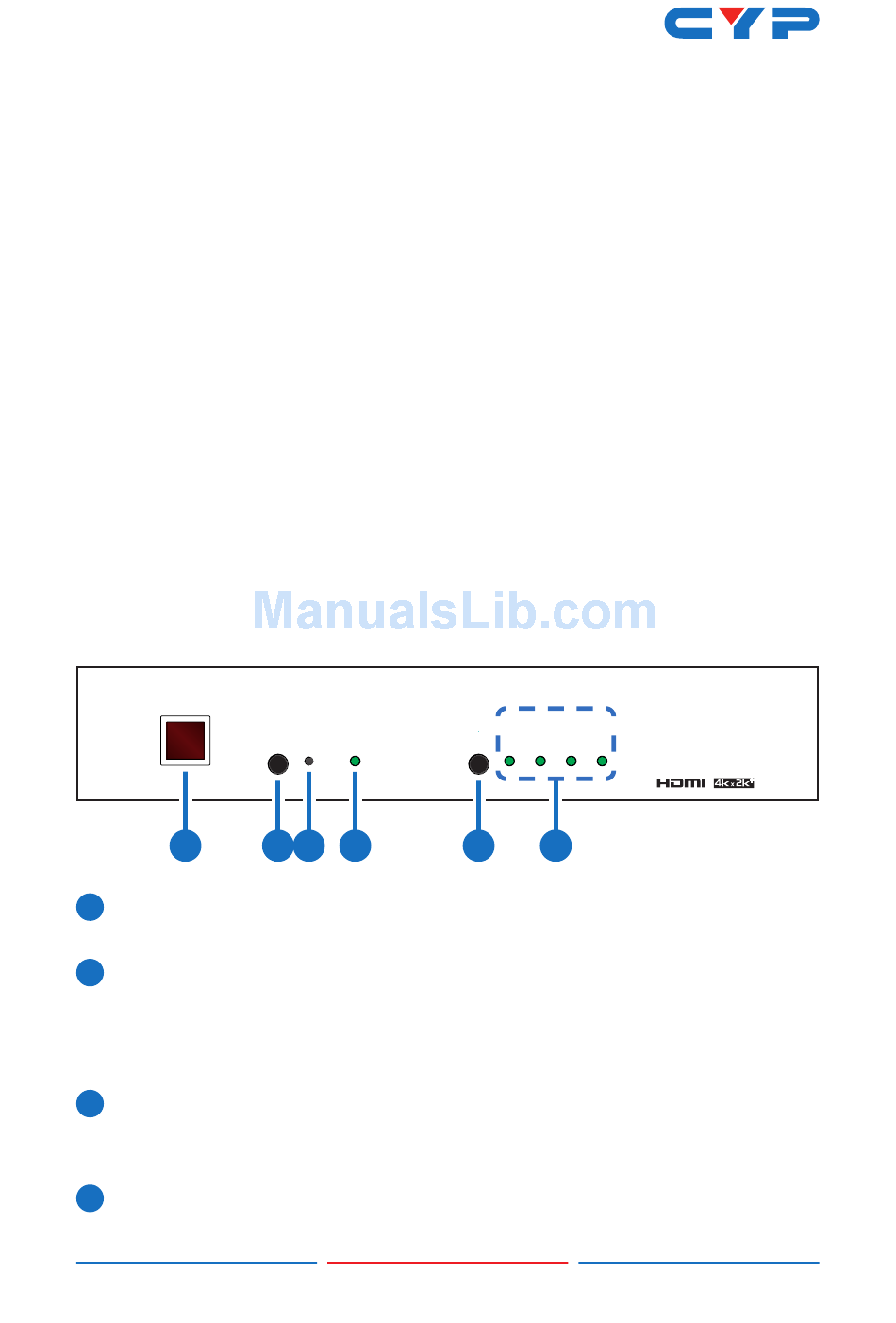

6.1 Front Panel
UHD 4 TO 1 SWITCHER
1
IR WINDOW: Accepts IR signals from the included IR remote for
1
control of this unit only.
POWER: Press this button to power on the unit or place it into stand-
2
by mode.
Note: Ethernet and RS-232 remain active while the unit is in stand-
by mode.
POWER LED: The LED will illuminate RED to indicate the unit is
3
receiving power but is in stand-by mode. It will illuminate GREEN to
indicate that the unit has been turned on.
4 SYNC LED: This LED will illuminate GREEN when a stable connection
with an output device is detected.
POWER SYNC
2 3 4
INPUT 1 2 3 4
5 6
+
HDCP2.2
