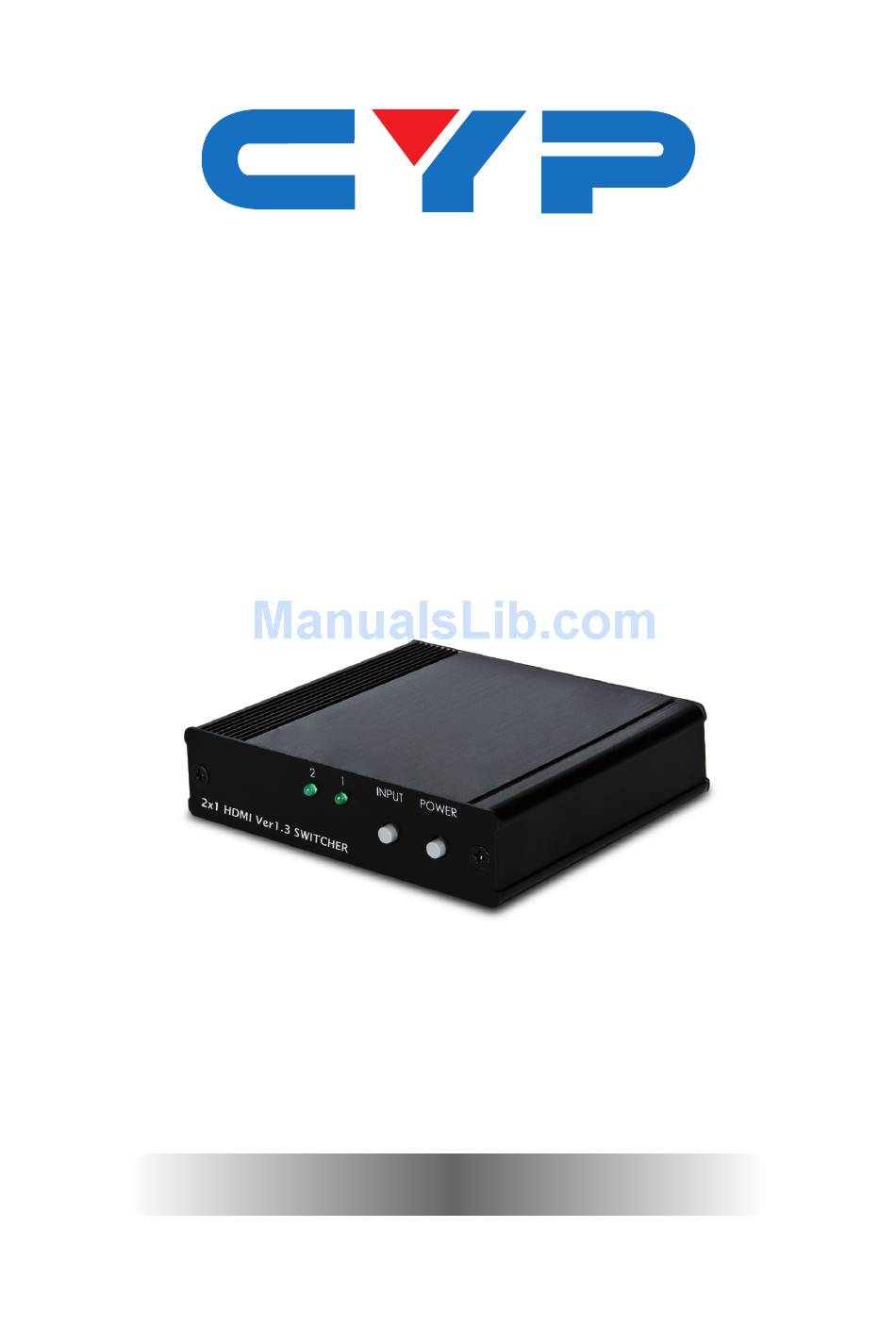

- Page 1 CLUX-21N HDMI 2 to 1 Switcher Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 6: Introduction
1. INTRODUCTION The HDMI 2 to 1 Switcher allows 2 HDMI sources to be connected to the same HDMI TV/Monitor input. It has both automatic and manual input selection and a 'last memory' function that remembers the last input selection used. The EDID bypass function ensures the best resolution. -
Page 7: Features
5. FEATURES • HDMI, HDCP 1.1 and DVI 1.0 compliant • Supports 24/30/36-bit color depth display • Supports High Definition audio – Dolby Digital TrueHD and DTS-HD Master Audio • Auto Signal Enhancement that improves signal quality for long distance transmission •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel INPUT POWER 2x1 HDMI Ver1.3 SWITCHER INPUT Button and LED Press this button to switch between source 1 or 2. The LED will illuminate to indicate the selected source. POWER Button Press this button to switch on the device, press it again to switch the device into standby mode. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM Set-top Box Blu-ray Player HDMI HDMI Input Input Power Supply DC 5V HDMI 1 HDMI 2 HDMI HDMI Output TV/Monitor... -
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75 Gbps Input Ports 2×HDMI Female Ports (Type A Connector) Output Port 1×HDMI Female Port (Type A Connector) Power Supply 5 V/1 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimension 101 mm (W)×92 mm (D)×25 mm (H) - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CLUX21N...
