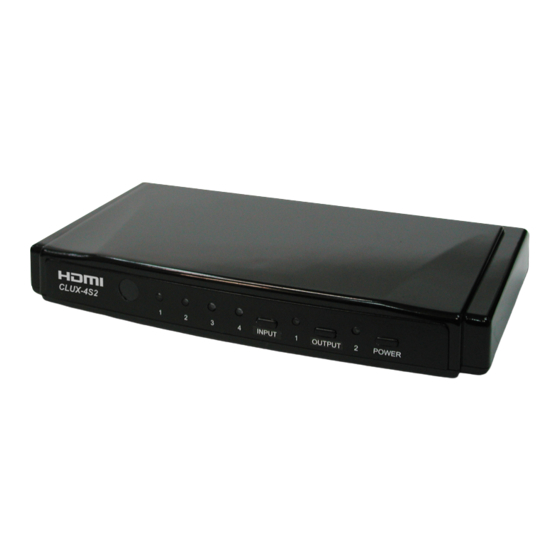

4x2 hdmi v1.3 switch

Advertisement

Quick Links

CLUX-4S2
4x2 HDMI v1.3
switch
Operation Manual
CLUX-4S2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLUX-4S2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP CLUX-4S2

  • Page 1 CLUX-4S2 4x2 HDMI v1.3 switch Operation Manual CLUX-4S2...
  • Page 3 TABLE OF CONTENTS 1. Introduction................. 1 2. Features..................1 3. Package Contents..............1 4. Hardware Description..............1 4.1 Front Panel................1 4.2 Rear Panel................2 5. Remote Control................2 6. Connection and Installation............3 7. Specifications................3...
  • Page 4: Package Contents

    4 x 2 HDMI v1.3 switch. 5V/1A DC power supply adaptor. Operation Manual. 4. Operation Controls and Functions 4.1. Front Panel CLUX-4S2 INPUT POWER OUTPUT 1 . Remote Control Sensor. 2 . HDMI input selection/Indicator: Press the "Input" button sequentially to switch to your desired input (HDMI 1 to HDMI 4), the LED will illuminate to indicate which input source is selected.
  • Page 5: Remote Control

    3 . HDMI output selection: Press the “Output” button to select your desired output port, the LED will illuminate to indicate which output port is selected (can’t support simultaneously output). 4 . POWER Switch/Indicator: Press the "POWER" button to turn on/off the power.
  • Page 6: Connection And Installation

    6. Connection and Installation DVD 1 DVD 2 DVD 3 LCD TV LCD TV 7. Specifications Input Ports 4 x HDMI Output Ports 2 x HDMI Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 206(W) x 111(D) x 32(H) Weight(g) Chassis Material Plastic...
  • Page 7 2008.4.3 MPM-CLUX4S2...
  • Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw...
