Sivoia
®
Installation and Operating Instructions

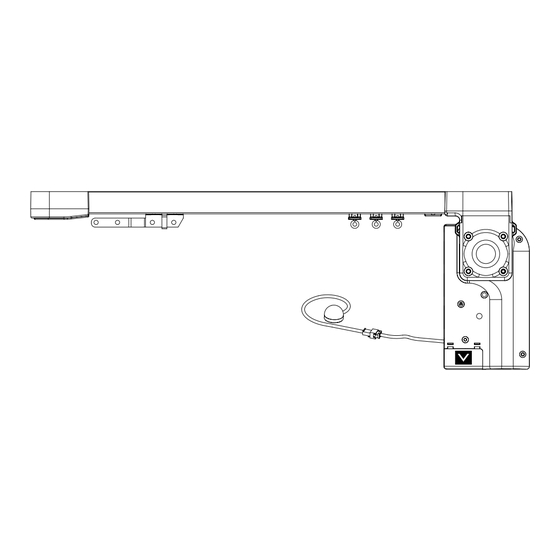

A Typical Sivoia Motorized Drapery System
(Wallstation Control, Transformer, SV-IR Infrared Receiver Module, and Infrared Handheld Transmitter not included)
SV-IR Infrared
Receiver
Module
Infrared
Handheld
Transmitter
Contents
Carton Contents
1
2
Tools Required
3
Mounting
4
Carrier Installation
5
Hanging Drapery Fabric
6
System Wiring
7
Configuring the MDU
8
Infrared Control
9
Troubleshooting
10
Warranty
Drapery
System
Transformer
Drapery Installation Kit
pg. 2, 3
pg. 3
pg. 4, 5
pg. 6, 7
pg. 8
pg. 9, 10
pg. 11, 12
pg. 13
pg. 14
pg. 15, 16
Wallstation
Control
1

Advertisement

loading

Related Manuals for Lutron Electronics SIVOIA

Summary of Contents for Lutron Electronics SIVOIA

  • Page 1 11, 12 Infrared Control pg. 13 Troubleshooting pg. 14 Warranty pg. 15, 16 A Typical Sivoia Motorized Drapery System (Wallstation Control, Transformer, SV-IR Infrared Receiver Module, and Infrared Handheld Transmitter not included) Drapery System Wallstation SV-IR Infrared Control Receiver...
  • Page 2 Sivoia Drapery ® Carton Contents O N E W AY D R A W S Y S T E M – R I G H T D R A W S H O W N O N E W AY D R A W S Y S T E M – L E F T D R A W S H O W N...
  • Page 3 Sivoia Drapery ® Carton Contents W A L L M O U N T B R A C K E T S O N E H O O K E Y E W I T H C A M L O C K...
  • Page 4 Sivoia Drapery ® Wall Mounting the Drapery Track Mount the drapery track to the wall using the wall mount “L” brackets. Mount the brackets using the spacing illustrated below. Mount each end bracket at a maximum dimension of between five (5) and six (6) inches from each end of the track.
  • Page 5 Sivoia Drapery ® Ceiling Mounting the Drapery Track T R A C K M O U N T I N G Mount the drapery track to the ceiling using ceiling mount cam locks. Mount the cam locks using the spacing guide- lines shown below.
  • Page 6 Sivoia Drapery ® Carrier Installation – Left and Right Draw Systems L O A D I N G T H E C A R R I E R S The drapery carriers are installed at the factory, however, the required number of carriers must be verified. Draperies require one carrier per hook.
  • Page 7 Sivoia Drapery ® Carrier Installation – Split Draw Systems S P L I T D R A W S Y S T E M S The motor side of the drapery track requires four less carriers than the total number of hooks on the drapery track.
  • Page 8 Sivoia Drapery ® Hanging Drapery Fabric D R A P E R Y H O O K S E T T I N G For the best system performance, a drapery hook setting of 1/2 in should be used. This allows the system to operate with minimal noise.
  • Page 9 1 2 3 4 5 6 7 8 4. Replace the terminal block and the terminal block cover. Control To a Sivoia wall mounted keypad, or a Sivoia interface such as the SV-CCI-GRP or the SV-GRXI. The CNTRL1 and CNTRL2 wires are polarity sensitive. Comm Link Do not connect if there is only one MDU in the system.
  • Page 10 Power Supply Power Supply Wire to a Sivoia plug-in transformer, junction box mount transformer, or a Sivoia power panel. Each MDU must be EARTH grounded. One Sivoia transformer can power ONLY ONE MDU regardless of system width. Wire Type Description...
  • Page 11 Sivoia Drapery ® Configuring the Motor Drive Unit (MDU) S I N G L E M D U The motor drive unit should come from the factory with open and close limits set. In order to change the factory limits, follow the steps below.
  • Page 12 Control Station Setting Table SPECIAL NOTES: What MDU Address Settings Which MDU’s in a System Will Determine which MDU in the There are two types of Sivoia keypads and Respond System Will Respond Setting interfaces, group and individual types. The...
  • Page 13 The SV-IR allows the MDU to be controlled directly with a Sivoia Infrared Handheld Transmitter (SV-OCIT, SV-3PIT, or SV-4GD-OCIT). The SV-IR receiver connects to the MDU via a 20 in (51cm) cable. This provides the SV-IR receiver ample mounting range to offset any infrared signal restriction caused by a protective/decorative covering for the shade system.

  • Page 14: Troubleshooting

    Sivoia Drapery ® Troubleshooting P R O B L E M S O L U T I O N The draperies will not open or close. 1. Check power to the motor unit by pressing the MODE button. If the LED display does not show oL check that: •...

  • Page 15: Limited Warranty

    Vimco warrants, for eight years from shipment, each to be due to normal wear and tear, or to abuse, new Sivoia Motorized Drapery System to be free from misuse, or accident, such as: defects in materials or workmanship under conditions of a.
  • Page 16 6,346,781; DES. 370,663; DES. 378,814; DES. 437,585; DES. 450,043; and DES 462,332. and corresponding foreign patents. U.S. and foreign patents pending. Lutron, the sunburst logo, and Sivoia are registered trademarks and “Shading Solutions by Vimco” is a registered trademark of Lutron Electronics Co., Inc. The VIMCO logo is a registered trademark of Virginia Iron &...
