Motorized Shade Systems
Installation & Operating Instructions
™

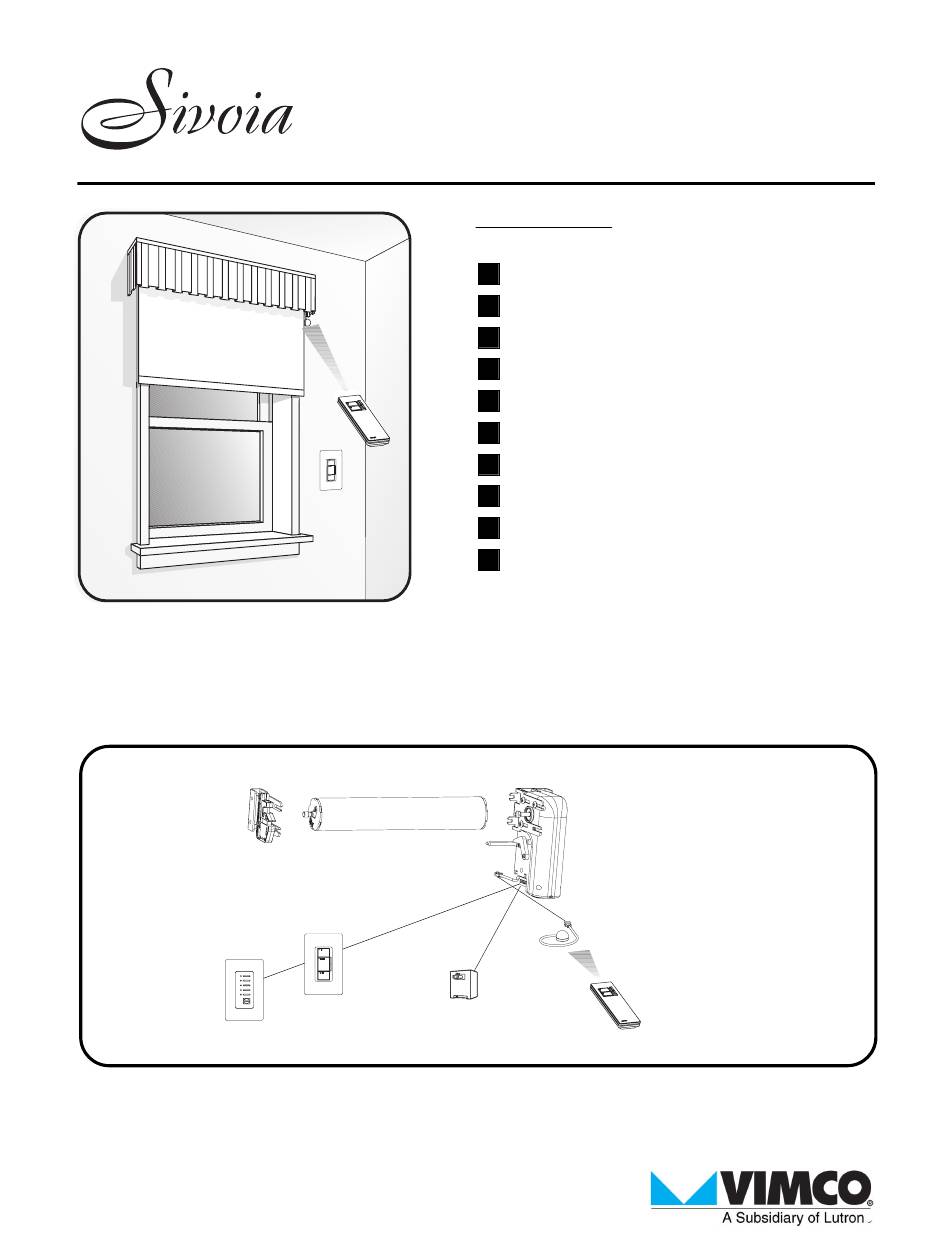

A Typical Sivoia
Motorized Shade System
(
Wallstation Controls, Transformer, SV-IR Infrared Receiver Module, and Infrared Remote Control not included with this Kit
Idler
Support
Wallstation Controls
Revised 5/14/01
TM
Fabric & Roller Assembly
Transformer
SV-MDU-20-KIT
Contents
System Dimensions Overview
1
2
Fasten Mounting Brackets
3
Attaching MDU and Idler Support
4
Hanging the Shade
5
Wiring the System
6
MDU Setup
7
Shade Controls
8
MDU w/ SV-IR Module
9
Troubleshooting
10
Part Specs
Motor Drive Unit (MDU)
SV-IR Infrared Receiver Module
Single Shade
Installation Kit
pg. 3
pg. 4,5
pg. 6
pg. 7
pg. 8,9
pg. 10,11
pg. 12
pg. 13
pg. 14
pg. 15
)
Infrared Handheld
Transmitter
4
Advertisement
Table of Contents
Related Manuals for Lutron Electronics VIMCO SIVOIA SV-MDU-20-KIT
Summary of Contents for Lutron Electronics VIMCO SIVOIA SV-MDU-20-KIT
- Page 1 SV-MDU-20-KIT Single Shade Motorized Shade Systems Installation Kit Installation & Operating Instructions Contents System Dimensions Overview pg. 3 Fasten Mounting Brackets pg. 4,5 Attaching MDU and Idler Support pg. 6 Hanging the Shade pg. 7 Wiring the System pg. 8,9 MDU Setup pg.
-
Page 2: Carton Contents
CARTON CONTENTS MDU & Idler Support Mounting Brackets Motor Drive Unit (MDU) (exploded view - ships assembled) 2” Pan-Head Mounting 1/2” Idler and MDU Bracket Screws (x8) Truss-head Screws (x8) Home Position Reset Lever SV-IR Module Connecting (A or B) Wire (SV-IR Module sold separately) Idler Support... - Page 3 SYSTEM DIMENSIONS OVERVIEW Use the following diagrams in conjunction with the Sivoia Order Invoice to accurately position the mounting brackets. Figure 1: Standard Mounting Bracket Application Bracket to Bracket Width (FW + 4” (102 mm) 1 1/4” 2 3/4” (32 mm) (70 mm) Fabric Width (FW) Figure 2: Ceiling-Mount Bracket Application...
- Page 4 FASTEN MOUNTING BRACKETS A. Position the bracket’s “teeth” for each bracket at the ends of the fabric width as shown. Use a level to ensure the brackets are at the same height and parallel to the window casing. Note: Fasten the top of the brackets 5”(127 mm) from the top of the window trim to ensure complete window exposure when the shades are in full up position.
- Page 5 FASTEN MOUNTING BRACKETS (CONT’D) For Ceiling-Mount Applications... Follow steps A & B from the previous page, then line up and fasten the brackets as shown. Note: Make sure the opening of the ceiling bracket faces outward towards the room. Bracket Top View Line up this bracket edge with the fabric edge...
- Page 6 ATTACH MDU and IDLER SUPPORT A. Attach the idler support to the mounting bracket using three (3) truss-head screws. B. Attach the MDU to the mounting bracket using three (3) truss-head screws. HANGING THE SHADE A. Unwrap approximately 1 ft. (0.3 m) of material and insert the edge of the material between the guide posts of the home position reset lever.
- Page 7 HANGING THE SHADE (CONT’D) E. Adjust the shade leveling screw to level the D. Tighten the idler's shade retaining screw to keep the shade roller. idler pin secure/ “locked”. Shade Retaining Screw “Locked” Shade Leveling Shade Retaining Screw Screw CAUTION! Not setting the shade retaining screw into the "locked"...
- Page 8 MDU WIRING - SINGLE MOTOR Connecting Wires to the MDU Terminal Block The terminal block located at the bottom of the MDU is the wire connection point for: power, communication, keypads, and interfaces. A. Remove terminal block cover (if not yet removed) by pressing in on the cover and then pulling downward.
- Page 9 MDU WIRING - WIRING MULTIPLE MOTORS TOGETHER A maximum of 64 MDU's can be wired together per system Comm Link Drain MDU Terminal Blocks 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 To a Sivoia wall To a Sivoia wall mounted keypad, or...
-
Page 10: Programming Table
MOTOR DRIVE UNIT (MDU) SETUP - SINGLE MDU Each Sivoia MDU must be setup when first plugged in. If there is only one MDU in the system, the home position, upper limit and lower limit are the only setups required. Follow the programming steps outlined in the programming table below. -
Page 11: Special Notes
MOTOR DRIVE UNIT (MDU) SETUP - MULTIPLE MDU's Multiple MDU Set-Up Codes Link Address: Each MDU must be set to a unique Link Address number to allow the MDU's to communicate on the communication link. There are 64 link addresses available, meaning the maximum number of MDU's in a single system is Room Address: The room address groups MDU's on the communication link. - Page 12 SHADE CONTROLS Split Button Open/Close Infrared Handheld Transmitter - SV - OCIT PRESS ONCE: PRESS: Shade goes to upper To raise shade limit PRESS ONCE: PRESS: Shade goes to lower To lower shade limit LUTRON Note: Pressing any button while shade is moving will stop the shade. Surface Mount Group Wall Keypad - SV-1PG-WH PRESS ONCE: Shade goes to upper...
- Page 13 MDU WITH SV-IR INFRARED RECEIVER MODULE ™ Sivoia system covered by decorative valence SV-IR Infrared Receiver Module The SV-IR allows the MDU to be controlled directly with a Sivoia Infrared Handheld Transmitter (SV-OCIT, SV-3PIT, or SV-4GD-OCIT). The SV-IR receiver connects to the MDU via a 20” (51 cm) cable. This provides the SV-IR receiver ample mounting range to offset any infrared signal restriction caused by a protective/decorative covering for the shade system.
-
Page 14: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION The shade will not go up or down. Check power to the motor unit by pressing the MODE but- ton. If the LED display does not show HP check that: • transformer is plugged into a live outlet. •... -
Page 15: Ceiling-Mount Bracket
PART SPECS Idler Mounting Bracket MDU Mounting Bracket Side View Top View Side View Top View 2.76” 2.40” 2.76” 2.40” (70 mm) (61 mm) (70 mm) (61 mm) 3.91” 3.91” (99 mm) (99 mm) 2.75” 1.25” (70 mm) (32 mm) Idler Support Ceiling-Mount Bracket Side View... -
Page 16: Limited Warranty
370,663; DES. 378,814; DES. 387,736 DES. 391,924; DES. 396,448; AND DES. 437,585; and corresponding foreign patents. U.S. and foreign patents pending. Lutron is a registered trademark of Lutron Electronics Co., Inc. The VIMCO logo is a registered trademark of Virginia Iron & Metal Company, Inc. Sivoia is a trademark of Lutron Electronics Co., Inc.
