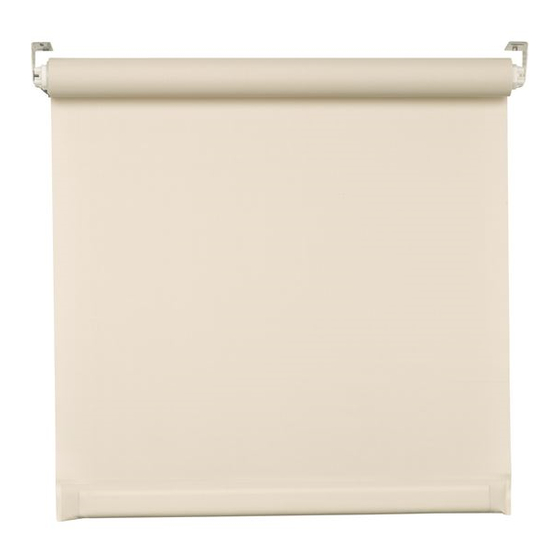

- Page 1 Sivoia QED ™ Roller 64 ™ Installation Instructions...
-
Page 2: Installation Instructions
Sivoia QED Roller 64 Installation Instructions Tools Required: Tape Measure 1/4” Hex-Head Driver Wire Cutter/Stripper Level Pliers Power Drill #2 Phillips Screwdriver Notes: 1) Complete wiring and programming information can be found in the Sivoia QED Wire and Programming Guide, P/N 045-038 or at www.lutron.com. 2) The Electronic Drive Unit (EDU) will need to be powered to complete installation. - Page 3 Warning: Incorrect installation can lead to severe injury, follow all installation instructions. Notes: • The Sivoia QED Roller 64 must be used only with window systems approved by Lutron. • There must be a clearance of at least 1.3 feet (0.4 meters) between the fully lowered system and any permanent object.
- Page 4 Confirm System Dimensions Package Label Compare system dimensions on the package label with the window dimensions to verify appropriate window/shade combination. System Height System Width System Width (Bracket to Bracket Width) SIVOIA QED Roller 64 Installation Instructions...
- Page 5 Position the Mounting Brackets Mark the location of the mounting brackets so that they are centered over the window. Note: Bracket to Bracket distance = Fabric Width + 1.5” (38 mm) = System Width. Note: For ceiling and jamb mount, allow clearance to prevent fabric from rubbing against trim, window, top treatment, etc.
-
Page 6: Install The Mounting Brackets
Install the Mounting Brackets Install the first mounting bracket. Install the second mounting bracket. Note: Put a screw in the center of each slot. Use slots as needed to ensure brackets are level and plumb as positioned. SIVOIA QED Roller 64 Installation Instructions... -
Page 7: Wall Mount
Pre-drill for Cable Run DANGER - Locate and lock breaker to the shade power supply in the OFF position or unplug the power plug-in transformer before doing any wiring. Wall Mount Choose one of the options below to drill for cable access. Note: Cable should exit from wall, ceiling, or jamb on EDU side of system. -
Page 8: Ceiling Mount
Pre-drill for Cable Run: (continued) Ceiling Mount Ceiling Mount with wires through: A) Wall: 1” in from end of system and .5” from ceiling B) Ceiling: 1” in from end of system and .5” from back of bracket C) Jamb: 1” from back of bracket and .5” from ceiling Ceiling Mount SIVOIA QED Roller 64 Installation Instructions... - Page 9 Pre-drill for Cable Run: (continued) Jamb Mount Jamb Mount with wires through: A) Wall: .5” from ceiling and .5” from outside of jamb B) Ceiling: .5” from wall and .5” from outside of jamb C) Jamb: .5” from ceiling and .5” from wall Jamb Mount SIVOIA QED Roller 64 Installation Instructions...
- Page 10 Wire 7-Pin Terminal Block Strip 2” of jacket off cable run from the wall. Wire 7-Pin terminal block (provided) to cable using the included screwdriver. Note: SVQ-CBL-250 shown. EGND (Yellow/Green) 24 VAC (Red) 24 VAC (Red/White) To EDU MUX (Purple) Connector MUX (Gray) +12 VDC (Blue)
- Page 11 Orient the Buttons and Wiring For the following bracket and button orientations, route the wires as shown. Note: The buttons should be accessible when the shade is installed Note: The wires may go in either or both of the indicated slots Buttons SIVOIA QED Roller 64 Installation Instructions...
- Page 12 Mount the Shade Install the idler side of the shade onto its bracket. Depress the spring loaded idler by pressing the shade towards the idler, and install the EDU side of the shade onto its bracket. SIVOIA QED Roller 64 Installation Instructions...
- Page 13 Adjust the Shade Ensure that the shade is level and centered. Adjust shade by removing the necessary screws and moving the brackets as needed, or installing bracket leveling spacers. Note: You may have to remove the shade to access the bracket screws. Reinstall and tighten the screws.
- Page 14 Connect Terminal Blocks Plug 7-pin terminal block on cable into EDU terminal block attached to shade bracket (a cable tie can be used to secure the terminal blocks together). Dress wires to ensure fabric does not rub while the shade is moving. SIVOIA QED Roller 64 Installation Instructions...
- Page 15 IR Receiver Connection (if applicable) 10.1 Plug in the IR receiver. 10.2 Position the IR receiver. Note: The IR receiver should be mounted such that it is in line-of-sight with the remote control and that it does not interfere with the shade. Note: Dress wires to ensure the fabric does not rub while the shade is moving.
- Page 16 Secure and Check the Shade 11.1 Tighten retaining screws in each bracket to secure the shade. SIVOIA QED Roller 64 Installation Instructions...
- Page 17 Secure and Check the Shade (continued) 11.2 Reconnect power to the shade power supply. Use the programming stylus to run the shade up and down using the adjustment buttons ( ), re-level if needed. Observe: Pay careful attention to the shade roll up to ensure that it does not telescope extremely to one side or the other.
- Page 18 Setting Limits from the EDU Setting the Open Limit from the EDU Note: Setting the Open Limit lower than the Close Limit will cause the shade to move down when raise is pressed and up when lower is pressed. 12.1 Tap the “Open Limit Button”...
- Page 19 Setting Limits from the EDU (continued) Setting the Close Limit from the EDU 12.4 Tap the “Close Limit Button” ( ). The green LED on the roller Shade EDU will turn on steady, indicating that the EDU is in “Set Close Limit Mode”. 12.5 Adjust the position of the EDU to the desired Close...
- Page 20 Finish System Programming The Sivoia QED shade is now installed, wired, and the OPEN/CLOSE limits for each shade have been set. The next step is to finish programming the system. Use the instructions in the Wiring and Programming Guide (p/n 045-038) or the Technical Reference Guide (p/n 367-592) and perform these four easy steps: 1.
-
Page 21: Troubleshooting
Troubleshooting Symptom Solution Shade will not move..EDU is not powered - check EDU Power..Shade is caught on something - free shade..Shade is not assigned to keypad, IR, or CCI. Shade does not fully open or fully close..Limits have been set incorrectly - refer to “set open limit”... - Page 22 Notes: _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ SIVOIA QED ™ Roller 64 Installation Instructions...
- Page 23 Notes: _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ SIVOIA QED ™ Roller 64 Installation Instructions...
-
Page 24: Technical Assistance
Lutron, the Sunburst logo, and Sivoia are intlshadinginfo@lutron.com Shanghai registered trademarks, and Sivoia QED is a TECHNICAL SUPPORT Tel: +86-21-6288-1473 & SERVICES trademark of Lutron Electronics Co., Inc. Fax: +86-21-6288-1751 USA +1-800-523-9466 – Singapore 24 hours/7 days Tel: +65-6220-4666 UK +44-(0)20-7702-0657 Fax: +65-6220-4333 09.00 - 18.00 GMT...
