Serena
Remote-Controlled Shades
®
Insulating Honeycomb Shades
Motorized shade with wireless radio frequency (RF) control.
Installation Guide—Please Read Before Installing
1
Prepare to Install
Important Notes
Please Read Before Installing
! WARNING: SHOCK HAZARD. Can cause serious injury or death. Read and follow all instructions.
! CAUTION: RISK OF FALLING OBJECTS. Securely install the shade system per the mounting instructions.
Failure to do so could result in minor or moderate injury.
1. Read, follow, and save these instructions.
2. When mounting the brackets, make sure you are screwing into wood studs if possible. If not, you must use
appropriate fasteners (not included) for the mounting surface.
3. Make sure the brackets are aligned with each other. If not, the shade may not properly snap into the brackets.
4. Install the shade on its brackets and ensure a clear path for its travel before installing batteries.
5. Keep all LTE devices (routers, mobile phones, etc.) at least 3 ft (1 m) away from shade.
Included Components
Shade
•
Mounting brackets
•
Mounting screws
•
Spacers, if applicable
•

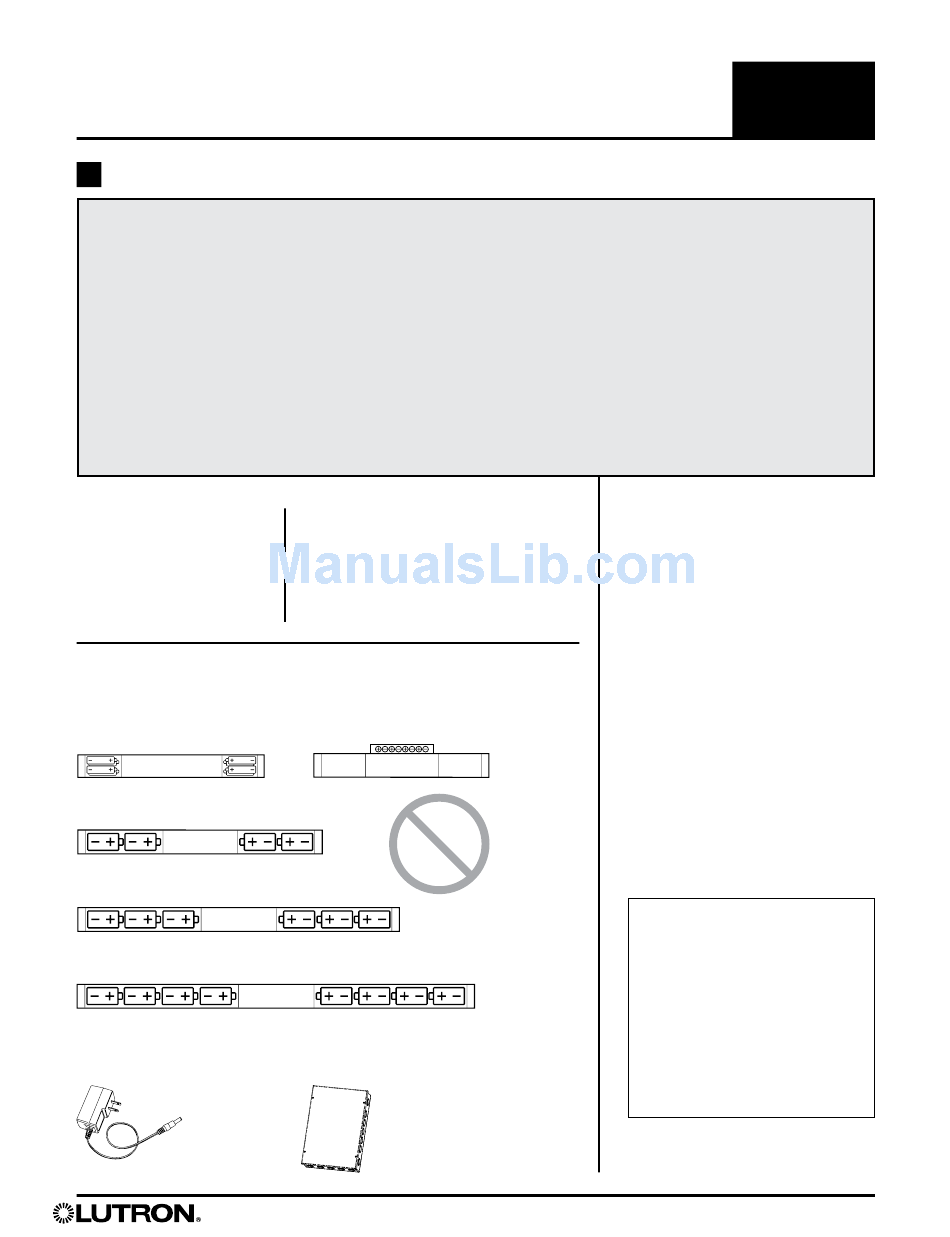

Power Source Options (sold separately)
Batteries (type and quantity vary with shade width):
•
Eight (8) AA, lithium
Four (4) D, alkaline
Six (6) D, alkaline
Eight (8) D, alkaline
Individual Power Supply:
•
CSPS-P1-1-6-WH
Required Tools
Pencil
•
Tape measure
•
Drill with 3/32" drill bit
•
#2 Phillips screwdriver
•
or
Rechargeable
batteries
10 Output Power Supply Panel:
•
CSPS-P1-10-6
CE Information
(For model numbers CS-EDU-YK-
BULK and CS-EDU-YQ-BULK)
Lutron Electronics hereby declares
that CS-EDU-YK-BULK and
CS-EDU-YQ-BULK are in compliance
with the essential requirements and
other relevant provisions of Directive
1999/5/EC. A copy of the DoC can
be obtained by writing to:
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036 U.S.A.
TRA Compliance Information
(For model number CS-EDU-YK-BULK)
Registered No: ER0096954/12
1
Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299, U.S.A.
English
TRA
Dealer No: 0016561/08
Printed in the U.S.A. 8/13 P/N 368-3194 Rev. B
Advertisement
Table of Contents
Related Manuals for Lutron Electronics Serena
Summary of Contents for Lutron Electronics Serena
- Page 1 Eight (8) D, alkaline Registered No: ER0096954/12 Dealer No: 0016561/08 Individual Power Supply: 10 Output Power Supply Panel: • • CSPS-P1-1-6-WH CSPS-P1-10-6 Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299, U.S.A. Printed in the U.S.A. 8/13 P/N 368-3194 Rev. B...
- Page 2 Ensure that the trim is level before placing the bracket flush against its edge Pre-drill a hole through the spacer. Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299, U.S.A. Printed in the U.S.A. 8/13 P/N 368-3194 Rev. B...
- Page 3 Shade width 72.125 in – 96 in (1832 mm – 2438 mm) Top view of shade 2 in 2 in (5 cm) (5 cm) 1/3 w 1/3 w 1/3 w Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299, U.S.A. Printed in the U.S.A. 8/13 P/N 368-3194 Rev. B...
-
Page 4: Mount Shade In Brackets
IMPORTANT: Be certain no fabric cells are caught in the brackets. bracket hook front edge end cap omitted for clarity Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299, U.S.A. Printed in the U.S.A. 8/13 P/N 368-3194 Rev. B... -
Page 5: Expose Top Of Headrail
Press and hold “Open” button for about 5 seconds, until the shade button blinks and turns off, indicating the upper limit is set. Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299, U.S.A. Printed in the U.S.A. 8/13 P/N 368-3194 Rev. B... -
Page 6: Restoring Factory Default
DO NOT have your shades dry cleaned. IMPORTANT: Be extra careful if you are cleaning a room darkening fabric because you could permanently crease the fabric. Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299, U.S.A. Printed in the U.S.A. 8/13 P/N 368-3194 Rev. B... -
Page 7: Troubleshooting
2) Reset the upper and lower limits. See sections 4.2: “Adjust Upper Limit” and 4.3: “Adjust Lower Limit” of the installation instructions. Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299, U.S.A. Printed in the U.S.A. 8/13 P/N 368-3194 Rev. B... - Page 8 7200 Suter Road Coopersburg, PA 18036-1299 USA TEL: 1.610.282.3800 FAX: 1.610.282.3090 Technical Support: 1.800.523.9466 Toll Free: 1.888.LUTRON1 EMAIL: shadinginfo@lutron.com WEB: www.lutron.com/shadingsolutions Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299, U.S.A. Printed in the U.S.A. 8/13 P/N 368-3194 Rev. B...
