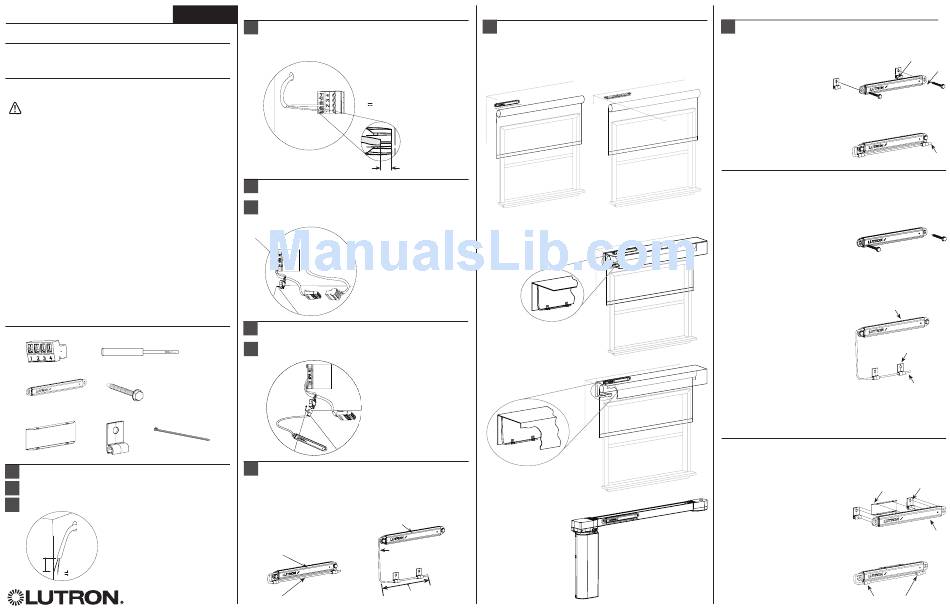

Lutron Electronics Sivoia QS Setup Manual

Sivoia QS Wireless
English
®
Basic Wiring and Setup Guide
Tools required:
Wire Cutter/Stripper
WARNING: Risk of electric shock. Lock MCB
(supply breaker) in the OFF position, or remove
fuse, before wiring to terminal block. Failure to do
so, could result in death or serious injury.
This Sivoia QS Basic Wiring and Setup Guide is a
•
complement to the Chassis Installation Guide enclosed
for the specific shade or drape type ordered. This guide
describes the basic wiring and setup requirements
for basic operation and to verify the shade or drape
is functioning.
Codes: Install in accordance with all local and national
•
electrical codes.
Environment: Ambient operating temperature:
•
32 °F to 104 °F (0 °C to 40 °C), 0 to 90% humidity,
non-condensing. Indoor use only.
Included items required for Basic Wiring and Setup:
(1) 4-pin terminal block (1) Screwdriver
(1) Wireless receiver (2) Wireless receiver mounting screws
(1) Wireless receiver mounting clip (2) Antenna clips (3) 4 in cable ties
1
Wire 4-pin terminal block
1.1
Strip 2 in (51 mm) of outer jacket off cable coming from the wall.
1.2
Strip 1/4 in (6 mm) insulation off each individual wire.
2 in
(51 mm)
1/4 in
(6 mm)
1.3
Wire 4-pin terminal block (provided) to cable using the included
screwdriver. Tighten screws securely on the exposed wire.
Leave 1/16 in (2 mm) of exposed copper to ensure insulation is
not pinched.
}
N/C
N/C
To EDU
24 V (Pin 2) (RED)
Connector
Common (Pin 1) (BLACK)
1/16 in
(2 mm)
2
Connect terminal blocks
2.1
Plug 4-pin terminal block on cable to the shade or drape drive
terminal block.
Roller 100
Drive shown
Note: Arrange
wires in a location
that prevents them
from interfering
with moving shade
or drape.
3
Connect wireless receiver
3.1
Plug in the wireless receiver to the shade or drape drive.
4
Mounting the wireless receiver
The receiver can be mounted with the antenna positioned adjacent to the
receiver as shown in Fig. A. It can also be positioned, as shown in Fig. B,
for use in a fascia or pocket installation. This ensures optimum range in
a fascia or pocket application, by allowing a section of the antenna to be
Receiver
located outside the enclosure.
Fig. A
Antenna
Receiver
Fig. B
Antenna section located
Antenna
outside the enclosure
4
Mounting the wireless receiver (continued)
The specific location of the receiver varies depending on the type of
installation. Refer to the appropriate figures for your application; Wall
Mount, Ceiling Mount , Fascia Mount, Pocket Mount or Drapery Track.
The receiver can either be mounted with the screws or the mounting
clip, which are both provided.
Fig. C Fig. D
Wall Mount Ceiling Mount
Fig. E
Fascia Mount
Fig. F
Pocket Mount
Fig. G
Drapery Mount
(Windows side view of
drapery track shown)
4
Mounting the wireless receiver (continued)
Choose one of the following four mounting options that is
appropriate for your application.
Antenna Clip
Option 1: Screw Mounting
the Receiver to the Wall
or Ceiling
Refer to Fig. C and
Fig. D for recommended
mounting locations.
1. Insert the screws through the
mounting holes in the receiver and
antenna clips and attach to the wall
or ceiling.
2. Snap the antenna into both
antenna clips.
Option 2: Screw Mounting
the Receiver in a Fascia or
Pocket enclosure
Refer to Fig. E
and Fig. F for recommended mounting
locations.
1. Insert the screws through the
receiver and into the top of the back
wall of the pocket or fascia enclosure.
Note: If the installation does not permit
the use of screws, refer to Option 3
(Clip mounting the Receiver).
2. Remove the paper liner from the
Receiver
self-adhesive strip on the antenna clips.
3. Attach the antenna clips in a location
that allows a section of the antenna to
be exposed at the bottom of the fascia
Antenna Clip
or pocket enclosure. The clips can also
be attached using a screw appropriate
for the mounting surface
Antenna
4. Insert the antenna into both antenna
clips.
Note: If top/back cover is not being
used with the fascia mount installation,
mount antenna clips to the wall below
the shade tube.
Option 3: Clip Mounting the
Receiver to a Wall, Ceiling
or Drapery Track
Refer to Fig.
C, Fig. D and Fig. G for recommended
mounting locations.
Receiver clip
1. Remove the adhesive liner from the
antenna mounting clip and attach to
the back of the wireless receiver.
2. Snap the receiver into the
receiver clip.
3. Remove the adhesive liner on the
receiver clip and attach to the wall,
ceiling or drapery track.
4. Snap the antenna into both
Antenna Clips
antenna clips.
Receiver
Antenna
Antenna clip
Receiver
