Lutron Electronics Sivoia QED Installation Instructions Manual

Jamb mount roller blind
Hide thumbs Also See for Sivoia QED:

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual
N N o o t t e e : : I I f f i i n n s s t t a a l l l l i i n n g g a a c c o o u u p p l l e e d d s s y y s s t t e e m m , ,
u u s s e e I I n n - - L L i i n n e e C C o o u u p p l l e e d d R R o o l l l l e e r r
B B l l i i n n d d A A d d d d e e n n d d u u m m a a s s t t h h e e
p p r r i i m m a a r r y y i i n n s s t t a a l l l l a a t t i i o o n n g g u u i i d d e e . .

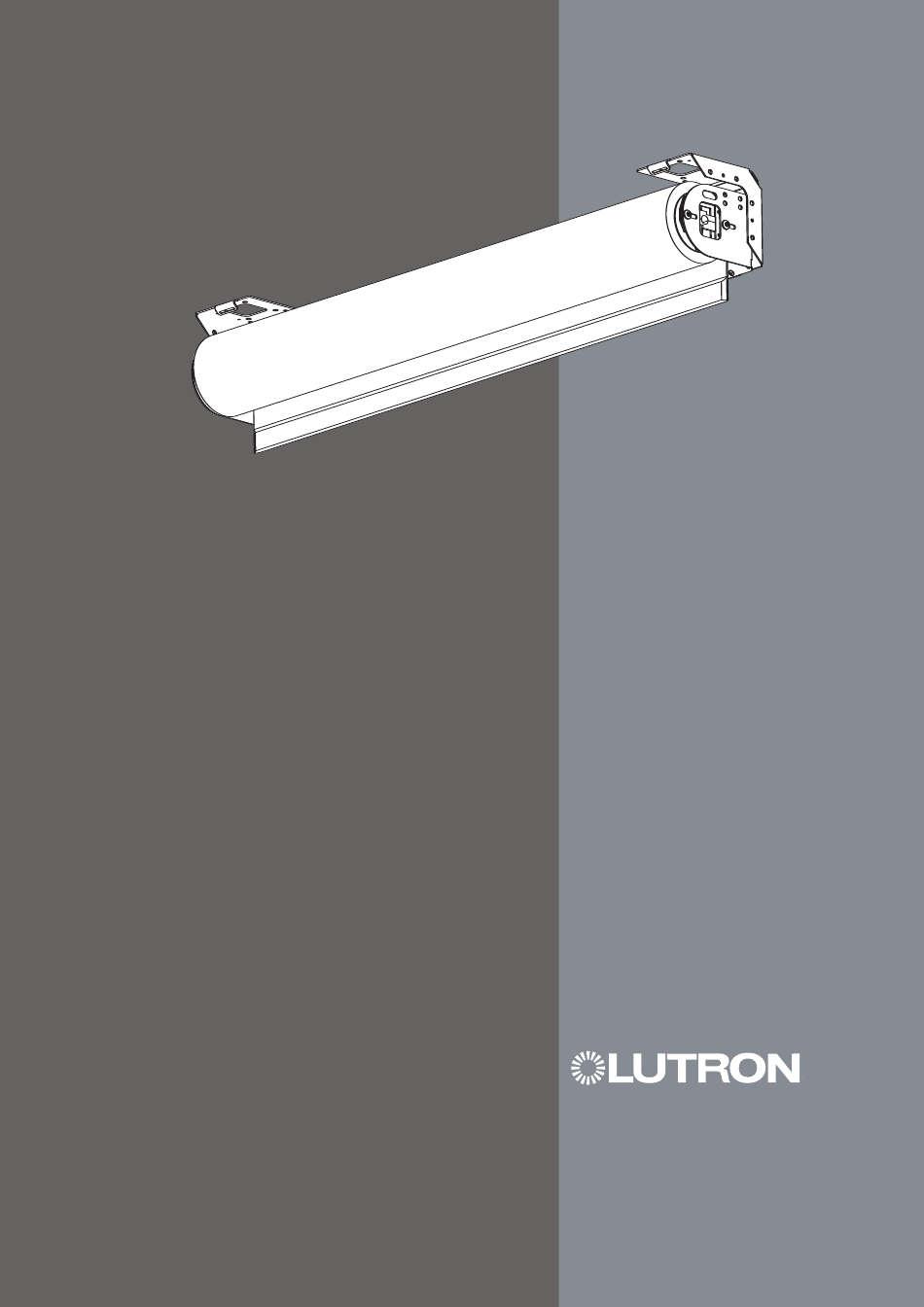

Sivoia QED
Installation
Instructions
SCALE
1:1
Jamb Mount
Roller Blind
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sivoia QED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lutron Electronics Sivoia QED

Summary of Contents for Lutron Electronics Sivoia QED

  • Page 1 Sivoia QED ® Installation Instructions SCALE Jamb Mount Roller Blind N N o o t t e e : : I I f f i i n n s s t t a a l l l l i i n n g g a a c c o o u u p p l l e e d d s s y y s s t t e e m m , ,...

  • Page 2: Installation Instructions

    1) For In-Line Coupled Blind Systems, begin with Sivoia QED In-Line Coupled Roller Blind Addendum, P/N 045-105-12. The Addendum will indicate when to use this document. 2) Complete wiring and programming information can be found in the Sivoia QED Wire and Programming Guide, P/N 045-038-12 or at www.lutron.com.
  • Page 3 Match Blind to Window Match Blind to Window Package Label Confirm system dimensions on package label and window dimensions to verify appropriate window/blind combination. System Height System Width System Width SIVOIA QED Jamb Mount Installation Instructions ®...
  • Page 4 32-57 mm (1 1/4 - 2 1/4 ) from end of the system. Jamb Drill for cable 51 mm (2 ) from top of the system and 51 mm (2 ) from end of the system. SIVOIA QED Jamb Mount Installation Instructions ®...
  • Page 5 Note: If sub-bracket position is not flush to jamb as shown to the left, sub-bracket can be mounted to ceiling or rear wall using appropriate fasteners. SIVOIA QED Jamb Mount Installation Instructions ®...
  • Page 6 Wire 7-Pin terminal block (provided) to cable. Note: SVQ-CBL-250 Pre-wire via ceiling shown. shown EGND (Yellow/Green) 24 V~ (Red) 24 V~ (Red/White) To EDU MUX (Purple) Connector MUX (Gray) 12 V (Blue) Common (Yellow) SIVOIA QED Jamb Mount Installation Instructions ®...
  • Page 7 Swing blind down until bottoms of blind brackets rest against sub-brackets. Route cable wires from wall, ceiling or jamb between the blind bracket and the sub-bracket being careful not to pinch wire. SIVOIA QED Jamb Mount Installation Instructions ®...
  • Page 8 Screws should be tightened down all the way. WARNING: After installing retaining screws, gently push up and pull down on the roller blind to ensure a secure installation. SIVOIA QED Jamb Mount Installation Instructions ®...
  • Page 9 Adjust blind projection from window so that it clears any window trim or hardware when operating. Confirm roller tube turns freely without rubbing on anything. SIVOIA QED Jamb Mount Installation Instructions ®...
  • Page 10 Use 102 mm (4 in.) Cable Ties to dress wires to prevent them from rubbing against blind fabric. Note: If installing a coupled blind system, go to Section 3 of the In-Line Coupled Roller Blind Addendum. SIVOIA QED Jamb Mount Installation Instructions ®...
  • Page 11 Plug in EDU IR connector to remote eye connector (SV-IR). Position IR eye where it is not covered from view of remote control. Ensure IR connector does not rub on blind. EDU IR connector SV-IR connector SIVOIA QED Jamb Mount Installation Instructions ®...
  • Page 12 EDU is in “Set Open Limit Mode”. Steady LED 10.2 Adjust the position of the EDU to the desired Open Limit using the adjustment buttons ( Use the Adjustment buttons to move the EDU position. SIVOIA QED Jamb Mount Installation Instructions ®...
  • Page 13 Close Limit Button. 10.4 Press and release the “Close Limit Button” ( the LED on the roller Blind EDU will turn on steady, indicating that the EDU is in “Set Close Limit Mode”. Steady LED SIVOIA QED Jamb Mount Installation Instructions ®...
  • Page 14 ) for 5 seconds. The LED on the roller blind EDU will flash for 2 seconds, then go dark, indicating that the current position has been stored as the Close Limit. Flashing LED SIVOIA QED Jamb Mount Installation Instructions ®...
  • Page 15 Finish System Programming The Sivoia QED blind is now installed, wired, and the OPEN/CLOSE limits for each blind have been set. The next step is to finish programming the system. Use the instructions in the Wiring and Programming Guide (p/n 045-038-12) or the Technical Reference Guide (p/n 367-592-12) and perform these four easy steps: 1.

  • Page 16: Troubleshooting

    ...Out of range - move to within 12 m (40 ft) of IR receiver..EDUs not assigned to IR receiver..IR receiver not plugged into any EDU within range..Batteries are not providing power, replace them..IR receiver not properly oriented. SIVOIA QED Jamb Mount Installation Instructions ®...
  • Page 17 US patents: 5,671,387; 6,100,659 and corresponding foreign patents. US and foreign patents pending. Lutron, the Sunburst logo, Sivoia, and Sivoia QED are registered trademarks. ©2007 Lutron Electronics Co., Inc. Printed in the U.S.A. P/N 045-104-12 Rev. A...
