Summary of Contents for Advantech PCIe-1674

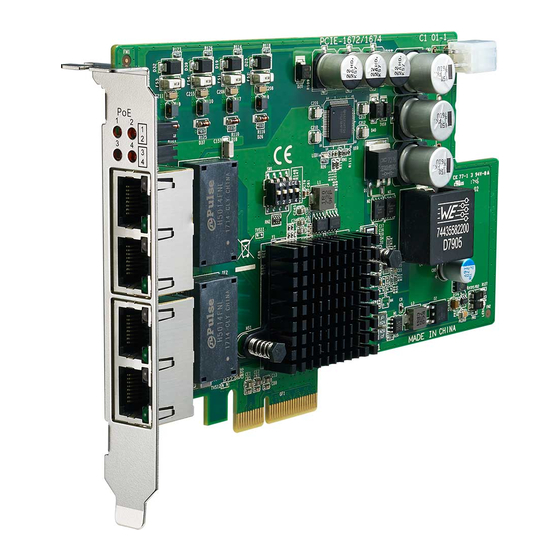

- Page 1 User Manual 4-port GbE, PCIe Card Industrial GbE Network Card...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
-
Page 3: Declaration Of Conformity
Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. - Page 4 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance.
- Page 5 Unpacking Checklist .................. 3 Chapter Hardware Configuration ..... 5 Initial Inspection ..................6 Hardware View ..................7 Figure 2.1 PCIe-1674 Board Layout ..........7 Card Installation ..................8 Chapter Driver Setup and Installation ....9 Introduction ....................10 Driver Setup ..................... 10 3.2.1...
- Page 6 PCIe-GbE_PoE User Manual...
-
Page 7: Chapter 1 Introduction
Chapter Introduction This chapter provides detailed specifications for the PCI Express GbE cards. Sections include: Description Features Specifications Ordering Information Selection Guide... -
Page 8: Description
Description Advantech PCIe-1672/PCIe-1674 is a PCI Express by 2 or 4 lane and jumbo frame support for independent Gigabit Ethernet ports. Advantech GbE card levrages the "Plug and Play" capability defined in the PCI Express bus specification. The board requires one PCI Express by 2 or 4 slot within the personal computer and provides independent Gigabit Ethernet Ports via Intel i350 series Gigabit Ethernet controllers. -
Page 9: Specifications
Specifications Ethernet Port – 2 or 4 Gigabit Ethernet Media Access Control (MAC) and physical layer (PHY) ports. – Standard IEEE 802.3 Ethernet interface provided for 1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab, 802.3x) – 9014 bytes jumbo frame support ... - Page 10 GbE Port PCIe Card User Manual...
-
Page 11: Chapter 2 Hardware Configuration
Chapter Hardware Configuration This chapter provides information on the hardware configuration of PCI Express GbE cards. Sections include: Initial Inspection Jumper and Switch Locations Jumper Settings Card Installation... -
Page 12: Initial Inspection
Initial Inspection You should find the following items inside the shipping package: PCIe-1672L or PCIe-1674L unit We carefully inspected the PCI Express GbE card series mechanically and electrically before we shipped it. It should be free of marks and scratches and in perfect working order on receipt. -
Page 13: Hardware View
Hardware View Figure 2.1 PCIe-1674 Board Layout GbE Port PCIe Card User Manual... -
Page 14: Card Installation
Card Installation Note! We strongly recommend that you install the software driver before you install the hardware into your system, since this will guarantee a smooth and trouble-free installation process. Turn off your PC's power supply whenever you install or remove the PCI Express GbE card or its cables. -
Page 15: Chapter 3 Driver Setup And Installation
Chapter Driver Setup and Installation This chapter describes the driver installation, configuration and removal procedures for the Windows operating system, including Windows XP/Vista/7. Sections include: Introduction Driver Setup... -
Page 16: Introduction
Please follow the steps below for the PCI Express GbE card’s Windows 32-bit/ 64- bit driver installation. Visit the Advantech website, search for PCIE-1674, click the Manual/ Driver/ BIOS/ FAQ icon and download the Driver. Unzip the Driver, execute the Autorun.exe. -
Page 17: Jumbo Frame
Open the Device Manager of Computer Management and click the right but- ton of “Advantech PCI Express GbE adapter” and select Property. Click Configure button and a property dialog appears. Click on the Advanced tab. - Page 18 Select the Jumbo Packet settings, and select the expected jumbo frame size. (for connecting a Ethernet device with high data rate, 9014 Bytes is suggested) GbE Port PCIe Card User Manual...
-
Page 19: Receive Buffer
3.3.2 Receive Buffer Receive buffer is another option which can affect data throughput. It determines the size of memory buffer allocated for receiving data. Increasing size of receive buffer can improve the performance of receiving data. The default settings of receive buffer is 256 bytes. -
Page 20: Transmit Buffers
3.3.3 Transmit Buffers Like receive buffer, transmit buffer can affect the performance of transmitting data. The default settings of receive buffer is 256 bytes. If you encounter a performance issue while transmitting data, you can adjust the size of transmit buffer to a larger value (maximal 2048 bytes) for better performance. -
Page 21: Remove Pci Express Gbe Device And Driver
Access Control Panel (Add/Remove Programs) to bring up the Change or Remove Programs window. Select the “Intel® network Connections 17.1.55.0" tab and click “Change/ Remove” button, then it will start to remove the driver for Advantech PCI Express GbE adapters. GbE Port PCIe Card User Manual... - Page 22 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2015...
