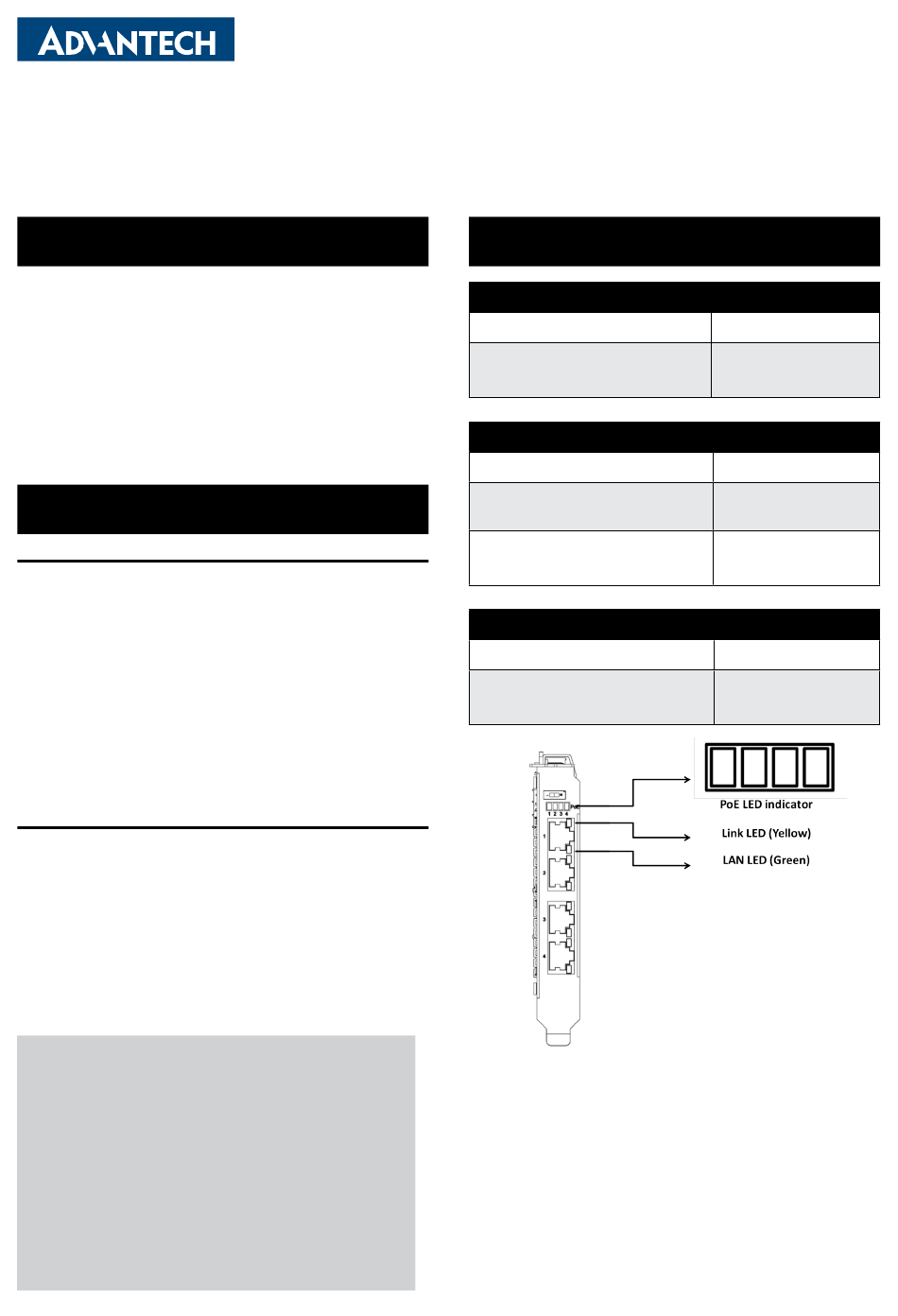

Advantech PCIE-1672E-BE Startup Manual

PCIE-1674/72E-BE 4/2 ports PCI Express PoE+ GigE
Vision Frame Grabber
Startup Manual
Packing List
Before you begin installing your card, please make sure
that switch PoE off if you are not connect to PoE device and
check the following items have been shipped:
1. PCIE-1674/72E-BE ports PCI Express PoE+ GigE Vi-
sion Frame Grabber
2. 170304015K Power cable
3. Startup manual
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Specifications
General
• Chipset:
Intel I350 1G Ethernet Controller
Compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3ab,
IEEE802.3x, IEEE802.3af, IEEE802.3at
* Windows 10 & 11 already build in the driver for the
Ethernet controller
• Interface: PCIE Gen 2 x 4
• Data Transfer Rate: 1,000 Mbps
• Protection:
ESD: 8KV(Air), 6KV(Contact)
EFT: 2KV
Surge protection: 1KV
Mechanical and Environmental
• Dimensions (L x W): 165 x 110 mm (5.8" x 3.9")
• Power Requirements:
12 VDC direct from PCIe slot, or with optional 12 V
AT/ATX power jack input
54 VDC PoE+ power output IEEE802.3af support, total
power budge 60W with maximum 25.4W per port and
protect by recoverable eFuse.
* The efuse will recover and card will back to functional
once disconnect the overload defect PoE device
• Net Weight: 256 g
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
https://www.advantech.com/en/contact/service-
request-form?subject=technical%2bsupport
This manual is for the PCIE-1674/72E-BE.
Part No. 2042167400
Printed in China
Connectors
Main Board Connectors
Ports
RJ Port 1~4 (PICE-1674E-BE)
RJ Port 1~2 (PCIE-1672E-BE)
LED indicators of RJ 45 (Lan) connector
LEDs
Lan LED (In the left of RJ45
connector)
Link LED (In the right of RJ45
connector)
Bracket LED indicators
LEDs
POE 1~4 (PCIE-1674E-BE)
POE 1~2 (PCIE-1674E-BE)
DC
1st Edition
August 2023
Function
1 GigE ports 1~4
1 GigE ports 1~2
Description
Green: Ethernet con-
nected
Green: 1G
Yellow: 100 Mbps
Description
on : PoE power on
off : PoE power off
Figure 1: Bracket LED Indicators
PCIE-1674/72E-BE Startup Manual 1
