Summary of Contents for Advantech PCIE-1756

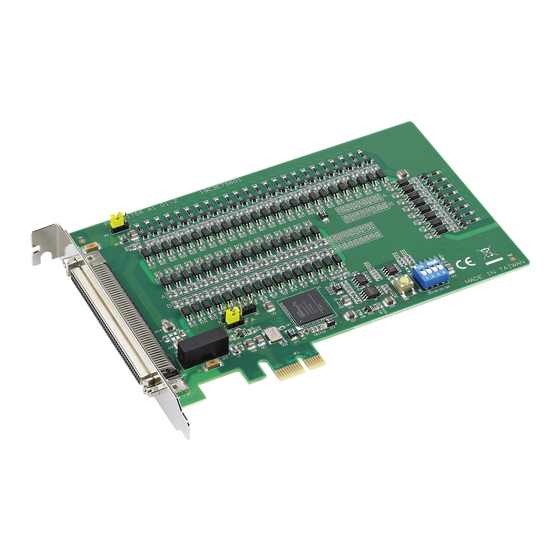

- Page 1 PCIE-1756 64-ch Isolated Digital I/O PCI Express Card User Manual...
- Page 2 No part of this man- ual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reli- able.
- Page 3 Product Warranty (2 years) Advantech warrants to you, the original purchaser, that each of its prod- ucts will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products which have been repaired or...
- Page 4 This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.
- Page 5 Before setting up the system, check that the items listed below are included and in good condition. If any item does not accord with the table, please contact your dealer immediately. • PCIE-1756 DA&C Card • StartUp or User Manual • Companion DVD-ROM with DAQNavi drivers included...
- Page 6 PCIE-1756 User Manual...
-
Page 7: Table Of Contents
Figure 2.2:DAQNavi Installation Setup Screen ..14 Hardware Installation ............15 Device Setup & Configuration ........16 Figure 2.3:The Device Setting of PCIE-1756 ....16 Figure 2.4:The Digital I/O Setting Page ...... 17 Figure 2.5:The Device Testing of PCIE-1756 ..... 18 Chapter 3 Signal Connections ........ - Page 8 Isolated Digital Input............30 Isolated Digital Output ............ 30 General ................31 Appendix B Block Diagrams ..........34 Appendix C ADAM-3951 Pin Assignment ....... 36 Figure C.1:Connect to PCL-10250 CON1 ....36 Figure C.2:Connect to PCL-10250 CON2 ....37 PCIE-1756 User Manual viii...
- Page 9 Introduction This chapter introduces the PCIE-1756 cards and their typical applications. Sections include: • Features • Applications • Installation Guide • Software Overview • Device Driver Roadmap • Accessories...
-
Page 10: Chapter 1 Introduction
Chapter 1 Introduction Thank you for buying the Advantech PCIE-1756 which is a 32/32-ch isolated digital input/output card. It is an advanced-performance data acquisition card based on 32-bit PCI Express bus architecture. It features a unique circuit design and complete functions for data acquisition and control. - Page 11 Wide Input Range The PCIE-1756 has a wide range of input voltage from 10 to 30 V , and it is suitable for most industrial applications with 12 V and 24 V input voltage. In the mean time, we are also ready to serve your special needs for specific input voltage range.
- Page 12 Note: For detailed specifications of the PCIE-1756, please refer to Appendix A. PCIE-1756 User Manual...
-
Page 13: Applications
• BCD interfacing • Digital I/O control • Industrial and lab automation 1.3 Installation Guide Before you install your PCIE-1756 card, please make sure you have the following necessary components: PCIE-1756 DA&C Card PCIE-1756 StartUp or User Manual Driver Software Advantech DAQNavi software (included in DVD-... -
Page 14: Figure 1.1:Installation Flow Chart
Figure 1.1: Installation Flow Chart PCIE-1756 User Manual... -
Page 15: Software Overview
1.4 Software Overview Advantech offers a rich set of DLL drivers, third-party driver support and application software to help fully exploit the functions of your PCIE-1756 card: • DAQNavi software (on the companion DVD-ROM) • LabView driver • Advantech DAQ tools Programming choices for DA&C cards... -
Page 16: Daqnavi Device Driver Programming Roadmap
• Borland Delphi For instructions on how to begin programming works in each develop- ment tool, Advantech offers Tutorial Chapter in the DAQNavi SDK Man- ual for your reference. Please refer to the corresponding sections in this chapter on the DAQNavi SDK Manual to begin your programming efforts. -
Page 17: Accessories
PCIE-1756 card. These accessories include: Wiring Cables PCL-10250 The PCL-10250 is a 100-pin SCSI to two 50-pin SCSI shielded cable that specially designed for PCIE-1756 card. It should be used with ADAM-3951 wiring board. PCL-101100M The PCL-101100M cable is a 100pin SCSI shielded cable. - Page 18 PCIE-1756 User Manual...
- Page 19 Installation This chapter provides a packaged item checklist, proper instructions for unpacking and step-by-step procedures for both driver and card installation. Sections include: • Unpacking • Driver Installation • Hardware Installation • Device Setup & Configuration...
-
Page 20: Chapter 2 Installation
Chapter 2 Installation 2.1 Unpacking After receiving your PCIE-1756 package, please inspect its contents first. The package should contain the following items: • PCIE-1756 DA&C Card • StartUp or User Manual • Companion DVD-ROM with DAQNavi drivers included. The PCIE-1756cards harbor certain electronic components vulnerable to electrostatic discharge (ESD). -
Page 21: Driver Installation
2.2 Driver Installation We recommend you install the driver before you install the PCIE-1756 card into your system, since this will guarantee a smooth installation pro- cess. The Advantech DAQNavi Device Drivers Setup program for the PCIE- 1756 card is included in the companion DVD-ROM that is shipped with your DA&C card package. -
Page 22: Figure 2.2:Daqnavi Installation Setup Screen
Select the PCIE series and the specific device then follow the installation instructions step by step to complete your device driver installation and setup. Back and select the DAQNavi SDK to install the Advantech Navi- gator. Figure 2.2: DAQNavi Installation Setup Screen... -
Page 23: Hardware Installation
Installation) After the Device Drivers installation is completed you can install the PCIE-1756 card into any PCI Express slot on your computer. However, it is suggested that you refer to the computer’s user manual or related docu- mentation if you have any doubts. Please follow the steps below to install the card onto your system. -
Page 24: Device Setup & Configuration
2.4 Device Setup & Configuration The Advantech Navigator program is a utility that allows you to setup, configure and test your device, and later stores your settings on the sys- tem registry. These settings will be used when you call the APIs of DAQNavi device drivers. -
Page 25: Figure 2.4:The Digital I/O Setting
Please go to the Digital Input/Output page to configure your device. Here you can set the DI interrupt trigger edge, enable/disable the Channel-Freeze function and also the DO ports initial status of PCIE-1756. Figure 2.4: The Digital I/O Setting Page Chapter 2... -
Page 26: Figure 2.5:The Device Testing Of Pcie-1756
Device Test page to test your hardware by using the testing util- ity supplied. Figure 2.5: The Device Testing of PCIE-1756 For more detailed information, please refer to the DAQNavi SDK Manual or the User Interface Manual in the Advantech Navigator. PCIE-1756 User Manual... -
Page 27: Signal Connections
Signal Connections This chapter provides useful informa- tion about how to connect input and output signals to the PCIE-1756 cards via the I/O connector. Sections include: • Overview • Switch and Jumper Settings • Signal Connections • Field Wiring Considerations... -
Page 28: Chapter 3 Signal Connections
PCIE- 1756 cards via the I/O connector. 3.2 Switch and Jumper Settings Please refer to Figure 3.1 for jumper and switch locations on PCIE-1756. Figure 3.1: Connector and Switch Locations PCIE-1756 User Manual... -
Page 29: Board Id (Sw1)
3.2.1 Board ID (SW1) The PCIE-1756 have a built-in DIP switch (SW1), which is used to define each card’s board ID. When there are multiple cards on the same chassis, this board ID switch is useful for identifying each card’s device number. -
Page 30: Power On Configuration(Jp1)
Default configuration (Default setting) 3.2.3 Channel-Freeze Function (JP2) The PCIE-1756 provides the channel-freeze function for isolated digital output channels. When Channel-Freeze function is enabled, all ports on the card will be locked so that the data transmitted (from the host PC) to the card won’t be transferred to the DO ports. -
Page 31: Signal Connections
3.3 Signal Connections Pin Assignment The I/O connector on the PCIE-1756 is a 100-pin connector that enable you to connect to accessories with the PCL-10250 or PCL-101100M shielded cable. Figure 3.2 shows the pin assignments for the 100-pin I/O connector on the PCIE-1756, and Table 3.4 shows its I/O connector signal description. -
Page 32: I/O Connector Pin Definition
*Note: The PCL-10250 shielded cable is especially designed for the PCIE-1756 to reduce noise in the signal lines. Please refer to Appendix C for the pin assignment of connecting PCL-10250 and ADAM-3951. 3.3.1 I/O Connector Pin Definition Table 3.4: I/O Connector Signal Descriptions... -
Page 33: Isolated Digital Input
3.3.2 Isolated Digital Input Each of isolated digital input channels accepts bi-directional 10 ~ 30 V voltage inputs. Meaning that you can apply positive or negative voltage to an isolated input pin (V ). Every 16 input channels share one common pin. -
Page 34: Isolated Digital Output
) is applied to an isolated output channel, the current will flow from the external voltage source to the card. Please note that the current through each IDO channel should not exceed 500 mA. Figure 3.4: Isolated Digital Output Connection PCIE-1756 User Manual... -
Page 35: Channel-Freeze Function
3.3.4 Channel-Freeze Function The PCIE-1756 provides a digital input channel (CH_FRZ_IN) to enable the channel-freeze function. The channel-freeze function acts when the pin CH_FRZ_IN is activated. Moreover, you can setup the input mode of channel-freeze function input channel CH_FRZ_IN as dry contact input mode or wet contact input mode selected by on-board jumper JP2. -
Page 36: Field Wiring Considerations
3.4 Field Wiring Considerations When you use PCIE-1756 cards to acquire data from outside, noises in the environment might significantly affect the accuracy of your measure- ments if due cautions are not taken. The following measures will be help- ful to reduce possible interference running signal wires between signal sources and the PCIE-1756 card. - Page 37 Specifications...
-
Page 38: Appendix A Specifications
ESD Protection 2,000 V Opto-Isolator Response 50 µs A.2 Isolated Digital Output Output Channels Output Type Sink (NPN) Isolation Protection 2,500 V Output Voltage 5 ~ 40 V Sink Current 500 mA max./channel Opto-isolator Response 50 µs PCIE-1756 User Manual... -
Page 39: General
A.3 General Bus Type PCI Express V1.0 I/O Connectors 1 x 100-pin SCSI female connector Dimensions (L x H) 175 x 100mm (6.9" x 3.9") Typical: 3.3 V @ 385 mA Power Consumption Max.: 3.3 V @ 430 mA; 12V @ 55 mA Operating Temperature 0 ~ 60°C (32 ~ 140°F) Storage Temperature... - Page 40 PCIE-1756 User Manual...
- Page 41 Block Diagrams...
-
Page 42: Appendix B Block Diagrams
Appendix B Block Diagrams PCIE-1756 User Manual... - Page 43 ADAM-3951 Pin Assignment...
-
Page 44: Appendix C Adam-3951 Pin Assignment
Appendix C ADAM-3951 Pin Assignment Please refer to Figure C.1 and Figure C.2 for the pin assignments if you select Advantech ADAM-3951 as your wiring board for connecting to PCL-10250 and PCIE-1756. Figure C.1: Connect to PCL-10250 CON1 PCIE-1756User Manual... -
Page 45: Figure C.2:Connect To Pcl-10250 Con2
Figure C.2: Connect to PCL-10250 CON2 Appendix C... - Page 46 PCIE-1756User Manual...
