PCIE-1158 8-port PCI Express USB Vision Frame Grabber
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 x PCIE-1158 8-port PCIe USB Vision Frame Grabber
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Specifications
General
• Chipset:
- 4 Renesas μPD720202 USB3.0 host controller
- Compliant with USB 3.0 Specification Revision 1.0
- Compliant with Intel
xHCI Specification Revision 1.0
®
• Interface: PCIe 2.0 4x
• Data Transfer Rate:
- SuperSpeed
- High Speed
- Full Speed
- Low Speed
• Current Protection: 900 mA per-port current limit
Note:
For better compatibility, please change the
PCIe settings to Gen 2.0 on device card slot.
Mechanical and Environmental
• Dimensions (L x W): 153 x 106 mm
• Power Requirements: Slot: PCIe 2.0 standard
• Net Weight:300 g
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/default.
aspx
This manual is for the PCIE-1158 Series Rev. A1
Part No. 2041115800
Printed in China
Connectors
Main Board Connectors
Label
USB1~USB8
Connector1
AT/ATX 12V DC Input 4-pin Power Connector
Pin
Pin 1
Pin 2
Pin 3
Pin 4
Switch (Reserved)
1st Edition
October 2021
Function
USB3.0 Ports 1~8
AT/ATX 12V
nector
Function
GND
GND
+12V
+12V

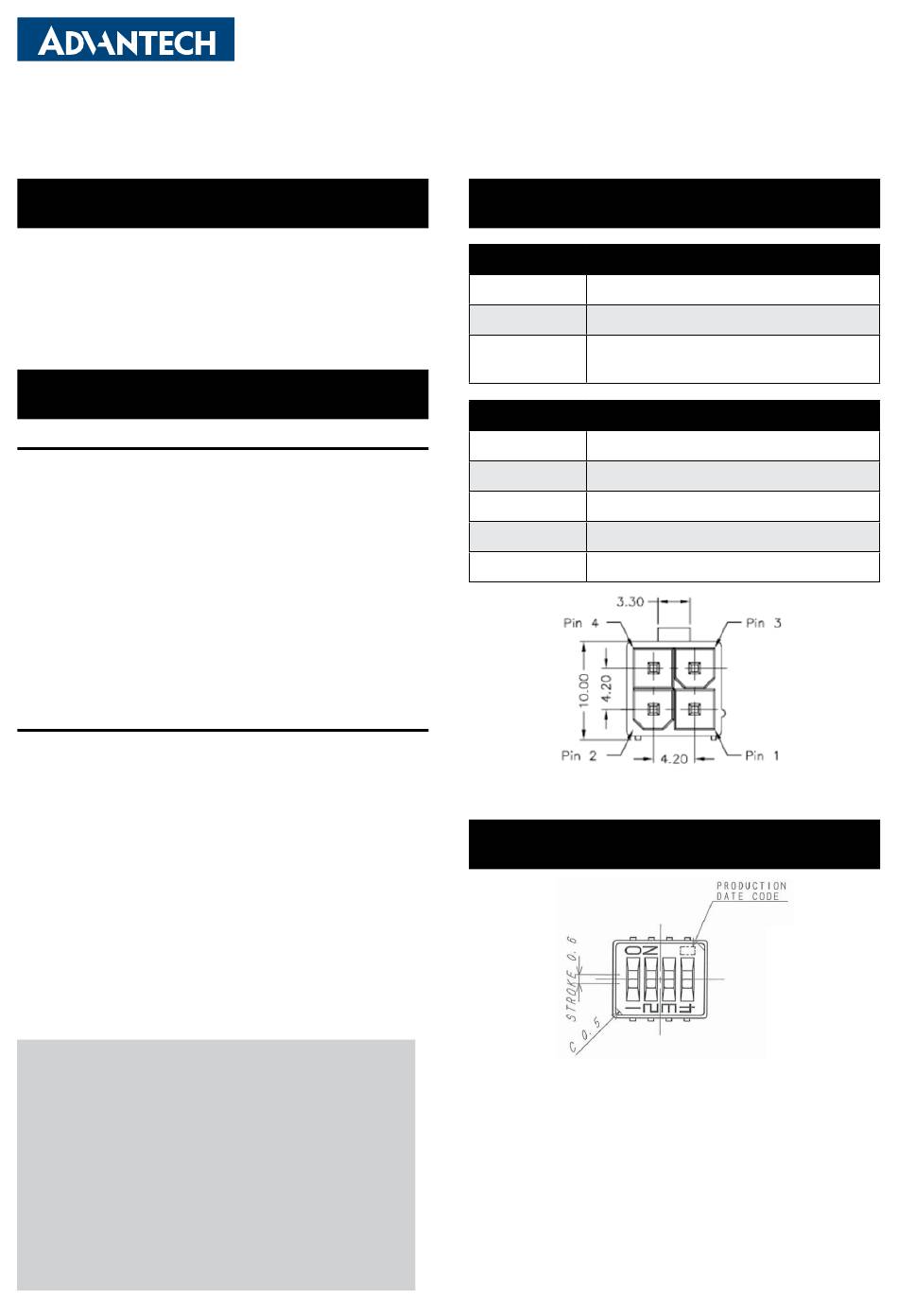

Figure 1: AT/ATX 12V DC Input 4-pin Power Connector
Figure 2: Slide Switches
PCIE-1158 Startup Manual 1
input 4-pin power con-
DC
