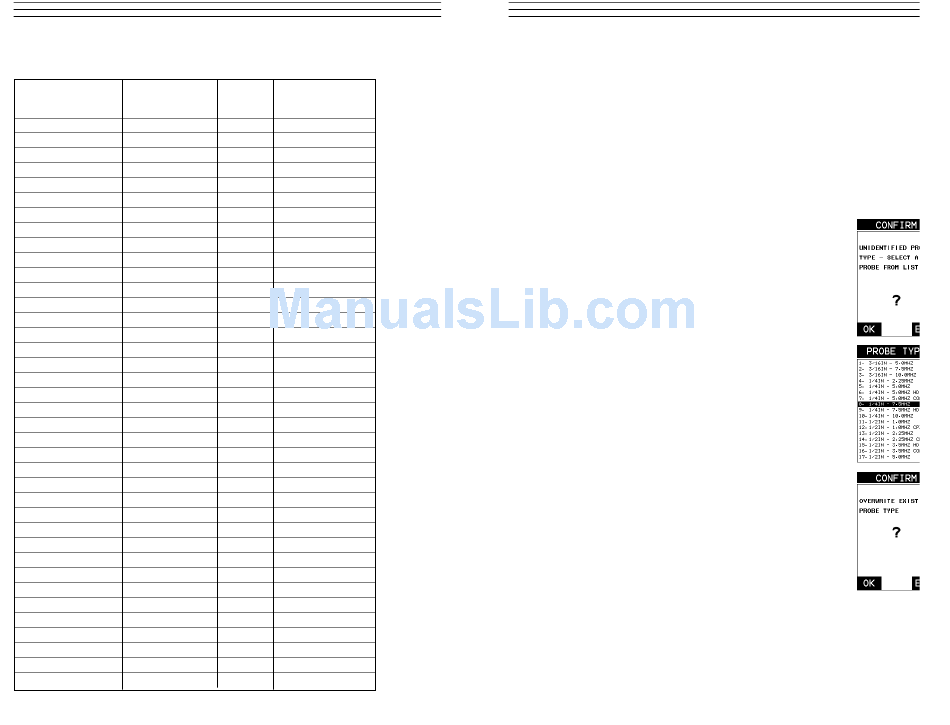

A A: V T
PPENDIX ELOCITY ABLE
Material sound velocity
in/us
Aluminum 0.2510
Beryllium 0.5080
Brass 0.1730
Bronze 0.1390
Cadmium 0.1090
Columbium 0.1940
Copper 0.1830
Glass (plate) 0.2270
Glycerine 0.0760
Gold 0.1280
Inconel 0.2290
Iron 0.2320
Cast Iron 0.1800
Lead 0.0850
Magnesium 0.2300
Mercury 0.0570
Molybdenum 0.2460
Monel 0.2110
Nickel 0.2220
Nylon 0.1060
Platinum 0.1560
Plexiglas 0.1060
Polystyrene 0.0920
PVC 0.0940
Quartz glass 0.2260
Rubber vulcanized 0.0910
Silver 0.1420
Steel (1020) 0.2320
Steel (4340) 0.2330
Steel Stainless" 0.2230
Teflon 0.0540
Tin 0.1310
Titanium 0.2400
Tungsten 0.2040
Uranium 0.1330
Water 0.0580
Zinc 0.1660
Zirconium 0.1830
sound velocity
m/s
6375
12903
4394
3531
2769
4928
4648
5766
1930
3251
5817
5893
(approx) 4572
2159
5842
1448
6248
5359
5639
(approx) 2692
3962
2692
2337
2388
5740
2311
3607
5893
5918
5664
1372
3327
6096
5182
3378
1473
4216
4648
-52-
2.3 Selecting the Transducer Type
If the TI-CMX does not identify a specific transducer type on initial power up, the user
be required to select a type from a predefined list of types by diameter and frequency. B
selecting a transducer type from a predefined list, the TI-CMX can recall specific proper
ties about the transducer.
NOTE: Once the transducer has been selected, the TI-CMX will store and recall this tra
ducer type every time the TI-CMX is powered on/off. The type will only change if the u
physically selects another transducer type from the list, or selects a previously saved setu
However, the TI-CMX will continue to take you through these steps each time the gauge
powered up. You'll notice that the probe type previously selected will be highlighted eve
time the probe type screen is displayed. Use the following steps to select your transduce
type:
1. Press the OK or ESC keys to display the factory list of
transducer types (by diameter and frequency).
2. Press the UP and DOWN arrow keys to scroll through the
transducer list until the appropriate type is highlighted.
3. Press the ENTER key to select the transducer type and display
over write existing probe screen.
4. Press the OK key to overwrite the existing probe type with the
newly selected probe type. The zero probe screen will be
displayed. Proceed to the zero probe section that follows.
