3. Press the LEFT and RIGHT arrow keys to scroll the digit locations.
4. Repeat steps 2 & 3 until the DIFFERENTIAL value is correctly displayed.
5. Press the OK key to set the DIFFERENTIAL value and return to the menu screen.
6. Finally, press the MEAS key to return to the measurement screen and begin
taking readings.
-46-
2.7 Measure
The TI-CMX is now ready to measure. There are two different measurement view option
each with a specific purpose – Digits & B-Scan. The steps below outline how to toggle
between the different view mode options:

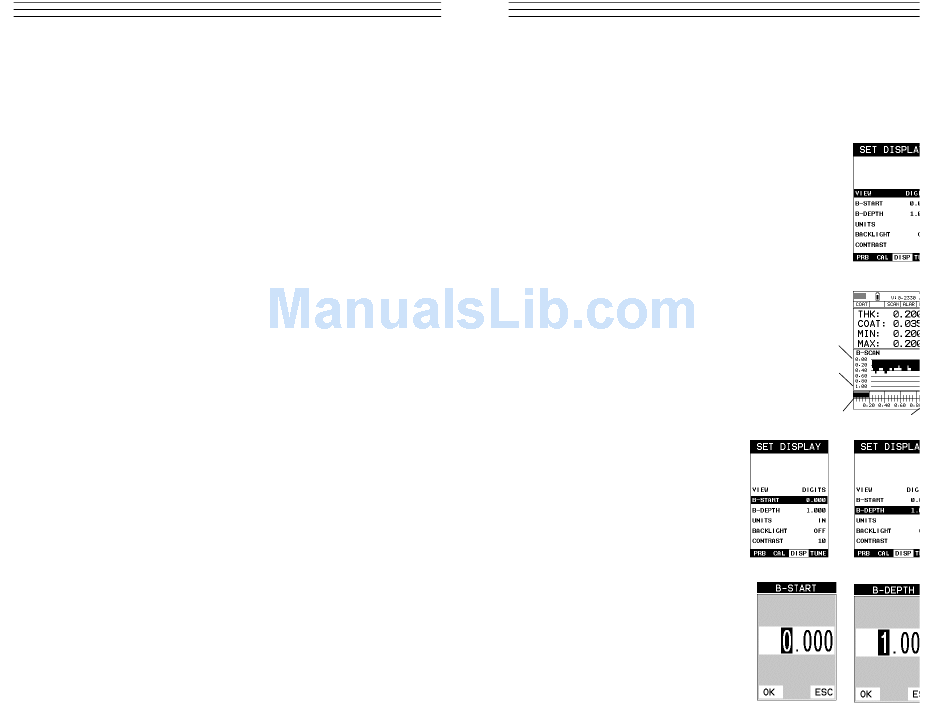

Selecting the Measurement View Option
1. Press the MENU key once to activate the menu items tab.
Press the MENU key multiple times to tab right and the
ESC key multiple times to tab left until the DISP menu is
highlighted and displaying the submenu items.
2. Use the UP and DOWN arrow keys to scroll through the
sub menu items until VIEW is highlighted.
3. Use the LEFT and RIGHT arrow keys to scroll the view options.
4. Once the view is displayed, press the MEAS key to
return to measurement mode.
DIGITS: Displays the digital thickness value using a large
font size. This view is useful when the TI-CMX is being
used as a basic thickness gauge.
B-SCAN: The Time Based B-Scan provides the user
with a cross sectional view of the material being tested.
This mode is useful when there is concern regarding the
profile of the blind surface. This can also be a useful
view when scanning for pits and flaws.
Once the view has been selected according to the
application requirements, the B-START and B-DEPTH
of the screen will potentially need to be adjusted if the
view has been set to B-SCAN. Use the following steps
to adjust these as follows:
Adjusting B-START and B-DEPTH
1. Press the MENU key once to activate
the menu items tab. Press the MENU
key multiple times to tab right and the
ESC key multiple times to tab left
until the DISP menu is highlighted and
displaying the submenu items.
2. Use the UP and DOWN arrow keys
to scroll through the sub menu items
until B-START or B-DEPTH is
highlighted.
3. Use the LEFT or RIGHT arrow keys
to increase/decrease the start or depth
values in coarse increments/decrements.
4. Repeat steps 2 & 3 until the range is
correctly being displayed.
-11-
B-START
B-DEPTH
B-START
B-DEPTH
