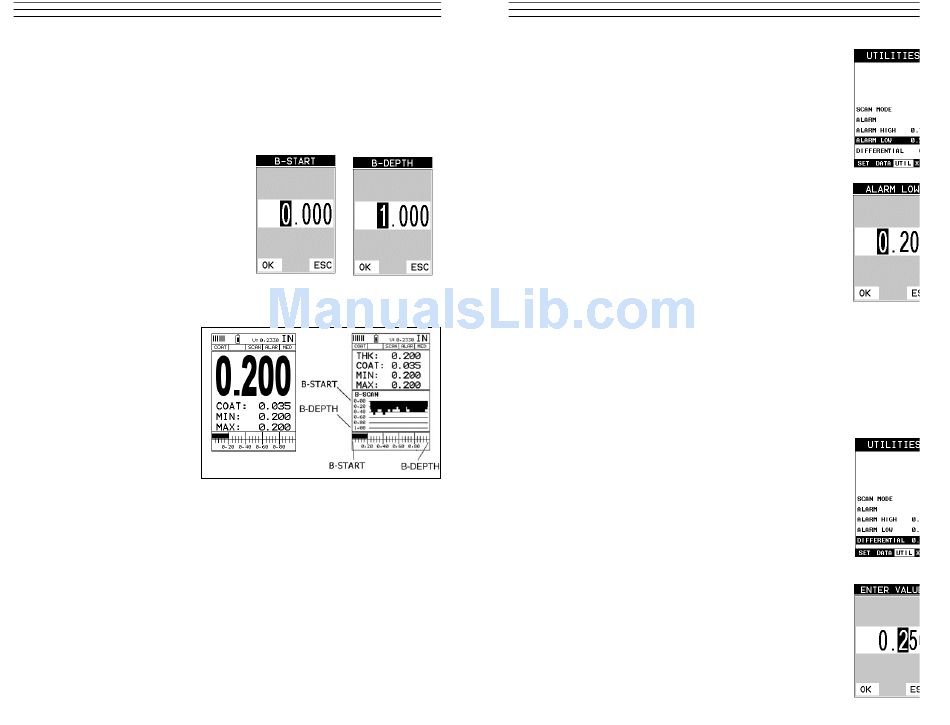

Alternatively, the B-START and B-DEPTH values can be changed using the Digit Edit Box
as follows:
1. Use the UP and DOWN arrow keys
to scroll through the sub menu items
until B-START or B-DEPTH is highlighted.
2. Press the ENTER key to display the digits edit box.
3. Press the UP and DOWN arrow keys to scroll the highlighted value.
4. Press the LEFT and RIGHT arrow keys
to scroll the digit locations.
5. Repeat steps 3 & 4 until the B-START
or B-DEPTH value is correctly
displayed.
6. Press the OK key to set the B-START
or B-DEPTH value and return to the
DISP menu, or ESC to cancel entering
the B-START or B-DEPTH value.
NOTE: The adjusted value will appear next to the B-START or B-DEPTH menu labels.
7. Finally, press the MEAS key to return to the measurement screen and begin taking
readings.
In the upper left corner of
each of the display photos
at the right, is the repeatability
indicator. The repeatability
indicator is represented by
six vertical bars and represents
how repeatable the measure-
ments are. In regular measure-
ment mode, the TI-CMX
makes eight measurements
a second. In scan mode, the
TI-CMX makes 200 measure-
ments a second. If the coating mode option is activated, the TI-CMX makes three
measurements a second in regular measurement mode and 65 measurements a second
in scan mode. When the TI-CMX is idle, only the left vertical bar and the underline will
be displayed. However, when the TI-CMX is making a measurement, five or six of the
bars should be displayed on the repeatability indicator. If fewer than five bars are showing,
the TI-CMX is having difficulty achieving a stable measurement and the thickness value
displayed is potentially unstable.
-12-
Setting the Alarm Low Limit
1. Assuming the ALARM is ON, use the UP and DOWN arrow
keys to scroll through the sub menu items until ALARM LOW
is highlighted.
2. Press the LEFT and RIGHT arrow keys to scroll the value.
When the correct alarm value is being displayed, proceed to
step 7.
3. Alternatively, press the ENTER key to display the Digits Edit
Box.
4. Press the UP and DOWN arrow keys to scroll the highlighted
value.
5. Press the LEFT and RIGHT arrow keys to scroll the digit
locations.
6. Repeat steps 4 & 5 until the ALARM LOW value is correctly
displayed.
7. If only one limit will be used, press the MEAS key to return to
the measurement screen and begin taking readings. Otherwise,
continue on to set the ALARM HIGH limit.
10.3 Differential Mode
The Differential Mode of the TI-CMX provides the user with the ability to set a nomina
value, according to what the expected thickness should be, and measure the +/- differenc
from the nominal value entered. This feature is typically used in QA incoming inspectio
on pipes, plate stock, coils, etc. The steps below outline how to enable and enter the
nominal value to use this feature:
Toggle Differential (on/off)
1. Press the MENU key once to activate the menu items tab.
Press the MENU key multiple times to tab right, and the
ESC key multiple times to tab left, until the UTIL menu is
highlighted and displaying the submenu items.
2. Use the UP and DOWN arrow keys to scroll through the
sub menu items until DIFFERENTIAL is highlighted.
3. Use the LEFT and RIGHT arrow keys to toggle the
DIFFERENTIAL on. A value will appear to the right of
DIFFERENTIAL.
4. Continue on to the next section "Setting the Differential Value".
Setting the Differential Value
1. Assuming DIFFERENTIAL has been enabled and a value is
being displayed to the right of the DIFFERENTIAL label,
press the ENTER key to display the Digits Edit Box.
2. Press the UP and DOWN arrow keys to scroll the highlighted
value.
