Check-line TI-CMX User Manual page 4

F. Scan Bar – Another view of material thickness in a deflection style horizontal bar. This
visual tool enables the user the ability to see thickness changes during high speed scans
from flaws and pits.
G. Units – The current measurement units being used (English, Metric).
H. Digital Material Thickness Value – Smaller font size when the B-Scan display
view is enabled.
I. Coating Thickness Value – Displays the actual thickness of any coating adhered
to a metallic material surface (PECT Mode), or a coating adhered to a non-metallic
surface (CT Mode).
J. Minimum Material Thickness – Part of the Alarm feature. Displays the minimum
thickness value found during a scan.
K. Maximum Material Thickness – Part of the Alarm feature. Displays the maximum
thickness value found during a scan.
L. B-Scan Display – Cross section view of the material. Provides the user with graphical
view of the opposite/blind surface (i.e. inside pipe wall surface), to give the user some
idea of the condition, or integrity of the material being tested.
2.2 Auto Probe Recognition
When the TI-CMX is initially powered up, the gauge will automatically check to see if the
transducer plugged into the gauge can be recognized. The steps that follow assume the TI-
CMX recognized the probe type:

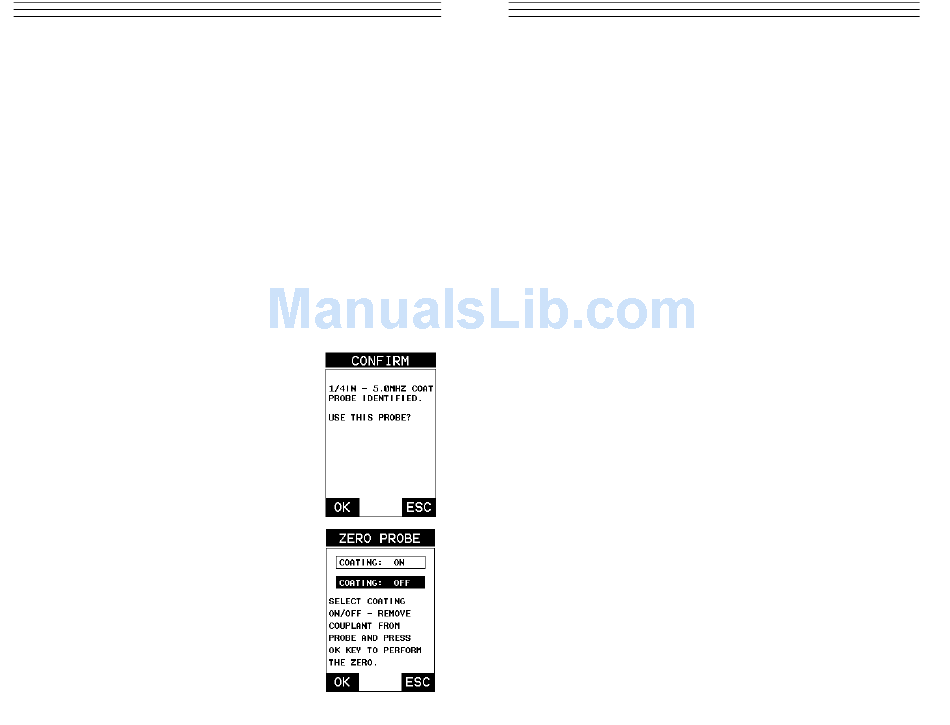

1. Press the OK key once to use the identified probe,
or ESC to display a list of optional transducers.
NOTE: If the TI-CMX recognizes a specific transducer,
the user should always select OK to use the
identified probe. The only time an alternative
probe should be selected from a list is if the
user switched probes following initial power
up and recognition.
2. Assuming the TI-CMX recognized the probe and the
OK key was pressed, the TI-CMX will advance to a
Zero Probe menu. If the transducer was identified as
a special transducer capable of measuring coating
thickness, a menu will be displayed allowing the
user the ability to toggle the coating thickness
display on/off as follows:
3. Press the UP and DOWN arrow keys to toggle the
coating option on/off.
4. Wipe all couplant from the transducer face
and advance to the Probe Zero & Calibration
section, 6.0.
-4-
W
ARRANTY
ELECTROMATIC Equipment Co., Inc. (ELECTROMATIC) warrants to the
original purchaser that this product is of merchantable quality and confirms
in kind and quality with the descriptions and specifications thereof. Product
failure or malfunction arising out of any defect in workmanship or material in the
product existing at the time of delivery thereof which manifests itself within one
year from the sale of such product, shall be remedied by repair or replacement of
such product, at ELECTROMATIC's option, except where unauthorized repair,
disassembly, tampering, abuse or misapplication has taken place, as determined by
ELECTROMATIC. All returns for warranty or non-warranty repairs and/or replace-
ment must be authorized by ELECTROMATIC, in advance, with all repacking and
shipping expenses to the address below to be borne by the purchaser.
THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING BUT NOTLIMITED TO, THE
WARRANTY OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULA
PURPOSE OR APPLICATION. ELECTROMATIC SHALL NOT BE RESPONSIB
NOR LIABLE FOR ANY CONSEQUENTIAL DAMAGE, OF ANY KIND OR
NATURE, RESULTING FROM THE USE OF SUPPLIED EQUIPMENT, WHETH
SUCH DAMAGE OCCURS OR IS DISCOVERED BEFORE, UPON OR AFTER
REPLACEMENT OR REPAIR, AND WHETHER OR NOT SUCH DAMAGE IS
CAUSED BY MANUFACTURER'S OR SUPPLIER'S NEGLIGENCE WITHIN
ONE YEAR FROM INVOICE DATE.
Some State jurisdictions or States do not allow the exclusion or limitation of inciden
or consequential damages, so the above limitation may not apply to you. The duratio
of any implied warranty, including, without limitation, fitness for any particular
purpose and merchantability with respect to this product, is limited to the duration o
the foregoing warranty. Some states do not allow limitations on how long an implied
warranty lasts but, not withstanding, this warranty, in the absence of such limitations
shall extend for one year from the date of invoice.
ELECTROMATIC Equipment Co., Inc.
600 Oakland Ave. Cedarhurst, NY 11516—USA
Tel: 1-800-645-4330/ Tel: 516-295-4300/ Fax: 516-295-4399
Every precaution has been taken in the preparation of this manual. Electromatic Equipment Co., Inc., assum
no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use
information contained herein. Any brand or product names mentioned herein are used for identification purp
es only, and are trademarks or registered trademarks of their respective holders.
