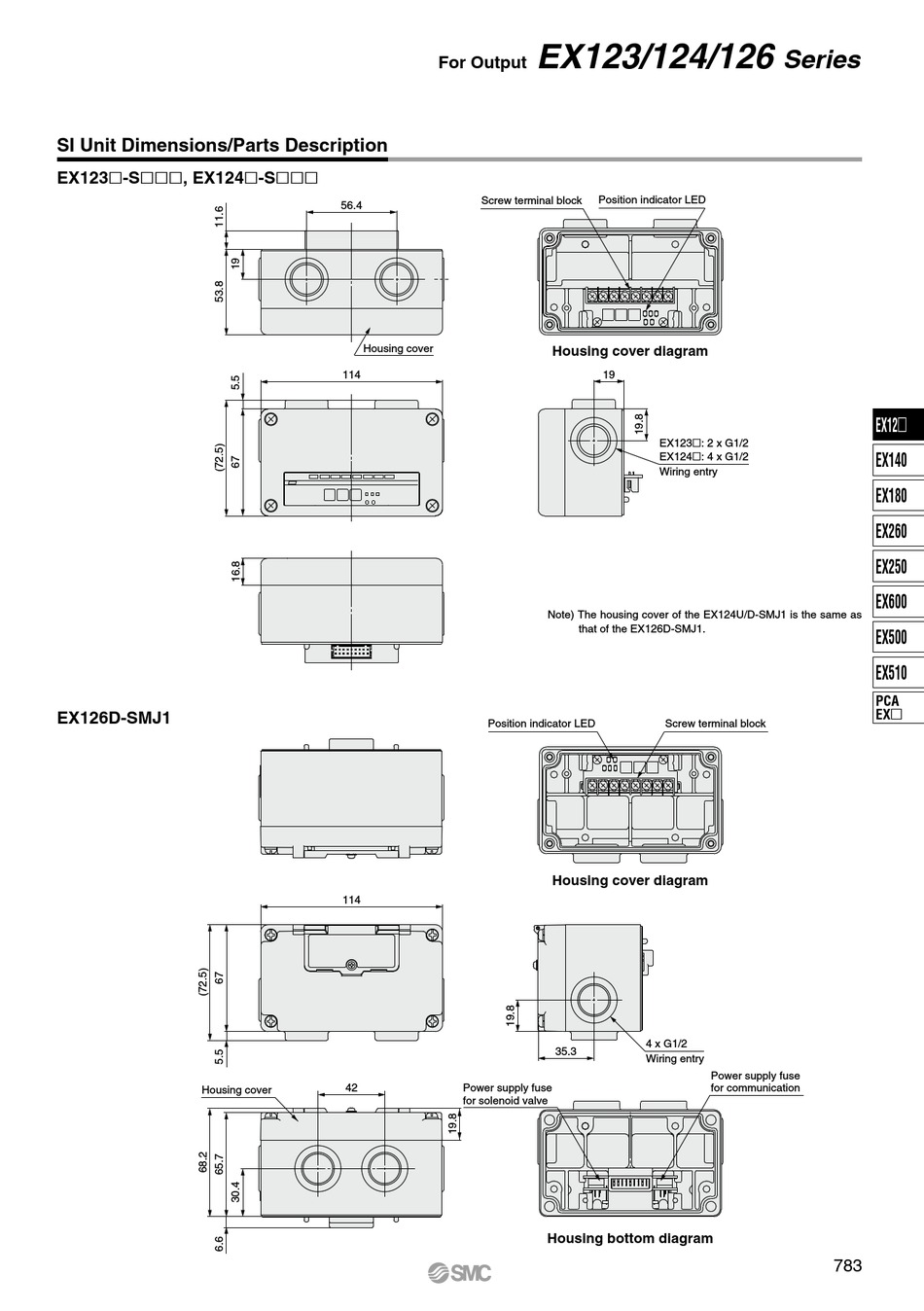

SI Unit Dimensions/Parts Description
EX123-S, EX124-S
EX126D-SMJ1
Housing cover
For Output
Screw terminal block
56.4
Housing cover
114
Position indicator LED
114
42 Power supply fuse
for solenoid valve
EX123/124/126
Position indicator LED
Housing cover diagram
19
EX123: 2 x G1/2
EX124: 4 x G1/2
Wiring entry
Note) The housing cover of the EX124U/D-SMJ1 is the same as
that of the EX126D-SMJ1.
Screw terminal block
Housing cover diagram
4 x G1/2
35.3
Wiring entry
Power supply fuse
for communication
Housing bottom diagram
