Form Factor
Mini-ITX
I/O
SATA/ USB 2.0/ USB3.0/
COM
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first at:
ftp://ftp.arbor.com.tw/pub/manual
Contact our customer service at the following addresses if your problem persists.
http://www.arbor.com.tw
E-mail: info@arbor.com.tw
♦ Declaration of Conformity
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions : (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Copyright
All Rights Reserved.
®

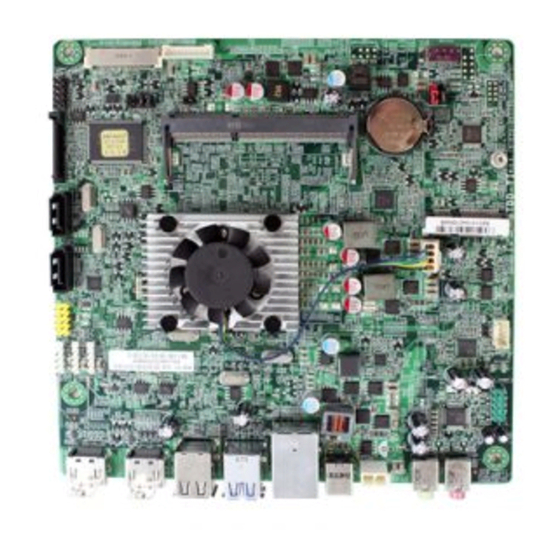

ITX-i230D
Mini-ITX Industrial Motherboard
CPU
Soldered onboard
Intel® Celeron J1900
Processor
LAN
RTL8111G-CG Gigabit
Ethernet controller
- 1 -
Quick Installation Guide
Video
HDMI/LVDS
Audio
Realtek ALC662 + ALC113,
Mic-in/Line-out
4041023000100P
Version 1.0
Advertisement
Table of Contents
Related Manuals for Arbor Technology ITX-i230D
Summary of Contents for Arbor Technology ITX-i230D
-
Page 1: Quick Installation Guide
ITX-i230D Mini-ITX Industrial Motherboard Quick Installation Guide Version 1.0 Form Factor Video Mini-ITX Soldered onboard HDMI/LVDS Intel® Celeron J1900 Processor Audio SATA/ USB 2.0/ USB3.0/ RTL8111G-CG Gigabit Realtek ALC662 + ALC113, Ethernet controller Mic-in/Line-out ♦ Technical Support If you have any technical difficulties, please consult the user’s manual first at: ftp://ftp.arbor.com.tw/pub/manual... -
Page 2: Packing List
Packing List Before you begin to install your single board, please make sure that the following materials have been shipped: 1 x ITX-i230D Mini-ITX industrial motherboard 1 x Driver CD 1 x Quick Installation Guide 1 x I/O bracket 1 x DC 2.5 Jack to 7.4 Plug Cable If any of the above items is damaged or missing, contact your vendor immediately. -
Page 3: The Installation Paths Of Cd Driver
The Installation Paths of CD Driver Windows 8 & 8.1 Driver Path CHIPSET \Chipset\SetupChipset_10.0.13_PC \Graphics\WIN8_32\15.33.22.3621 GRAPHIC \Graphics\WIN8_64\15.33.22.64.3621 ETHERNET \Ethernet\Realtek\Win8_8.1\Install_Win8_8.1_8031_05222014 \Audio\32bit_Win7_Win8_Win81_R275 AUDIO \Audio\64bit_Win7_Win8_Win81_R275 \TXE\Installers SERIAL IO \Serial IO\SerialIO_Installer_Win8.1_64bit_WW23 Windows 7 Driver Path CHIPSET \Chipset\SetupChipset_10.0.13_PC \Graphics\WIN7_32\Intel_EMGD.WIN7_PC_Version_36_15_0_1073 GRAPHIC \Graphics\WIN7_64\Intel_EMGD.WIN7_PC_Version_37_15_0_1073 ETHERNET \Ethernet\Realtek\Win7\Install_Win7_7085_05222014 \Audio\32bit_Win7_Win8_Win81_R275 AUDIO \Audio\64bit_Win7_Win8_Win81_R275 \TXE\Installers For 64-bit Windows only) -
Page 4: Specifications
Specifications Form Factor Mini-ITX industrial motherboard Soldered onboard Intel® Celeron J1900 quad-core Processor 1 x 204-pin DDR3 SO-DIMM socket supporting 1333/1066 System Memory MHz SDRAM up to 8GB ® Graphic Chipset Integrated Intel Gen 7 Graphics 1 x HDMI_OUT port 1 x HDMI_IN port Graphic Interface LCD: Dual-Channels 24-bit LVDS... -
Page 5: Board Dimensions
Board Dimensions 159,84 159,84 154,94 154,94 22,86 10,16 14,71 6,17 26,49 58,47 74,19 92,97 110,49 130,05 152,16 11,67 Unit:mm - 5 -... -
Page 6: Jumpers/Connectors Quick Reference
Jumpers/Connectors Quick Reference Jumpers Label Function ❶ Clear CMOS Setting CLR_CMOS ❷ TXE Unlock TXE_UNLOCK ❸ LCD_SEL LCD Resolution Selection Connectors Label Function Label Function ① Fan Power Connector SYS_FAN Serial ATA 3.0 Gb/s SATA1/2 20 21 connectors Onboard serial port header ②... - Page 7 Jumpers & Connectors Locations ➊ CLR_CMOS ➌ LCD_SEL LVDS ① SYS_FAN LVDS_BRT DIMM1 ② F_PANEL ➋ TXE_UNLOCK SATA_PWR SATA2 ③ MINI_PCIE ④ CPU-FAN ⑳ SATA1 ⑲ F_USB ⑤ SPEAKER ⑥ DMIC ⑦ ⑱ F_AUDIO ⑰ ⑯ ⑮ ⑬ ⑩ HDMI_IN USB2_0 DC_IN ⑧...
-
Page 8: Jumper Settings
Jumpers Connectors ①SYS_FAN: Fan Power Connector Jumper Settings Connector Type: 2.54mm pitch 1x4-pin headers. The jumper is “short” (closed) when the jumper cap is placed on pins. If not, that means the jumper is “open.” Description Pin 1-2 short +12V Pin 2-3 short Pin short Pin open... - Page 9 ④CPU_FAN: CPU Cooling FAN Connector ⑧⑨MIC&LINE_OUT: Microphone&Line-out Connector Type: 2.54mm pitch 1x4-pin headers. The pin assignments Description conform to the industry standard. LINEOUT MIC +12V FAN_Detect ⑩DC_IN: DC jack Control Connector type: DC Φ7.4 Male connector ⑤SPEAKER: Internal Speaker Header Connector Type: 2.00mm pitch 1x4-pin headers.
-
Page 10: Sata1&2: Serial Ata Connectors
⑳ ⑭HDMI_OUT: HDMI Output Connector SATA1&2: Serial ATA Connectors Connect the display device to the HDMI_OUT port The pin assignments The pin assignments conform to the industry conform to the industry standard. standard. SATA_PWR: Serial ATA Power Connector ⑮HDMI_IN: HDMI Input Connector Connect other HDMI source to the HDMI_IN port The pin assignments conform to the industry... -
Page 11: Pin Assignment
LVDS:LVDS Connector (40-Pin) Connector Type: 0.5mm pitch 40-pin coaxial connector Assignment Assignment ODD Lane3 + ODD Lane3 - Power +3.3V ODD Lane2 + ODD Lane2 - ODD Lane1 + ODD Lane1 - ODD_Clock + ODD Lane0 + ODD_Clock - ODD Lane0 - EVEN Lane3 + EVEN Lane3 - EVEN Lane2 +... - Page 12 LVDS_BRT:Display brightness header Connector Type: 2.00mm pitch 1x8-pin box headers. Description LCD BKL ON/OFF LCD BKL adjustment LCD BKL Power +19V LCD BKL Power +19V LCD BKL Increase LCD BKL decrease DIMM1: SO-DIMM Connector The pin assignments conform to the industry standard. CIR: Consumer Infrared Header Connector Type: 2.54mm pitch 2x4-pin headers.
