Arbor Technology ITX-i89H0 Quick Installation Manual

Arbor Technology ITX-i89H0 Quick Installation Manual

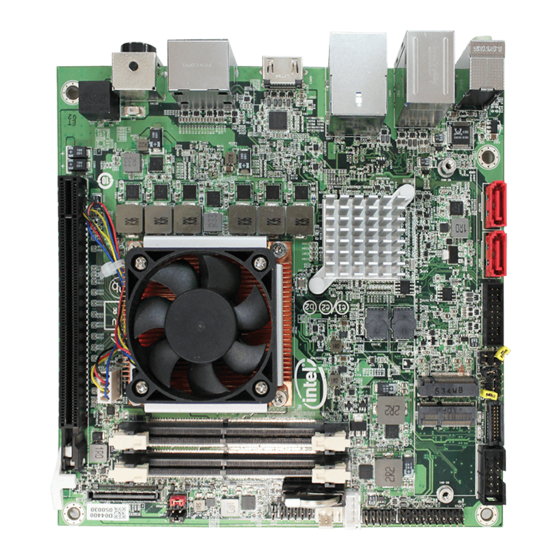

Mini-itx industrial motherboard
Hide thumbs Also See for ITX-i89H0:

Advertisement

Quick Links

Form Factor
Mini-ITX
I/O
SATA/ USB 2.0/
USB3.0/ UART/ PCIe/
NGFF

♦ Technical Support

If you have any technical difficulties, please consult the user's manual first at:
http://www.arbor-technology.com/
Contact our customer service at the following addresses if your problem persists.
http://www.arbor-technology.com/
E-mail: info@arbor.com.tw

♦ Declaration of Conformity

FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions : (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Copyright
All Rights Reserved.
©
ITX-i89H0
Mini-ITX Industrial Motherboard
CPU
Soldered onboard
6
Generation
th
Intel
Core™/Xeon
®
Processor
LAN
Intel i219LM GbE PHY
- 1 -
Quick Installation Guide
Video
HDMI/ DisplayPort
®
Audio
Realtek
MIC-in/ Line-out
4041890001100P
Version 1.0
ALC662
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITX-i89H0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Arbor Technology ITX-i89H0

  • Page 1: Technical Support

    ITX-i89H0 Mini-ITX Industrial Motherboard Quick Installation Guide Version 1.0 Form Factor Video Mini-ITX Soldered onboard HDMI/ DisplayPort Generation Intel Core™/Xeon ® ® Processor Audio SATA/ USB 2.0/ Realtek ALC662 ® Intel i219LM GbE PHY USB3.0/ UART/ PCIe/ MIC-in/ Line-out NGFF ♦...
  • Page 2: Packing List

    Packing List Before you begin to install your single board, please make sure that the following materials have been shipped: 1 x ITX-i89H0 Mini-ITX industrial motherboard 1 x Cooler 1 x Driver CD 1 x Quick Installation Guide If any of the above items is damaged or missing, contact your vendor immediately.
  • Page 3: Specifications

    Specifications Mini-ITX industrial motherboard Form Factor ® Soldered onboard Intel Core™ i3-6100E Dual-core 2.7GHz (Base) ® ® Intel Xeon Processor E3-1505L V5 Quad-core 2.0GHz (Base) / Processor 2.8GHz (Trubo) ® ® Intel Xeon Processor E3-1515M V5 Quad-core 2.8GHz (Base) / 3.7GHz (Trubo)(Optional) ®...
  • Page 4: Board Dimensions

    Board Dimensions 6.17 163.65 33.1 57.9 85.8 111.76 135.65 156.5 Unit: mm - 4 -...
  • Page 5 Jumpers/Connectors Quick Reference Jumpers Label Function Label Function Clear CMOS Selection SRTC Rest Selection JPCH1 JME2 ME Selection JME1 LCD Panel Voltage Selection JLCD1 Connectors Label Function Label Function CPUFAN1 Fan Power Connector USB2 USB3.0/2.0 connector X16PCEG1 PCIex16 Gen 3.0 slot SATA1~2 SATA Connectors Front panel LED &...
  • Page 6 Connectors Jumpers ❶ ①USB2: USB3.0/2.0 Connector JPCH1: Clear CMOS Selection Connector Type: 2x10 pin box header Connector type: 2.54mm pitch 1×2-pin headers Pin Desc. Pin Desc. Pin Mode 20 N/C 1 +V5S Short Clear CMOS 19 +V5S 2 USB3_RXN5_C Open Keep CMOS (default) 18 USB3_RXN6_C 3 USB3_RXP5_C 17 USB3_RXP6_C...
  • Page 7 ⑫FP1: Front panel LED & audio ⑦HDMI1: HDMI Connector header Connector Type: 2.54mm pitch 2x5-pin headers Connector Type: 19-pin HDMI connector Pin Desc. Pin Desc. The pin assignments conform to the industry standard. 1 HLED+ 2 PLED+ 3 HLED- 4 PLED- 5 RESET+ 6 PSON+ ⑧DP1: DisplayPort Stack Connectors...
  • Page 8 ⑯LPC1: Low Pin Count Connector Connector Type: 2x10-pin 2.54mm pitch male pin header Pin Desc. Pin Desc. CLK_PC_24M L_FRAME# PLTRST# +V5S L_AD3 L_AD2 +V3.3S L_AD1 L_AD0 SMBCLK_M SMBDATA_M +V3.3A SER_IRQ TPM_CLKRUN# LPCPD#_LPC L_DRQ_N ⑰JCOM1: UART Connector Connector Type: 2.54mm pitch 2x5 pin box header Pin Desc.
