7.4 Cable extension WR100
7.4.1 WRO112
The WR100-12R is available with the optional 10m cable extension sets for the Plug type cable
sets (Note: Cable sets with the ring lug connectors do not have this option available). The Plug
type connector locking system operates on the "push-pull" principle. It self locks when connected.
To disconnect the Plug type connector, push in first then pull out.
Connectors that become dirty should be cleaned with industrial alcohol before connecting.

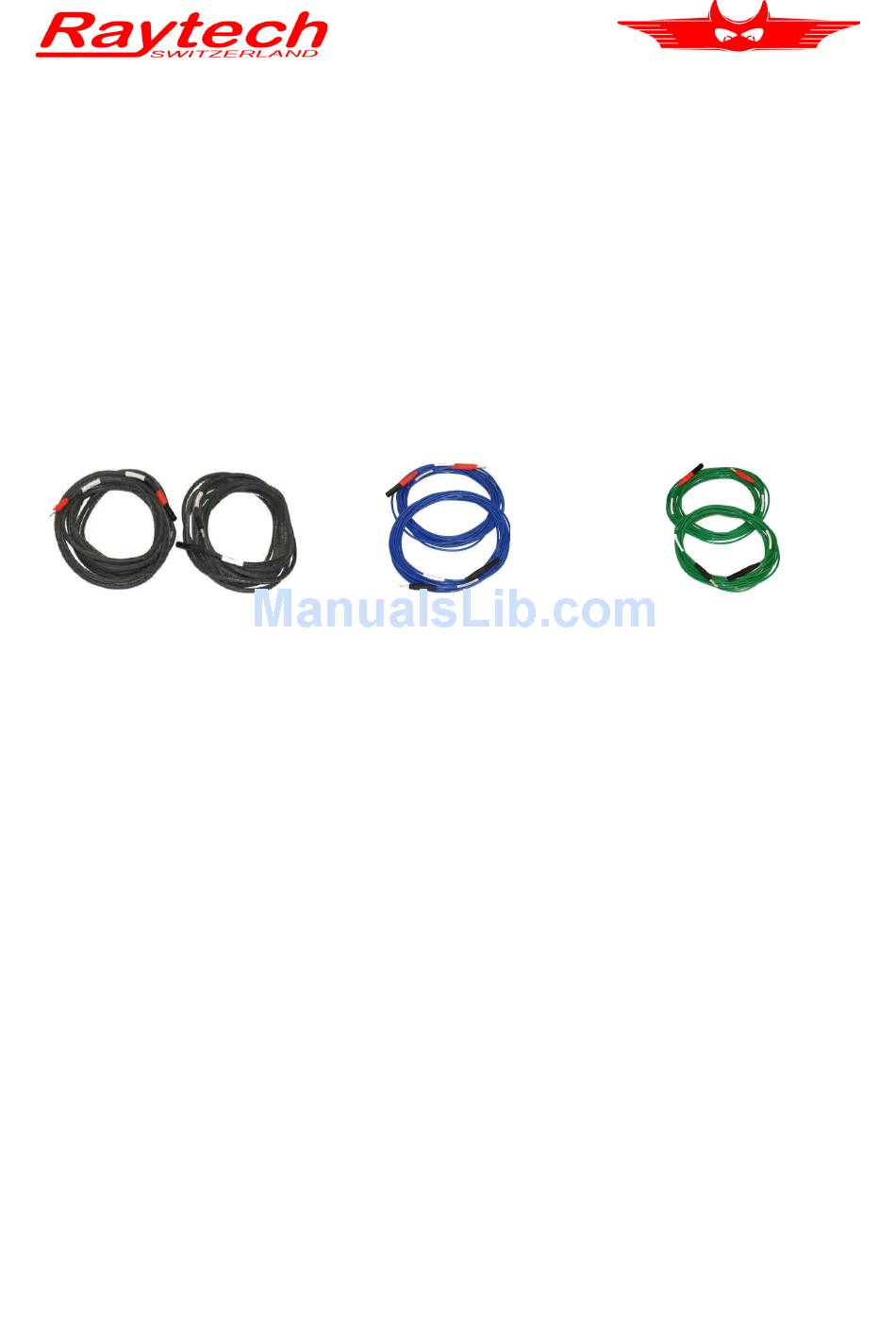

The WRO112 consists of the following cables:
2x 10m Extensions for the
2x 10m Extensions for the
2x 10m Extensions for the
Current cables
Potential cables: Channel 1
Potential cables: Channel 2
It is possible to connect multiple 10m extensions together to increase the length.
Instruction Manual Winding Resistance Meter
Page 91 of 139
Type WR100 / WR50 / WR14
