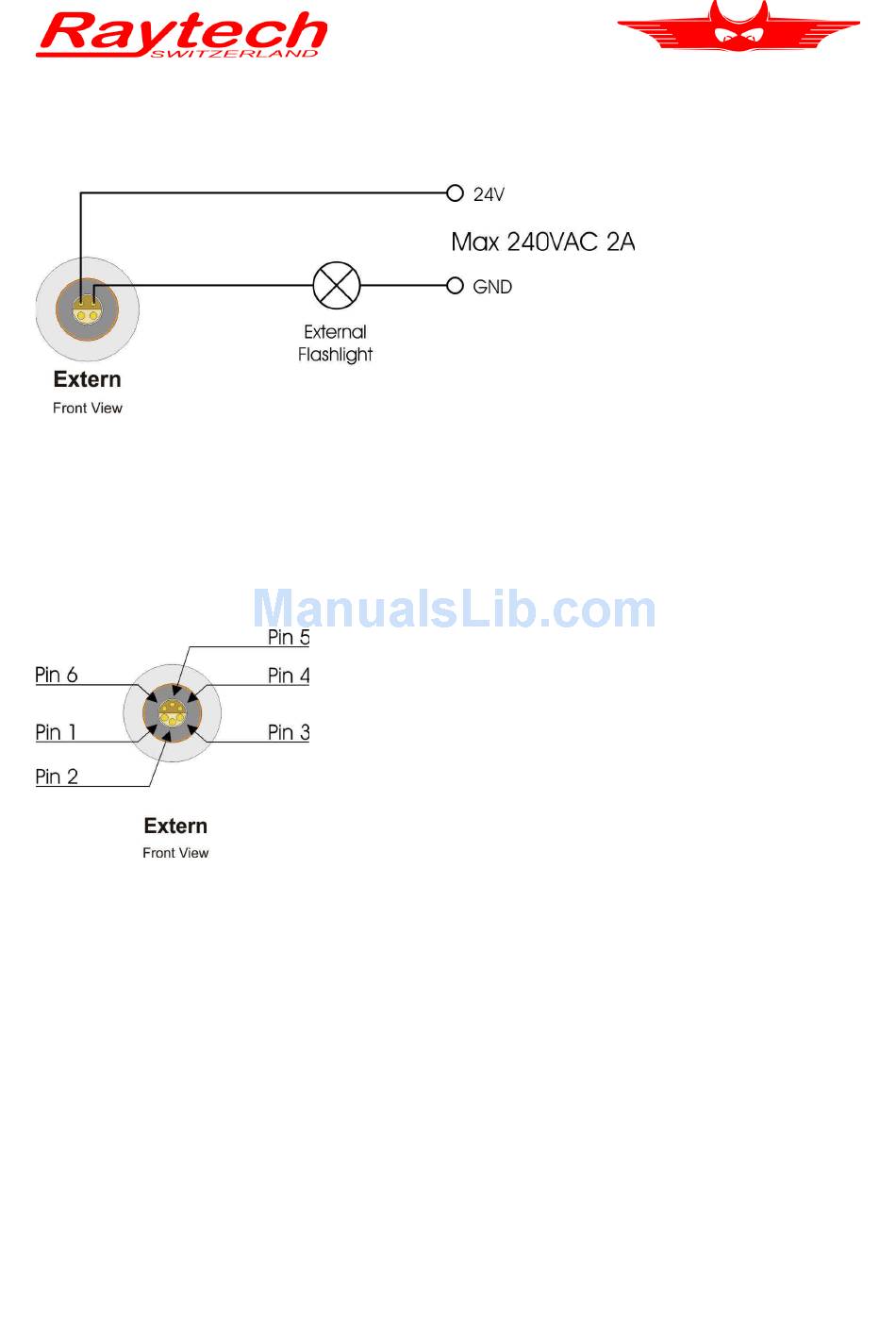

9.1.3.2 Example for connecting an external warning device

9.1.3.3 Extended Safety Circuit type

The Extended Safety Circuit type has 6 pins.
You can use pin 3 and 4 to connect an external Warning Light or Beeper to indicate a Dangerous
condition. The function for this pins are the same as with the standard type, see chapter 9.1.3.1
Standard type on page 104.
Pins 1 and 2 on the Extern connector: These pins are for Raytech Service use.
Do not connect anything to these pins!
