Taps:
Tap changer positions can also be defined for every winding system.

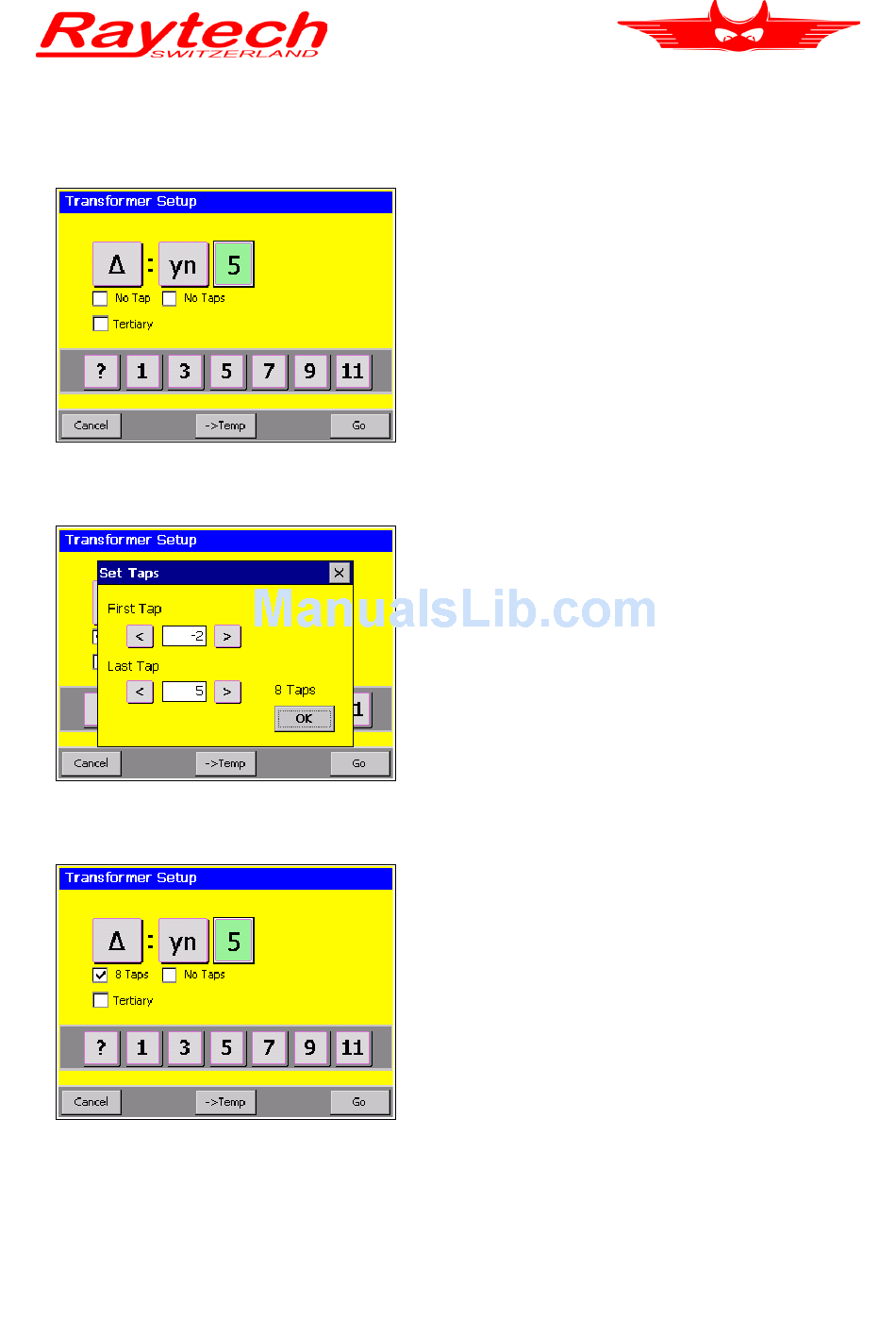

A screen appears to allow the setting of the number of tap changer position steps.
Confirm with OK to set ( e.g. 8) Taps. View the number of Taps in this Transformer setup screen.
Instruction Manual Winding Resistance Meter
Type WR100 / WR50 / WR14
Touch the check box beside the text "No. Tap"
(Number of Taps) below the transformer coil that
you wish to enter the number of Tap positions.
Use the arrows "<" or ">" to increase or
decrease first and last tap steps.
The First Tap setting (-2 shown): Lower Taps
The Last Tap setting (5 shown): Upper Taps
The total number of Taps selected will be
displayed above OK
Your Transformer may have Tap positions on
the Primary and on the Secondary windings.
Use the same procedure to define the
Secondary Tap positions.
