LAUNCH
It mainly includes the following functions:
1. Read Codes
This option is used to identify which section of the emission control system has
malfunctioned.
2. Erase Codes
After reading the retrieved codes from the vehicle and certain repairs have been
carried out, you can use this function to erase the codes from the vehicle. Before
performing this function, please be sure the vehicle's ignition key is in the ON
position with the engine off.
Notes:
Before performing this function, make sure to retrieve and record the trouble codes.
After clearing, you should retrieve trouble codes once more or turn ignition on and
retrieve codes again. If there are still some trouble codes in the system, please
troubleshoot the code using a factory diagnosis guide, then clear the code and
recheck.
3. I/M Readiness
I/M refers to Inspection and Maintenance that is legislated by the Government to
CReader Series English User's Manual

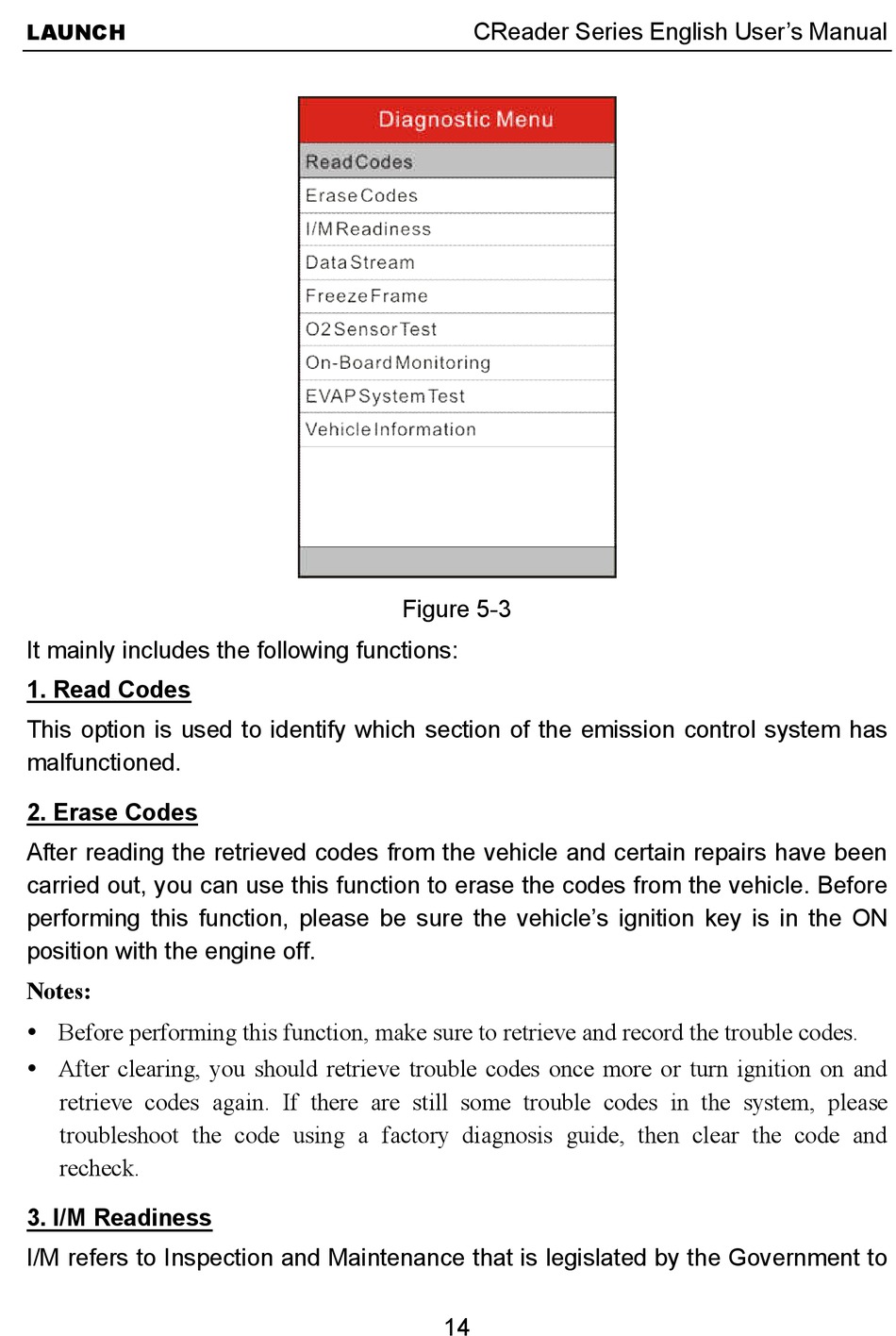

Figure 5-3
14
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the CReader 6011 and is the answer not in the manual?
Questions and answers
как обновить лаунч 6011
To update the Launch CReader 6011, follow these steps:
1. Select Tool Information: Navigate to [Tool Information] and press [OK].
2. Obtain Register Code: The Register Code will be displayed. Note this code for later use.
3. Reopen CR Update Suite: Open the CR Update Suite and select the updates you want to install or click [Select All], then click [Download].
4. Power the Tool: Connect the device to a computer via USB or to a vehicle via the OBDII port.
5. Start Update: The tool will prompt for an upgrade. Click [OK] to start updating.
6. Wait for Completion: A progress bar will appear. The update may take several minutes if the file is large.
7. Finish: Once the update is complete, the registration and upgrade process is done.
This answer is automatically generated
