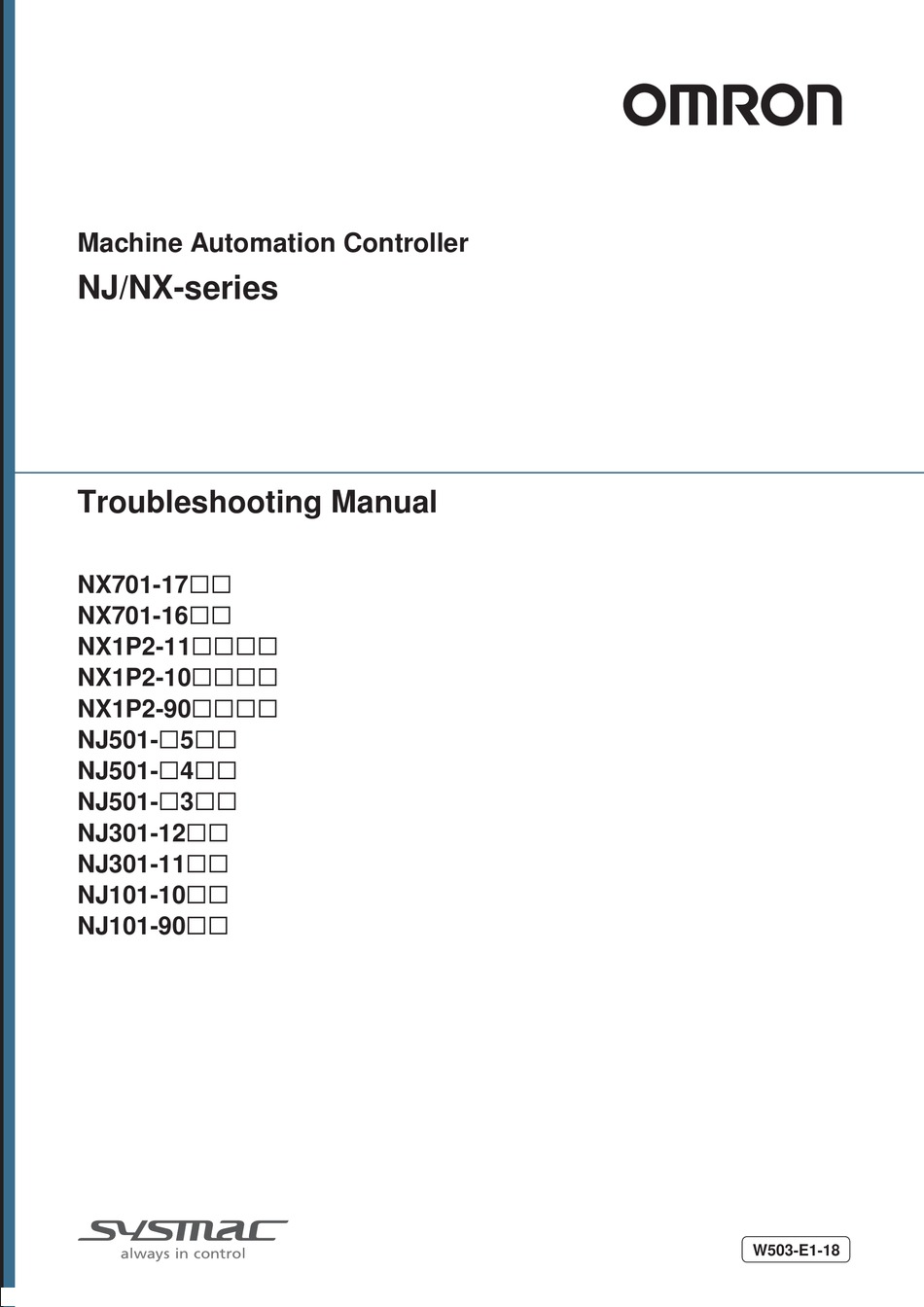

Machine Automation Controller
NJ/NX-series
Troubleshooting Manual
NX701-17
NX701-16
NX1P2-11
NX1P2-10
NX1P2-90
NJ501-5
NJ501-4
NJ501-3
NJ301-12
NJ301-11
NJ101-10
NJ101-90
W503-E1-18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NX701-17 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Omron NX701-17 Series

Summary of Contents for Omron NX701-17 Series

  • Page 1 Machine Automation Controller NJ/NX-series Troubleshooting Manual NX701-17 NX701-16 NX1P2-11 NX1P2-10 NX1P2-90 NJ501-5 NJ501-4 NJ501-3 NJ301-12 NJ301-11 NJ101-10 NJ101-90 W503-E1-18...

  • Page 2: Nx701

    No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice. Every precaution has been taken in the preparation of this manual. Neverthe- less, OMRON assumes no responsibility for errors or omissions.

  • Page 3: Introduction

    Introduction Introduction Thank you for purchasing an NJ/NX-series CPU Unit. This manual contains information that is necessary to use the NJ/NX-series CPU Unit. Please read this manual and make sure you understand the functionality and performance of the NJ/NX-series CPU Unit before you attempt to use it in a control system.

  • Page 4: Relevant Manuals

    Relevant Manuals Relevant Manuals The following table provides the relevant manuals for the NJ/NX-series CPU Units. Read all of the manuals that are relevant to your system configuration and application before you use the NJ/NX-series CPU Unit. Most operations are performed from the Sysmac Studio Automation Software. Refer to the Sysmac Stu- dio Version 1 Operation Manual (Cat.
  • Page 5 Relevant Manuals Manual Basic information Purpose of use  Testing operation and debugging  Using motion control  Using EtherCAT  Using EtherNet/IP  Using OPC UA  Using the database connection service  Using the GEM Services  Using robot control ...

  • Page 6: Manual Structure

    Manual Structure Manual Structure Page Structure The following page structure is used in this manual. Level 1 heading 4 Installation and Wiring Level 2 heading Mounting Units Level 3 heading Level 2 heading Gives the current headings. Level 3 heading 4-3-1 Connecting Controller Components The Units that make up an NJ-series Controller can be connected simply by pressing the Units together...
  • Page 7 Manual Structure Precaution on Terminology In this manual, “download” refers to transferring data from the Sysmac Studio to the physical Controller and “upload” refers to transferring data from the physical Controller to the Sysmac Studio. For the Sysmac Studio, synchronization is used to both upload and download data. Here, “synchronize” means to automatically compare the data for the Sysmac Studio on the computer with the data in the physical Controller and transfer the data in the direction that is specified by the user.
  • Page 8 Manual Structure NJ/NX-series Troubleshooting Manual (W503)

  • Page 9: Sections In This Manual

    Sections in this Manual Sections in this Manual Overview of Errors Error Troubleshooting Methods Error Tables Appendix Index NJ/NX-series Troubleshooting Manual (W503)

  • Page 10: Table Of Contents

    CONTENTS CONTENTS Introduction ....................... 1 Relevant Manuals ...................... 2 Manual Structure ....................... 4 Sections in this Manual .................... 7 Terms and Conditions Agreement................. 10 Safety Precautions ....................12 Precautions for Safe Use..................13 Precautions for Correct Use................... 14 Regulations and Standards ..................15 Versions ........................
  • Page 11 CONTENTS Section 3 Error Tables Errors by Source ........................3-2 3-1-1 Interpreting Error Descriptions....................3-2 3-1-2 Errors in the PLC Function Module..................... 3-2 3-1-3 Errors in the NX Bus Function Module ..................3-61 3-1-4 Errors in the Motion Control Function Module ................3-64 3-1-5 Errors in the EtherNet/IP Function Module ................

  • Page 12: Terms And Conditions Agreement

    Omron’s exclusive warranty is that the Products will be free from defects in materials and workman- ship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
  • Page 13 Disclaimers Performance Data Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements. Actual perfor- mance is subject to the Omron’s Warranty and Limitations of Liability.

  • Page 14: Safety Precautions

    Safety Precautions Safety Precautions Refer to the following manuals for safety precautions. • NX-series CPU Unit Hardware User’s Manual (Cat. No. W535) • NX-series NX1P2 CPU Unit Hardware User’s Manual (Cat. No. W578) • NJ-series CPU Unit Hardware User’s Manual (Cat No. W500) NJ/NX-series Troubleshooting Manual (W503)

  • Page 15: Precautions For Safe Use

    Precautions for Safe Use Precautions for Safe Use Refer to the following manuals for precautions for the safe use of the NJ/NX-series Controller. Installation precautions are also provided for the NJ/NX-series CPU Unit and the NJ/NX-series Control- ler system. • NX-series CPU Unit Hardware User’s Manual (Cat. No. W535) •...

  • Page 16: Precautions For Correct Use

    Precautions for Correct Use Precautions for Correct Use Refer to the following manuals for precautions for the correct use of the NJ/NX-series Controller. Installation precautions are also provided for the NJ/NX-series CPU Unit and the NJ/NX-series Control- ler system. • NX-series CPU Unit Hardware User’s Manual (Cat. No. W535) •...

  • Page 17: Regulations And Standards

    Concepts  EMC Directive OMRON devices that comply with EU Directives also conform to the related EMC standards so that they can be more easily built into other devices or the overall machine. The actual products have been checked for conformity to EMC standards.* Whether the products conform to the standards in the system used by the customer, however, must be checked by the customer.
  • Page 18 The NJ/NX-series Controllers comply with the following shipbuilding standards. Applicability to the shipbuilding standards is based on certain usage conditions. It may not be possible to use the prod- uct in some locations. Contact your OMRON representative before attempting to use a Controller on a ship.

  • Page 19: Versions

    Versions Versions Hardware revisions and unit versions are used to manage the hardware and software in NJ/NX-series Units and EtherCAT slaves. The hardware revision or unit version is updated each time there is a change in hardware or software specifications. Even when two Units or EtherCAT slaves have the same model number, they will have functional or performance differences if they have different hard- ware revisions or unit versions.
  • Page 20 Versions The ID information on an NJ-series NJ501- CPU Unit is shown below. ID information indication Unit model Unit version Hardware revision NJ501 - Ver.1. HW Rev. PORT1 MAC ADDRESS: PORT2 MAC ADDRESS: Lot No. DDMYY xxxx Lot number Serial number MAC address Note The hardware revision is not displayed for the Unit that the hardware revision is in blank.
  • Page 21 Versions  Changing Information Displayed in Production Information Dialog Box Click the Show Detail or Show Outline Button at the lower right of the Production Information Dialog Box. The view will change between the production information details and outline. Outline View Detail View The information that is displayed is different for the Outline View and Detail View.
  • Page 22 Versions  Changing Information Displayed in Production Information Dialog Box Click the Show Detail or Show Outline Button at the lower right of the Production Information Dialog Box. The view will change between the production information details and outline. Outline View Detail View Unit Versions of CPU Units and Sysmac Studio Versions The events that can occur depend on the unit versions of the NJ/NX-series CPU Unit, the EtherCAT...

  • Page 23: Related Manuals

    Related Manuals Related Manuals The followings are the manuals related to this manual. Use these manuals for reference. Manual name Cat. No. Model numbers Application Description NX-series CPU Unit W535 NX701- Learning the basic specifi- An introduction to the entire NX701 system is pro- Hardware User's Manual cations of the NX701 CPU vided along with the following information on the...

  • Page 24: Nj101

    Control Instructions Ref- NX1P2- cations of the motion control erence Manual NJ501- instructions that are pro- NJ301- vided by OMRON. NJ101- NJ/NX-series CPU Unit W505 NX701- Using the built-in EtherCAT Information on the built-in EtherCAT port is pro- Built-in EtherCAT® Port NX1P2-...
  • Page 25 Related Manuals Manual name Cat. No. Model numbers Application Description NX-series NX Units W521 NX-ID Learning how to use NX Describes the hardware, setup methods, and func- User’s Manuals NX-IA Units tions of the NX Units. NX-OC Manuals are available for the following Units. NX-OD...
  • Page 26 Related Manuals Manual name Cat. No. Model numbers Application Description E3NW-ECT EtherCAT E429 E3NW-ECT Learning how to connect Provides the specifications of and describes appli- Digital Sensor Communi- E3NW EtherCAT Slave cation methods for E3NW EtherCAT Slave Units. cations Unit Operation Units.

  • Page 27: Revision History

    Revision History Revision History A manual revision code appears as a suffix to the catalog number on the front and back covers of the manual. W503-E1-18 Cat. No. Revision code Revision code Date Revised content July 2011 Original production March 2012 Added information related to the upgrade to CPU unit version 1.01, made additions and changes to events related to the addition of devices that can be connected, and corrected mis-...
  • Page 28 Revision History October 2017 Made changes to the contents related to the upgrade to CPU unit version 1.16, added an error log table for CJ-series Spe- cial Units, and corrected mistakes. January 2018 Made changes to the contents related to the upgrade to CPU unit version 1.17, and corrected mistakes.

  • Page 29: Overview Of Errors

    Overview of Errors This section provides information that is required to troubleshoot errors. It introduces the types of errors that can occur on an NJ/NX-series Controller, the operation that occurs in response to errors, and the methods you can use to check for errors. Refer to Section 2 Error Troubleshooting Methods for information on troubleshooting errors.

  • Page 30: Overview Of Nj/Nx-Series Errors

    1 Overview of Errors Overview of NJ/NX-series Errors You manage all of the errors that occur on the NJ/NX-series Controller as events. The same methods are used for all events. This allows you to see what errors have occurred and find corrections for them with the same methods for the entire range of errors that is managed (i.e., CPU Unit, NX Units, NX- series Slave Terminals, EtherCAT slaves,* and CJ-series Units).

  • Page 31: Types Of Errors

    1 Overview of Errors 1-1-1 Types of Errors There are two main types of errors (events) depending on whether the NJ/NX-series Controller can manage them or not.  Fatal Errors These errors are not detected by the event management function of the NJ/NX-series Controller because the CPU Unit stops operation.

  • Page 32: Cpu Unit Status

    1 Overview of Errors 1-1-2 CPU Unit Status You can check the operating status of the CPU Unit with the PWR/POWER, RUN, and ERROR indica- tors on the front panels of the Power Supply Unit and CPU Unit.  NX-series CPU Units NX701 CPU Unit Power Supply Unit CPU Unit...
  • Page 33 1 Overview of Errors The following table shows the status of front-panel indicators, the status of user program execution, and the ability to connect communications to the Sysmac Studio or an HMI during startup, during normal operation, and when errors occur. Power Supply CPU Unit...
  • Page 34 1 Overview of Errors  NJ-series CPU Units Power Supply Unit CPU Unit RUN indicator PWR indicator ERROR indicator The following table shows the status of front-panel indicators, the status of user program execution, and the ability to connect communications to the Sysmac Studio or an HMI during startup, during normal operation, and when errors occur.

  • Page 35: Fatal Errors

    1 Overview of Errors Fatal Errors 1-2-1 Types of Fatal Errors This section describes the errors that cause the operation of the NJ/NX-series CPU Unit to stop. The errors that can occur depend on the CPU Unit. Communications with the Sysmac Studio or an HMI are not possible if there is a fatal error in the Con- troller.

  • Page 36: Checking For Fatal Errors

    1 Overview of Errors  CPU Unit Watchdog Timer Error This error can occur for an NJ-series CPU Unit. This error occurs when the watchdog timer times out because of a hardware failure or when temporary data corruption causes the CPU Unit to hang. ...

  • Page 37: Non-Fatal Errors

    1 Overview of Errors Non-fatal Errors Non-fatal errors that occur are managed as events in the NJ/NX-series Controller. You can check the event to find out what type of error occurred. 1-3-1 Types of Non-fatal Errors Overview of Controller Events (Errors and Information) You use the same methods to manage all of the events that occur on the NJ/NX-series Controller.
  • Page 38 1 Overview of Errors The event management for NJ-series Units is shown below. Check current Controller events and the event log of past events. Sysmac Studio CJ-series NJ-series CPU Unit Units Motion Control EtherCAT Master EtherNet/IP PLC Function Event source Errors in Function Module Function Module...
  • Page 39 1 Overview of Errors Additional Information • You cannot check the error logs that are managed independently by EtherCAT slaves because they are not for Controller events. Refer to relevant manuals for the slaves for the procedures to read error logs and correct errors. •...
  • Page 40 1 Overview of Errors *1 Only for NX1P2 CPU Units. Note An NC Integrated Controller has the CNC Function Module. For how to check and correct errors in the CNC Function Module, refer to the NJ/NY-series NC Integrated Controller User’s Manual (Cat. No. O030). The event source is displayed on the Sysmac Studio or HMI.
  • Page 41 1 Overview of Errors Operation for Each Level The way that the Controller operates when an event occurs depends on the level of the Controller event. Level of event Controller Controller errors Item information Major fault Partial fault Minor fault Observation Information level...
  • Page 42 1 Overview of Errors Level of event Controller Controller errors Item information Major fault Partial fault Minor fault Observation Information level level level Refer to I/O • Errors in Eth- According to According to According to Operation for erCAT Master user program.
  • Page 43 1 Overview of Errors Operation in the Function Module Where an Error Event Occurred Level of current event Function module Major fault level Partial fault level Minor fault level Observation PLC Function User program execution Operation continues. Module stops. I/O refreshing for NX Operation continues.
  • Page 44 1 Overview of Errors I/O Operation for Major Fault Level Controller Errors The following table gives the operation of the CPU Unit and the I/O devices. Unit CPU Unit operation Unit or slave operation Input refreshing stops. Depends on the settings for the NX NX Unit mounted to the CPU Unit Unit.
  • Page 45 1 Overview of Errors Unit CPU Unit operation Unit or slave operation EtherCAT Slave Terminal The EtherCAT Slave Terminal Depends on the NX Unit settings. moves to Safe-Operational state. The slave is placed in the Safe- EtherCAT slave Depends on the slave settings. Operational state.
  • Page 46 1 Overview of Errors First digit of the Classification Meaning code (hex) Communications errors An error caused by communications with an external device or host system. Information Events that are classified as information and provide information that do not indicate errors. Relationship between Event Codes and Error Codes In addition to the event codes that indicate errors, the function modules and Units have their own error codes.

  • Page 47: Checking For Non-Fatal Errors

    • Lit: Errors for which normal status cannot be recovered through user actions (i.e., errors for which you must replace the CPU Unit or contact your OMRON representative). • Flashing: Errors for which normal status can be recovered through user actions.
  • Page 48 • Lit: Errors for which normal status cannot be recovered through user actions (i.e., errors for which you must replace the CPU Unit or contact your OMRON representative). • Flashing: Errors for which normal status can be recovered through user actions.
  • Page 49 1 Overview of Errors Instructions That Read Function Module Error Status You can determine the error status with the instructions that get error status provided for each function module from the user program. These instructions get the status and the event code of the error with the highest level.

  • Page 50: Resetting Non-Fatal Errors

    1 Overview of Errors 1-3-3 Resetting Non-fatal Errors Unless you reset an error, the CPU Unit will retain the error status until you turn OFF the power supply to the Controller or reset the Controller. To reset a Controller error, it is necessary to eliminate the cause of the error. The same error will occur again if you reset the error, but do not eliminate the cause of the error.
  • Page 51 1 Overview of Errors Error Resetting Methods Errors that are Method Operation Description reset Commands from Resetting Controller Resetting all errors Reset the Controller errors from the Sys- Sysmac Studio errors in the entire Control- mac Studio’s Troubleshooting Dialog Box. Resetting all Slave Refer to the manual for the Communica- Terminal errors...
  • Page 52 1 Overview of Errors Errors that are Method Operation Description reset Cycling the Control- Resets all errors. After the causes of the Controller errors are ler’s power supply removed, all Controller errors in all function modules are reset as a result. Cycling the power Resetting all Slave If the causes for the Controller errors are...

  • Page 53: Error Troubleshooting Methods

    Error Troubleshooting Methods This section describes troubleshooting methods for specific errors. 2-1 Troubleshooting Flowcharts ........2-2 2-1-1 Checking to See If the CPU Unit Is Operating .

  • Page 54: Troubleshooting Flowcharts

    2 Error Troubleshooting Methods Troubleshooting Flowcharts This section provides basic error identification and troubleshooting flowcharts. Use them when an error occurs in the NJ/NX-series Controller. 2-1-1 Checking to See If the CPU Unit Is Operating When an error occurs in the NJ/NX-series Controller, use the following flowchart to determine whether the error is a fatal error or a non-fatal error.
  • Page 55 2 Error Troubleshooting Methods  NJ-series CPU Units A fatal error occurred. Refer to 2-2 Error occurs. Troubleshooting Fatal Errors. Not lit. PWR indicator Power Supply Error (green)? Lit. possible. Flashing. Not lit. Communications with ERROR indicator CPU Unit Reset Sysmac Studio? (red)? Lit.

  • Page 56: Troubleshooting Flowchart For Non-Fatal Errors

    2 Error Troubleshooting Methods 2-1-2 Troubleshooting Flowchart for Non-fatal Errors For a non-fatal error, use the Sysmac Studio or an HMI to troubleshoot the error with the following flow- chart. You can use the indicators to check the following: • Level •...

  • Page 57: Troubleshooting Fatal Errors

    2 Error Troubleshooting Methods Troubleshooting Fatal Errors The section describes the procedure to troubleshoot fatal errors.  Power Supply Error Cause Correction Power is not being input. Turn ON the power. The voltage is outside of the allowable Check the Controller’s power supply system, and correct it so that the range for the power supply.
  • Page 58 2 Error Troubleshooting Methods  Hardware Initialization Error Cause Correction A conductive object has gotten inside. If there is conductive material nearby, blow out the CPU Unit with air. Noise If the error did not result from the above causes, cycle the power to the Controller and see if that resets the error.

  • Page 59: Troubleshooting Non-Fatal Errors

    2 Error Troubleshooting Methods Troubleshooting Non-fatal Errors 2-3-1 Identifying and Resetting Errors with the Sysmac Studio Troubleshooting functions are provided by the Sysmac Studio. You can use the troubleshooting func- tions to identify errors that occur in a Controller, and reset the errors. Displaying Errors on the Sysmac Studio If an error occurs while the Sysmac Studio is online with the CPU Unit, the Sysmac Studio notifies the user of the error in the Controller Status Pane.
  • Page 60 2 Error Troubleshooting Methods Checking Current Errors and the Event Logs with the Sysmac Studio  Checking Current Errors with the Sysmac Studio You can click the Controller Errors Tab in the Troubleshooting Window to read information on cur- rent errors in the Controller. The Controller Errors Tab Page lists the current errors in order of their levels.
  • Page 61 2 Error Troubleshooting Methods  Displaying Event Logs with the Sysmac Studio With Sysmac Studio, you can check a log of the Controller events that previously occurred on the Controller Event Log Tab Page. You can select the event logs and levels to display in the Display Settings Area. Information on the events that you specify are displayed in the detailed information area.
  • Page 62 2 Error Troubleshooting Methods To eliminate the cause of the error, first select the item to perform from the Action and Correction list. When you select the appropriate step in the Action and Correction list, either the Jump to Error or Error Help Button is enabled, depending on the contents.

  • Page 63: Identifying And Resetting Errors With An Hmi

    Identifying and Resetting Errors with an HMI You can connect an OMRON HMI to an NJ/NX-series CPU Unit through an EtherNet/IP network, and use it to read and reset errors that occurred in the Controller. (The Troubleshooter of the HMI is used.) To perform troubleshooting from an HMI, connect the HMI to the built-in EtherNet/IP port on the CPU Unit.
  • Page 64 2 Error Troubleshooting Methods Select the Controller with an error and click the Show Controller Events Button to display the Control- ler Event List Screen. In the Controller Event List Screen, you can check the list of Controller errors that currently exist in the selected Controller.
  • Page 65 2 Error Troubleshooting Methods Return to the Controller Status Screen and check the Controller status. The status of the Controller whose errors were completely reset is displayed as “Normal”. If the cause of the error is not removed, or if the power supply is not cycled or the Controller is not reset as required after resetting the error, the error will occur again.

  • Page 66: Identifying And Resetting Errors From The User Program

    2 Error Troubleshooting Methods 2-3-3 Identifying and Resetting Errors from the User Program In an NJ/NX-series Controller, you can check for errors that have occurred from the user program. This feature allows you to program operations in the user program according to the error status. Special instructions are provided for this purpose.
  • Page 67 2 Error Troubleshooting Methods Resetting Controller Errors with Instructions You can use the instructions that are provided to reset errors in the user program to reset errors that occur in the Controller. Before you attempt to reset a Controller error, isolate and remove the cause of the error.

  • Page 68: Checking For Errors With System-Defined Variables

    2 Error Troubleshooting Methods 2-3-4 Checking for Errors with System-defined Variables The system-defined variables include an Error Status variable, which shows the error status in a hierar- chical structure. The system determines the error status of each level by logically ORing the error status information of the next lower level.
  • Page 69 2 Error Troubleshooting Methods  NJ-series CPU Units Level 1 Level 2 Level 3 Level 4 _ErrSta Error Status variable (for the entire Controller) _PLC_ErrSta Error status variable for PLC Function Module _CJB_ErrSta Error status variable for I/O bus _CJB_MstrErrSta Error status variable for master _CJB_UnitErrSta Error status variable for Units...

  • Page 70: Troubleshooting When You Cannot Go Online From The Sysmac Studio

    2 Error Troubleshooting Methods Troubleshooting When You Cannot Go Online from the Sysmac Studio The section describes the procedure to troubleshoot when you cannot go online with the CPU Unit from the Sysmac Studio. 2-4-1 Causes and Correction When You Cannot Go Online from the Sysmac Studio The following table lists the possible causes when you cannot go online with the NJ/NX-series CPU Unit from the Sysmac Studio.
  • Page 71 2 Error Troubleshooting Methods *1 This applies to an NX-series CPU Unit. *2 If the ERROR indicator is lit at the same time or if the RUN indicator flashes at a 2-second interval for more than 30 seconds, a fatal CPU Unit error has occurred. *3 This applies to an NJ-series CPU Unit.

  • Page 72: Troubleshooting For Each Cause

    2 Error Troubleshooting Methods 2-4-2 Troubleshooting for Each Cause This section provides troubleshooting methods for incorrect settings, fault communications paths, and high system service loads. Troubleshooting Incorrect Settings and Faulty Communications Path If the Sysmac Studio cannot go online with the CPU Unit, troubleshoot the problem with the following flowchart.
  • Page 73 2 Error Troubleshooting Methods  Remote Connection to Peripheral USB Port Sysmac Studio cannot connect to CPU Unit. Is power supplied to the Controller? Turn ON the power supply to the Controller. Can the Sysmac Studio go online with CPU Unit? Are the USB cable and Insert the cable connectors all the way Ethernet cables...
  • Page 74 2 Error Troubleshooting Methods  Direct Connection with EtherNet/IP Port Sysmac Studio cannot Sysmac Studio cannot connect to CPU Unit. connect to CPU Unit. Is power supplied to the Controller? Is power supplied to the Controller? Turn ON the power supply to the Controller. Turn ON the power supply to the Controller.
  • Page 75 2 Error Troubleshooting Methods  Ethernet Hub Connection Sysmac Studio cannot connect to CPU Unit. Is power supplied to the Controller? Turn ON the power supply to the Controller. Can the Sysmac Studio go online with CPU Unit? Insert the cable connectors at the personal computer,Ethernet switches, and the Controller until they lock into place.
  • Page 76 2 Error Troubleshooting Methods Set the IP address for the personal computer. Use the default IP address for the Controller or Is the same IP address set for connect the Sysmac Studio to the Controller more than one node (computer with a USB cable and set the required IP or Controller) in the same address.
  • Page 77 2 Error Troubleshooting Methods Turn OFF all DIP switch pins and then cycle the power supply to the Controller to restore normal CPU Unit operation.  Safe Mode Operation If the Controller is started when the CPU Unit is in Safe Mode, the CPU Unit will start in PROGRAM mode even if the startup mode is set to RUN mode.
  • Page 78 2 Error Troubleshooting Methods 2-26 NJ/NX-series Troubleshooting Manual (W503)
  • Page 79 Error Tables This section lists all of the errors (events) that can occur on NJ/NX-series Controllers. 3-1 Errors by Source ..........3-2 3-1-1 Interpreting Error Descriptions .

  • Page 80: Error Tables

    3 Error Tables Errors by Source This section provides tables of errors (events) by source. Within each source, errors are given by func- tional classifications. Events that are not errors are also given in the tables. 3-1-1 Interpreting Error Descriptions The contents of the error tables are described below.
  • Page 81 3 Error Tables Errors for Self Diagnosis The manual names are given below for the catalog numbers given in the Reference column of the event table. Cat. No. Manual name W500 NJ-series CPU Unit Hardware User's Manual W535 NX-series CPU Unit Hardware User's Manual W578 NX-series NX1P2 CPU Unit Hardware User’s Manual Level...
  • Page 82 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 100A0000 hex Data Not An error occurred in • An error occurred in the soft- W500, W535 (Ver. 1.10 or Saved to Bat- the software and ware.
  • Page 83 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 00070000 hex Real-Time The oscillation of • The battery voltage is low. W500, W535, Clock the real-time clock W578 • The battery connector has Stopped stopped. The real- come loose.
  • Page 84 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 10060000 hex SD Memory A file that must be • The Controller power supply W500, W535, Card Data in the SD Memory was turned OFF while the SD W578 Corrupted Card is missing or...
  • Page 85 3 Error Tables Errors Related to CJ-series Unit Configuration The manual names are given below for the catalog numbers given in the Reference column of the event table. Cat. No. Manual name W500 NJ-series CPU Unit Hardware User's Manual Level Event code Event name Meaning...
  • Page 86 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 34010000 hex I/O Setting There is an incon- • A Unit model or Special Unit W500 Check Error sistency between a unit number in the Unit Configu- Unit model in the ration in the CPU Unit is differ- Unit Configuration...
  • Page 87 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 04020000 hex PLC System This event pro- • This event provides internal W500 Information vides internal infor- information from the PLC Func- mation from the tion Module. It is recorded to PLC Function Mod- provide additional information ule.
  • Page 88 3 Error Tables Errors Related to Tasks The manual names are given below for the catalog numbers given in the Reference column of the event table. Cat. No. Manual name W501 NJ/NX-series CPU Unit Software User's Manual Level Event code Event name Meaning Assumed cause...
  • Page 89 3 Error Tables Errors Related to Controller Operation The manual names are given below for the catalog numbers given in the Reference column of the event table. Cat. No. Manual name W500 NJ-series CPU Unit Hardware User's Manual W501 NJ/NX-series CPU Unit Software User's Manual W535 NX-series CPU Unit Hardware User's Manual W578...
  • Page 90 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 10270000 hex Error in Start- An error was • An SD Memory Card is not W500, W501, (Ver. 1.03 or ing Automatic detected in pre- inserted. W535, W578 later) Transfer...
  • Page 91 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 10280000 hex Error in Exe- The automatic • It was not possible to read the W500, W501, (Ver. 1.03 or cuting Auto- transfer ended in an data for automatic transfer.
  • Page 92 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 10330000 hex SD Memory An error was • An SD Memory Card is not W500, W501, (Ver. 1.11 or Card Pro- detected in pre- inserted. W535, W578 later) gram Trans- execution checks...
  • Page 93 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 10340000 hex Error in Exe- The SD Memory • It was not possible to read the W500, W501, (Ver. 1.11 or cuting SD Card program data for SD Memory Card pro- W535, W578 later) Memory Card...
  • Page 94 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 10290000 hex Backup An error was • An SD Memory Card is not W500, W501, (Ver. 1.03 or Failed to detected in pre- inserted. W535, W578 later) Start execution checks...
  • Page 95 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 102B0000 hex Restore An error was • An SD Memory Card is not W500, W501, (Ver. 1.03 or Operation detected in pre- inserted. W535, W578 later) Failed to execution checks •...
  • Page 96 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info • Password of Restore by sys- tem-defined variable in the Controller Setup does not agree with the _Card1Resto- reCmd.Password system- defined variable. • The DIP switch on the CPU Unit is not set to allow starting the restore of SD Memory Card backups by specification with...
  • Page 97 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 10320000 hex SD Memory An error was • Program transfer by system- W500, W501, defined variable is set to Do not (Ver. 1.11 or Card Pro- detected in pre-start W535, W578 use in the Controller Setup.
  • Page 98 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 103E0000 hex Restore Pre- An error was • An SD Memory Card is not W500, W501, (Version 1.14 execution detected in pre- inserted. W535, W578 or later) Check Fail- execution checks •...
  • Page 99 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 40170000 hex Safe Mode The Controller • The Controller started in Safe W500, W501, (Ver. 1.03 or started in Safe Mode. W535, W578 later) Mode. 80230000 hex NX Message An error has •...
  • Page 100 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 90150000 hex Reset Exe- A reset was exe- • A reset command was W500, W501, cuted cuted. received. W535, W578 90160000 hex User Pro- The user program •...
  • Page 101 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 34130000 hex FINS/TCP The FINS/TCP con- • The power supply to the Con- W501 Connection nection table is troller was interrupted or com- Table Setting incorrect. munications with the Sysmac Error Studio were disconnected while...
  • Page 102 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 80120000 hex Packet Dis- One or more pack- • A FINS response was received W501 carded ets were discarded. with the destination network address (DNA) set to the local network and the destination node address (DA1) not set to the local node.
  • Page 103 3 Error Tables Instructions A version in parentheses in the Event code column is the unit version of the CPU Unit when the event code was added. Event codes for instructions are supported by CPU Units with unit version 1.02 or later. The manual names are given below for the catalog numbers given in the Reference column of the event table.
  • Page 104 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54010405 hex Illegal Bit Position The bit position specified • The bit position speci- W502 Specified for an instruction was ille- fied for an instruction gal. exceeds the data range.
  • Page 105 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54010411 hex Illegal Program The program specified for • The program speci- W502 Specified an instruction does not fied by the function exist. does not exist (e.g., it was deleted).
  • Page 106 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54010C00 hex Illegal Serial Com- The Serial Communica- • The serial communi- W502 munications Mode tions Unit is not in the serial cations port for the communications mode Serial Communica- required to execute an...
  • Page 107 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54010C11 hex Invalid Modbus An unexpected response • The function code or W502 (Ver. 1.11 or Response was returned from the Mod- data size of the later) bus slave.
  • Page 108 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54011409 hex That File Name An instruction could not be • A file already exists W502 Already Exists executed because the file with the same name name specified for the as the name specified instruction already exists.
  • Page 109 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54011803 hex Reception Buffer The receive data from an • The receive data from W502 Overflow EtherCAT slave over- the slave overflowed flowed the receive buffer the receive buffer.
  • Page 110 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54011C01 hex Incorrect Route The format of the route • The format of the W502 Path path that is specified for a route path that is CIP communications specified for a CIP instruction is not correct.
  • Page 111 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54011C06 hex CIP Communica- An attempt was made to • The data size that was W502 (Ver. 1.06 or tions Data Size send a class-3 explicit mes- specified for the input later) Exceeded...
  • Page 112 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54012003 hex Socket Status The status was not suit- • SktUDPCreate Instruc- W502 Error able for execution of the tion socket service instruction. The UDP port specified with the SrcUdpPort input variable is in one of the following states.
  • Page 113 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54012003 hex Socket Status The status was not suit- • SktTCPSend Instruction W502 Error able for execution of the • The specified socket socket service instruction. is sending data.
  • Page 114 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54012400 hex No Execution An instruction to change • An instruction to W502 (Ver. 1.02 or Right the settings of an Ether- change the settings of later) Net/IP port was executed the built-in EtherNet/IP...
  • Page 115 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54012404 hex • The number of files W502 File Number Limit The number of files (Ver. 1.08 or specified with a file Exceeded specified with a wildcard for later) name that contained a an FTP client...
  • Page 116 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 5401240B hex Failed To Delete A file was not deleted after • The FTP client com- W502 (Ver. 1.08 or Specified File it was transferred with an munications instruc- later) FTP client communications...
  • Page 117 Z (_mcEn- coderMark) as the trigger conditions was executed for an axis that is mapped to an OMRON GX- EC02 EtherCAT Encoder slave. 54014800 hex Device Error An error response from the • An error response...
  • Page 118 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54014805 hex Communications A timeout occurred in com- • The communications W502 Timeout munications. timeout time is shorter (Ver. 1.12 or than the message later) response time. •...
  • Page 119 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 5401542B hex Buffer Mode The parameter specified for • Instruction input W502 Selection Out of the BufferMode input vari- parameter exceeded Range able to a motion control the valid range of the instruction is out of range.
  • Page 120 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54015438 hex Master/Slave Axis The axis numbers specified • The parameters for W502 Numbers Not in for the Master and Slave the Master and Slave Ascending Order input variables to a motion input variables to the control instruction are not in...
  • Page 121 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 5401543E hex Instruction Cannot • An operation instruction • An operation instruc- W502 Be Executed was executed for an axis tion was executed for during Multi-axes or an axes group that an axis or an axes Coordinated Con-...
  • Page 122 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54015443 hex Motion Control The number of motion con- • An axis instruction W502 Instruction Multi- trol instructions that is buff- was executed when execution Buffer ered for Buffered or there was already a Limit Exceeded...
  • Page 123 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54015448 hex Same Start Point The start point and end • The start point and W502 and End Point for point were the same when end point were the Circular Interpola- the radius method was same when the radius...
  • Page 124 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54015450 hex Trigger Input Con- The parameter specified for • Instruction input W502 dition Mode Selec- the TriggerInput:: Mode parameter exceeded tion Out of Range input variable to a motion the valid range of the control instruction is out of input variable.
  • Page 125 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54015459 hex Motion Control An attempt was made to • A parameter for an W502 Instruction Re-exe- change the parameter for input variable that cution Disabled the Master input variable cannot be changed for (Master Axis)
  • Page 126 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54015461 hex Illegal Axes Group The axes group specified • An axes group does W502 Specification for the AxesGroup input not exist for the vari- variable to a motion control able specified for the instruction does not exist or AxesGroup input vari-...
  • Page 127 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54015466 hex Instruction Execu- High-speed homing or an • High-speed homing W502 tion Error with interpolation instruction was executed when Undefined Home was executed when home home was undefined.
  • Page 128 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 5401546E hex Duplicate Latch ID The same latch ID was • The same latch ID is W502 for Trigger Input specified for more than one used simultaneously Condition motion control instruction.
  • Page 129 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54015478 hex Target Position The parameter specified for • Instruction input W502 Setting Out of the Position input variable parameter exceeded Range to a motion control instruc- the valid range of the tion is out of range.
  • Page 130 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 5401547F hex Auxiliary/Slave The values of the parame- • The parameters for W502 Axis Numbers Not ters for the Auxiliary and the Auxiliary and in Ascending Slave input variables to a Slave input variables Order...
  • Page 131 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 5401548B hex Slave Travel Dis- The parameter specified for • The instruction input W502 tance Specifica- the SlaveDistance input parameter exceeded tion Out of Range variable to a motion control the range of 40-bit instruction is out of range.
  • Page 132 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54015497 hex Master Axis Gear The parameter specified for • Instruction input W502 Ratio Denomina- the RatioDenominatorMas- parameter exceeded tor Out of Range ter input variable to a the valid range of the motion control instruction is input variable.
  • Page 133 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54015703 hex Cannot Change The MC_ChangeAxisUse • The MC_ChangeAxis- W502 (Ver. 1.06 or Axis Use (Change Axis Use) instruc- Use (Change Axis later) tion was executed in a way Use) instruction was that would cause the maxi- executed in a way that...
  • Page 134 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54015722 hex Actual Position An instruction was exe- • An instruction was W502 (Ver. 1.06 or Overflow/Under- cuted that is not supported executed that is not later) flow during an actual position...
  • Page 135 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 5401572C hex Number of Array The number of elements in • The number of ele- W502 (Ver. 1.06 or Elements in Output an array in the structure ments in an array of later) Signal Structure...
  • Page 136 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 5401573E hex Incorrect Cam The parameter specified for • The parameter speci- W502 (Ver. 1.08 or Node Type Specifi- the CamNodes input vari- fied for the CamNodes later) cation able to a motion control...
  • Page 137 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 5401574B hex PDS State Transi- The parameter specified for • Instruction input W502 (Ver. 1.10 or tion Command the TransitionCmd input parameter exceeded later) Selection Out of variable to a motion control the valid range of the Range...
  • Page 138 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54016442 hex Command Posi- Positioning, an instruction • One of the following W502 tion Over- in the underflow/overflow was executed when flow/Underflow direction, or an instruction there was a command for which the direction is position over-...

  • Page 139: Errors In The Nx Bus Function Module

    3 Error Tables 3-1-3 Errors in the NX Bus Function Module The section provides tables of the errors (events) that can occur in the NX Bus Function Module. Errors Related to the NX Bus The manual names are given below for the catalog numbers given in the Reference column of the event table.
  • Page 140 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 35910000 hex Unregistered There is a mounted • There is a mounted Unit that W501, W578 (Ver. 1.13 or NX Unit NX Unit that does does not exist in the Unit con- later) Mounted not exist in the Unit...
  • Page 141 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 85510000 hex NX Unit An error occurred in • An NX Bus Communications W501, W578 (Ver. 1.13 or Communica- I/O data communi- Error has occurred. later) tions Timeout cations with the NX •...

  • Page 142: Errors In The Motion Control Function Module

    3 Error Tables 3-1-4 Errors in the Motion Control Function Module The section provides tables of the errors (events) that can occur in the Motion Control Function Module. They are divided into the following functional classifications. • General motion control •...
  • Page 143 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 44200000 hex Motion Con- A fatal error • Hardware has failed. W507 trol Initializa- occurred in the sys- tion Error tem and prevented initialization of the Motion Control Function Module.
  • Page 144 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 644A0000 hex Positive Limit The positive limit • A positive limit input signal was W507 Input input turned ON. detected. Detected • The positive limit input signal is not connected correctly or the logic setting for the positive limit input is wrong.
  • Page 145 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 74240000 hex Homing The limit signal in • The Operation Selection at W507 Opposite the direction oppo- Negative Limit Input or Opera- Direction site to the homing tion Selection at Positive Limit Limit Input direction was...
  • Page 146 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 74290000 hex Home The home input and • The wiring of the home input W507 Input/Hom- the limit signal in signal or limit signal is incorrect. ing Opposite the direction oppo- •...
  • Page 147 10 seconds for three consecutive periods after a command veloc- ity of 0 was output. • For an OMRON 1S-series Servo Drive or G5-series Servo Drive, the actual current veloc- ity was not reduced to 10% or...
  • Page 148 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 743A0000 hex Master Axis The synchronized • EtherCAT process data com- W507 Position control instruction munications are not established Read Error was not executed for the master axis of the syn- because an error chronized control instruction or occurred in the...
  • Page 149 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 644F 0000 hex Deceleration The command • The command deceleration rate W507 Warning deceleration exceeded the deceleration exceeded the warning value. deceleration warn- ing value. 64500000 hex Positive The torque com- •...
  • Page 150 • A motion control instruction that specifies phase Z (_mcEnco- derMark) as the trigger condi- tions was executed for an axis that is mapped to an OMRON GX-EC02 EtherCAT Encoder slave. 3-72 NJ/NX-series Troubleshooting Manual (W503)
  • Page 151 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 54200000 hex Electronic The parameter • Instruction input parameter W508 Gear Ratio specified for the exceeded the valid range of the Numerator RatioNumerator input variable. Setting Out of input variable to a Range motion control...
  • Page 152 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 542B0000 hex Buffer Mode The parameter • Instruction input parameter W508 Selection Out specified for the exceeded the valid range of the of Range BufferMode input input variable.
  • Page 153 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 54350000 hex Synchroniza- The parameter • Instruction input parameter W508 tion Start specified for the exceeded the valid range of the Condition LinkOption input input variable. Selection Out variable to a motion of Range...
  • Page 154 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 543C 0000 hex Motion Con- Multiple functions • Multiple functions that cannot W508 trol Instruc- that cannot be exe- be executed simultaneously tion Multi- cuted simultane- were executed for the same tar- execution ously were...
  • Page 155 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 54420000 hex Composition A motion instruction • A motion instruction was exe- W508 Axis Stopped was executed for cuted for an axes group while Error an axes group while the MC_Stop instruction was the MC_Stop being executed for a composi-...
  • Page 156 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 54490000 hex Circular Inter- The position speci- • The difference between the dis- W508 polation Cen- fied for the center tance from the start point to the point exceeded the center point and the distance Specification...
  • Page 157 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 54530000 hex Motion Con- An attempt was • A parameter for an input vari- W508 trol Instruc- made to change the able that cannot be changed for tion Re- parameter for the re-execution was changed.
  • Page 158 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 54590000 hex Motion Con- An attempt was • A parameter for an input vari- W508 trol Instruc- made to change the able that cannot be changed for tion Re- parameter for the re-execution was changed.
  • Page 159 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 545E0000 hex Motion Con- An attempt was • A parameter for an input vari- W508 trol Instruc- made to change the able that cannot be changed for tion Re- parameter for the re-execution was changed.
  • Page 160 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 54650000 hex Motion Con- An attempt was • A parameter for an input vari- W508 trol Instruc- made to change the able that cannot be changed for tion Re- StartPosition input re-execution was changed.
  • Page 161 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 546C0000 hex Master Sync The parameter • Instruction input parameter W508 Start Posi- specified for the exceeded the valid range of the tion Setting MasterSyncPosi- input variable. Out of Range tion input variable to a motion control...
  • Page 162 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 54750000 hex Position Gear Synchronized • The specified synchronized W508 Value Error motion is not possi- motion cannot be performed at ble for the velocity, the velocity, acceleration rate, acceleration rate, or deceleration rate that is input and deceleration...
  • Page 163 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 547E0000 hex Circular Inter- The parameter • Instruction input parameter W508 polation Set- specified for the exceeded the valid range of the ting Out of CircAxes input vari- input variable.
  • Page 164 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 54880000 hex Permitted The parameter • Instruction input parameter W508 Following specified for the exceeded the valid range of the Error Out of PermittedDeviation input variable. Range input variable to a motion control...
  • Page 165 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 54910000 hex Synchro- The parameter • Instruction input parameter W508 nized Con- specified for the exceeded the valid range of the trol End OutMode input vari- input variable.
  • Page 166 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 549A0000 hex Master Axis The parameter • Instruction input parameter W508 Position Type specified for the exceeded the valid range of the Selection Out ReferenceType- input variable. of Range Master input vari- able to a motion...
  • Page 167 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 57200000 hex Motion Con- The motion control • The MC_ChangeAxisUse W508 (Ver. 1.04 or trol Parame- parameter settings (Change Axis Use) instruction later) ter Setting for the axis that was was used to change an unused Error When changed to a used...
  • Page 168 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 573C 0000 hex • The parameter specified for the W508 The parameter (Ver. 1.08 or CamProperty input variable to Property specified for the later) the instruction is out of range Setting Out of CamProperty input for the input variable.
  • Page 169 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 57430000 hex • A cam data variable that was W508 Aborted Cam A cam data variable (Ver. 1.08 or aborted during generation due Table Used that was aborted later) to an error in the MC_Gener- during generation...
  • Page 170 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 64410000 hex Target Posi- The specified posi- • The parameter specified for the W508 tion Negative tion exceeds the Position input variable to the Software negative software instruction is beyond the nega- Limit limit.
  • Page 171 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 57230000 hex Switch Struc- The value of Track- • The value of the member of the W508 (Ver. 1.06 or ture Track Number that is structure variable that was later) Number Set- specified in the...
  • Page 172 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 572B0000 hex Number of The number of ele- • The number of elements in an W508 (Ver. 1.06 or Array Ele- ments in an array in array of the structure variable later) ments in...

  • Page 173: Errors In The Ethernet/Ip Function Module

    3 Error Tables 3-1-5 Errors in the EtherNet/IP Function Module Built-in EtherNet/IP Port on CPU Unit The manual names are given below for the catalog numbers given in the Reference column of the event table. Cat. No. Manual name W506 NJ/NX-series CPU Unit Built-in EtherNet/IP Port User's Manual Level Event code...
  • Page 174 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 14230000 hex The MAC address • Non-volatile memory failure W506 (Ver. 1.10 or Address in non-volatile later) Error memory was not read correctly. 34200000 hex Tag Data Link An error was •...
  • Page 175 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 342A0000 hex DNS Setting An error was • Parameter error W506 (Ver. 1.10 or Error detected in the • Power was interrupted when a later) DNS settings or download was in progress for Hosts settings.
  • Page 176 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 840C 0000 hex Tag Data Link The total band- • An attempt was made to estab- W506 (Ver. 1.10 or Equipment width for the con- lish a connection that would later) Total Allow- nections that are...

  • Page 177: Errors In The Ethercat Master Function Module

    3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 94040000 hex Tag Data Link Tag data links were • Tag data links were started by W506 Started started by the Net- the Network Configurator, Sys- work Configurator, mac Studio, or manipulation of Sysmac Studio, or...
  • Page 178 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 14400000 hex The MAC address • The CPU Unit has failed. W505 Address is incorrect. Error 44010000 hex EtherCAT A fatal error was • Software is corrupted. W505 Fault detected in the Eth-...
  • Page 179 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 84210000 hex Network The EtherCAT net- • Slave output ports are con- W505 Configura- work configuration nected to each other. tion Error is incorrect. • The master and slave are con- nected with the slave output port.
  • Page 180 • Initialization of the EtherCAT slave failed. • It was not possible to read the backup parameters from the EtherCAT slave. • Communications with an OMRON Communications Cou- pler Unit or NX Unit failed. 3-102 NJ/NX-series Troubleshooting Manual (W503)
  • Page 181 • The EtherCAT network configu- ration in the backup data does not agree with the physical net- work configuration. • An error occurred at an OMRON Communications Cou- pler Unit. The following causes are possi- ble. • Reading a backup file failed...

  • Page 182: Errors In Opc Ua

    3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 94410000 hex Slave Con- A slave was recon- • An operation to reconnect the W505 nected nected for a recon- slave was executed from the nection command. Sysmac Studio.
  • Page 183 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 15020000 hex Server Certif- The IP address of The IP address of the built-in Eth- W588 icate Mis- the server certifi- erNet/IP port of the CPU Unit was match cate in the CPU changed when Server Use Option...
  • Page 184 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 35D40000 hex Unsupported When preparing the The OPC UA Server had an W588 Data Type OPC UA Server, unsupported data type in the net- there was a data work-published global variables.
  • Page 185 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 95D20000 hex Server Certif- A server certificate • A server certificate was gener- W588 icate Gener- was generated. ated. ated The server certifi- cate is automati- cally generated when there is no server certificate, The server certifi-...

  • Page 186: Errors In The Db Connection Service Function

    3 Error Tables 3-1-8 Errors in the DB Connection Service Function The section provides tables of the errors (events) that can occur in the DB connection service or DB connection instructions. Refer to the NJ/NX-series Database Connection CPU Units User’s Manual (Cat. No. W527) for details on the CPU Unit models and the unit versions in which the DB connection service and DB connection instructions can be used.
  • Page 187 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 35300000 hex DB Connec- The DB Connec- • The power supply to the Con- W527 tion Setting tion settings are not troller was interrupted during a Error correct.
  • Page 188 3 Error Tables DB Connection Instructions The lower four digits of the following event codes indicate the instruction error codes. For descriptions of an error code, refer to the description of the corresponding event code. For example, if the error code for the instruction is 16#3000, refer to the description for event code 5401 3000 hex.
  • Page 189 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 54013005 hex DB Connec- Failed to connect to • A server does not exist for the W527 tion Failed the DB. specified IP address or the specified host name.
  • Page 190 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 5401300B hex SQL Execu- The executed SQL • There is no column with the W527 tion Error statement resulted same name as a structure in an error. member of the DB Map Vari- able.
  • Page 191 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 54013011 hex DB Connec- The instruction • The power supply to the server W527 tion Discon- could not be exe- is OFF. nected Error cuted because the •...

  • Page 192: Errors In Gem Services

    3 Error Tables 3-1-9 Errors in GEM Services The section provides tables of the errors (events) that can occur in the GEM Services and GEM instruc- tions. You can use the GEM Services and GEM instructions with the NJ501-1340 CPU Unit. The unit version of the CPU Unit is 1.09 or later.
  • Page 193 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 14E40000 hex Invalid SD An SD Memory • An SD Memory Card is not W528 Memory Card Card is not inserted. inserted or an SD • The SD Memory Card type is Memory Card that not correct.
  • Page 194 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54010419 hex Incorrect Data A data type that cannot • A data type that cannot W502 Type be used for an instruc- be used for an instruction tion is specified for an is specified for an input input or in-out variable.
  • Page 195 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 5401381B hex Insufficient The instruction was • The instruction was exe- W528 Transaction executed while the cuted while the number Resource number of transac- of transactions that can tions that can be buff- be buffered exceeds the ered exceeds the...
  • Page 196 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 5401382F hex Illegal CPNAME A CPNAME that is dif- • A CPNAME was speci- W528 ferent form the fied that is different from received CPNAME was the received CPNAME.

  • Page 197: Errors In Robot Control Function

    3 Error Tables 3-1-10Errors in Robot Control Function The section provides tables of the errors (events) that can occur in the robot control functions and robot instructions. You can use the robot control functions and robot instructions with the NJ501-4 CPU Unit. The unit version of the CPU Unit is 1.09 or later.
  • Page 198 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 543B0000 hex Motion Control An attempt was made • A motion control instruc- W539 Instruction Re- to re-execute a motion tion that cannot be re- execution Dis- control instruction that executed was re-exe- abled...
  • Page 199 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 54570000 hex Motion Control An attempt was made • A parameter for an input W539 Instruction Re- to change the parame- variable that cannot be execution Dis- ter for the AxesGroup changed for re-execu- abled (Axes...
  • Page 200 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 57060000 hex Axes Group The configuration ele- • The number of axes in W539 Mismatch with ments of the specified the axes group and the Kinematics axes group and the number of axes in the specified kinematics do...
  • Page 201 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 570F 0000 hex Cannot Calcu- The inverse kinemat- • The kinematics parame- W539 late Kinematics ics or direct kinematics ter is outside the setting cannot be calculated. range.
  • Page 202 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 571A0000 hex Invalid Con- The axis specified for • The specified axis is reg- W539 veyor Axis the ConveyorAxis in- istered in the axes group Specified out variable to a motion which is specified for control instruction is...
  • Page 203 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 57370000 hex Motion Control An input variable that • MoveTrajType or Sync- W539 Instruction Multi- cannot be changed TrajType for the current execution Dis- was changed during instruction do not match abled (Trajec- multi-execution of...
  • Page 204 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 64590000 hex Home Unde- Home of the logical • The command position or W539 fined during axis became unde- actual position over- Coordinated fined during axes flowed or underflowed for Motion group motion or while...
  • Page 205 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 67010000 hex Current Posi- The current position • The current position was W539 tion Outside was outside the work- outside the workspace Workspace space when an instruc- when one of the following tion was executed.
  • Page 206 3 Error Tables Robot Instructions The manual names are given below for the catalog numbers given in the Reference column of the event table. Cat. No. Manual name W539 NJ-series NJ Robotics CPU Unit User’s Manual Level Event code Event name Meaning Assumed cause Reference...
  • Page 207 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 5401543E hex Instruction Can- • A motion instruction • A motion instruction was W539 not Be Executed was executed for an executed for an axis or during Multi- axis or an axes group an axes group that was axes Coordi-...
  • Page 208 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 54015466 hex Instruction Exe- High-speed homing, an • High-speed homing was W539 cution Error with interpolation instruc- executed when home Undefined tion, or a robot instruc- was undefined. Home tion was executed •...
  • Page 209 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 5401570B hex Invalid Coordi- The coordinate system • The coordinate system W539 nate System ID specified for the ID is outside the setting Number CSID input variable to range.
  • Page 210 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 5401571A hex Invalid Con- The axis specified for • The specified axis is reg- W539 veyor Axis the ConveyorAxis in- istered in the axes group Specified out variable to a motion which is specified for control instruction is AxesGroup.
  • Page 211 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 54015747 hex Maximum Inter- The MaxAccelera- • The MaxAccelera- W539 polation Accel- tionTCP input variable tionTCP input variable to eration Out of to the MC_SetKin- the MC_SetKinTrans- Range Transform instruction is form instruction is out-...

  • Page 212: 3-1-11 Errors In Cnc Function

    3 Error Tables 3-1-11 Errors in CNC Function This section provides tables of the errors (events) that can occur in the CNC functions and CNC instruc- tions. You can use the CNC functions and CNC instructions with an NJ501-5300 Controller. The unit version of the CPU Unit is 1.16 or later.
  • Page 213 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 37810000 hex Process Data The PDO mapping • The PDOs that are required for O030 Object Set- is not correct. the CNC instruction are not ting Missing mapped.
  • Page 214 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 56080000 hex Impossible An operation • An operation instruction was O030 CNC Motor instruction was exe- executed for the CNC motor for Operation cuted for the CNC which the Servo is OFF.
  • Page 215 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 56120000 hex M Code The parameter • Instruction input parameter O030 Number Out specified for the exceeded the valid range of the of Range MCodeNo input input variable.
  • Page 216 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 56250000 hex Illegal CNC The CNC motor • A CNC motor does not exist for O030 Motor Speci- specified for the the variable specified for the fication Target in-out vari- Target input variable to the...
  • Page 217 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 67850000 hex Command Positioning, an • One of the following was exe- O030 Position instruction in the cuted when there was a com- Over- underflow/overflow mand position flow/Under- direction, or an overflow/underflow.
  • Page 218 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 67920000 hex Absolute It was not possible • The position to restore when O030 Encoder Cur- to correctly restore converted to pulses exceeded rent Position the current position the range of signed 40-bit data.
  • Page 219 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 67980000 hex Cycle Start A cycle start was • A cycle start was executed O030 Specified executed when the when the negative limit input during Nega- negative limit input was ON.
  • Page 220 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 778A0000 hex Homing The limit signal in • The Operation Selection at O030 Direction the homing direc- Negative Limit Input or Opera- Limit Input tion was detected tion Selection at Positive Limit Detected during a homing...
  • Page 221 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 77900000 hex Invalid Home The setting of the • The set value of the home input O030 Input Mask home input mask mask distance when the oper- Distance distance is not suit- ating mode of the MC_Home...
  • Page 222 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 56240000 hex Number of Loading failed • A new NC program was loaded O030 NC Program because an attempt while the number of loaded NC Exceeded was made to load programs reaches the maxi- NC programs over...
  • Page 223 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 97830000 hex Velocity Con- The velocity control • The output value for Feedback O030 trol Com- command value for loop calculation exceeded the mand Value the servo drive is Maximum Velocity for the CNC Saturated saturated.
  • Page 224 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 54015602 hex Jerk Setting The parameter • Instruction input parameter O030 Out of Range specified for the exceeded the valid range of the Jerk input variable input variable.
  • Page 225 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 5401560D hex Parameter The parameter • Instruction input parameter O030 Selection Out specified for the exceeded the valid range of the of Range ParameterNumber input variable. input variable to a CNC instruction is out of range.
  • Page 226 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 5401561F hex Illegal Load Loading failed • An attempt was made to load O030 NC Program because an attempt the NC program with an invalid Number was made to load program number specified.
  • Page 227 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 54016784 hex Target Posi- The specified posi- • The parameter specified for the O030 tion Negative tion exceeds the Position input variable to the Software negative software instruction is beyond the nega- Limit limit.

  • Page 228: 3-1-12 Errors In Slave Terminals

    3 Error Tables 3-1-12 Errors in Slave Terminals The section provides tables of the errors (events) that can occur in the following Units in OMRON Slave Terminals. • NX-series EtherCAT Coupler Units • NX-series Digital I/O Units • NX-series Analog I/O Units •...
  • Page 229 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 24A00000 hex Unit Configu- The number of con- • More than the maximum num- W519 ration Error, nected NX Units ber of NX Units is connected to Too Many exceeds the maxi- the Communications Coupler...
  • Page 230 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 35040000 hex Mailbox Set- An incorrect mail- • An incorrect mailbox setting W519 ting Error box setting was was detected for the Sync Man- detected for the ager.
  • Page 231 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 84C10000 hex NX Unit Ini- Initializing an NX • An error occurred in processing W519 tialization Unit failed. the Communications Coupler Error Unit. • An initialization error occurred in an NX Unit.
  • Page 232 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 80220000 hex NX Message An error was For the NX bus of CPU Units W519 Communica- detected in mes- • The message communications tions Error sage communica- load is high.
  • Page 233 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 10410000 hex Control An error occurred in For the NX bus of CPU Units W521 Parameter the control parame- • The power supply to the CPU Error in Mas- ters that are saved Unit was turned OFF while writ-...
  • Page 234 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 80210000 hex NX Unit Out- An output synchro- For the NX bus of CPU Units W521 put Synchro- nization error • I/O refreshing on the NX bus is nization Error occurred in the NX not performed normally due to...
  • Page 235 3 Error Tables NX-series Analog I/O Units The section provides a table of the errors (events) that can occur in the following Units. NX-AD NX-DA NX-TS NX-HB The manual names are given below for the catalog numbers given in the Reference column of the event table.
  • Page 236 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 65030000 hex Unit I/O Dis- A disconnected • Input wiring is broken. W522 connection input was detected • Input wiring is disconnected. Detected for for channel 1. Channel 1 65040000 hex Unit I/O Dis-...
  • Page 237 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 80200000 hex NX Unit I/O An I/O communica- For the NX bus of CPU Units W522 Communica- tions error occurred • An error that prevents normal tions Error in an NX Unit.
  • Page 238 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 80240 000 hex NX Unit A time information For the NX bus of CPU Units W522 Clock Not error occurred in an • There is a hardware error in an Synchro- NX Unit.
  • Page 239 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 64F5 0000 hex Unit Over The analog input • The analog input data W522 Range for data for input chan- exceeded the upper limit of the Channel 6 nel 6 exceeded the input range.
  • Page 240 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 64FB 0000 hex Unit Under The analog input • The analog input data went W522 Range for data for input chan- below the lower limit of the Channel 4 nel 4 went below input range.
  • Page 241 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 05110000 hex Cold Junction The temperature • There is a faulty connection to W566 (W522) Sensor Error cannot be con- the cold junction sensor. verted because the •...
  • Page 242 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 80200000 hex NX Unit I/O An I/O communica- For the NX bus of CPU Units W566 (W522) Communica- tions error occurred • An error that prevents normal tions Error in an NX Unit.
  • Page 243 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 65110000 hex Process The process tem- • The sensor is disconnected. W566 (W522) Value Over perature exceeded • The sensor or the compensat- Range the upper limit of ing cables are not wired cor- temperature con- rectly.
  • Page 244 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 10410000 hex Control Parame- An error occurred in For the NX bus of CPU W566 ter Error in Mas- the control parameters Units that are saved in the •...
  • Page 245 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 80200000 hex NX Unit I/O An I/O communications For the NX bus of CPU W566 Communica- error occurred in an NX Units tions Error Unit. • An error that prevents normal NX bus communi- cations occurred in a CPU Unit.
  • Page 246 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 80220000 hex NX Message An error was detected For the NX bus of CPU W566 Communica- in message communi- Units tions Error cations and the mes- • The message communi- sage frame was cations load is high.
  • Page 247 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 00200000 hex Non-volatile An error occurred in • Non-volatile memory failure W524 Memory non-volatile mem- Hardware ory. Error 10410000 hex Control An error occurred in For the NX bus of CPU Units W524 Parameter the control parame-...
  • Page 248 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 743E0000 hex Illegal Fol- The difference • A command that exceeded the W524 lowing Error between the com- maximum velocity (for a model mand position and that allows maximum velocity actual position setting, the set value applies to...
  • Page 249 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 80200000 hex NX Unit I/O An I/O communica- For the NX bus of CPU Units W524 Communica- tions error occurred • An error that prevents normal tions Error in an NX Unit.
  • Page 250 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 80240000 hex NX Unit A time information For the NX bus of CPU Units W524 Clock Not error occurred in an • There is a hardware error in an Synchro- NX Unit.
  • Page 251 3 Error Tables NX-series Communications Interface Units The section provides a table of the errors (events) that can occur in the following Units. NX-CIF The manual names are given below for the catalog numbers given in the Reference column of the event tables.
  • Page 252 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 80200000 hex NX Unit I/O An I/O communica- For the NX bus of CPU Units W540 Communica- tions error occurred • An error that prevents normal tions Error in an NX Unit.
  • Page 253 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 80220000 hex NX Message An error was For the NX bus of CPU Units W540 Communica- detected in message • The message communications tions Error communications and load is high.
  • Page 254 3 Error Tables NX-series Safety Control Units The section provides tables of the errors (events) that can occur in the following Units. NX-SL NX-SI NX-SO The manual names are given below for the catalog numbers given in the Reference column of the event table.
  • Page 255 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 74A00000 hex SF_Antiva- An error was Refer to information on the diag- Z930 lent Error detected in execu- nostic code that is given for tion of a safety attached information 1 in the NX- function block.
  • Page 256 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 74AA0000 hex SF_Muting- An error was Refer to information on the diag- Z930 Par_2Sen- detected in execu- nostic code that is given for sor Error tion of a safety attached information 1 in the NX- function block.
  • Page 257 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 80300000 hex Safety Pro- A communications • A setting is not correct. The set- Z930 cess Data timeout occurred in ting of the safety task period is Communica- safety process data too short.
  • Page 258 3 Error Tables  Safety I/O Units Level Event code Event name Meaning Assumed cause Reference Obs Info 05200000 hex System Error A hardware error • Hardware has failed. Z930 was detected • A memory error occurred due to during self-diagno- a transient cause, such as a sis of the hardware.
  • Page 259 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 65230000 hex Discrepancy An error was • There is a ground fault or dis- Z930 Error at detected in discrep- connection in the input signal Safety Input ancy evaluation of line.
  • Page 260 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 80300000 hex Safety Pro- A communications • A setting is not correct. The set- Z930 cess Data timeout occurred in ting of the safety task period is Communica- safety process data too short.
  • Page 261 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 10410000 hex Control An error occurred in For the NX bus of CPU W565 Parameter the control parame- Units Error in Mas- ters that are saved • The power supply to the in the master.
  • Page 262 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 80200000 hex NX Unit I/O An I/O communica- For the NX bus of CPU W565 Communica- tions error occurred Units tions Error in an NX Unit. • An error that prevents normal NX bus commu- nications occurred in a CPU Unit.
  • Page 263 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 80210000 hex NX Unit Out- An output synchro- For the NX bus of CPU W565 put Synchroni- nization error Units zation Error occurred in the NX • I/O refreshing on the NX Unit.
  • Page 264 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Info 80220000 hex NX Message An error was For the NX bus of CPU W565 Communica- detected in mes- Units tions Error sage communica- • The message communi- tions and the cations load is high.
  • Page 265 3 Error Tables NX-series IO-Link Master Units The section provides a table of errors (events) that can occur in the following Unit. NX-ILM The manual name is given below for the catalog numbers given in the Reference column of the event table.
  • Page 266 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 80200000 hex NX Unit I/O An I/O communi- For the NX bus of CPU Units W570 Communica- cations error • An error that prevents normal tions Error occurred in an NX bus communications NX Unit.
  • Page 267 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Info 84970000 hex I/O Cable There is a short- There is a short-circuit in the I/O W570 Short-circuit circuit in the cable. cable that con- An IO-Link device has failed. nects the IO-Link master and device.

  • Page 268: 3-1-13 Errors In Ethercat Slaves

    3 Error Tables 3-1-13 Errors in EtherCAT Slaves This section provides tables of the errors (events) for which the following OMRON EtherCAT slaves provide notification to the NJ/NX-series CPU Unit. • GX-series EtherCAT Slave Units • Servo 1S (1S-series AC Servo Drives with Built-in EtherCAT Communications) R88M-1...
  • Page 269 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 04A10000 hex Non-volatile An error occurred in • Non-volatile memory failure W488 Memory non-volatile mem- Hardware ory. Error  IO-Link Master Unit Level Refer- Event code Event name Meaning Assumed cause...
  • Page 270 AL cations controller. status code is 0051 hex • Error access from the non- OMRON EtherCAT master when the AL status code is 0050 hex 08390000 hex Power Mod- An error was •...
  • Page 271 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Min Obs Info 083D0000 hex Fan Error The rotation • There is a foreign matter in the I586 speed of the fan cooling fan and it blocks the is 40% or less of rotation the rating and the...
  • Page 272 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Min Obs Info 08490000 hex Overcurrent The current flow- • There is a short-circuit, ground I586 Error ing to the motor fault, or contact failure on the U, exceeded the V, or W motor cable protection level.
  • Page 273 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Min Obs Info 28080000 hex Main Circuit The phase loss of • Incorrect wiring, for example I586 Power Sup- the main circuit the single-phase power supply ply Phase power supply is input to a 3-phase input type Loss Error...
  • Page 274 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Min Obs Info 38570000 hex Function Set- The function that • The electronic gear ratio was I586 ting Error was set does not not 1:1 when the communica- support the com- tions period was set to 125 µs.
  • Page 275 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Min Obs Info 38840000 hex Excessive The speed devia- • The motor operation does not I586 Speed Devia- tion is greater follow the command because a tion Error than or equal to parameter value is inappropri- the value set in...
  • Page 276 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Min Obs Info 48080000 hex FPGA WDT An FPGA error • False detection due to a data I586 Error was detected. read error that was caused by excessive noise •...
  • Page 277 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Min Obs Info 78210000 hex Brake Inter- The Brake Inter- • The Brake Interlock Output I586 lock Error lock Output (BKIR) was output because the (BKIR) was out- motor rotation speed did not put by the Time- decrease to or less than the...
  • Page 278 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Min Obs Info 84B90000 hex Synchroniza- Synchronization • Incorrect EtherCAT synchroni- I586 tion Interrup- interruption did zation setting of the host con- tion Error not occur within troller the specified •...
  • Page 279 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Min Obs Info 084C0000 hex Fan Rotation The rotation • There is a foreign matter in the I586 Warning speed of the fan cooling fan and it blocks the is 80% or less of rotation the rating and the...
  • Page 280 3 Error Tables Level Refer- Event code Event name Meaning Assumed cause ence Min Obs Info 78220000 hex Command A command • The Switch ON command was I586 Warning could not be exe- received cuted. • The Enable operation com- mand was received •...
  • Page 281 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 04A90000 hex Overvoltage The power supply • The voltage between the posi- I576, I577 voltage exceeded tive and negative terminals in the allowable input the control power supply con- voltage range.
  • Page 282 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 04AC0000 hex Overcurrent The current flowing • A short-circuit, line-to-ground I576, I577 through the con- fault, contact failure, or insula- verter exceeded the tion failure occurred on the U, specified value.
  • Page 283 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 08090000 hex Encoder There is a commu- • The power supply voltage of the I576 Communica- nications error for encoder is low. tions Error the encoder. •...
  • Page 284 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 08160000 hex Phase-Z An error such as • An error such as broken wiring I576, I577 Connection broken wiring was was detected in the external Error detected in the encoder phase-Z connection.
  • Page 285 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 18230000 hex Absolute The encoder • Servomotor failed. I576 Encoder detected a multi- Multi-rotation rotation counter Counter Error error. 24680000 hex Motor Non- The Servo Drive •...
  • Page 286 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 34E20000 hex Overload When the feedback • Operation was continued for a I576, I577 value for long time while overloaded. torque/force com- • There is incorrect wiring of the mand exceeds the motor line or a broken cable.
  • Page 287 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 38400000 hex Overspeed 2 The Servomotor • The velocity command value is I576, I577 rotation too large. speed/motor speed • There is overshooting. exceeded the value •...
  • Page 288 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 38490000 hex Interface There is an unde- • There is an undefined number I576, I577 Output Func- fined number speci- specification in the output sig- tion Number fication in the nal (OUTM1) function alloca- Error 1...
  • Page 289 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 38520000 hex Function Set- The function that • The electronic gear object ratio I576, I577 ting Error was set does not was not 1:1 when the communi- support the com- cations period was set to 500 μs.
  • Page 290 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 38560000 hex Motor Auto- The current • The Current Loop Proportional I577 setting Error exceeded the limit Gain or the Current Loop Inte- when it was applied gral Gain was too large before to the Motor when auto-setting was performed.
  • Page 291 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 74810000 hex Command A mistake was • When bit 09 (Remote) of the I576, I577 Error made in using a Statusword (6041 hex) was set command. to 1 (remote), and the Servo Drive was in operation enabled state (Servo ON), a command...
  • Page 292 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 84B20000 hex EtherCAT An undefined com- • An undefined communications I576, I577 Illegal State munications state state change command was Change Error change command received. was received. 84B30000 hex Communica- The number of con-...
  • Page 293 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 08040000 hex Encoder/Seri The encoder tem- • The ambient temperature is too I576, I577 al Conver- perature exceeded high. sion Unit the specified value • Servomotor/Linear Motor failed. Overheating or an overheating Warning...
  • Page 294 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 74800000 hex Command A command could • The absolute multi-rotation I576, I577 Warning not be executed. counter was cleared when the Servo was not OFF when using an absolute encoder for semi- closed control (This applies only to Cylinder-type Servomo-...
  • Page 295 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 04BA0000 hex Connection An error occurred in • Contact failure between the I574 Error the connection Inverter and the EtherCAT between between the Communications Unit for the Inverter and Inverter and the Inverter.
  • Page 296 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 385A0000 hex Change in The Camera that is • The Camera connection infor- Z342 Connected connected is differ- mation in the scene data does Camera ent from when data not agree with the connection was last saved.
  • Page 297 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 781A0000 hex Setting Data An error occurred • Scene data was edited when Z342 Transfer while transferring there was little available space Error the scene data. on the RAM disk and the opera- tion mode was Double Speed Multiinput.
  • Page 298 3 Error Tables E3X-series Fiber Sensors with EtherCAT Communications Unit for Digital Sensors The manual names are given below for the catalog numbers given in the Reference column of the event table. Cat. No. Manual name E413 EtherCAT Digital-type Sensor Communication Unit Operation Manual Level Event code Event name...
  • Page 299 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 04C4 0000 hex Sensor Com- An error occurred in • The Sensor is disconnected. E429 munications a Sensor connec- Error tion. 04C5 0000 hex Sensor Com- Communications •...
  • Page 300 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 04D0 0000 hex Hardware Some abnormality • Hardware damage Z332 error occurred on the dis- placement sensor hardware. 14B00000 hex Linearity cor- The linearity correc- • Calibration ROM damage Z332 rection data tion data of the dis-...

  • Page 301: 3-1-14 Errors In Cj-Series Units

    3 Error Tables 3-1-14 Errors in CJ-series Units The section provides tables of the errors (events) that can occur in the following CJ-series Units. • Analog I/O Units • Process I/O Units • Temperature Control Units • ID Sensor Units •...
  • Page 302 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 34850000 hex Mean Value There is a mistake • There is a mistake in the setting W490 Processing in the setting of the of the number of samplings for Setting Error number of sam- mean value processing.
  • Page 303 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 348C0000 hex I/O Number The I/O numbers • The I/O numbers that were W490 Specification specified in Adjust- specified in Adjustment Mode Error in ment Mode are not are not enabled.
  • Page 304 3 Error Tables CJ-series Temperature Control Units The section provides tables of the errors (events) that can occur in the following Units. CJ1W-TC003 CJ1W-TC004 CJ1W-TC103 CJ1W-TC104 The manual names are given below for the catalog numbers given in the Reference column of the event table.
  • Page 305 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 046F 0000 hex Unit Status, An error occurred in • There is a source of noise Z317 Unit Busy an ID Sensor Unit. nearby. • The ID Sensor Unit failed. 24400000 hex Unit Status, An error occurred in...
  • Page 306 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 64900000 hex Results Infor- ID system error 1 • System error 1 occurred. Z317 mation, ID occurred. System Error 64910000 hex Results Infor- ID system error 2 •...
  • Page 307 3 Error Tables CJ-series Serial Communications Units The section provides tables of the errors (events) that can occur in the following Units. CJ1W-SCU22 CJ1W-SCU32 CJ1W-SCU42 The manual names are given below for the catalog numbers given in the Reference column of the event table.
  • Page 308 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 54AA0000 hex Protocol An error occurred in • Sequence No. Error: An unreg- W494 Macro Error the protocol macro. istered number was specified for SeqNo (communications sequence number) of the ExecPMCR instruction (no indi- cators light).
  • Page 309 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 64A30000 hex FCS Check One of the following • Noise W494 Error errors occurred in • There was a mistake in the the converted pro- CRC code that was attached to tocol at the serial the command frame.
  • Page 310 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 64A50000 hex Comparison A comparison error • Loopback test jig failure. W494 Error occurred. • Noise • The communications circuits in the Serial Communications Unit are faulty. 64A60000 hex Reception More than the spec-...
  • Page 311 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 846B0000 hex Parity Error A parity error • In Serial Gateway Mode or Pro- W494 occurred. tocol Macro Mode: • The reception circuits in the Serial Communications Unit are faulty.
  • Page 312 3 Error Tables CJ-series DeviceNet Units The section provides tables of the errors (events) that can occur in the following Units. CJ1W-DRM21 The manual names are given below for the catalog numbers given in the Reference column of the event table. Cat.
  • Page 313 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 34BD0000 hex Verification The slave informa- • A slave that is in the scan list W497 Error tion registered in does not exist. the scan list does •...
  • Page 314 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 34C2 0000 hex Slave I/O The I/O memory in • I/O words are allocated in an W497 Refresh Error the destination EM bank that does not exist. CPU Unit for I/O refreshing could not be found when...
  • Page 315 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 74620000 hex Scan List An operating error • CPU Unit is not in PROGRAM W497 Regis- occurred when reg- mode. ter/Clear istering or clearing • Request processing is not pos- Failed the scan list by per- sible in this status or the...
  • Page 316 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 84740000 hex Bus Off A Bus Off error • The master and slave have dif- W497 Detected occurred (i.e., com- ferent baud rates. munications • Communications cable lengths stopped because (trunk line and branch lines) are there were too...
  • Page 317 3 Error Tables CJ-series EtherNet/IP Unit The section provides tables of the errors (events) that can occur in the following Units. CJ1W-EIP21 The manual names are given below for the catalog numbers given in the Reference column of the event table. Cat.
  • Page 318 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 34AA0000 hex Tag Refresh An unsupported • An unsupported data area or W495 Error data area or address range was specified for address range is the tag data links. specified for the tag data links.
  • Page 319 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 84E10000 hex BOOTP Connection with the • Server setting error (The W495 Server Error BOOTP server acquired IP address is illegal.) failed. • Server is down. •...
  • Page 320 3 Error Tables Level Event code Event name Meaning Assumed cause Reference Obs Info 84600000 hex Communica- A Slave Unit was • Cable lengths (trunk line and W493 tions Error disconnected from branch lines) are unsuitable. the network. • A cable is disconnected or loose.

  • Page 321: An Error Log Table For Cj-Series Special Units

    3 Error Tables An Error Log Table for CJ-series Special Units Error logs for CJ-series Special Units are also displayed with event logs. If the upper four digits of the event code are 0000, the lower four digits of the event code give the error code for error logs from CJ- series Special Units.
  • Page 322 3 Error Tables Event code Error name 00000007 hex PF Return 00000008 hex System setting error 00000009 hex System setting read error 0000000A hex Routing table lost 0000000B hex Routing Table Error 0000000C hex Routing table read error 0000000D hex PLC model error 0000000E hex I/O Bus Error...
  • Page 323 3 Error Tables Event code Error name 00000125 hex Packet discarded (response timeout) 00000201 hex Network parameter file loss 00000202 hex Network parameter file distroyed 00000203 hex EEPROM error 00000206 hex Participating nodes decreased (local node still participating) 00000207 hex Participating nodes decreased (local node not participating) 00000208 hex Polling node changed...
  • Page 324 3 Error Tables Event code Error name 0000031C hex ABS multiple rotation error 0000031D hex Field back pulse error 00000320 hex PARUSU RE-TO RENJI FUSEI 00000330 hex Invalid Range Limits(s)/Comparison Value, or Low battery 00000331 hex Duplicate Target Error 00000335 hex Duplicate Rate Range Error 00000340 hex Bus Off detected...
  • Page 325 3 Error Tables Event code Error name 00000435 hex Duplicate Rate Range Error 00000450 hex Overflow 00000460 hex Underflow 00000470 hex Invalid Preset Value 00000480 hex External Interrupt Task Buffer Full 00000490 hex Parity error/Not Ready/Time-out 00000500 hex System call error (address error) 00000501 hex System call error (parameter error) 00000502 hex...

  • Page 326: Events In Order Of Event Codes

    3 Error Tables Events in Order of Event Codes This section provides a table of all events in order of the event codes. Events that are not errors are also given in the tables. 3-3-1 Interpreting Error Descriptions The contents of the error table is described below. Item Description Event code...

  • Page 327: Error Table

    3 Error Tables Cat. No. Manual name W506 NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual W519 NX-series EtherCAT Coupler Unit User’s Manual W570 IO-Link System User's Manual W588 NJ-series CPU Unit OPC UA User’s Manual I574 MX2/RX Series Inverter EtherCAT Communication Unit User’s Manual W507 NJ/NX-series CPU Unit Motion Control User’s Manual W508...
  • Page 328 3 Error Tables Event code Event name Functional classification Reference 0020 0000 hex Non-volatile Memory Hardware Error NX-series Digital I/O Units, NX-series W521, W522, Analog I/O Units, NX-series System W566, W523, Units, NX-series Position Interface W524, W540, Units, NX-series Communications W565, W570 Interface Units, NX-series Load Cell Input Units, and NX-series IO-Link...
  • Page 329 3 Error Tables Event code Event name Functional classification Reference 04A80000 hex Control Power Supply Undervoltage Servo G5 and G5 Linear I576, I577 04A90000 hex Overvoltage Servo G5 and G5 Linear I576, I577 04AA0000 hex Main Circuit Power Supply Undervolt- Servo G5 and G5 Linear I576, I577 age (Undervoltage between positive...
  • Page 330 3 Error Tables Event code Event name Functional classification Reference 0807 0000 hex External Encoder Communications Servo G5 and G5 Linear I576, I577 Warning 0808 0000 hex Encoder Communications Discon- Servo G5 I576 nection Error 0809 0000 hex Encoder Communications Error Servo G5 I576 080A0000 hex...
  • Page 331 3 Error Tables Event code Event name Functional classification Reference 084A0000 hex Encoder Communications Discon- Servo 1S I586 nection Error 084B0000 hex Encoder Communications Error Servo 1S I586 084C0000 hex Fan Rotation Warning Servo 1S I586 084D0000 hex Non-volatile Memory Hardware Error Servo 1S I586 084E0000 hex...
  • Page 332 3 Error Tables Event code Event name Functional classification Reference 102B0000 hex Restore Operation Failed to Start Errors Related to Controller Opera- W500, W501, tion W535, W578 102C0000 hex Restore Operation Failed Errors Related to Controller Opera- W500, W501, tion W535, W578 102D0000 hex CJ-series Unit Backup Failed...
  • Page 333 3 Error Tables Event code Event name Functional classification Reference 14230000 hex MAC Address Error Built-in EtherNet/IP Port on CPU Unit W506 14400000 hex MAC Address Error Built-in EtherCAT Master in CPU Unit W505 14600000 hex Absolute Encoder Home Offset Read General Motion Control W507 Error...
  • Page 334 3 Error Tables Event code Event name Functional classification Reference 15000000 hex Execution Log Save Failed OPC UA Server W588 15020000 hex Server Certificate Mismatch OPC UA Server W588 17800000 hex CNC Parameter Setting Error CNC Function O030 17810000 hex Absolute Encoder Home Offset Read CNC Function O030...
  • Page 335 3 Error Tables Event code Event name Functional classification Reference 247A0000 hex Number of Distributed Sensor Unit EtherCAT Digital Sensor Communi- E429 Verify Error cations Units 247B0000 hex Number of Sensors Over Limit EtherCAT Digital Sensor Communi- E429 cations Units 247C0000 hex Number of Sensors Verify Error EtherCAT Digital Sensor Communi-...
  • Page 336 3 Error Tables Event code Event name Functional classification Reference 3460 0000 hex Required Process Data Object Not General Motion Control W507 3461 0000 hex Process Data Object Setting Missing Motion Control Instructions W508 3463 0000 hex Axis Slave Disabled General Motion Control W507 3464 0000 hex...
  • Page 337 3 Error Tables Event code Event name Functional classification Reference 34C00000 hex Master User-set Allocations User Set- CJ-series DeviceNet Units W497 ting Failed 34C10000 hex Communications Cycle Time Setting CJ-series DeviceNet Units W497 Failed 34C20000 hex Slave I/O Refresh Error CJ-series DeviceNet Units W497 34C30000 hex...
  • Page 338 3 Error Tables Event code Event name Functional classification Reference 3520 0000 hex Safety Process Data Communica- NX-series Safety Control Unit Z930 tions Not Established Error 3521 0000 hex Safety Process Data Communica- NX-series Safety Control Unit Z930 tions Not Established - Incorrect Unit Parameter Error 3523 0000 hex Safety Process Data Communica-...
  • Page 339 3 Error Tables Event code Event name Functional classification Reference 381C0000 hex Status Area Layout Setting Error CJ-series EtherNet/IP Units W495 383C0000 hex Overload Warning Servo G5 and G5 Linear I576, I577 383D0000 hex Excessive Regeneration Warning Servo G5 and G5 Linear I576, I577 383E0000 hex Vibration Detection Warning...
  • Page 340 3 Error Tables Event code Event name Functional classification Reference 38780000 hex General Input Allocation Duplicate Servo 1S I586 Error 38790000 hex General Output Allocation Duplicate Servo 1S I586 Error 387A0000 hex Overload Warning Servo 1S I586 387B0000 hex Pulse Output Setting Error Servo 1S I586 387C0000 hex...
  • Page 341 3 Error Tables Event code Event name Functional classification Reference 44010000 hex EtherCAT Fault Built-in EtherCAT Master in CPU Unit W505 44180000 hex OPC UA System Processing Error OPC UA Server W588 44200000 hex Motion Control Initialization Error General Motion Control W507, W535 44210000 hex Motion Control Function Processing...
  • Page 342 3 Error Tables Event code Event name Functional classification Reference 5401 041D hex Exceeded Simultaneous Instruction Instructions W502 Executed Resources 5401 0800 hex FINS Error Instructions W502 5401 0801 hex FINS Port Already in Use Instructions W502 5401 0C00 hex Illegal Serial Communications Mode Instructions W502...
  • Page 343 3 Error Tables Event code Event name Functional classification Reference 54011808 hex Communications Resource Overflow Instructions W502 54011809 hex Packet Monitoring Function Not Sup- Instructions W502 ported 54011C00 hex Explicit Message Error Instructions W502 54011C01 hex Incorrect Route Path Instructions W502 54011C02 hex CIP Handle Out of Range...
  • Page 344 3 Error Tables Event code Event name Functional classification Reference 5401 3001 hex DB Connection Service Run Mode DB Connection Instructions W527 Change Failed 5401 3002 hex DB Connection Service Shutdown or DB Connection Instructions W527 Shutting Down 5401 3003 hex Invalid DB Connection Name DB Connection Instructions W527...
  • Page 345 3 Error Tables Event code Event name Functional classification Reference 54013828 hex HSMS Communications Setting Out GEM Instructions W528 of Range 54013829 hex TID Out of Range GEM Instructions W528 5401382C hex Undefined ECID GEM Instructions W528 5401382D hex Type Mismatch GEM Instructions W528 5401382E hex...
  • Page 346 3 Error Tables Event code Event name Functional classification Reference 5401 5432 hex Transition Mode Selection Out of Instructions and Robot Instructions W502, W539 Range 5401 5433 hex Continue Method Selection Out of Instructions W502 Range 5401 5434 hex Combine Mode Selection Out of Instructions W502 Range...
  • Page 347 3 Error Tables Event code Event name Functional classification Reference 54015450 hex Trigger Input Condition Mode Selec- Instructions W502 tion Out of Range 54015451 hex Drive Trigger Signal Selection Out of Instructions W502 Range for Trigger Input Condition 54015453 hex Motion Control Instruction Re-execu- Instructions W502...
  • Page 348 3 Error Tables Event code Event name Functional classification Reference 5401 546E hex Duplicate Latch ID for Trigger Input Instructions W502 Condition 5401 546F hex Jerk Override Factor Out of Range Instructions W502 5401 5470 hex Acceleration/Deceleration Override Instructions W502 Factor Out of Range 5401 5471 hex First Position Method Specification...
  • Page 349 3 Error Tables Event code Event name Functional classification Reference 54015490 hex Cam Transition Specification Out of Instructions W502 Range 54015491 hex Synchronized Control End Mode Instructions W502 Selection Out of Range 54015492 hex Enable External Latch Instruction Instructions W502 Execution Disabled 54015493 hex Master Axis Offset Out of Range...
  • Page 350 3 Error Tables Event code Event name Functional classification Reference 54015612 hex M Code Number Out of Range CNC Instructions O030 54015613 hex CNC Instruction Re-execution Dis- CNC Instructions O030 abled (CNC Coordinate System Specification) 54015614 hex CNC Instruction Re-execution Dis- CNC Instructions O030 abled (Logical CNC Motor Number)
  • Page 351 3 Error Tables Event code Event name Functional classification Reference 5401571E hex Too Many Kinematics Robot Instructions W539 5401571F hex Kinematics Initialization Error Robot Instructions W539 54015720 hex Motion Control Parameter Setting Instructions W502 Error When Changing Axis Use 54015721 hex Required Process Data Object Not Instructions W502...
  • Page 352 3 Error Tables Event code Event name Functional classification Reference 5401 5740 hex Cam Node Master Axis Phase Not in Instructions W502 Ascending Order 5401 5741 hex Too Many Data Points in Cam Table Instructions W502 5401 5742 hex Cam Table Displacement Overflow Instructions W502 5401 5743 hex...
  • Page 353 3 Error Tables Event code Event name Functional classification Reference 54270000 hex Torque Ramp Setting Out of Range Motion Control Instructions W508 54280000 hex Master Coefficient Scaling Out of Motion Control Instructions W508 Range 54290000 hex Slave Coefficient Scaling Out of Motion Control Instructions W508 Range...
  • Page 354 3 Error Tables Event code Event name Functional classification Reference 5444 0000 hex Insufficient Travel Distance Motion Control Instructions W508 5445 0000 hex Insufficient Travel Distance to Motion Control Instructions W508 Achieve Blending Transit Velocity 5446 0000 hex Move Link Constant Velocity Insuffi- Motion Control Instructions W508 cient Travel Distance...
  • Page 355 3 Error Tables Event code Event name Functional classification Reference 54610000 hex Illegal Axes Group Specification Motion Control Instructions and Gen- W508, W539 eral Robot Control 54620000 hex Illegal Master Axis Specification Motion Control Instructions W508 54630000 hex Motion Control Instruction Re-execu- Motion Control Instructions W508 tion Disabled (SlaveOffset)
  • Page 356 3 Error Tables Event code Event name Functional classification Reference 547F 0000 hex Auxiliary/Slave Axis Numbers Not in Motion Control Instructions W508 Ascending Order 5480 0000 hex Cam Table Property Ascending Data Motion Control Instructions W508 Error at Update 5481 0000 hex MC_Write Target Out of Range Motion Control Instructions W508...
  • Page 357 3 Error Tables Event code Event name Functional classification Reference 549C0000 hex Target Position Ring Counter Out of Motion Control Instructions W508 Range 549D000 hex Axes Group Composition Axis Setting Motion Control Instructions W508 Out of Range 549E0000 hex Axis Use Setting Out of Range Motion Control Instructions W508 54A00000 hex...
  • Page 358 3 Error Tables Event code Event name Functional classification Reference 56110000 hex Homing Parameter Setting Out of CNC Function O030 Range 56120000 hex M Code Number Out of Range CNC Function O030 56130000 hex CNC Instruction Re-execution Dis- CNC Function O030 abled (CNC Coordinate System Specification)
  • Page 359 3 Error Tables Event code Event name Functional classification Reference 57130000 hex Acceleration Error Detection Value General Robot Control W539 Out of Range 57140000 hex Trajectory Target Time Out of Range General Robot Control W539 57150000 hex Trajectory Type Out of Range General Robot Control W539 57160000 hex...
  • Page 360 3 Error Tables Event code Event name Functional classification Reference 5731 0000 hex Same Track Number Setting in Motion Control Instructions W508 Switch Structure Out of Range 5732 0000 hex Invalid Tool Number General Robot Control W539 5733 0000 hex Tool Parameter Out of Range General Robot Control W539...
  • Page 361 3 Error Tables Event code Event name Functional classification Reference 64200000 hex Emergency Message Detected Built-in EtherCAT Master in CPU Unit W505 64400000 hex Target Position Positive Software Motion Control Instructions W508 Limit Exceeded 64410000 hex Target Position Negative Software Motion Control Instructions W508 Limit Exceeded...
  • Page 362 3 Error Tables Event code Event name Functional classification Reference 648E0000 hex Results Information, ID Tag Commu- CJ-series ID Sensor Units Z317 nications Error 648F 0000 hex Results Information, ID Tag Missing CJ-series ID Sensor Units Z317 Error 6490 0000 hex Results Information, ID System Error CJ-series ID Sensor Units Z317...
  • Page 363 3 Error Tables Event code Event name Functional classification Reference 64F8 0000 hex Unit Under Range for Channel 1 NX-series Analog I/O Units W522 64F9 0000 hex Unit Under Range for Channel 2 NX-series Analog I/O Units W522 64FA0000 hex Unit Under Range for Channel 3 NX-series Analog I/O Units W522...
  • Page 364 3 Error Tables Event code Event name Functional classification Reference 6600 0000 hex Send Transaction Queue Overrun GEM Services W528 6601 0000 hex Reception Transaction Queue Over- GEM Services W528 6602 0000 hex Too Long SECS Message GEM Services W528 6700 0000 hex Command Position Outside Work- General Robot Control...
  • Page 365 3 Error Tables Event code Event name Functional classification Reference 68010000 hex Unit Error CJ-series High-speed Counter Units W492 68200000 hex Drive Prohibition Detected Servo 1S I586 68210000 hex Control Right Release Error Servo 1S I586 68220000 hex Error Stop Input Servo 1S I586 68230000 hex...
  • Page 366 3 Error Tables Event code Event name Functional classification Reference 7460 0000 hex Master Function Enable/Disable CJ-series DeviceNet Units W497 Failed 7461 0000 hex Master Fixed Allocation Area Setting CJ-series DeviceNet Units W497 Failed 7462 0000 hex Scan List Register/Clear Failed CJ-series DeviceNet Units W497 7463 0000 hex...
  • Page 367 3 Error Tables Event code Event name Functional classification Reference 77000000 hex Conveyor Axis Position Read Error General Robot Control W539 77800000 hex CNC Control Period Exceeded CNC Function O030 77810000 hex CNC Planner Service Period CNC Function O030 Exceeded 77820000 hex CNC Coordinate System Composi- CNC Function...
  • Page 368 3 Error Tables Event code Event name Functional classification Reference 78210000 hex Brake Interlock Error Servo 1S I586 78220000 hex Command Warning Servo 1S I586 78230000 hex Command Error Servo 1S I586 8001 0000 hex Illegal Packet Discarded Errors Related to CJ-series Unit Con- W500 figuration 8010 0000 hex...
  • Page 369 3 Error Tables Event code Event name Functional classification Reference 84210000 hex Network Configuration Error Built-in EtherCAT Master in CPU Unit W505 84220000 hex Network Configuration Verification Built-in EtherCAT Master in CPU Unit W505 Error 84230000 hex Slave Initialization Error Built-in EtherCAT Master in CPU Unit W505 84280000 hex Slave Application Error...
  • Page 370 3 Error Tables Event code Event name Functional classification Reference 84970000 hex I/O Cable Short-circuit NX-series IO-Link Master Units W570 84980000 hex I/O Power Supply ON Detected NX-series IO-Link Master Units W570 84990000 hex Warning-level Device Event Flag NX-series IO-Link Master Units W570 849A0000 hex IO-Link Communications Module Pro-...
  • Page 371 3 Error Tables Event code Event name Functional classification Reference 85410000 hex Parity Error NX-series Communications Interface W540 Units 85420000 hex Framing Error NX-series Communications Interface W540 Units 85430000 hex Overrun Error NX-series Communications Interface W540 Units 85500000 hex NX Bus Communications Error NX Bus W501, W578 85510000 hex...
  • Page 372 3 Error Tables Event code Event name Functional classification Reference 9014 0000 hex Operation Stopped Errors Related to Controller Opera- W500, W501, tion W535, W578 9015 0000 hex Reset Executed Errors Related to Controller Opera- W500, W501, tion W535, W578 9016 0000 hex User Program Execution ID Write Errors Related to Controller Opera-...
  • Page 373 3 Error Tables Event code Event name Functional classification Reference 94400000 hex Slave Disconnected Built-in EtherCAT Master in CPU Unit W505 94410000 hex Slave Connected Built-in EtherCAT Master in CPU Unit W505 94430000 hex Errors Reset Built-in EtherCAT Master in CPU Unit W505 94440000 hex Slave Disabled Built-in EtherCAT Master in CPU Unit W505...

  • Page 374: Instruction Error Table

    3 Error Tables Instruction Error Table For descriptions of the error codes for the instructions, refer to the descriptions of the corresponding event codes. References for event codes that occur for each instruction are given below. Type of instruction Reference for event code Basic instructions Instructions on page 3-25 Motion control instructions...

  • Page 375: Appendix

    Appendix The appendix describes the applicable range of the HMI Troubleshooter and the corre- spondence of NX bus events between NX1P2 CPU Units and Slave Terminals. A-1 Applicable Range of the HMI Troubleshooter ..... . . A-2 A-1-1 Combinations of HMIs and CPU Units That Enable Using the Troubleshooter .

  • Page 376: A-1-1 Combinations Of Hmis And Cpu Units That Enable Using The Troubleshooter

    Appendix Applicable Range of the HMI Troubleshooter Whether the HMI Troubleshooter can be used depends on the combination of the HMI and the CPU Unit. Also, the system configuration elements that are supported by the HMI Troubleshooter are differ- ent for each Troubleshooter function. A-1-1 Combinations of HMIs and CPU Units That Enable Using the Troubleshooter...

  • Page 377: System Configuration Elements Supported By The Troubleshooter

    Appendix A-1-2 System Configuration Elements Supported by the Troubleshooter The troubleshooting functions that you can use on the HMI depend on the system configuration ele- ment. Refer to the following manuals for the NA-series HMIs and NS-series HMIs for the system configuration elements that are supported by the HMI Troubleshooter.

  • Page 378: Correspondence Of Nx Bus Events Between Nx1P2 Cpu Units And Slave Terminals

    Appendix Correspondence of NX Bus Events between NX1P2 CPU Units and Slave Terminals Both NX1P2 CPU Units and Slave Terminals support the mounting of NX Units. This means that NX1P2 CPU Units and Slave Terminals are subject to the same errors. However, with the NX1P2 CPU Unit, it is easier to identify the cause of an NX bus error because two or more events with more specific names may correspond to one Slave Terminal event.

  • Page 379: Index

    Index NJ/NX-series Troubleshooting Manual (W503) Index-1...
  • Page 380 Index Index errors checking with system-defined variables ....2-16 identifying and resetting......2-7, 2-11, 2-14 Block I/O..............3-190 resetting ..............2-15 built-in EtherCAT master ..........3-99 EtherCAT Master Function Module ......3-99 built-in EtherNet/IP port ..........3-95 EtherCAT slaves............3-190 EtherNet/IP Function Module ........3-95 event code..............
  • Page 381 Index general ..............3-64 system-defined variables ..........1-21 instructions ............. 3-72 checking for errors..........2-16 Motion Control Function Module ........3-64 MX2/RX-series Inverters..........3-216 tasks................3-10 Troubleshooter ..........1-20, 2-11, A-2 non-fatal errors..........1-3, 1-9, 1-19 troubleshooting ............. 1-20, 2-7 resetting ..............1-22 fatal errors ..............
  • Page 382 Index Index-4 NJ/NX-series Troubleshooting Manual (W503)
  • Page 384 The Netherlands Hoffman Estates, IL 60169 U.S.A. Tel: (31)2356-81-300/Fax: (31)2356-81-388 Tel: (1) 847-843-7900/Fax: (1) 847-843-7787 © OMRON Corporation 2011-2018 All Rights Reserved. OMRON (CHINA) CO., LTD. OMRON ASIA PACIFIC PTE. LTD. In the interest of product improvement, Room 2211, Bank of China Tower, No.

This manual is also suitable for:

Nj501-*5 seriesNj501-*4 seriesNj501-*3 seriesNx701-16 seriesNj301-12 seriesNx1p2-10 series ... Show all

Table of Contents
