Insert the CompactFlash card into the socket upside-down,

matching the pin-1 orientation of the card as shown.

Lip or

Catch Edge

Push the CompactFlash card into the opening until it firmly

seats into the socket and mates with the pins. Do not force the

card into the socket.

To prevent damage to the ReadyBoard or the CompactFlash

card, do not force the card into the slot. If you need to force the

CompactFlash card into the slot, it is not installed correctly.

CAUTION:

Reinstall the socket cover to prevent the CompactFlash card

from coming loose and to provide protection from EMI interfer-

ence.

Removing a CompactFlash card

To remove a CompactFlash card, reverse the procedure

described above for installing a CompactFlash card. Use the

eject button on the R-hand side of the slot to eject the Com-

pactFlash card.

Pin 1

Keyed

Slot

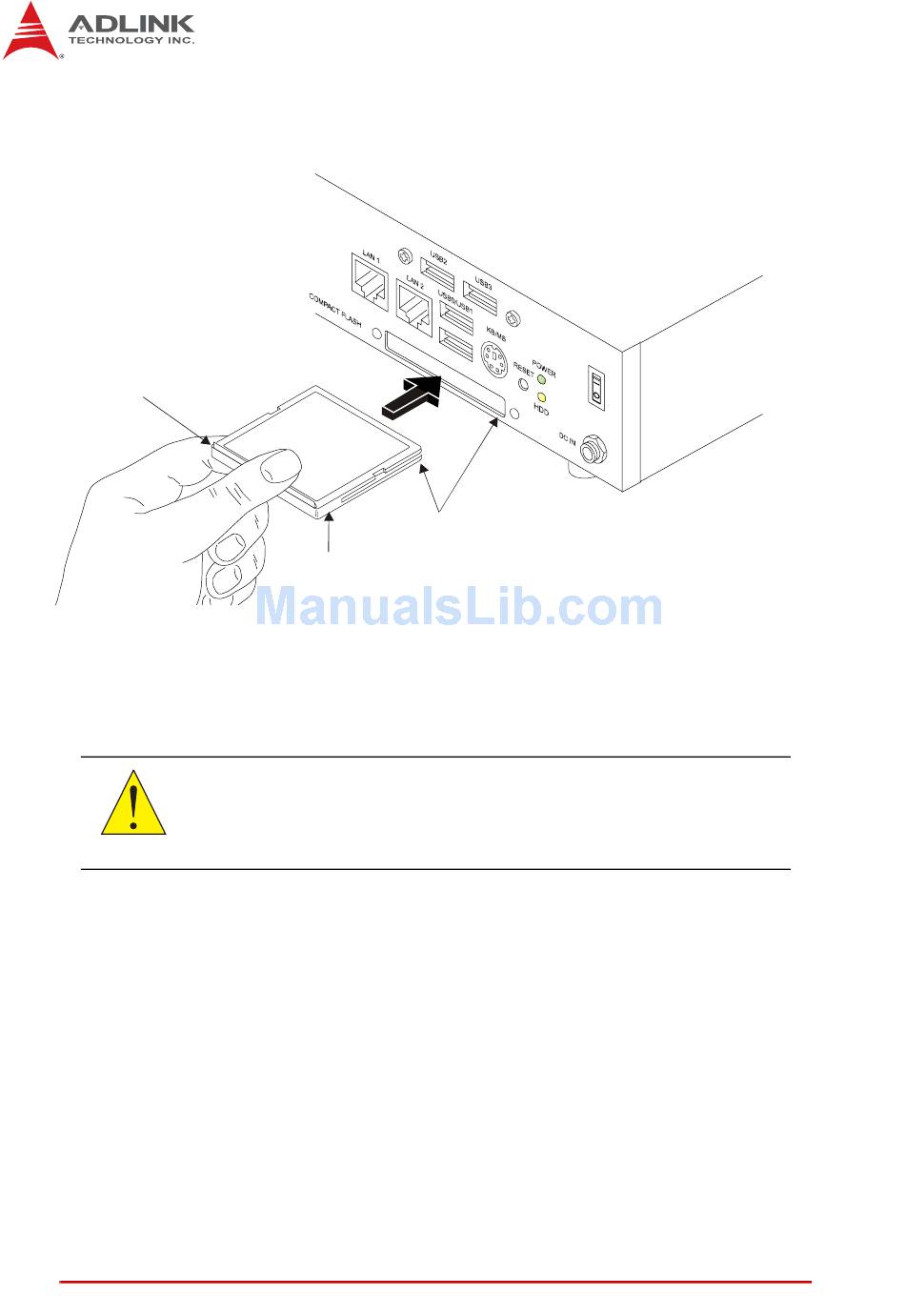

Figure 2-3: Inserting the CF card
