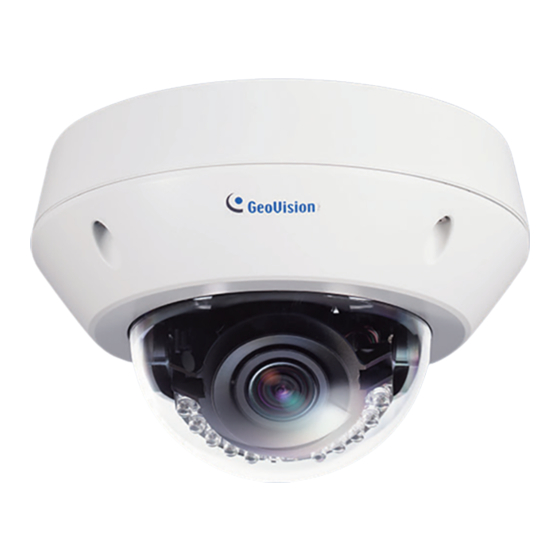

GeoVision GV-VD120D Quick Start Manual

Gv-ipcamera, target/vandal proof ip dome
Hide thumbs Also See for GV-VD120D:
Table of Contents

Advertisement

Quick Links

See also: User Manual
GV-IPCamera
Vandal Proof IP Dome
Target Vandal Proof IP Dome
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
Quick Start Guide
ICH265HISIV108-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-VD120D and is the answer not in the manual?

Questions and answers

Related Manuals for GeoVision GV-VD120D

Summary of Contents for GeoVision GV-VD120D

  • Page 1 GV-IPCamera Quick Start Guide Vandal Proof IP Dome Target Vandal Proof IP Dome Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. ICH265HISIV108-B...
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.

  • Page 3: Table Of Contents

    Content Content ................i Caution................v Safety Notice ..............v Options ................vi Note for Adjusting Focus and Zoom......viii Note for Installing Camera Outdoor........ix Note for Silica Gel Bags ...........xi Chapter 1 Vandal Proof IP Dome (Part I) ......1 1.1 Packing List ................3 1.2 Overview ..................4 1.3 Installation ................6 1.3.1 Hard-Ceiling Mount ............7...
  • Page 4 Chapter 2 Vandal Proof IP Dome (Part II) .....21 2.1 Packing List ................24 2.2 Overview ................27 2.3 Installation ................29 2.3.1 Installation of Weatherproof Shield......39 2.4 Connecting the Camera............41 2.4.1 Power Connection............41 2.4.2 I/O Device Connections ..........41 2.4.3 Voltage Load Expansion (Optional)......42 2.5 Loading Factory Default............43 2.5.1 Using the Web Interface..........43 2.5.2 Directly on the Camera ..........43...
  • Page 5 3.5.2 Directly on the Camera ..........58 Chapter 4 Vandal Proof IP Dome (Part IV)....59 4.1 Packing List ................61 4.2 Overview ................64 4.3 Installation ................68 4.4 Connecting the Camera............79 4.5 I/O Connector .................80 4.5.1 Voltage Load Expansion (Optional)......80 4.6 Loading Factory Default............81 4.6.1 Using the Web Interface..........81 4.6.2 Directly on the Camera ..........81 Chapter 5 Target Vandal Proof IP Dome.......82...
  • Page 6 6.2.1 Checking the Dynamic IP Address ......103 6.2.2 Configuring the IP Address ........105 6.3 Adjusting Image Clarity............107 6.3.1 Using Focus Adjustment Cap........110 Chapter 7 The Web Interface ........112 Chapter 8 Upgrading System Firmware .....115...

  • Page 7: Caution

    Caution Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Safety Notice The GV-IPCAM uses a Lithium battery as the power supply for its internal real-time clock (RTC). The battery should not be replaced unless required! If the battery does need replacing, please observe the following: ...

  • Page 8: Options

    Options Optional devices can expand your camera’s capabilities and versatility. Contact your dealer for more information. Device Description The power adapter is available for all Vandal Proof IP Dome. Contact your sales representative for the Power Adapter countries and areas supported. The GV-PA191 PoE adapter is designed to provide GV-PA191 PoE power and network connection to the cameras over...
  • Page 9 Device Description The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your GV-Relay V2 requirement.

  • Page 10: Note For Adjusting Focus And Zoom

    Note for Adjusting Focus and Zoom When adjusting the Focus and Zoom Screws, do not over tighten the Focus and Zoom screws. The screws only need to be as tight as your finger can do it. It is not necessary to use any tools to get them tighter. Doing so can damage the structure of lens.

  • Page 11: Note For Installing Camera Outdoor

    Note for Installing Camera Outdoor When installing the camera outdoor, be sure that: The camera is set up above the junction box to prevent water from entering the camera along the cables. Any PoE, power, audio and I/O cables are waterproofed using waterproof silicon rubber or the like.
  • Page 12 After opening the camera cover, ensure the screws are tightened and the cover is in place. Make sure the housing cover is properly secured to prevent water from entering and damaging the inner housing.

  • Page 13: Note For Silica Gel Bags

    Note for Silica Gel Bags The silica gel bag loses it effectiveness when the dry camera is opened. To prevent the lens from fogging up, replace the silica gel bag every time you open the camera, and conceal the gel bag in camera within 2 minutes of exposing to open air.

  • Page 14: Chapter 1 Vandal Proof Ip Dome (Part I)

    They can also be installed on wall corners and poles using the GV-Mount accessories (optional). For more details, see GV-Mount Accessories Installation Guide on the Software DVD. Model No. Specification Description GV-VD120D (IK10+, Transparent Cover) GV-VD121D Auto Iris, f:3 ~ 9 Varifocal mm, F/1.3, 1/2.7”...
  • Page 15 Vandal Proof IP Dome (Part I) Model No. Specification Description GV-VD220D (IK10+, Transparent Cover) GV-VD221D (IK10+, Smoked Cover) 2 MP, H.264 GV-VD222D (IK7, Transparent Cover) GV-VD223D Auto Iris, f:3 ~ 9 (IK7, Smoked Cover) Varifocal mm, F/1.3, 1/2.7” ø 14 mm lens Lens GV-VD320D mount...

  • Page 16: Packing List

    Vandal Proof IP Dome (Part I) 1.1 Packing List  Vandal Proof IP Dome  Silica Gel Bag x 2  Screw Anchor x 4  Torx Wrench  Ceiling Screw x 4  Blue Screw x 3  T-Cap Screw x 3 ...

  • Page 17: Overview

    Vandal Proof IP Dome (Part I) 1.2 Overview Figure 1-1 Name Description Turns on (green) when the power is on and Power LED turns off when there is no power supply. Turns on (green) when the system operates Status LED normally and turns off when system error occurs.
  • Page 18 Vandal Proof IP Dome (Part I) Name Description Rotational Screw Loosens to adjust the camera angle. Zoom Screw Adjusts the zoom of the camera. Focus Screw Adjusts the focus of the camera. Silica Gel Bag Absorbs moisture in the camera body.

  • Page 19: Installation

    Vandal Proof IP Dome (Part I) 1.3 Installation The Vandal Proof IP Dome is designed for outdoors. With the standard package, there are two ways to install the Vandal Proof IP Dome: hard- ceiling mount and in-ceiling mount . Note: You can also install the camera: ...

  • Page 20: Hard-Ceiling Mount

    Vandal Proof IP Dome (Part I) 1.3.1 Hard-Ceiling Mount Figure 1-2 Unpack the camera package and take out the camera body. Unscrew the housing cover Unscrew thread lock...
  • Page 21 Vandal Proof IP Dome (Part I) Unscrew the inner housing Take out the camera body...
  • Page 22 Vandal Proof IP Dome (Part I) Mark the position of four screw holes on the desired installation location, and drill holes in the marked locations. Drill the ellipse part if you wish to put the wires through it. Figure 1-3 Insert the screw anchors to the 4 holes on the ceiling.
  • Page 23 Vandal Proof IP Dome (Part I) Connect the network, power and other cables to the camera. See 1.4 Connecting the Camera. Access the live view. See 6.2 Accessing the Live View. Based on the live view, adjust the camera to a desired angle as illustrated below.
  • Page 24 Vandal Proof IP Dome (Part I) Tilt Adjustment Rotational Adjustment Figure 1-6 10. Adjust image clarity using the GV-IP Device Utility program. For details, see 6.3 Adjusting Image Clarity. 11. Screw on the thread lock as shown in step 1. 12.

  • Page 25: In-Ceiling Mount

    Vandal Proof IP Dome (Part I) 1.3.2 In-Ceiling Mount Figure 1-7 Follow step 1 in 1.3.1 Hard-Ceiling Mount section to remove the housing cover, thread lock and back cover, and take out the camera body. Cut out a circle with a diameter of 142 mm on the ceiling. Insert a blue screw to the indicated holes on the camera body.
  • Page 26 Vandal Proof IP Dome (Part I) Screw in a plastic clip to the blue screw, hold it with one hand and use a screw driver to rotate the blue screw until the plastic clip moves half way down. Plastic Clip Figure 1-9 Secure a T-cap on top of the blue screw with a small screw cap and a T-cap screw.
  • Page 27 Vandal Proof IP Dome (Part I) Insert the camera to the ceiling with the plastic screws moved inward. Figure 1-11 Move the blue screws out and rotate the blue screw with a screw driver until the plastic clip and the bottom of the camera body clamps the ceiling tightly.

  • Page 28: Connecting The Camera

    Vandal Proof IP Dome (Part I) 1.4 Connecting the Camera Connect your Vandal Proof IP Dome to power, network and other cables needed. 1.4.1 Wire Definition The cables of Vandal Proof IP Dome are illustrated and defined below. Shielding ground DC 12V- / AC 24V- DC 12V+ / AC 24V+ Digital in (oragne)
  • Page 29 Vandal Proof IP Dome (Part I) Note: The TV-out function can only be used during installation to adjust the focus of the camera. To use the TV out function, connect the supplied black BNC wire to a monitor and select your signal format (NTSC or PAL) at the TV Out field on the Web interface.

  • Page 30: Power Connection

    Vandal Proof IP Dome (Part I) 1.4.2 Power Connection There are two ways to supply power to the camera:  Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. ...

  • Page 31: Voltage Load Expansion (Optional)

    Vandal Proof IP Dome (Part I) 1.4.3 Voltage Load Expansion (Optional) The camera can only drive a maximum load of 200mA 5V DC . To expand the maximum voltage load to 10A 250V AC , 10A 125V AC or 5A 100V DC , connect the camera to a GV-Relay V2 module (optional product).

  • Page 32: Loading Factory Default

    Vandal Proof IP Dome (Part I) 1.5 Loading Factory Default You can restore factory default settings through the Web interface or directly on the camera. 1.5.1 Using the Web Interface On the left menu of Web interface, select Management and select Tools .

  • Page 33: Directly On The Camera

    Vandal Proof IP Dome (Part I) 1.5.2 Directly on the Camera Keep the power and network cables (or PoE) connected to the camera. Use a pin to press and hold the default button on the inner housing. Release the default button when the status LED blinks. This shall take about 8 seconds.

  • Page 34: Chapter 2 Vandal Proof Ip Dome (Part Ii)

    Vandal Proof IP Dome (Part II) Chapter 2 Vandal Proof IP Dome (Part II) These Vandal Proof IP Domes are outdoor cameras designed with IK10+ vandal resistance and IP67 ingress protection. They provide superior night vision with their high power LEDs and allow up to 20 m (65.6 ft), 25 m (82 ft), 30 m (98.4 ft) effective IR distance.
  • Page 35 Vandal Proof IP Dome (Part II) Model No. Specification Description 1.3 MP Super Low GV-VD1530 Lux / 2 MP WDR GV-VD2430 Varifocal Pro / 2 MP Super GV-VD2530 lens Low Lux / 3 MP GV-VD3430 WDR Pro, H.264, 1.3 MP Super Low GV-VD1540 Motorized Auto Iris,...
  • Page 36 Vandal Proof IP Dome (Part II) ø 14 mm lens Motorized mount varifocal Lens, high power IR GV-VD5340-E LEDs, extreme temperature tolerance...

  • Page 37: Packing List

    Vandal Proof IP Dome (Part II) 2.1 Packing List  Vandal Proof IP Dome  Torx Wrench  3-Pin Terminal Block  Audio wires x 2  Power Adapter (excluding  TV out wire GV-VD4711 / 5711)  RJ-45 Connector x 2 ...
  • Page 38 Vandal Proof IP Dome (Part II)  Installation sticker  Screw Anchor x 4 Ceiling mount template  Long Screw x 4  Flat Screw  Short Screw x 2  Silica Gel Bag  Sticker (for Silica Gel Bag) ...
  • Page 39 Vandal Proof IP Dome (Part II) Note: You can choose to run the wires through a conduit pipe. After you have threaded all the wires, install the supplied conduit converter and plastic PG21 conduit connector with a self-prepared 1/2’’ conduit pipe to the camera.

  • Page 40: Overview

    Vandal Proof IP Dome (Part II) 2.2 Overview Figure 2-1...
  • Page 41 Vandal Proof IP Dome (Part II) Name Description The power LED (top) turns on (green) when the power is on and turns off when there is no power supply. The status LED (bottom) LED Indicators turns on (green) when the system operates normally and turns off when system error occurs.

  • Page 42: Installation

    Vandal Proof IP Dome (Part II) 2.3 Installation The Vandal Proof IP Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Note: You can also install the camera:  on a power box (of the 4" square and double gang type) using the standard package ...
  • Page 43 Vandal Proof IP Dome (Part II) B. Unplug the conduit connector inside the housing and disintegrate the connector. You should have 4 parts: Figure 2-3 C. Remove the terminal block from the supplied power adapter. (Power adapter is not supplied for GV-VD4711 / 5711) D.
  • Page 44 Vandal Proof IP Dome (Part II) 2.6 mm: Audio, BNC 2 mm: DC12V / AC24V 1.8 mm: DIDO Figure 2-5 IMPORTANT: 1. Use the supplied ruler and leave about 10 cm of power and I/O wires between their connectors on the camera and the cable gland;...
  • Page 45 Vandal Proof IP Dome (Part II) Install the Ethernet cable. A. Rotate to remove the indicated cap and the plug inside. Figure 2-6 B. Thread an Ethernet cable (the end with no RJ-45 connector) from the back panel through the cable gland Figure 2-7 IMPORTANT: Use the supplied ruler and leave about 11 cm of the Ethernet cable between the connector and the cable gland.
  • Page 46 Vandal Proof IP Dome (Part II) Connect the wires to the camera. Install the terminal blocks to the power adapter and I/O devices. See 2.4.1 Power Connection and 2.4.2 I/O Device Connections. Install the supplied RJ-45 connector to the Ethernet cable. Plug all the connectors to the camera panel.
  • Page 47 Vandal Proof IP Dome (Part II) Sort out the wires at the back. You can have the wires come out from position A, B or both. The instructions here describe sorting wires for position A. Figure 2-8 From the back of the camera housing, unscrew and rotate the plate to one side, sort out the wires and secure the plate back.
  • Page 48 Vandal Proof IP Dome (Part II) Secure the back plate to the ceiling. A. Paste the sticker to the ceiling. The arrow on the sticker indicates the direction that the camera faces. Ceiling mount template Figure 2-10 B. Drill 3 holes for screws. The recommended ones are indicated as ‘1’.
  • Page 49 Vandal Proof IP Dome (Part II) Secure the camera to the ceiling. Secure the safety lock to the camera using a short screw. Use flat screw for number 1 and small screw for number 2. Figure 2-11 Thread all the wires into the ceiling and connect them. Note: The TV-out function can only be used during initial installation to adjust the focus of the camera.
  • Page 50 Vandal Proof IP Dome (Part II) Secure the camera using the torx wrench Figure 2-12 Access the live view. See 6.2 Accessing the Live View. Adjust the camera’s angle, focus and zoom of the camera. Pan Adjustment Tilt Adjustment...
  • Page 51 Vandal Proof IP Dome (Part II) Rotational Adjustment Figure 2-13 10. Replace the silica gel bag and secure the camera cover using the torx wrench. IMPORTANT: If the center of the camera view is less than 25° to the ceiling, or lower than the grey line (as illustrated below), disassemble the indicated ring so the view is not obstructed.

  • Page 52: Installation Of Weatherproof Shield

    Vandal Proof IP Dome (Part II) 2.3.1 Installation of Weatherproof Shield Optionally purchase a weatherproof shield to protect the camera from rain and snow. Figure 2-14 Note: A weatherproof shield can be purchased upon request. The pan and tilt angle of the camera is limited by the shield. Remove the housing cover.
  • Page 53 Vandal Proof IP Dome (Part II) Remove the three screws from the housing cover. Figure 2-16 Secure the three screws of the weatherproof shield to the housing cover. Weatherproof Shield Figure 2-17 Secure the housing cover.

  • Page 54: Connecting The Camera

    Vandal Proof IP Dome (Part II) 2.4 Connecting the Camera Connect your Vandal Proof IP Dome to power, network and other wires needed. 2.4.1 Power Connection There are two ways to supply power to the camera:  Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time.

  • Page 55: Voltage Load Expansion (Optional)

    Vandal Proof IP Dome (Part II) 2.4.3 Voltage Load Expansion (Optional) The camera can only drive a maximum load of 200mA 5V DC . To expand the maximum voltage load to 10A 250V AC , 10A 125V AC or 5A 100V DC , connect the camera to a GV-Relay V2 module (optional product).

  • Page 56: Loading Factory Default

    Vandal Proof IP Dome (Part II) 2.5 Loading Factory Default 2.5.1 Using the Web Interface You can restore factory default settings through the Web interface. For details, refer to 1.5.1 Using the Web Interface. 2.5.2 Directly on the Camera Use a pin to press and hold the default button for about 8 seconds . Release the default button when the status LED blinks.

  • Page 57: Chapter 3 Vandal Proof Ip Dome (Part Iii)

    Vandal Proof IP Dome (Part III) Chapter 3 Vandal Proof IP Dome (Part III) These Vandal Proof IP Domes are outdoor cameras equipped with a removable IR-cut filter for optimal day and night surveillance. The cameras adhere to IK10 vandal resistance and IP67 ingress protection. They can support H.265 video codec to achieve better compression ratio while maintaining high quality picture.

  • Page 58: Packing List

    Vandal Proof IP Dome (Part III) 3.1 Packing List  H.265 Vandal Proof IP Dome  Torx Wrench  Long Screw x 4  Screw Anchor x 4  Back Plate  Short Screw (for Back Plate) x 3  Installation sticker ...
  • Page 59 Vandal Proof IP Dome (Part III)  Screw (for the Anti-Drop Wire)  Silica Gel Bag x 2  Sticker (for Silica Gel Bag) x 2  GV-IPCAM Software DVD  GV-Software DVD  Pan Angle Notification Card  Warranty Card Note: The supplied anti-drop wire is used for attaching the camera body to GV-Mount206.

  • Page 60: Overview

    Vandal Proof IP Dome (Part III) 3.2 Overview Figure 3-1...
  • Page 61 Vandal Proof IP Dome (Part III) Name Description Rotational Screw Loosen to rotate the lens. Insert a micro SD card (SD/SDHC/SDXC/ SD Card Slot UHS-I, Class 10) to store recording data. * UHS-II card type is not supported. Base Screw Loosen to pan the camera.

  • Page 62: Installation

    Vandal Proof IP Dome (Part III) 3.3 Installation The Vandal Proof IP Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Note: You can also install the camera to ceilings, wall corners (concave or convex), and poles using optional mounting kits.
  • Page 63 Vandal Proof IP Dome (Part III) Disintegrate the removed conduit connector. Thread the Ethernet cable through the 3 parts. Figure 3-4 Assemble the conduit connector. Figure 3-5 Note: If you can’t plug the self-prepared RJ-45 connector into the jack of the conduit, it is suggested to use the supplied RJ-45 connector.
  • Page 64 Vandal Proof IP Dome (Part III) Drill 4 holes for screws. The recommended ones are indicated as ‘1’. Insert the screw anchors to the 4 holes on the ceiling. Secure the back plate to the ceiling with 4 long screws. Align and secure the back plate to the rear side of the camera with the supplied short screws.
  • Page 65 Vandal Proof IP Dome (Part III) Based on the live view, adjust the camera’s angle, focus and zoom. Pan Adjustment Figure 3-9 IMPORTANT: Loosen the screw indicated below before adjusting the camera pan angle. The front of the camera is marked ith a white line in front of the memory card slot.
  • Page 66 Vandal Proof IP Dome (Part III) Tilt Adjustment Rotational Adjustment Figure 3-10 Paste the silica gel bag with a sticker right behind the lens. Figure 3-11...
  • Page 67 Vandal Proof IP Dome (Part III) ecure the housing cover back to the camera body. Note: You can remove the cable stopper to thread the camera’s cable through the side opening.

  • Page 68: Connecting The Camera

    Vandal Proof IP Dome (Part III) 3.4 Connecting the Camera Connect your camera to power, network and other cables needed. 3.4.1 Definition Figure 3-12 Wire Name Definition DO + Digital out + DO - Digital out - 4-Pin terminal block DI + Digital in + DI -...

  • Page 69: Power Connection

    Vandal Proof IP Dome (Part III) 3.4.2 Power Connection There are two ways to supply power to the camera:  Use a Power o ver Ethernet (PoE) adapter to connect the camera to the network, an d the power will be provided at the same time. ...

  • Page 70: Voltage Load Expansion (Optional)

    Vandal Proof IP Dome (Part III) 3.4.3 Voltage Load Expansion (Optional) The camera can only drive a maximum load of 200mA 5V DC . To expand the maximum voltage load to 10A 250V AC , 10A 125V AC or 5A 100V DC , connect the camera to a GV-Relay V2 module (optional product).

  • Page 71: Loading Factory Default

    Vandal Proof IP Dome (Part III) 3.5 Loading Factory Default 3.5.1 Using the Web Interface You can restore factory default settings through the Web interface. For details, refer to 1.5.1 Using the Web Interface. 3.5.2 Directly on the Camera Insert a thin object into the default button next to the camera lens. Press and hold the default button for about 5 seconds to load the factory default.

  • Page 72: Chapter 4 Vandal Proof Ip Dome (Part Iv)

    Vandal Proof IP Dome (Part IV) Chapter 4 Vandal Proof IP Dome (Part IV) These Vandal Proof IP Domes are outdoor cameras equipped with a removable IR-cut filter for optimal day and night surveillance. The cameras adhere to IK10 vandal resistance and IP67 ingress protection. They can support H.265 video codec to achieve better compression ratio while maintaining high quality picture.
  • Page 73 Vandal Proof IP Dome (Part IV) Model No. Specifications Description P-Iris, f:2.8 ~ 1 2 mm, 2 MP H.265, Varifocal WDR Pro, Sup GV-VD2702 F/1.7, 1/2.7” lens Low Lux ø 14 mm lens mount P-Iris, 2 MP H.265, f:2.8 ~ 12 mm, Motorized GV-VD2712...

  • Page 74: Packing List

    Vandal Proof IP Dome (Part IV) 4.1 Packing List  H.265 Vandal  Torx Wrench Proof IP Dome  Screw x 4  Screw Anchor x 4  TV-Out Wire  Audio Wire x 2  I/O Cable  Installation sticker ...
  • Page 75 Vandal Proof IP Dome (Part IV)  PG21 Conduit Connector  Waterproof Rubber Sets (for RJ-45 Cat.5 and 12V DC / for RJ-45 Cat.6) Cat.6 Cat.5 (Ø 6 mm) (Ø 5 mm)  Big Concave Hexagon  Smal l Conc ave Hexagon Wrench Wrenc...
  • Page 76 Vandal Proof IP Dome (Part IV) A metal PG21 conduit conn ector can be purchased upon request. The metal PG21 conduit conne ctor can be connected with a 3/4” pipe. Conduit converter Metal PG21 conduit connector Conduit pipe...

  • Page 77: Overview

    Vandal Proof IP Dome (Part IV) 4.2 Overview Figure 4-1 Figure 4-2...
  • Page 78 Vandal Proof IP Dome (Part IV) GV-VD2702 / 2712 Figure 4-3 GV-VD4702 Figure 4-4...
  • Page 79 Vandal Proof IP Dome (Part IV) Name Description The power LED (top) turns on (green) when the power is on and turns off when there is no power supply. The status LED LED Indicators (bottom) turns on (green) when the system operates normally and turns off when system error occurs.
  • Page 80 Vandal Proof IP Dome (Part IV) Note: The TV-out function can only be used during installation to adjust the focus of the camera. To use the TV out function, connect the supplied black BNC wire to a monitor and select your signal format (NTSC or PAL) at the TV Out field on the Web interface.

  • Page 81: Installation

    Vandal Proof IP Dome (Part IV) 4.3 I nstalla tion The Vandal Proof IP Dome is d esigned for outdoors. With the standard package, you can install the ca mera on the ceiling. Note: You can also install the camera to ceilings, wall corners (conca or convex), and poles using o ptional mounting kits.
  • Page 82 Vandal Proof IP Dome (Part IV) Remove the back plate with the supplied torx wrench and remove the safety lock with a Philips screwdriver. Keep the removed screw later use. Safety loc Figure 4-6 Thread wires into the camera. A. Rotate to remove the cap of the conduit connector. Figure 4-7...
  • Page 83 Vandal Proof IP Dome (Part IV) B. Unplug the conduit connector inside the housing and disintegrate the connector. You should have 3 parts: Figure 4-8 Thread the audio wires and I/O wires through the conduit entry and then through part 1, 2, and 3 of the conduit connec tor.
  • Page 84 Vandal Proof IP Dome (Part IV) 3.2 mm: Audio 1.9 mm: DIDO Figure 4-10 IMPORTANT: eave a Use the supplied ruler and l t least 14 cm of I/O wires and 10 cm of audio wires between their connectors on the camera and the c able gland.
  • Page 85 Vandal Proof IP Dome (Part IV) If you use cat 6 Ethernet cable, you need to thread the DC 12V wires through the conduit connector. Followings are the corresponding holes. .2 m m: Audio 1.9 mm: DIDO 1.9 mm: DC 12V Figure 4-11 IMPORTANT: Leave more than 10 cm of power wires between their connectors on the camera a...
  • Page 86 Vandal Proof IP Dome (Part IV) B. Thread an Ethernet cable (the end with no RJ-45 connector) and the optional power adapter wires from the ack panel through the cable gland Figure 4-13 IMPORTANT: Use the supplied ruler and leave about 14 cm of the Ethernet cable between the connector o n the camera and the cable gland.
  • Page 87 Vandal Proof IP Dome (Part IV) nect the wires to the camera. Install the terminal blocks to the power adapter and I/O d evices. See 4.4 Connecting th e Camera and 4.5 I/O Connector. nstall the supplied RJ-45 connector to the Ethernet cable. Plug all the connectors to the camera panel.
  • Page 88 Vandal Proof IP Dome (Part IV) For GV-VD4702 : (1) Pull and lift the cover of the memory card slot. Figure 4-15 (2) Insert the memory card into the slot. Figure 4-16 (3) Press down the cover and push the cover back.
  • Page 89 Vandal Proof IP Dome (Part IV) Sort out the wires at the back. You can have the wires come out from position A and B or from C. Figure 4-17 Secure the back plate to the ceiling. A. Paste the sticker to the ceiling. The arrow on the sticker indicates the direction that the camera faces.
  • Page 90 Vandal Proof IP Dome (Part IV) Secure the camera to the ceiling. Secure the safety lock to the camera with the screw removed from the back plate in step 2. Safety lock Figure 4-19 Thread all the wires into the ceiling and connect them. Secure the camera to the back plate w ith the torx wrench.
  • Page 91 Vandal Proof IP Dome (Part IV) Adjust the camera’s angle, focus and zoom of the camera. Pan Adjustment Tilt Adjustment Rotation al Adjustmen Figure 4-20 10. Replace the silica gel bag, press all the wires and cables into the notch and secure the camera cover with the torx wrench. Figure 4-21...

  • Page 92: Connecting The Camera

    Vandal Proof IP Dome (Part IV) 4.4 Connecting the Camera Figure 4-22 standard network cable to connect the camera to your network. Optionally connect a speaker and an external microphon ptionally connect a monitor using a Video Out wire. Enable this function by selecting your signal format at the TV Out field on the Web interface.

  • Page 93: I/O Connector

    Vandal Proof IP Dome (Part IV) 4.5 I/O Connector The camera supports one digital input and one digital output of dry contact. Supplied I/O Cable Function Digital Output Black White Digital Input details on how to enable a n installed I/O device, see 4.3 I/O Settings, GV-IPCam Firmware Manual.

  • Page 94: Loading Factory Default

    Vandal Proof IP Dome (Part IV) 4.6 Loading Factory Default 4.6.1 Using the Web Interface You can restore factory default settings through the Web interface. For details, refer to 1.5.1 Using the Web Interface. 4.6.2 Directly on the Camera Use a pin to press and hold the default button for about 8 seconds . Release the default button when the status LED blinks.

  • Page 95: Chapter 5 Target Vandal Proof Ip Dome

    Target Vandal Proof IP Dome Chapter 5 Target Vandal Proof IP Dome The Target Vandal P roof IP Dome is an outdoor camera des igned with IK10 vandal re ce an d IP67 ingress prot ection. The cam era is equipped with tomatic IR-cut filter and I...

  • Page 96: Packing List

    Target Vandal Proof IP Dome 5.1 Packing List  Target Vandal Proof IP Dome  Torx Wrench  Screw x 4  Screw Anchor x 4  TV-Out Wire  Audio Wires x 2  Installation sticker  RJ-45 Connector ...
  • Page 97 Target Vandal Proof IP Dome  Big Concave hexagon Wrench  Small Concave hexagon Wrench  Silica Gel Bag  Sticker (for Silica Gel B  GV-IPCAM Software DVD  Ruler  GV-Software DVD  Warranty Card Note: With the supplied Condui t Convert er, you can c hoose to run th...
  • Page 98 Target Vandal Proof IP Dome Conduit converter Metal PG21 conduit connector ¾” Conduit pipe...

  • Page 99: Overview

    Target Vandal Proof IP Dome 5.2 Overview 13 12 Figure 5-1...
  • Page 100 Target Vandal Proof IP Dome Name Description The power LED (top) turns on (green) when the power is on and turns off when there is no power supply. The status LED (bottom) LED Indicators turns on (green) when the system operates normally and turns off when system error occurs.

  • Page 101: Installation

    Target Vandal Proof IP Dome 5.3 Installation he Target Vandal Proof IP Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Note: You can also install the camera to ceilings, wall corners (concave or convex), and poles using optional mounting kits.

  • Page 102: Safety Loc

    Target Vandal Proof IP Dome Remove the back plate with the supplied torx wrench and remove the ety lock w ith a Philips screwdriver. K eep the removed screw for r use. Safety lock Figure 5-3 Thread an E thernet c able and/ or the adapter wire into the c amera.

  • Page 103: Figure

    Target Vandal Proof IP Dome Take out and disintegrate the connector. You should have 3 parts: Figure 5-5 Thread an Ethernet cable (the end without RJ-45 connector) and/or the adapter wire from the back panel. Figure 5-6...
  • Page 104 Target Vandal Proof IP Dome Thread an Ethernet cable / adapter wire through part 1 of the connector. According to the below situation, replace the connector if necessary.  For users of PoE with a Cat.5 Ethernet cable, stay with 1a connector on the camera body.

  • Page 105: Rotate To Remove The Cap Of The Conduit Connector

    Target Vandal Proof IP Dome IMPORTANT: Use the supplied ruler and leave about 14 cm of the Ethernet cable and 10 cm of the adapter wire between their connectors on the camera and the cable gland. Re-install the cap (part 3) with the supplied big concave hexagon wrench.
  • Page 106 Target Vandal Proof IP Dome Thread the audio wires from the back panel, remove the plugs of part 1 and thread through the 3 parts of the connector. Plug Figure 5-10 Re-install the cap (part 3) with the supplied small concave hexagon wrench.
  • Page 107 Target Vandal Proof IP Dome Connect the wires to the camera. Install the terminal block to the power adapter. See 3.4 Connecting the camera. Install the supplied RJ-45 connector to the Ethernet cable. Plug all the connectors to the camera panel. nscrew the indicated screws and lift the camera to help you connect the wires.
  • Page 108 Target Vandal Proof IP Dome Secure the back plate to the ceiling. Paste the sticker to the ceiling. The arrow on the sticker indicates the direction that the camera faces. Figure 5-12 Drill 4 holes for screws. The recommended ones are indicated as ‘1’.
  • Page 109 Target Vandal Proof IP Dome Secure the camera to the ceiling. Secure the safety lock to the camera with the screw you removed from the back pl ate in step 2. Safety lock Figure 5-13 Thread all the wires into the ceiling and connect them. Secure the camera with the torx wrench.
  • Page 110 Target Vandal Proof IP Dome Access the live view. See 6.2 Accessing the Live View. Note: The TV-out function can be used to access the live view. For details, see the note for TV-out in 4.2 Overview. 10. Adjust the camera’s angle, focus and zoom of the camera. Pan Adjustment Tilt Adjustment Rotational Adjustment...
  • Page 111 Target Vandal Proof IP Dome 11. Replace the silica gel bag, press all the wires and cables into the notch and secure the camera cover with the torx wrench. Figure 5-16...

  • Page 112: Connecting The Camera

    Target Vandal Proof IP Dome 5.4 Connecting the Camera There are two ways to supply power to the camera:  Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. ...

  • Page 113: Loading Factory Default

    Target Vandal Proof IP Dome 5.5 Loading Factory Default 5.5.1 Using the Web Interface You can restore factory default settings through the Web interface. For details, refer to 1.5.1 Using the Web Interface. 5.5.2 Directly on the Camera Press and hold the default button for about 8 seconds . Release the default button when the status LE D blinks.

  • Page 114: Chapter 6 Accessing The Camera

    Accessing the Camera Chapter 6 Accessing the Camera 6.1 System Requirement To access the GV-IP Camera through the Web browser, ensure your P connects to the network properly and meets this system requirement:  Microsoft Internet Explorer 8.0 or later Note: For the users of Internet Explorer 8 , additional settings are required.

  • Page 115: Accessing The Live View

    Accessing the Camera 6.2 Accessing the Live View When the camera is connected to a network with a DHCP server, it will be automatically assigned with a dynamic IP address. See 6.2.1 Checking the Dynamic IP Address to look up this IP add ress.

  • Page 116: Checking The Dynamic Ip Address

    Accessing the Camera 6.2.1 Checking the Dynamic IP Address Follow the steps below to look up the IP address and access the Web interface. Install the GV-IP Device Utility program included on the GV-IPCAM software DVD. Note: The PC installed with GV-IP Device Utility must be under the same LAN with the GV-IPCAM you wish to configure.
  • Page 117 Accessing the Camera Find the camera with its Mac Address, click on its IP address and select Web Page . Figure 6-2 The login page appears. Figure 6-3 Type the default ID and password admin and click Apply to log in.

  • Page 118: Configuring The Ip Address

    Click Apply . The camera is now accessible by entering the assigned address on the Web browser. o enable the updating of images in Microsoft Internet Explorer, you must set your browser to allow ActiveX Controls and perform a one- e installation of GeoVision’s ActiveX component onto your omputer.
  • Page 119 Accessing the Camera IMPORTANT: If Dynamic IP Address or PPPoE is enabled, you need to know which IP address the camera will get from DHCP server or ISP to log in. If your camera is installed in the LAN, use the GV-IP Device Utility to look up its current dynamic IP address.

  • Page 120: Adjusting Image Clarity

    Accessing the Camera 6.3 Adjusting Image Clarity You can adjust the image clarity using the GV-IP Device Utility. Make sure that you have connected your GV-IPCAM to the network and install the GV-IP Device Utility program under the same LAN. Note: This f eature only applies to the cameras that allow manual focus adjustment.
  • Page 121 Figure 6-7 For IK10+ models ( GV-VD120D / 121D / 220D / 221D / 320D / 321D / 1500 / 2400 / 3400 / 1530 / 2430 / 2530 / 3430 / 4711 / 5711 ), hold the supplied Focus Adjustment Cap over the camera view. For details, see 6.3.1 Using Focus Adjustment Cap.
  • Page 122 Accessing the Camera Note: For locations of adjustment screws and rings in each model, see Locations of Adjustment Screws, section, Getting Started Chapter, GV-IPCAM Firmware Manual on the Software DVD. Do not over tighten the screws. The screws only need to be as tight as your fingers can get them to be.

  • Page 123: Using Focus Adjustment Cap

    Accessing the Camera 6.3.1 Using Focus Adjustment Cap There are two types of Focus Adjustment Caps for GV-VD120D / 121D / 220D / 221D / 320D / 321D / 1500 / 2400 / 3400 / 1530 / 2430 / 2530 / 3430 / 4711 / 5711 .
  • Page 124 Accessing the Camera Do not leave a distance between the Focus Adjustment Cap and the camera. Figure 6-10...

  • Page 125: Chapter 7 The Web Interface

    The Web Interface Chapter 7 The Web Interface 12 13 Figure 7-1...
  • Page 126 The Web Interface No. Name Function Play Plays live video. Stop Stops playing video. Broadcasts to the surveillance site from a remote PC. Note s function is not available for Ultra llet Camera and Target Series . For Cube Camera and Advanced Cube Camera , click the Microphone Push to talk button (from the pop-up menu) for the camera to switch between audio transmission and...
  • Page 127 The Web Interface No. Name Function Enables the PTZ Control Panel or the Visual PTZ. PTZ Control Note this function is supported by PTZ Camera Panel and PT Camera , and only partially supported by GV-IP Cameras with motorized varifocal lens . Enables the I/O Control Panel and Visual Automation.

  • Page 128: Chapter 8 Upgrading System Firmware

    Upgrading System Firmware Chapter 8 Upgrading System F mw GeoVision periodically releases updated firmware on the website. The new firmware can be simply loaded into the GV-IPCAM by using the Web interface or IP Device U tility included in the software DVD.
  • Page 129 Click the Upgrade button to start the upgrade. WARNING: The interruption of power supply during updating causes not only update failures but also damages to the camera. In this case, please contact your sales representative and send your device back to GeoVision for repair.
