Summary of Contents for GeoVision GV-BX Series

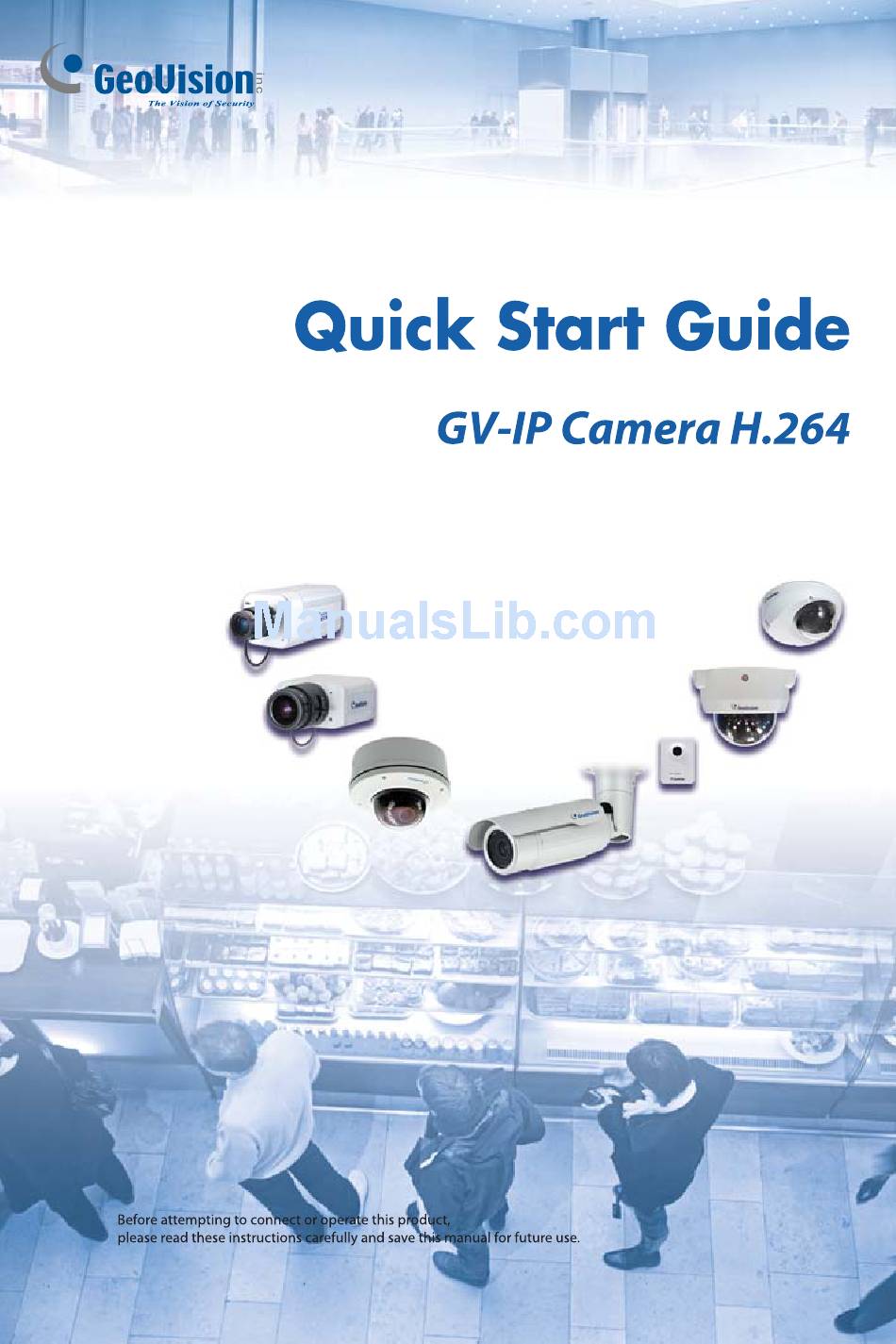

  • Page 1 alarm shop...
  • Page 2 Every effort has been made to ensure that the information in this manual is alarm shop accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.

  • Page 3: Table Of Contents

    Contents Introduction .................iii Options ..................vi Note for Connecting to GV-System ..........vii Note for Adjusting Focus and Zoom ........viii 1. Box Camera ................1 1.1 Packing List................. 1 1.2 Overview ..................2 1.3 Accessory Installation ..............5 1.3.1 C-Mount Lenses ..............5 1.3.2 Infrared Illuminators.............7 1.4 Connecting the Camera ..............
  • Page 4 4. Vandal Proof IP Dome............29 4.1 Packing List................29 4.2 Overview ................... 31 4.3 Installation................. 32 4.3.1 Hard-Ceiling Mount ............32 4.3.2 In-Ceiling Mount ..............37 4.3.3 Wall-Pendent Mount............40 4.4 Connecting the Camera ............43 4.4.1 Wire Definition ..............43 4.4.2 Connecting the Power Cable..........44 5.

  • Page 5: Introduction

    Introduction Welcome to the GV-IPCam H.264 Quick Start Guide. In this quick guide, you will find information on the installation and basic configurations of the Box Camera, Mini Fixed Dome, Bullet Camera, Vandal Proof IP Dome, Fixed IP Dome and Cube Camera. Model Model No.
  • Page 6 3 M H.264 D/N GV-BX320D-0 Box IP Cam f: 3.1 ~ 8 mm, F/1.2, 1/3’’ CS Lens Varifocal Lens 3 M H.264 D/N Box IP Cam GV-BX320D-1 f: 2.8 ~ 6 mm, F/1.3, 1/3’’ CS Lens Mini Fixed 1.3 M H.264 Color Fixed GV-MFD110 Lens...
  • Page 7 GV-VD220D (IK10+, Transparent Cover) GV-VD221D 2 M H.264 IR (IK10+, Smoked Cover) Vandal Proof IP GV-VD222D Dome (Transparent Cover) GV-VD223D Vandal Varifocal (Smoked Cover) Proof IP Lens GV-VD320D Dome (IK10+, Transparent Cover) GV-VD321D 3 M H.264 IR (IK10+, Smoked Cover) GV-VD322D Vandal Proof IP Dome...

  • Page 8: Options

    Options Optional devices can expand your camera’s capabilities and versatility. Contact your dealer for more information. Device Description A mountable infrared LED device that improves image performance of Box Cameras under low light conditions. Note that the GV-IR LED is only GV-IR LED compatible with GV-BX110D and GV-IR LED T2 is compatible with GV-BX120D / 220D-0 / 220D-1 /...

  • Page 9: Note For Connecting To Gv-System

    Note for Connecting to GV-System The GV-IPCAM H.264 is designed to work with GV-System, a hybrid or digital video management system. Note the following when GV-IPCAM H.264 is connected to GV-System: Normally, the images are recorded to the memory card inserted in the Box Camera, Bullet Camera, Vandal Proof IP Dome, Fixed IP Dome and Cube Camera.

  • Page 10: Note For Adjusting Focus And Zoom

    Note for Adjusting Focus and Zoom When adjusting the Focus and Zoom Screws (on Box Camera, Mini Fixed Dome, Bullet Camera, Vandal Proof IP Dome and Fixed IP Camera), please do not over tighten the Focus and Zoom screws. The screws only need to be as tight as your finger can do it;...

  • Page 11: Box Camera

    1. Box Camera 1.1 Packing List • Box Camera • Terminal Block • Fixed Focal or Varifocal Megapixel Lens • C-mount Lens Adapter (BX110D only) • Lens Rings (BX120D, BX220D-0 / 220D-1 / 220D-2 / 220D-3, BX320D-0 / 320D-1 only) •...

  • Page 12: Overview

    1.2 Overview GV-BX110D alarm shop...
  • Page 13 Box Camera Name Description Audio Out Connects a speaker for audio output. Audio In Connects a microphone for audio input. Resets all configurations to factory default. See 10. Restoring to Default Settings later Default in the Quick Start Guide. Inserts a micro SD/SDHC card to store Memory Card Slot recording data.
  • Page 14 GV-BX120D / 220D-0 / 220D-1 / 220D-2 / 220D-3 / 320D-0 / 320D-1 Name Description Connects to a portable monitor for setting alarm shop Video Out the focus and angle of Box Camera during initial installation. Inserts a micro SD/SDHC card to store Memory Card Slot recording data.

  • Page 15: Accessory Installation

    Box Camera 1.3 Accessory Installation 1.3.1 C-Mount Lenses When you use a C-mount lens, it requires a certain distance from the camera’s imaging chip; otherwise it will not be possible to focus the lens. Mount the supplied C-mount lens adapter / lens ring to the camera, and then attach the lens onto the camera body.
  • Page 16 GV-BX120D / 220D-0 / 220D-1 / 220D-2 / 220D-3 / 320D-0 / 320D-1 The supplied lens rings for GV-BX120D / 220D-0 / 220D-1 / 220D-2 / 220D-3 / 320D-0 / 320D-1 include 3 sizes in thickness: • 0.188 mm (transparent color) x 2 •...

  • Page 17: Infrared Illuminators

    Box Camera 1.3.2 Infrared Illuminators (GV-IR LED / GV-IR LED T2) Connect the infrared illuminator to the terminal block on the camera. See I/O Terminal Block, Box Camera chapter, GV-IPCam H.264 User’s Manual on the software CD, or GV-IR LED User’s Manual. Access the Web interface of the camera.
  • Page 18 GV-IR LED T2 alarm shop Click Apply. For Trigger by Input and Trigger IR by D/N functions, see the Video Settings section, Administrator Mode chapter in the GV-IPCam H.264 User’s Manual in the software CD.

  • Page 19: Connecting The Camera

    Box Camera 1.4 Connecting the Camera The Box Camera is designed for indoor use. Please make sure the installing site is shielded from rain and moisture. GV-BX110D alarm shop If you are using the varifocal lens model, plug the iris control cable to the Auto Iris Connector on the camera.
  • Page 20 Optionally connect a monitor using an RCA video-out wire. If your signal format is PAL, configure the TV Out setting on its Web interface. See TV Out setting, in the Video Settings section, Administrator Mode chapter, GV-IPCam H.264 User’s Manual on the software CD. Connect power using one of the following methods: •...
  • Page 21 Box Camera GV-BX120D / 220D-0 / 220D-1 / 220D-2 / 220D-3 / 320D-0 / 320D-1 alarm shop Plug the iris control cable to the Auto Iris Connector on the camera. Use a standard network cable to connect the camera to your network. Optionally connect a speaker and an external microphone.
  • Page 22 alarm shop...

  • Page 23: Mini Fixed Dome

    2. Mini Fixed Dome 2.1 Packing List • Mini Fixed Dome • Security Torx • Self Tapping Screw x 2 • Screw Anchor x 2 • GV-IPCAM H.264 Software CD • GV-IPCAM H.264 Quick Start Guide • GV-NVR Software DVD •...

  • Page 24: Overview

    2.2 Overview Name Description Resets the GV-MFD110 to factory default. Default Button See 10. Restoring to Default Settings later alarm shop in the Quick Start Guide. Lens Rotates the les right/left to adjust focus. Focus Fixed Screw Loosens the screw to adjust the lens. Tilt Fixed Screw Loosens the screw to adjust tilt angle.

  • Page 25: Installation

    Mini Fixed Dome 2.3 Installation The GV-MFD110 is exclusively designed for ceiling mount. Please make sure the installing site is shielded from rain and moisture. Take the Mini Fixed Dome and make 2 marks on the ceiling for screw anchors. Drill the marks and insert the screw anchors.

  • Page 26: Adjusting The Focus

    2.4 Adjusting the Focus Based on the live image, adjust the camera’s angle and focus by following the steps below. To access live images, see 7. Accessing the Camera in the Quick Start Guide Unscrew the camera’s cover. alarm shop Loosen the focus fixed screw, and rotate the lens clockwise or counterclockwise to adjust focus.

  • Page 27: Bullet Camera

    3. Bullet Camera 3.1 Packing List • Bullet Camera • Lens (Megapixel and Built-In 16 IR LEDs) • Self Tapping Screw x 3 • Plastic Screw Anchor x 3 • Screw Adjuster x 2 • Sun-Shield Cover Kit (1 Sun-Shield Cover, 2 Philips Head Screws, 2 Plastic Screw Spacers and 2 Hexagon Screws included) •...

  • Page 28: Overview

    3.2 Overview alarm shop Name Description Memory Card Slot Receives a Micro SD/SDHC memory card. Zoom Screw Holds the zoom lens in place. Focus Screw Holds the focus lens in place Resets all configurations to factory default. Default Button See 10. Restoring to Default Settings later in the Quick Start Guide.

  • Page 29: Installation

    Bullet Camera 3.3 Installation The Bullet Camera is designed for outdoor use and can be mounted on ceiling and wall. Slide the cable clamp to the camera base. Install the Bullet Camera to the wall / ceiling. alarm shop Remove the protection sticker from the camera’s cover. Connect the network and power cables to the camera.

  • Page 30: Adjusting The Angles

    Loosen the camera’s cover, adjust lens and focus, and insert a micro SD/SDHC card into the memory card slot. See 3.3.2 Adjusting Lens and Inserting a Memory Card in the Quick Start Guide. Fasten the camera’s cover. Install the sun-shield cover to the Bullet Camera. For details, see 3.3.3 Installing the Sun-Shield Cover in the Quick Start Guide.
  • Page 31 Bullet Camera Adjust the angle of camera body to the right or the left, and fasten the panning lock screw. Second Shaft You can adjust the camera body up and down by 90, 112.5, 135, 157.5 or 180 degrees by using the gears inside the camera body and the camera base.
  • Page 32 Adjust the angle of camera body to 90, 112.5, 135, 157.5 or 180 degrees. Then move the camera base to the left to combine the gears. Fasten the tilting lock screw. Third Shaft You can adjust the camera base by 360 degrees. alarm shop Unscrew the base fixing screw with the screw adjuster.

  • Page 33: Adjusting Lens And Inserting A Memory Card

    Bullet Camera Adjust the angle of camera base, and fasten the base fixing screw. 3.3.2 Adjusting Lens and Inserting a Memory Card To adjust the camera’s lens to produce a clear image and insert a memory card into the memory card slot. alarm shop Loosen the camera’s cover.
  • Page 34 Loosen the fixing screw Slightly pull out the camera module. Loosen the Focus Screw or the Zoom Screw to rotate the lens right/left to adjust focus or zoom. Insert a micro SD/SDHC card into the memory card slot. alarm shop Slightly push the camera module back and fasten the fixing screw.

  • Page 35: Inserting The Sun-Shield Cover

    Bullet Camera 3.3.3 Inserting the Sun-Shield Cover After setting up the Bullet Camera, now you can install the sun-shield cover to the camera. Fasten the hexagon screws either on top or below the camera. Put the sun-shield cover on top of hexagon screws. Make sure to aim the rear hexagon screw at the edge of the sun-shield cover’s aperture alarm shop for optimal sun-shield performance.

  • Page 36: Connecting The Camera

    3.4 Connecting the Camera The following diagram shows the data cable of the Bullet Camera. There are two ways to supply power to the camera: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. •...

  • Page 37: Connecting The Power Cable

    Bullet Camera 3.4.2 Connecting the Power Cable Insert the black wire of the Bullet Camera to the left-side pin of the 3-Pin Terminal Block and the brown wire to the right-side pin. Connect the DC 12V Power Adapter to the 3-Pin Terminal Block. alarm shop 3.4.3 Applying Waterproof Treatment To install the Bullet Camera outdoors, ensure to waterproof the cables.
  • Page 38 alarm shop...

  • Page 39: Vandal Proof Ip Dome

    4. Vandal Proof IP Dome 4.1 Packing List • Vandal Proof IP Dome • Screw Adjuster x 1 • Screw Anchor x 4 • Silica Gel Bag x 2 (one already placed inside the camera) • Ceiling Screw x 4 •...
  • Page 40 • Focus Adjustment Cap • DC 12V Power Adapter • 2-Pin Terminal Block • GV-IPCam H.264 Software • GV-IPCAM H.264 Quick • GV-NVR Software DVD Start Guide • GV-NVR Quick Start Guide alarm shop...

  • Page 41: Overview

    Vandal Proof IP Dome 4.2 Overview Name Description Turns on (green) when the power is on and Power LED turns off when there is no power supply. alarm shop Turns on (green) when the system operates normally and turns off when Status LED system error occurs.

  • Page 42: Installation

    4.3 Installation The Vandal Proof IP Dome is designed for outdoors. There are three ways to install the Vandal Proof IP Dome: hard-ceiling mount, in-ceiling mount and wall-pendent mount. 4.3.1 Hard-Ceiling Mount alarm shop Unpack the camera package and take out the camera body. Unscrew the housing cover...
  • Page 43 Vandal Proof IP Dome Unscrew thread lock Unscrew the inner housing alarm shop Take out the camera body...
  • Page 44 Mark the position of four screw holes on the desired installation location, and drill holes in the marked locations. Drill the ellipse part if you wish to put the wires through it. Insert the screw anchors to the 4 holes on the ceiling. alarm shop Secure the back cover to the ceiling with 4 ceiling screws.
  • Page 45 Vandal Proof IP Dome Access and check the live image from the camera. See 7. Accessing the Camera in the Quick Start Guide. Adjust the camera to a desired angle as illustrated below. Tip: The 3-axis mechanism offers flexible and easy installation. Pan adjustment alarm shop Tilt adjustment...
  • Page 46 Rotational Adjustment 10. Hold the focus adjustment cap on top of the camera view to simulate the housing cover and adjust the focus and zoom using the focus and zoom screws. alarm shop 11. Screw on the thread lock as shown in step 1. 12.

  • Page 47: In-Ceiling Mount

    Vandal Proof IP Dome 4.3.2 In-Ceiling Mount Follow step 1 in the Hard-Ceiling Mount section to remove the housing cover, thread lock and back cover, and take out the camera body. Cut out a circle with a diameter of 142 mm on the ceiling. Insert a blue screw to the indicated holes on the camera body.
  • Page 48 Screw in a plastic clip to the blue screw, hold it with one hand and use a screw driver to rotate the blue screw until the plastic clip moves half way down. Secure a T-cap on top of the blue screw with a small screw cap and a alarm shop T-cap screw.
  • Page 49 Vandal Proof IP Dome Insert the camera to the ceiling with the plastic screws moved inward. Move the blue screws out and rotate the blue screw with a screw driver until the plastic clip and the bottom of the camera body clamps the ceiling tightly.

  • Page 50: Wall-Pendent Mount

    4.3.3 Wall-Pendent Mount For the wall-pendent mount installation, you need to purchase the wall mount bracket additionally. Take the wall mount bracket and make 2 marks on the wall for screw anchors. alarm shop Drill the marks and insert 2 screw anchors. Insert the ceiling screws and leave enough distance (approximately 2 mm) to hang the wall mount bracket later.
  • Page 51 Vandal Proof IP Dome Hang the wall mount bracket on the ceiling screws and push the wall mount bracket downward. Tighten the screws to the wall. Follow step 1 in the Hard-Ceiling Mount section to remove the housing cover, thread lock and back cover, and take out the camera body. Secure the back cover to the wall mount bracket with four short screws and big screw caps (both are supplied with the wall mount bracket).
  • Page 52 Follow step 1 in the Hard-Ceiling Mount section to secure the camera body with inner housing. Connect the network and power cables to the camera. See 4.4 Connecting the Camera in the Quick Start Guide. 10. Access and check the live image from the camera. See 7. Accessing the Camera in the Quick Start Guide.

  • Page 53: Connecting The Camera

    Vandal Proof IP Dome 4.4 Connecting the Camera The following diagram shows the data cable of the Vandal Proof IP Dome. There are two ways to supply power to the camera: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time.

  • Page 54: Connecting The Power Cable

    4.4.2 Connecting the Power Cable Insert the black wire of the Vandal Proof IP Dome to the left-side pin of the 2-Pin Terminal Block and the red wire to the right-side pin. Connect the DC 12V Power Adapter to the 2-Pin Terminal Block. alarm shop...

  • Page 55: Fixed Ip Dome

    5. Fixed IP Dome 5.1 Packing List • Fixed IP Dome • Screw Adjuster x 1 • Mounting Plate x 1 • Short Screw Anchor x 3 alarm shop • Ceiling Screw x 3 • Plate Screw x 3 • TV-out Wire DC 12V Power Adapter •...

  • Page 56: Overview

    5.2 Overview 10 11 12 13 14 15 alarm shop Name Description Focus Screw Adjusts the focus of the camera. Zoom Screw Adjusts the zoom of the camera. Rotational Screw Loosens to adjust the camera angle. Tilt Screw Loosens the screw to tilt the camera. Pan Disc Loosens to pan the camera.
  • Page 57 Fixed IP Dome Connects I/O devices. For details, see I/O Terminal Block Fixed IP Dome chapter in the GV-IPCam H.264 User’s Manual on the software CD. DC 12V Port Connects to power. Turns on (green) when the system Status LED operates normally and turns off when system error occurs.

  • Page 58: Installation

    5.3 Installation The Fixed IP Camera is designed for indoors. There are two ways to install the Fixed IP Camera: hard-ceiling mount, wall-surface mount and wall-pendent mount. 5.3.1 Hard-Ceiling Mount alarm shop Paste the supplied sticker onto a desired location on the ceiling. Drill the three red dots and the ellipse mark only if you wish to run the wires into the ceiling.
  • Page 59 Fixed IP Dome Take out the camera body alarm shop Secure the camera body to the mounting plate with three ceiling screws. Connect the network and power cables to the camera. See 5.4 Connecting the Camera in the Quick Start Guide. Access and check the live image from the camera.
  • Page 60 Adjust the camera to a desired angle as illustrated below. Tip: The 3-axis mechanism offers flexible and easy ceiling / wall installation. Pan adjustment alarm shop Tilt adjustment...
  • Page 61 Fixed IP Dome Rotational Adjustment Adjust the focus and zoom using the focus and zoom screws. alarm shop Secure the housing cover as shown in step 2. Remove the indicated part when necessary. Note: Adjust the black mask inside the housing cover to make sure the camera view is not obscured.

  • Page 62: Wall-Surface Mount

    5.3.2 Wall-Surface Mount Follow step 2 in the Hard-Ceiling Mount section to remove the housing cover and take out the camera body. Paste the supplied sticker onto a desired location on the wall. Drill the three red dots, and the ellipse mark only if you wish to run the wires into the wall.

  • Page 63: Wall-Pendent Mount

    Fixed IP Dome Follow steps 6 and 7 in the Hard-Ceiling Mount section to adjust the angle, focus and zoom of the camera. Follow step 8 in the Hard-Ceiling Mount section to secure the housing cover. 5.3.3 Wall-Pendent Mount For the wall-pendent mount installation, you need to purchase the wall mount bracket additionally.
  • Page 64 Hang the wall mount bracket on the wall mount screws and push the wall mount bracket downward. Tighten the wall mount screws to the wall. Follow step 2 in the Hard-Ceiling Mount section to remove the housing cover and take out the camera body. Secure the camera body to the wall mount bracket with three short screws (supplied with the wall mount bracket).

  • Page 65: Connecting The Camera

    Fixed IP Dome 5.4 Connecting the Camera alarm shop Use a standard network cable to connect the camera to your network. Optionally connect a speaker and an external microphone. Optionally connect a monitor using a Video Out wire. If your signal format is PAL, configure the TV Out setting on its Web interface.
  • Page 66 alarm shop...

  • Page 67: Cube Camera

    6. Cube Camera 6.1 Packing List • Cube Camera • Supporting Rack • Screw x 3 • Screw Anchor x 3 alarm shop • DC 12V Power Adapter • GV-IPCam H.264 Software • GV-IPCAM H.264 Quick • GV-NVR Software DVD Start Guide •...

  • Page 68: Overview

    6.2 Overview Name Description Microphone Receives sounds. Speaker Plays sounds. alarm shop Connects to a 10/100 Ethernet. Turns red when the system powers on. Status LED Turns orange when the system is ready. Turns green when the camera is connected LAN LED to the Internet.

  • Page 69: Installation

    Cube Camera 6.3 Installation Put the supporting rack on the desired location and make marks for screw anchors. Drill the marks and insert the screw anchors. Secure the supporting rack onto the wall using the supplied screws. alarm shop Screw the camera onto the supporting rack and fasten the indicated screw.

  • Page 70: Connecting The Camera

    6.4 Connecting the Camera Use a standard network cable to connect the camera to your network. Connect power by plugging the supplied power adapter to the DC jack. The status LED of the camera will be orange. Then you can set the IP address for the unit.

  • Page 71: Accessing The Camera

    7. Accessing the Camera 7.1 System Requirement To access the Box Camera, Mini Fixed Dome, Bullet Camera, Vandal Proof IP Dome, Fixed IP Dome and Cube Camera through the Web browser, ensure your PC connects to the network properly and meets this system requirement: •...

  • Page 72: Assigning An Ip Address

    7.2 Assigning an IP Address Designed for use on the network, the Box Camera, Mini Fixed Dome, Bullet Camera, Vandal Proof IP Dome, Fixed IP Dome and Cube Camera must be assigned an IP address to make it accessible: Open your web browser, and type the default IP address http://192.168.0.10.
  • Page 73 Accessing the Camera To enable the updating of images in Microsoft Internet Explorer, you must set your browser to allow ActiveX Controls and perform a one-time installation of GeoVision’s ActiveX component onto your computer. IMPORTANT: Dynamic IP Address and PPPoE should only be enabled if you know which IP address the camera will get from the DHCP server or ISP.
  • Page 74 alarm shop...

  • Page 75: The Web Interface

    8. The Web Interface alarm shop...
  • Page 76 No. Name Function Play Plays live video. Stop Stops playing video. Talks to the surveillance area from the local Microphone computer. Speaker Listens to the audio around the camera. Snapshot Takes a snapshot of live video. File Save Records live video to the local computer. Switches to full screen view.

  • Page 77: Upgrading System Firmware

    9. Upgrading System Firmware GeoVision periodically releases updated firmware on the website. The new firmware can be simply loaded into the GV-IPCAM H.264 by using the Web interface or IP Device Utility included in the software CD. IMPORTANT: While the firmware is being updated,...
  • Page 78 Click the Upgrade button to start the upgrade. WARNING: The interruption of power supply during updating causes not only update failures but also damages to the camera. In this case, please contact your sales representative and send your device back to GeoVision for repair.

  • Page 79: Restoring To Default Settings

    10 Restoring to Default Settings GeoVision periodically releases updated firmware on the website. The new fir You can restore factory default settings through the Web interface or directly on the camera. 10.1 Using the Web Interface On the left menu of Web interface, select Management and select Tools.

  • Page 80: Directly On The Camera

    10.2 Directly on the Camera GV-BX110D Unplug the power cable and the network cable to start. Press and hold the default button on the back panel of the camera. alarm shop Power on the camera using the power cable or PoE cable. The status LED on the front panel of the camera turns red.
  • Page 81 Restoring to Default Settings GV-BX120D / 220D-0 / 220D-1 / 220D-2 / 220D-3 / 320D-0 / 320D-1 Unplug the power cable and the network cable to start. Press and hold the default button on the back panel of the camera. Power on the camera using the power cable or PoE cable.
  • Page 82 Mini Fixed Dome Unplug the network cable to start. Unscrew the camera’s cover. Press and hold the default button. Default button Power on the camera using the network cable. Wait until the network status LED turns off. This may take about 40 seconds. alarm shop Soon after the network status LED turns off, release the default button.
  • Page 83 Restoring to Default Settings Press and hold the Default button for 50 seconds while plugging the power cable. Release the default button and the process of loading default values is completed. Slightly push the camera module back and fasten the Fixing Screw. Replace a new Silica Gel Bag and fasten the camera’s cover immediately.
  • Page 84 When the status LED turns on and off twice, release the default button and the process of loading default is completed. This may take about 30 seconds. alarm shop Fixed IP Dome Unplug the power cable and the network cable to start. Use a pin to press and hold the default button on the panel.
  • Page 85 Restoring to Default Settings When the status LED turns on and off twice, release the default button and the process of loading default is completed. This may take about 35 seconds. Cube Camera Unplug the power cable and the network cable to start. Use a pin to press and hold the default button on the panel.
