Solving IR Reflection and
Improving Night View
Article ID: GV15-11-11-09-c
Release Date: 11/09/2011
Applied to

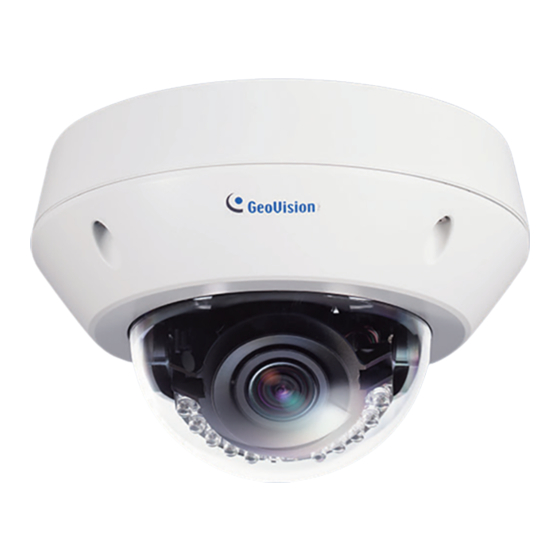

Vandal Proof IP Dome
(GV-VD120D/121D/122D/123D, GV-VD220D/221D/222D/223D,
GV-VD320D/321D/322D/323D)
Fixed IP Dome (GV-FD120D/220D/320D)
Summary
If you are having difficulty getting clear live views under low light conditions with your Vandal
Proof IP Dome or the Fixed IP Dome, this is likely due to IR reflections inside the camera. To
solve the IR reflection problem, you can choose to disable the IR Light function if there is
sufficient lighting on the installation site. If you do not have enough lighting on the installation
site, proceed to identify the possible causes and adopt the solutions to reduce IR reflection
and improve the quality of live view.
GeoVision Inc.
1
Revision Date: 11/9/2011
Advertisement
Related Manuals for GeoVision GV-VD120D
Summary of Contents for GeoVision GV-VD120D
- Page 1 Improving Night View Article ID: GV15-11-11-09-c Release Date: 11/09/2011 Applied to Vandal Proof IP Dome (GV-VD120D/121D/122D/123D, GV-VD220D/221D/222D/223D, GV-VD320D/321D/322D/323D) Fixed IP Dome (GV-FD120D/220D/320D) Summary If you are having difficulty getting clear live views under low light conditions with your Vandal Proof IP Dome or the Fixed IP Dome, this is likely due to IR reflections inside the camera. To solve the IR reflection problem, you can choose to disable the IR Light function if there is sufficient lighting on the installation site.
-
Page 2: Troubleshooting Flowchart
Is my live view foggy? Solution 5 (page 16) Are there round spots or water droplets on my live Solution 4 (page 13) view? Are there light spots or glass reflection on my live Solution 6 (page 22) view? GeoVision Inc. Revision Date: 11/9/2011... - Page 3 1.07 or later. Note: The minimum amount of light (in lux) required in night mode and the corresponding live image are detailed below. For GV-VD120D/121D/122D/123D, GV-FD120D: approximate 4 lux. For GV-FD220D/320D, GV-VD220D/221D/222D/223D, GV-VD320D/321D/322D/323D: approximate 8 lux. GeoVision Inc.
- Page 4 To disable the IR: On the Web interface, select Streaming 1 under Video Settings, select Off for IR Light and click Apply. GeoVision Inc. Revision Date: 11/9/2011...
- Page 5 1. Are the screws properly tightened? Spots in a curve Live view with loosen screws showing spots in a curve Vandal Proof IP Dome (GV-VD120D/121D/122D/123D, GV-VD220D/221D/222D/223D, GV-VD320D/321D/322D/323D) Tightly secure the 4 screws inside the housing cover GeoVision Inc. Revision Date: 11/9/2011...
- Page 6 Tightly secure the 4 screws on the housing cover Fixed IP Dome (GV-FD120D/220D/320D) Tightly secure the 4 screws inside the housing cover GeoVision Inc. Revision Date: 11/9/2011...
- Page 7 Tightly secure the 2 screws on the housing cover Solution: Check the inside and outside of the housing cover and be sure the screws are properly tightened. GeoVision Inc. Revision Date: 11/9/2011...
- Page 8 Live view with displaced rubber band showing a circle of spots Top View: The rubber band is out of position Side View: The rubber band is out of position. GeoVision Inc. Revision Date: 11/9/2011...
- Page 9 Check if the rubber band is properly fitted and completely attached to the camera cover when the cover is attached. If your rubber band is still loose after your adjustment, contact the vendor or local distributor for replacement. GeoVision Inc. Revision Date: 11/9/2011...
- Page 10 For a foggy live view, your cover may be dirty from dusts, finger prints or debris. Note: If your camera is installed in a dusty or moist environment, your camera may need regular maintenance. Live view through a dirty cover appears foggy Cover with dusts GeoVision Inc. Revision Date: 11/9/2011...
- Page 11 Do not use alcohol-based cleaner to clean the camera cover since it may damage cover coating. It is advisable to use one of the following to clean the cover: Micro fiber Cloth For example, Giottos CL3612 (http://www.giottosusa.com/cleaning-kits.shtml) GeoVision Inc. Revision Date: 11/9/2011...
- Page 12 Non-abrasive Wipes For example, PEC-PAD Non Abrasive Wipes http://mpex.com/pec-pad-non-abrasive-wipes-4x4-quot-100-pk.html Chamois Skin Cleaning Cloth http://en.wikipedia.org/wiki/Chamois_leather GeoVision Inc. Revision Date: 11/9/2011...
- Page 13 Note: If your camera is installed in a dusty or moist environment, your camera may need a regular maintenance. Live view through a wet cover showing round spots An example of condensation on the outside of cover GeoVision Inc. Revision Date: 11/9/2011...
- Page 14 Be sure to swipe in one direction to avoid any possible damage to the cover. If the live view is still unclear, spray small amount of clean water on the cover and clean the cover again with the suggested lens cleaning cloth. GeoVision Inc. Revision Date: 11/9/2011...
- Page 15 2. Be sure to replace the silica gel bag every time you open the camera. Note: For a video demonstration of replacing a silica gel bag, visit the following YouTube link: http://www.youtube.com/watch?feature=player_embedded&v=w0JYkT57y7w&noredire ct=1 GeoVision Inc. Revision Date: 11/9/2011...
- Page 16 Note: The cover for GV-IP Camera series is a consumable item and is thus not included in the Limited Warranties. GeoVision Inc. Revision Date: 11/9/2011...
- Page 17 Vandal Proof IP Dome (GV-VD120D/121D/122D/123D, GV-VD220D/221D/222D/223D, GV-VD320D/321D/322D/323D) Follow the steps in the previous solution to clean your cover. Check if the live view is clear. If your live view is still blurry, your cover is likely scratched. In such case, contact the vendor or local distributor for cover replacement and then proceed to fit the new cover.
- Page 18 Push the old cover out. Put on the new cover and insert the black mask. A black mask cover Black mask A cover Make sure the rubber ring is correctly fitted with two lines facing up. Single line GeoVision Inc. Revision Date: 11/9/2011...
- Page 19 Remove the housing cover. For Hard-Ceiling Mount, Wall-Surface Mount and L-Shaped Wall Mount, use the supplied torx wrench to remove the housing cover. For In-Ceiling Mount, simply pull the housing cover off and unscrew the thread lock. GeoVision Inc. Revision Date: 11/9/2011...
- Page 20 Unscrew the indicated parts inside the housing cover and remove the plastic ring. A plastic ring Push the old cover out. GeoVision Inc. Revision Date: 11/9/2011...
- Page 21 Follow steps 3 and 4 to secure the plastic ring, thread lock (for In-Ceiling Mount) and the housing cover. Note: For a video demonstration of how to replace a cover, visit the following YouTube links: Vandal Proof IP Dome: http://www.youtube.com/watch?v=ghWHQBo4LPQ Fixed IP Dome: http://www.youtube.com/watch?v=CKto9JL-1tE GeoVision Inc. Revision Date: 11/9/2011...
- Page 22 Live view through a glass showing light spots Solution: Try to adjust the angle of the camera and for reflective ceiling: cover the ceiling with non-reflective material. for glass reflection: it is advisable to relocate the camera. GeoVision Inc. Revision Date: 11/9/2011...
