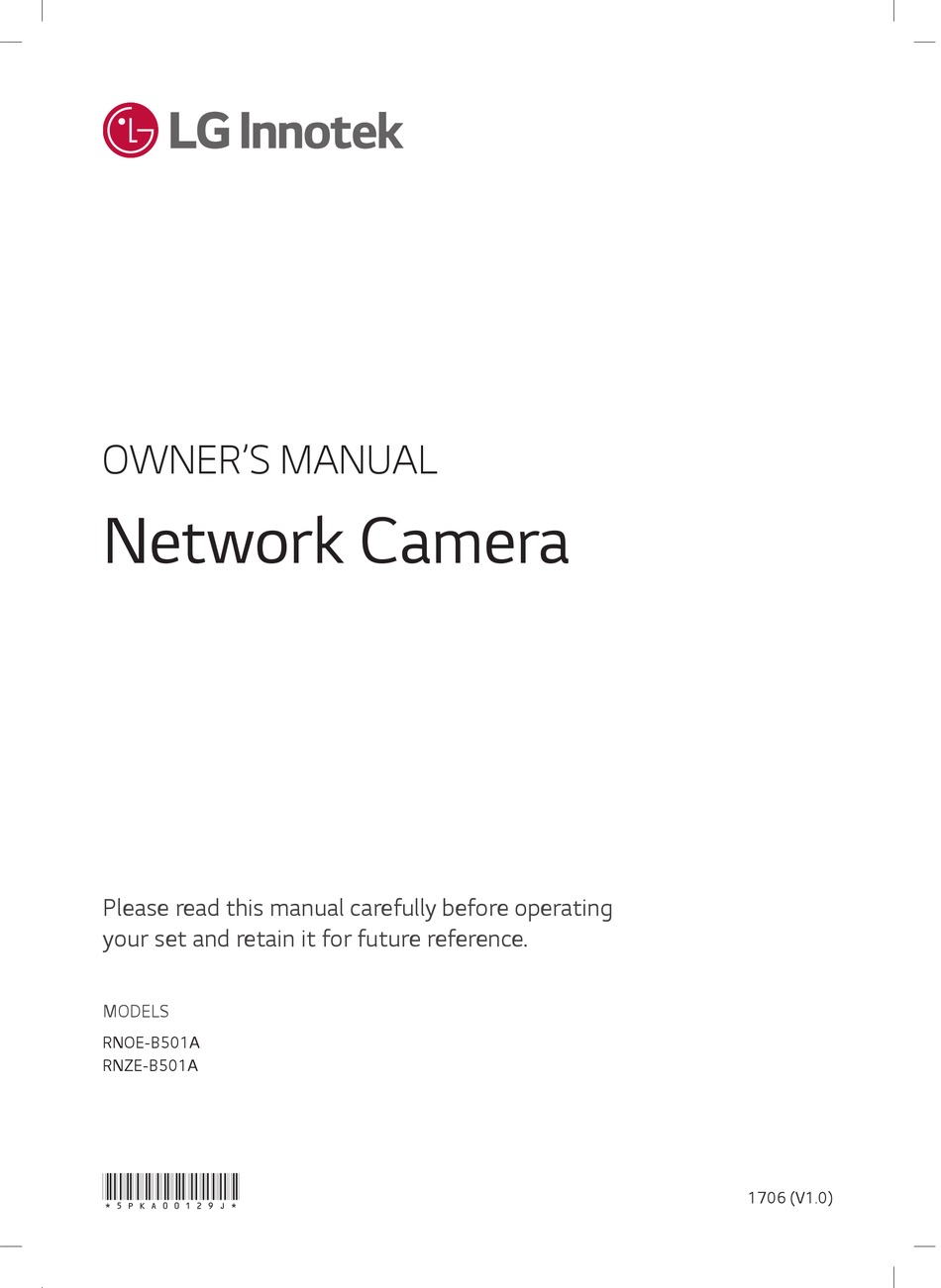

OWNER'S MANUAL

Network Camera

Please read this manual carefully before operating
your set and retain it for future reference.
MODELS
RNOE-B501A
RNZE-B501A
*5PKA00129J*
1706 (V1.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RNOE-B501A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG RNOE-B501A

Summary of Contents for LG RNOE-B501A

  • Page 1: Network Camera

    OWNER’S MANUAL Network Camera Please read this manual carefully before operating your set and retain it for future reference. MODELS RNOE-B501A RNZE-B501A *5PKA00129J* 1706 (V1.0)

  • Page 2: Table Of Contents

    To insert the SD card ..........7 Switch mode ............19 Remove the SD card ..........7 Log searching ..............20 Recommended the SD card specification ....7 Configuring the LG Network Camera Device .....21 Mounting the Lens ...............8 Accessing the Configuration menu ......21 Focus adjustment ..............8 Configuration ..............21 Camera Installation ..............8...

  • Page 3: Introduction

    Introduction The LG Network Camera is designed to use on an Ethernet network and must be assigned an IP address to make it accessible. This manual contains instructions on how to install and manage the LG Network Camera in your networking environment. Some knowledge of networking environments would be beneficial to the reader.

  • Page 4: Installation (Rnoe-B501A)

    Installation (RNOE-B501A) Part Names and Functions a Lens Cap h SD card slot b Lens iris output connector (LENS) i AUDIO IN This 4- pin connector is used to send the Iris control signal and power Input for a mono microphone, or a line-in mono signal.

  • Page 5: Connection

    Connection Note: • When connecting the power, tighten the screws as shown above. Precautions • To remove the connector plug, as shown below. Put your finger • Be sure to switch off the unit before installation and connection. between the power connector and the camera body to pull out the connector.

  • Page 6: Connecting Alarm Device

    Connecting Alarm Device Alarm terminals are used to connect the alarm (relay) devices such as sensors, door switches, etc. ALARM IN & OUT / ALARM IN & OUT Ret (Sensor Input / Relay Output) Connect the sensor device to the sensor input terminal and ground (GND) terminal.

  • Page 7: Using The Sd Card

    [Initialize Disk], camera will reboot. damaged or it may cause the malfunction of the SD card Slot. • LG Innotek is not responsible for deleted data caused by user • Keep the terminal part of the SD card in clean. Be careful the terminal mishandling when you insert or remove the SD card.

  • Page 8: Mounting The Lens

    Mounting the Lens Focus adjustment After installing the lens, you should adjust the focus as shown below 1. Remove the lens mount cap from the camera. steps. 2. Install the CS mount type lens. Carefully align the lens mount with the camera opening, then turn the lens slowly to install it.

  • Page 9: Installation (Rnze-B501A)

    Installation (RNZE-B501A) Part Names and Functions a Power input terminal d ETHERNET Connects to AC 24 V power supply using proper cables. This camera Connects to a PC or a network via a hub with a 10/100 BASE-T must always be operated AC 24 V. Certified/Listed Adaptor which cable attached RJ-45 connector.

  • Page 10: Connection

    Connection Connecting Microphone and Speaker Device Optionally connect an active speaker and/or external microphone with Precautions a built-in amplifier. • Be sure to switch off the unit before installation and connection. • The installation should be made by qualified service personnel or system installers.

  • Page 11: Using The Micro Sd Card

    Management > Disk Management > Initialize Disk] ). When you operate [Initialize Disk], camera will reboot. • LG Innotek is not responsible for deleted data caused by user mishandling when you insert or remove the micro SD card. Recommended the micro SD card specification...

  • Page 12: Wall Mount (Optional)

    Wall mount (optional) 3. Drill holes on the wall where you want to install the wall mount assembly and fasten screws to fix it. Install the camera by the following order. 1. Pass the connection cable through the wall mount assembly. 2.

  • Page 13: Operation And Settings

    Operation and settings Before using the system Recommended PC Requirements The LG IP device can be used with most standard operating systems and • LG IP device recommended to use in the closed network for network browsers. security. • Before using the LG IP device make sure the connections are correct...

  • Page 14: Accessing The Lg Ip Device

    You can also access the LG Smart Web Viewer as shown below. 3.1 Start your Web browser. 3.2 Enter the IP address of the LG IP device in the address bar of the browse. 3.3 Enter the user name and password set by the administrator.

  • Page 15: Lg Smart Web Viewer Overview

    LG Smart Web Viewer Overview Live View Item Description Preview the first stream video (Default display). Note: You can set the stream configurations independently. This would facilitate the user to set the live view at user’ s comfort. Previews the second stream video.
  • Page 16 Adjust audio volume of the speaker on the computer. Click the speaker icon to switch the sound on or off. Open Audio When you want to switch the sound off, click this speaker icon. Set mute Click this button to enter the full screen. Double click the screen or press [Esc] button of keyboard to quit. Full screen Operation and settings...

  • Page 17: System Settings

    System Settings PTZ Position PTZ Control Note: To change PTZ settings of RNOE-B501A, PTZ device should be connected to RS-485 port. 1. Enter the preset number and click search button. PTZ Control 2. Select [Set] or [Call] on the preset position you want.

  • Page 18: Playback

    Playback Playback Search recording files > Double click searched recording files for playback. > Click to select local recording files. > Click to play the playback. When you click , It will change into pause icon. > Click to fast move forwarder in speed of 2X, 4X, 6X and 8X.

  • Page 19: Four Screen Play

    Four screen play Click to playback in 4 screen at the same time which can play separately for each screen. Once you select one screen and open the recording files you want. Note: Click to back to the single screen. Full screen Double click the screen or click button to enter full screen status.

  • Page 20: Log Searching

    Log searching Click [Log] to enter the page. > Channel No. : Select channel which you want to search. > Log Type : Select log type which of you want to search. > Start Time : Select start date and time. >...

  • Page 21: Configuring The Lg Network Camera Device

    Configuring the LG Network Camera Device Alarm Input Alarm Output The features and options of the LG IP camera are configured through the Motion Alarm [Configuration] menu. Alarm Mask Alarm Only administrator-level users have permission to access the Management Email Alarm [Configuration] menu.

  • Page 22: Audio Video Set

    Note: > Resolution: Select the resolution. Corridor mode is only supported on more than 720P resolution. This function is supported only for RNOE-B501A model. Note: > Video Encoding: Select the video encoding type. Type of resolution is different according to stream type.

  • Page 23: Dome Set / Camera Set

    Dome Set / Camera Set Audio Set Image Set Set video image parameter in this page. > Current Template: Choose the template that need to be modified. The system provides 8 video templates for different application, all the video parameter can only be revised and saved in the template.
  • Page 24 It mainly used in transportation. When turn on the [HLC], adjustment bar. highlight of car’ s headlight will be suppressed. Focus Set (RNZE-B501A only) Back Light set (RNOE-B501A only) > WDR: Select WDR mode. > Focus Set: Select an appropriate Focus Mode. Close: Disable WDR mode.
  • Page 25 White Balance Schedule User can setup the device to get best images in different time period. It provides maximum 8 time periods. To setup schedule for each time periods, check the time line and select the image mode. To adjust templite time, drag the dividing line. Different color means different schedule.
  • Page 26 > Mode No.: Select a mode number. Title Call: Activate to move following the pattern tour. Record: Start pattern tour recording. Delete: Delete the target pattern. > Zone No.: Select a zone number. Left Border: Move the target position and set it as the left border of the zone.
  • Page 27 Remove Config (RNZE-B501A only) D/N Set (Day and Night Setting) (RNOE-B501A only) You can remove saved configurations. Select options you want to delete Setup IP camera to switch in day and night with different rules. configurations and click [Clear] to delete the configurations.

  • Page 28: Vca

    [Behavior Analysis]-Event Set: [Tripwire] Alarm Info > Event: Select ‘ A ll’ VCA events or other certain event. > Enable Arithmetic: Behavior Analysis > Rule ID: Select ‘ A ll’ rule’ s alarm information or other certain alarm > Rule ID: Select rule number. information.
  • Page 29 [Behavior Analysis]-Event Set: [Perimeter] [Behavior Analysis]-Event Set: [Object Abandon] > Enable Arithmetic: Behavior Analysis > Rule ID: Select rule number. > Enable Arithmetic: Behavior Analysis > Rule ID: Select rule number. Note: Check the [Valid]. It draws two rule lines. The arrow of line means Note: direction of prohibit crossing, 2 lines direction should be the Check the [Valid].
  • Page 30 [Behavior Analysis]-Event Set: [Missing Object Detection] [Behavior Analysis]-Event Set: [Loiter] > Enable Arithmetic: Behavior Analysis > Enable Arithmetic: Behavior Analysis > Rule ID: Select rule number. > Rule ID: Select rule number. Note: Note: Check the [Valid]. It draws two rule lines. The arrow of line means Check the [Valid].
  • Page 31 [Behavior Analysis]-Event Set: [Parking] [Video Detection]-Arithmetic: [Video Detection] > Enable Arithmetic: Select the [Video Detection]. > Enable Arithmetic: Behavior Analysis > Save: Save the [Video Detection] setting. > Rule ID: Select rule number. > Arithmetic: Set the [Video Detection]. > Lens Diagnose: Check the [Lens Diagnose] to enable lens. Note: >...

  • Page 32: Osd

    VCA Schedule Alarm Set This function is used to add more information on the preview screen. > Camera Title: Check the [Camera Title] and input a channel name. Customized Location: Select position of channel name on video image by mouse. Color: Select OSD color.

  • Page 33: Storage Management

    Storage Management LOGO This function is used to overlay Logo picture on the preview screen. Record Policy > Logo File(*.bmp) Browse: Browse files to find the logo. Upload: Upload the logo file, IP camera will restart. After restart, please check [Enable] to display the logo. >...
  • Page 34 Storage Set Disk Management > Disk Information: Display the disk status. > Initialize Disk: The new hard disk must be initialized first. > Free Disk Space(MB): Set the free disk space that custom you Net Storage want to keep. It should be larger than 512MB. >...

  • Page 35: Network Management

    Network Management Network Service DDNS TCP/IP Set > DHCP: Check the [DHCP] to enable DHCP server. It will automatically allocate IP address for devices. > IPv4 Address / IPv6 Address: Displays IPV4, IPV6 address. > IPv4 Subnet Mask / IPv6 Subnet Mask: Displays IPV4, IPv6 >...
  • Page 36 PPPoE MUC (Multicast) > IP Address: Enter the IP address. > Port: Set the port. > Enable: Check the [Enable] to enable PPPoE function. • Save: Save all the setup. > User Name: Enter the user name. > Password: Enter the password. >...
  • Page 37 Other IP Filter Blacklist and whitelist also named [IP filter], used to manage the access right of users. > Setup IP filter. Forbidden: Cancel all the blacklist and whitelist. > UPnP Enable: Check the [UPNP Enable] box and restart the Blacklist: It used to block some IP address.

  • Page 38: User Management

    User Management Delete User Select the user you want to delete in the user list. User Management Add user Click [Add] button on [User Management] to add user. Note: Only the administrator can add and modify users. > Delete: Click [Delete] button on [User Management] menu to delete user.

  • Page 39: Mask Alarm

    Mask Alarm Alarm Output When the video is covered, system will alarm according to the sensitivity setting. > Check the “Enable” box to enable Video Occlusion Detection function. > Sensitivity: Smaller number means more sensitive. > Schedule: Video Occlusion Detection works only during this >...

  • Page 40: Ptz Management

    Advance Set Other Alarms (RNOE-B501A only) File Location > Stream: Select the stream for a certain channel. > Event: Select a event mode. > Display frame and bit rate information: Check to display frame Disk Full rate and bit stream on video.
  • Page 41 System Maintenance SIP Set > Device Control > Firmware Upgrade: Upgrades new firmware (firmware format: .box/.bin). Upgrade process normally needs a few minutes until indication for completion. Please strictly follow the instruction by technical specialist for firmware upgrade. > Configuration In/Out: Includes three types of specification: Alarm: This specification includes alarm schedule and linkage info.

  • Page 42: Reference

    Reference Troubleshooting This section provides useful information to help you to resolve any difficulty you might have with your LG IP device. Symptoms Solution Disk partition information has problem, which cause no recognition, need formatting for the disk. Loose connection, re-plug SD card and reboot the camera.
  • Page 43 Make sure host IP address is in the same network segment with the camera. Make routing if in different network segment. Make sure to use IE at version 9.0 or higher. Make sure driver for graphic card and DirectX are installed properly, it is recommended to install the latest version driver.

  • Page 44: Open Source Software Notice

    Make sure output wiring is correct. Make sure power input voltage; AC 24 V / DC 12 V, electricity; 2A No Alarm Output Check the setting for input / output port in IE. Make sure the alarm device is working properly. Suddenly loses power after Parameter is set to save properly after 1 minute, unless reset the camera automatically.

  • Page 45: Specifications

    Specifications Item RNOE-B501A Image Device CMOS Lens Type C/CS Day / Night Dual ICR Color: 0.04 Lux (F1.2,AGC ON) Camera Minimum Illumination B/W: 0.004 Lux (F1.2,AGC ON) Focus Image Enhancement Configurable Brightness, Saturation, Contrast, HLC, Smart Defog, Corridor, EIS Compression H.265, H.264 HP/MP/BP, M-JPEG...
  • Page 46 Item RNZE-B501A Image Device CMOS Lens Type x33 ( 4.6-152 mm ) Day / Night Dual ICR Camera Color: 0.03 lux @ F1.6 (AGC ON) Minimum Illumination B/W: 0 lux @ IR LED on IR Distance 150 m Image Enhancement Configurable Brightness, Saturation, Contrast, HLC, Smart Defog, EIS Optical Zoom Panning Range &...
