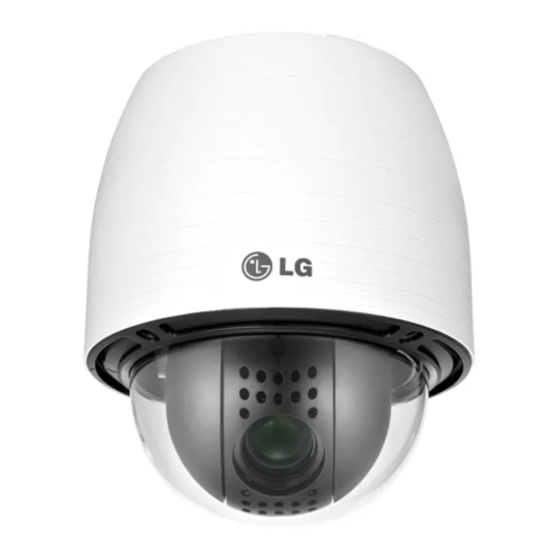

LG LW9422 series Owner's Manual

Network dome camera
Hide thumbs Also See for LW9422 series:
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL
Network Dome Camera
Please read this manual carefully before operating your set and retain it for future reference.
MODEL
LW9422 series
LNP2810T series
LNP2810 series
LNP3020T series
1304 (V1.5)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LW9422 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG LW9422 series

Summary of Contents for LG LW9422 series

  • Page 1 OWNER'S MANUAL Network Dome Camera Please read this manual carefully before operating your set and retain it for future reference. MODEL LW9422 series LNP2810T series LNP2810 series LNP3020T series 1304 (V1.5)

  • Page 2: Table Of Contents

    Accessing the LG IP device..............5 Open source software notice ............55 LG Smart Web Viewer Overview ............6 Specifications..................56 Configuration menu overview ..........9 Configuring the LG Network Camera Device ......9 Accessing the Configuration menu .........9 System settings ..............10 Audio & Video settings ............15 Network settings ..............29 User settings .................36...

  • Page 3: Introduction

    Introduction The LG Network Camera is designed to use on an Ethernet network and must be assigned an IP address to make it accessible. This manual contains instructions on how to install and manage the LG Network Camera in your networking environment. Some knowledge of networking environments would be beneficial to the reader.

  • Page 4: Operation And Settings

    Microsoft Internet Explorer (32 bit) above The LG Ipsolute VMS and the LG Smart Web Viewer program Web Browser the version 7.0 and below the version 9.0. are the network program of the LG Video Server and the LG IP cameras. DirectX 9.0c(Windows XP), DirectX DirectX 11(Windows Vista/7) or above •...

  • Page 5: Accessing The Lg Ip Device

    Accessing the LG IP device Note: Default password must be changed for security after You can access the LG IP device by following the below steps. initial connection. Click the [OK] button and then the LG Smart Web Install LG Ipsolute VMS Program Viewer is displayed in your browser.

  • Page 6: Lg Smart Web Viewer Overview

    LG Smart Web Viewer Overview Check this option as the network connection type (TCP or UDP). If you check it, the client connects to the server using TCP connection. Select buffering time of live stream. Click to display the check box of [Hostname], [Framerate] and [Bitrate] options.
  • Page 7 5. Click the [Close] button in the screen. You can monitor the camera Snapshot window to close it. image on the live view window of the LG Smart Web Viewer. Displays the Camera OSD control window. Use these buttons to setup the Click this button and drag the area to Camera.
  • Page 8 3. To stop the recording, click this button during the recording. Click this button to connect or disconnect the audio communication between the LG IP device and the connected PC. (Color icon: On, Gray scale icon: Off.) Click this button to switch the microphone off and on for the computer.

  • Page 9: Configuration Menu Overview

    Configuring the LG Network Camera Maintenance Device System Storage Text Overlay The features and options of the LG IP camera are configured Log & Report through the Configuration menu. Language Only administrator-level users have permission to access the Camera Configuration menu.

  • Page 10: System Settings

    System settings Time mode > Synchronize with NTP Server: Select if you want to synchronize the IP device’s date and time with those of the Version time server called NTP (Network Time Protocol). Specify the Displays the current Model Name and Software version. NTP server’s name.
  • Page 11 Maintenance Note: Backup and Restore can happen on IP device having the same version of firmware. This feature is not intended for multi-configurations or for firmware upgrades. Firmware > Upgrade 1. Click the [Browse] button. 2. Find and open the firmware file. 3.
  • Page 12 Storage Notes: • The recorded file name is made automatically as the “[Created date of the file]_[GMT Recording Time].DAT” type. • If the capacity of the SD card remains less than 200 MB, stop recording or overwrite new file after delete old one as [Overwrite] setting.
  • Page 13 > File Format: You can selects the Recording File Format(AVI overwritten, if the micro SD card has insufficient space. or DAT). Recording, Search and Download are available • The downloaded file can be played by using the LG File according to the setting. player. Notes: >...
  • Page 14 Text Overlay Log & Report Text Overlay Log & Report status > Enable: Set to ON or OFF. Setup menu is appeared when The System log provides a summary of the status of the IP device. selects ON. The unit records the data of the software activity in a file. >...

  • Page 15: Audio & Video Settings

    Language Audio & Video settings Camera (LW9422 series) Language list Select a language for the LG Smart Web Viewer configuration menu and information display. • Save: Click this button to confirm the settings. Preview You can preview the camera image on the preview window.
  • Page 16 Notes: Camera (LNP2810, LNP2810T, LNP3020T) • It is recommended to select Sensor Framerate value to Preview 30 in 60 Hz region, 25 in 50 Hz region to reduce flicker. You can preview the camera image on the preview window. • Maximum FPS is set 25 when you select Sensor 1.
  • Page 17 • Save: Click this button to confirm the settings. the focus mode is automatically changed to manual mode. • Default: Click this button to restore the IP device back to original factory settings. Manual: Focus is activated automatically after the zoom movement is finished.
  • Page 18 Exposure > WDR/BLC: Use WDR/BLC option to view the object clearly in backlight conditions. Select [WDR/BLC] option on the [Exposure] menu. WDR: WDR (Wide dynamic range) feature can be very helpful to cope with very challenging lighting conditions. It is capable of capturing both of the dark part and bright part and combining the differences into a scene to generate a highly realistic image as original scene.
  • Page 19 setting is not available. temperature objects, such as a blue sky or sunset. • Default: Click this button to restore the IP device back to original 2. When the scene is dim. factory settings. ONE PUSH: If you select the [ONE PUSH] mode, you will White Balance be able to set up the White Balance automatically.
  • Page 20 Day/Night Privacy Mask > Mode: Select [Mode] option on the [Day/Night] menu, then select the following mode. Auto: [Day/Night] mode changes automatically. Day: Color mode enabled. This function is aiming at the protection of personal privacy. The Night: Black-and-white mode enabled. selected part is not displayed on the screen.
  • Page 21 > Mask Color : You can make any color by adjusting R.G.B Special LEVEL and adjust the transparency of MASK. > Height: Increase or decrease the vertical size of the mask. > Width: Increase or decrease the horizontal size of the mask. >...
  • Page 22 Stream > Sharpness: The degree to which the boundary of the two portions is clearly distinguished. Adjust the value using by jog controller enter the desired value. If you set the sharpness value to higher, the image outline becomes sharp. If you set to lower value, the image outline becomes dim.
  • Page 23 So you need to set or change the ‘Bit rate’ to high value. • In case of LW9422 series, if you set the [Maximum Frame rate] of master stream over than 20 fps under the 1 920 x 1 080 [Resolution] status, all about slave stream value is deactivated.
  • Page 24 Audio 2. Click the edge or corner of the window box to adjust the window size. 3. Click the [Save] button to save the settings. Note: ROI area can not overlap with each other. Audio In > Enable: Click the check box if you want to send the audio from the microphone input connector.
  • Page 25 PTZ Configuation Home: When the touring is stopped, returns to the camera’s basic position after the set time. Allows the user to configure different PTZ controls by using different Note: PTZ protocols. You have to set the basic position to perform this function.
  • Page 26 Preset > To register preset position 1. Enter the preset number you wish to register. 2. Move the camera to a point you wish. 3. Click the [Add] button. 4. Repeat the steps 1 to 3 to add other positions. >...
  • Page 27 4. Repeat the steps 2 to 3 to add other preset index > To play the auto pan number. You can set the preset index number up to 8 for 1. Click the [Play] button to start the Auto Pan function. the one group.
  • Page 28 Auto tracking (LNP2810T, LNP3020T) Main configuration > Track Mode: During perform the Auto Tracking, track the object using PT(Pan / Tilt) or PTZ(Pan / Tilt / Zoom). > Target Size SMALL: Make images about 1/4 of the object using Zoom feature. MEDIUM: Make images about 1/2 of the object using Zoom feature.

  • Page 29: Network Settings

    • Default: Click this button to restore the IP device back to original Status] shows connected status of router. factory settings. > External IP: When you connect the router that is supported UPnP function, this option is displayed. Displays the external Network settings IP address allocated router.
  • Page 30 RTP stream Note: RTP (Real-time Transport Protocol) is an internet protocol that allows Each profile using multicast needs its own multicast IP address and programs to manage the real-time transmission of multimedia data, port numbers to avoid address conflict. When more than 2 profiles via unicast or multicast.
  • Page 31 TCP/IP IPv4 address: Enter an IP address. Subnet mask: Enter a subnet mask address. Gateway: Enter the gateway address. DNS server status > Primary DNS server: Enter the Primary domain name server that translates the hostnames into IP address. > Secondary DNS server: Enter the Secondary DNS server address that backups the Primary DNS.
  • Page 32 DDNS IP filtering This free service is very useful when combined with the LG DDNS The access of the IP addresses in the list are allowed or denied Server. It allows the user to connect the IP device using the URL, according to the choice made in the drop-down list of the Basic rather than an IP Address.
  • Page 33 Deny all: Deny all the IP address basically, but the IP • Remove: Click this button to delete the IPv6 address. addresses in the list are allowed. It needs at least one IP 1. Select the alias from the list. address to activate this function.
  • Page 34 SNMP The Simple Network Management Protocol (SNMP) is an application You can specify network Quality of Service (QoS) settings. protocol to exchange the management information of network devices. QoS DSCP Configuration > Video DSCP: Enter the priority of Video for DSCP SNMP v1/v2c (Differentiated Service Code Point) Quality of Service.
  • Page 35 802.1x Basic Configuration Specifies whether 802.1x network access is enabled. > EAPOL Version: Select the EAPOL version. > EAP ID: Enter the ID of the client certificate using up to 16 characters. > Password: Enter the password of the client private key using up to 16 characters.

  • Page 36: User Settings

    Notes: User settings • When you set to [On] on the [Enable] option, [Enable anonymous login] option is enabled automatically. Basic • You should set the SIP port number not to conflict with The IP device is shipped with the login rights of administrator only. multicast port and 5353.
  • Page 37 Maximum RTP stream connection by Allows to view live images only. stream configuration. Custom user: The user can login and view the live LW9422 series / LNP3020T series stream image only when the “Enable anonymous login” option is checked to enable it. Maximum...

  • Page 38: Event Settings

    Event settings User ID: Type the user name for the Folder shared in the FTP server. Password: Type the password for the folder shared in Event Server the FTP Server. Event Servers are used to receive the recorded video clip and/or Folder: Type the path with the folder that is shared in notification messages.
  • Page 39 Sensor & Relay Address: Enter the SMTP server address. Port: Enter the port number. The default port is 25. Enable SSL: Check when use the SSL (Secure Socket Layer) protocol. SSL protocol is cryptographic protocols that provide secure communication on a network.
  • Page 40 Motion detect How to set the motion detect window 1. Click the [Add] button. The motion detect window is displayed. You can add the five windows maximum for motion detection area. 2. Set the [Sensitivity] option. 3. Click the edge or corner of the window box to adjust the window size for motion detection.
  • Page 41 Triggered Event FTP server(JPEG): Sends the JPEG Image to the FTP server. Image file and suffix setting is When an event (VA/ Motion detect/ Sensor Event) occurs, this unit available. You can select Date/Time or Sequence records the live images and routes as configured. of Suffix.

  • Page 42: Osd Menu Setup

    OSD Menu Setup Scheduled Event The following table shows the list of menu items and options. This feature applies in LW9422 series only. Main Sub Menu Contents Menu FOCUS FOCUS AUTO / MANUAL / ONE PUSH / ZOOM TRIG MODE...
  • Page 43 WHITE PRIVACY BALANCE MASK AUTO MASK 1 to 8 NUMBER MANUAL COLOR INDOOR/OUTDOOR TEMP MASK STATE ON/OFF -100 to 100 0 to 255 BLUE -100 to 100 GREEN 0 to 255 MASK COLOR ONE PUSH BLUE 0 to 255 INITIAL SET TRANSPARENCY 0 to 16 DAY/ NIGHT...

  • Page 44: General Operation

    General Operation SPECIAL USER TITLE ON/OFF 1. Click the [OSD control] button on the LG Smart Web Viewer. 2. Click button on the OSD control window. ZOOM MAG ON/OFF The camera setting menu appears on the live view window. FUNCTION...

  • Page 45: Focus Setting

    Notes: • ZOOM TRIG: The focus is activated manually. If you change the zoom, the focus is activated automatically and then the focus • button: Used to move upper direction on the menu screen. mode is automatically changed to manual mode. •...

  • Page 46: Exposure Settings

    Exposure settings • WDR: WDR (Wide dynamic range) feature can be very helpful to cope with very challenging lighting conditions. It is capable of capturing both of the dark part and bright part and combining the differences into a scene to generate a highly realistic image as original scene.

  • Page 47: White Balance Settings

    SENS-UP White Balance settings If pictures are not clear due to darkness, this SENS-UP operation Select the method by which the camera shifts its output colors to would increase the sensitivity of picture. compensate for the color of a light source. 1.

  • Page 48: Day/Night Settings

    Privacy setting OUTDOOR: The color temperature range for the proper white balance is approximately 5 100 K. This function is aiming at the protection of personal privacy. The > RED: Set the desired red value. selected part is not displayed on the screen. >...

  • Page 49: 3D-Dnr Setting

    Note: Special menu settings The parts with the registered mask numbers from AREA1 to AREA4 have the same color. (So do the parts with the numbers from AREA5 to AREA8.) If you change the mask color, the registered mask color will be changed automatically with the same color for each of group (AREA1 to AREA4, AREA5 to AREA8).
  • Page 50 STABILIZER > Use button to select [ON] then click button. The USER TITLE menu appears. The image stabilizer function minimizes the appearance of shaky images caused by low-frequency vibration. This function is useful for outdoor surveillance. Select the [STABILIZER] option and set to ON or OFF. Note: If you set the [STABILIZER] to ON, the Digital zoom is set to [x1.1] automatically.

  • Page 51: Reset Setting

    Reset setting 1. Select the [RESET] option. 2. Click button and the RESET menu appears. 3. Use button to select option. • FACTORY RESET: Clear certain settings and information and return to factory default settings. • S/W VERSION: Displays the software version on the monitor. 4.

  • Page 52: Reference

    • IP Conflicts: If the LG network device is set with a static IP address and if the DHCP option is set then there may be IP’s same as the network device and other network partner. Hence set the static IP address to 0.0.0.0 to resolve this conflict.
  • Page 53 After the factory settings login using the default user name and password. Video Streaming problems • If the video streaming does not start on the Web browser, install the LG Web Client ActiveX program on your computer following the instructions on the Web browser. •...
  • Page 54 • If we obtain lower frame rate than set we need to check from the system administrator for sufficient bandwidth available or reduce the number of applications running on the client computer. • If the client PC’s are unable to access the multicast stream, check with the system administrator for the use of a valid multicast address or check if the router is supporting multicasting.

  • Page 55: Open Source Software Notice

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com.

  • Page 56: Specifications

    Specifications Item LW9422 Series Image Sensor 6.49 mm (1/2.8 Type) CMOS Sensor Total Pixels 1 920(H) X 1 080(V), 2M Lens F1.6(Wide) to F2.1(Tele), f=5.3 to 63.6mm x12 Optical Zoom, x12 Digital Zoom Day&Night ICR Day & Night (Day / Night / Auto)
  • Page 57 10/100 Ethernet Protocol IPv4 and IPv6 TCP/IP, UDP, HTTP, HTTPS, RTP, RTSP, DHCP, ICMP IPv4 FTP, SMTP, NTP, ARP, SNMP v1/v2c/v3, DDNS (LG) Open Protocol ONVIF 2.2 Profile S, PSIA 1.1 Remote S/W LVi510, Mobile Application (iPhone, Android, iPad) Pan/Tilt Travel Range Pan : 360˚(Endless), Tilt : 180˚...
  • Page 58 Misc. Mount Accessory Mount Adaptor Material Aluminum, Plastic sunshield Rated Power PoE+ / AC 24 V (49 W) Waterproof IP66 Always ON Heater Operation start from Internal Temperature 10˚C Operation Temperature -20 ˚C to 50 ˚C Weight about 3.3 kg Dimension (Ø...
  • Page 59 Item LNP2810 Series LNP2810T Series Image Sensor 4.5 mm (1/4 type) CMOS Lens x28 Zoom, f = 3.5 mm to 98 mm Resolution (Maximum) Up to 1 280 x 720 Day&Night ICR Day & Night (Day / Night / Auto) Minimum Color 0.8 lx (AGC High, Sens-up Off )
  • Page 60 Protocol IPv4 and IPv6 TCP/IP, UDP, HTTP, HTTPS, RTP, RTSP, DHCP, ICMP IPv4 FTP, SMTP, NTP, ARP, SNMP v1/v2c/v3, DDNS (LG) Open Protocol ONVIF 2.2 Profile S, PSIA 1.1 Remote S/W LVi510, Mobile Application (iPhone, Android, iPad) Pan/Tilt Travel Range Pan : 360˚(Endless), Tilt : 180˚...
  • Page 61 Item LNP3020T Series Image Sensor 6.49 mm (1/2.8 type) CMOS Lens x30 Zoom, f = 4.3 mm to 129 mm Resolution (Maximum) Up to 1 920 x 1 080 Day&Night ICR Day & Night (Day / Night / Auto) Minimum Color 1.0 lx @ F1.6, Sens-up off Illumination...
  • Page 62 10/100 Ethernet Protocol IPv4 and IPv6 TCP/IP, UDP, HTTP, HTTPS, RTP, RTSP, DHCP, ICMP IPv4 FTP, SMTP, NTP, ARP, SNMP v1/v2c/v3, DDNS (LG) Open Protocol ONVIF 2.2 Profile S, PSIA 1.1 Remote S/W LVi510, Mobile Application (iPhone, Android, iPad) Pan/Tilt Travel Range Pan : 360˚(Endless), Tilt : 180˚...

This manual is also suitable for:

Lnp2810 seriesLnp3020t seriesLnp2810t series
