NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS

WIRING DIAGRAMS:

Connection of Golmar DC and AC lock releases.
Lock release
max. 12 Vdc/270mA.
(1) Important: With 2 DC lock releases, it is not possible to use the "AP" door release buttons.
Lock release
max. 12 V c/850mA. a
Important: Fit the varistor supplied with the kit directly to the terminals of the lock release.
*
Lock release
max. 12 V c/850mA. a
Important: Fit the varistors supplied with the kit directly to the terminals of each or the 2 lock releases.
*

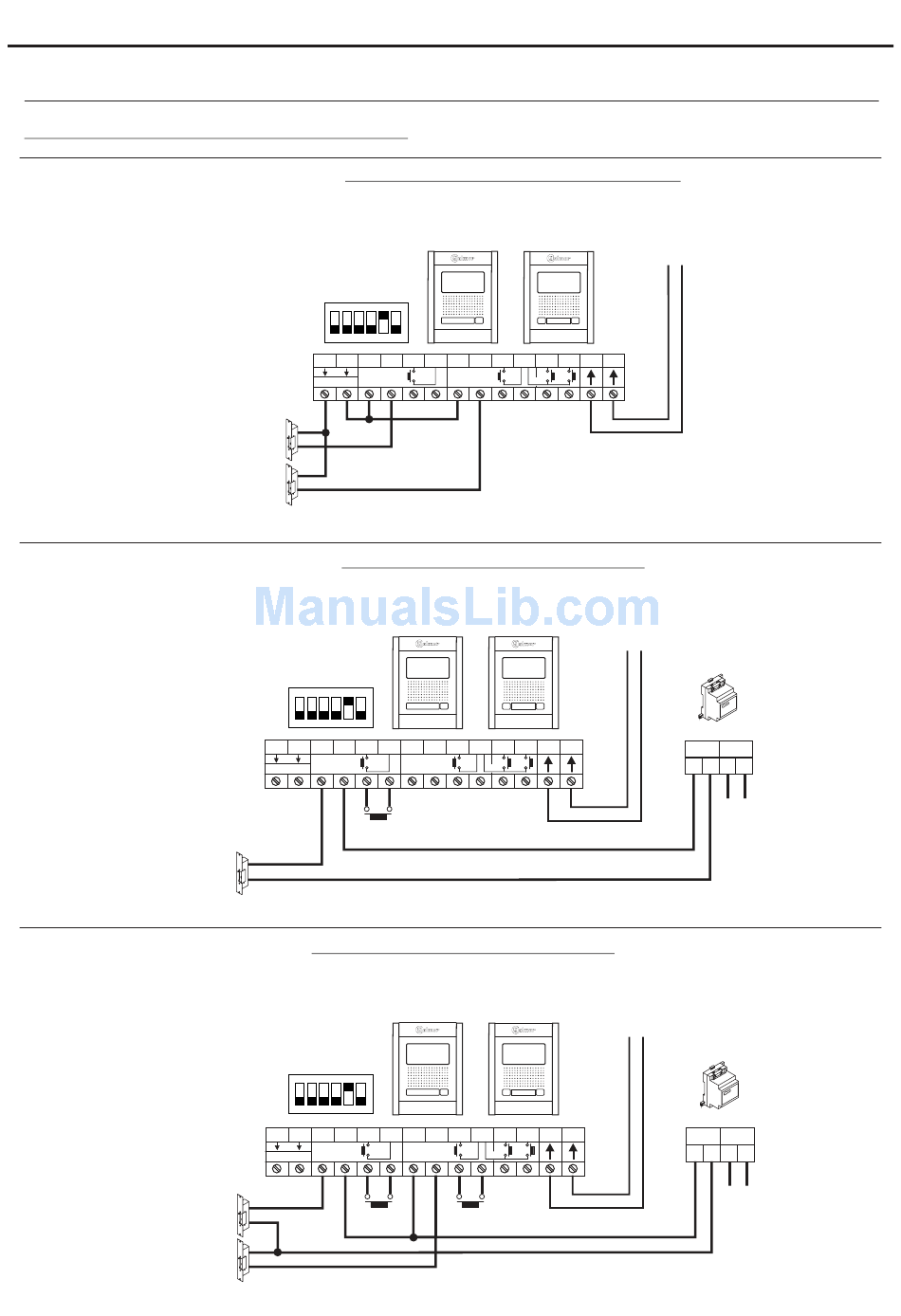

Connection of 2 DC lock releases without 'AP':
SW1
ON
1 2 3 4 5
_
+
C1 NA1
Relay 1
12Vdc
Connection of 1 AC lock release with 'AP':
SW1
ON
1 2 3 4 5 6
_
+
C1 NA1 AP- AP+
Relay 1
12Vdc
AP1
*
Connection of 2 AC lock release with 'AP':
SW1
ON
1 2 3 4 5 6
_
+ C1 NA1 AP- AP+
Relay 1
12Vdc
*
AP1
*
Access panel
or
6
AP- AP+ NA2 C2 AP+ AP- P1 P2 BUSBUS
Relay 2
(1) (1)
Access panel
or
NA2 C2 AP+ AP- P1 P2 BUSBUS
Relay 2
Access panel
or
NA2 C2 AP+ AP- P1 P2 BUSBUS
Relay 2
AP2
To the FA-GB2/A
power supply
To the FA-GB2/A
power supply
TF-104
SEC PRI
~ ~ ~ ~
Mains
230Vac
To the FA-GB2/A
power supply
TF-104
SEC PRI
~ ~ ~ ~
Mains
230Vac
