Set Output Format and Output During

Alarm

Note:
The setting you choose for
output during alarm will occur
when the system goes into major
alarm.

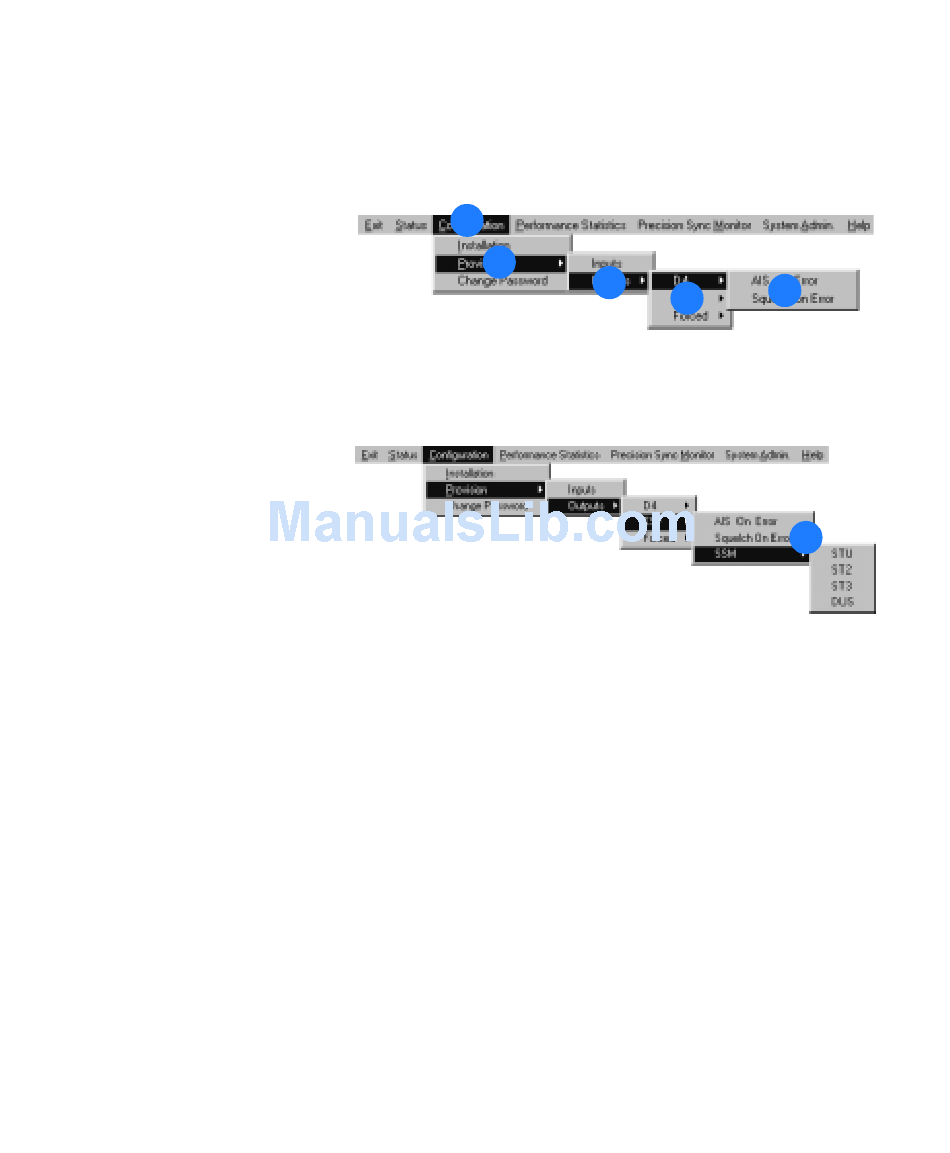

1. In the main menu, click
Configuration.
2. Click Provision, and highlight
Outputs.
3. Highlight the desired output
format: D4, ESF, or Forced.
4. For D4 output format, select
either AIS on Error or Squelch on
Error, for the alarm method.
5. For ESF output format, select
one of the following alarm
methods: AIS on Error, Squelch on
Error, or SSM.
Note:
If SSM is selected, select one
of the following: STU, ST2, ST3, or
DUS. The recommended setting is
either STU or ST2.
86
TimeSource 2700
S S S S S S S S S S S S S S
1
2
S S S S S S S
2
3
S S S S S
4
5
