Appendix C
General Specifications

100/1000 Base-T Connector

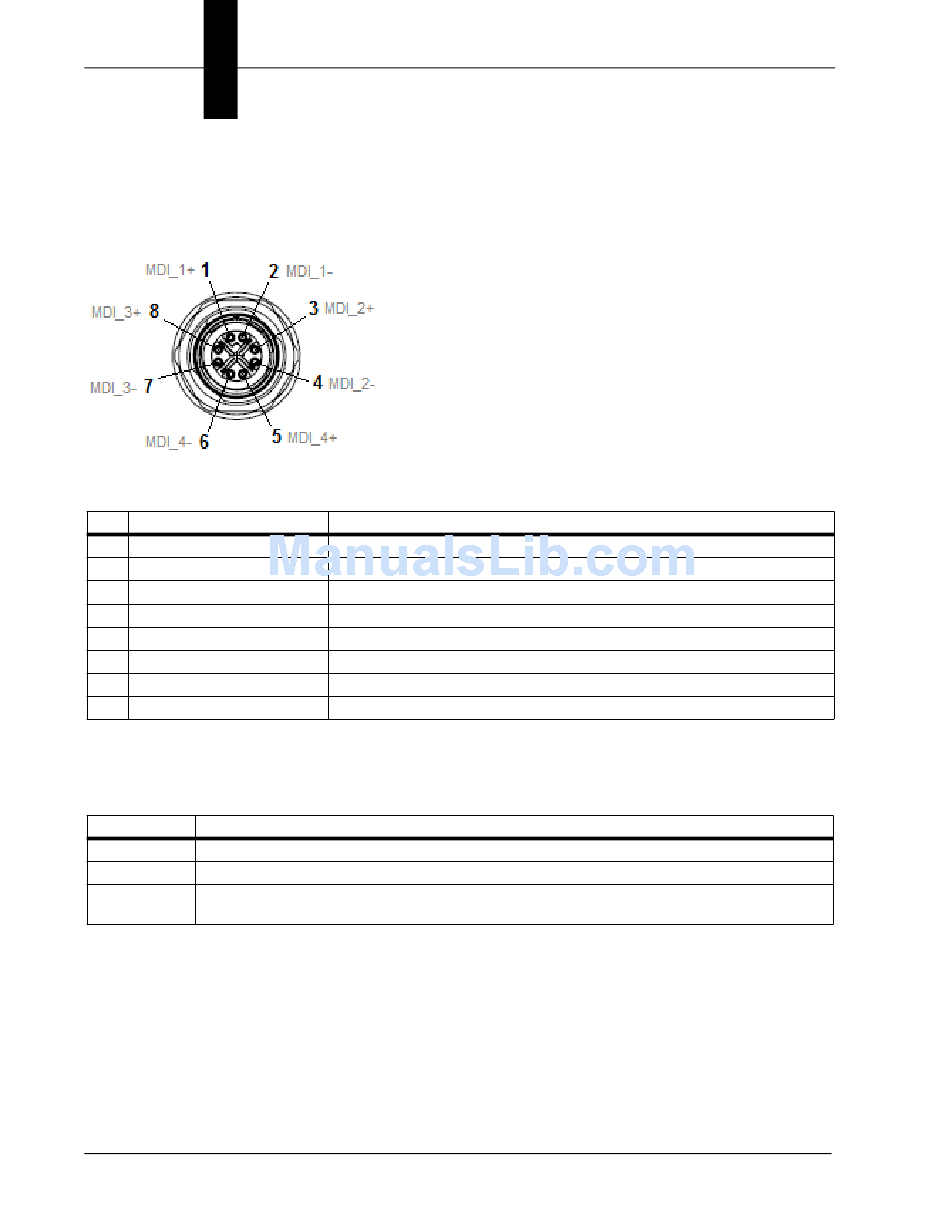

The 100/1000 Base-T connector is an M12 socket 8-pin X-coded connector that provides
communication capabilities at 10 Mbit/sec, 100 Mbit/sec, or 1 Gbit/sec (1000 Mbit/sec).
The pinout for the Ethernet connector is as follows:
Pin Signal Name
1 MDI_1+
2 MDI_1–
3 MDI_2+
4 MDI_2–
5 MDI_4+
6 MDI_4–
7 MDI_3–
8 MDI_3+
To interface with this connector, you can use either a Microscan accessory cable or you
can purchase a similar cable from an alternate source. For an alternate source of
100/1000 Base-T cables, contact:
Cable Information
Manufacturer Phoenix Contact GmbH and Co. KG
Part Number NBC-MSX/5.0-94F/R4AC SCO Order No.: 1407473
Assembled Ethernet Cable, CAT6A, 8-Position, PUR, RAL 5021 (Water Blue), Plug Straight M12
Description
SPEEDCON / IP67, Coding: X, ON Plug Straight RJ45 / IP20, 5 m
C-10
Description
Bidirectional data A+
Bidirectional data A–
Bidirectional data B+
Bidirectional data B–
Bidirectional data D+
Bidirectional data D–
Bidirectional data C–
Bidirectional data C+
HAWK MV-4000 Smart Camera Guide
