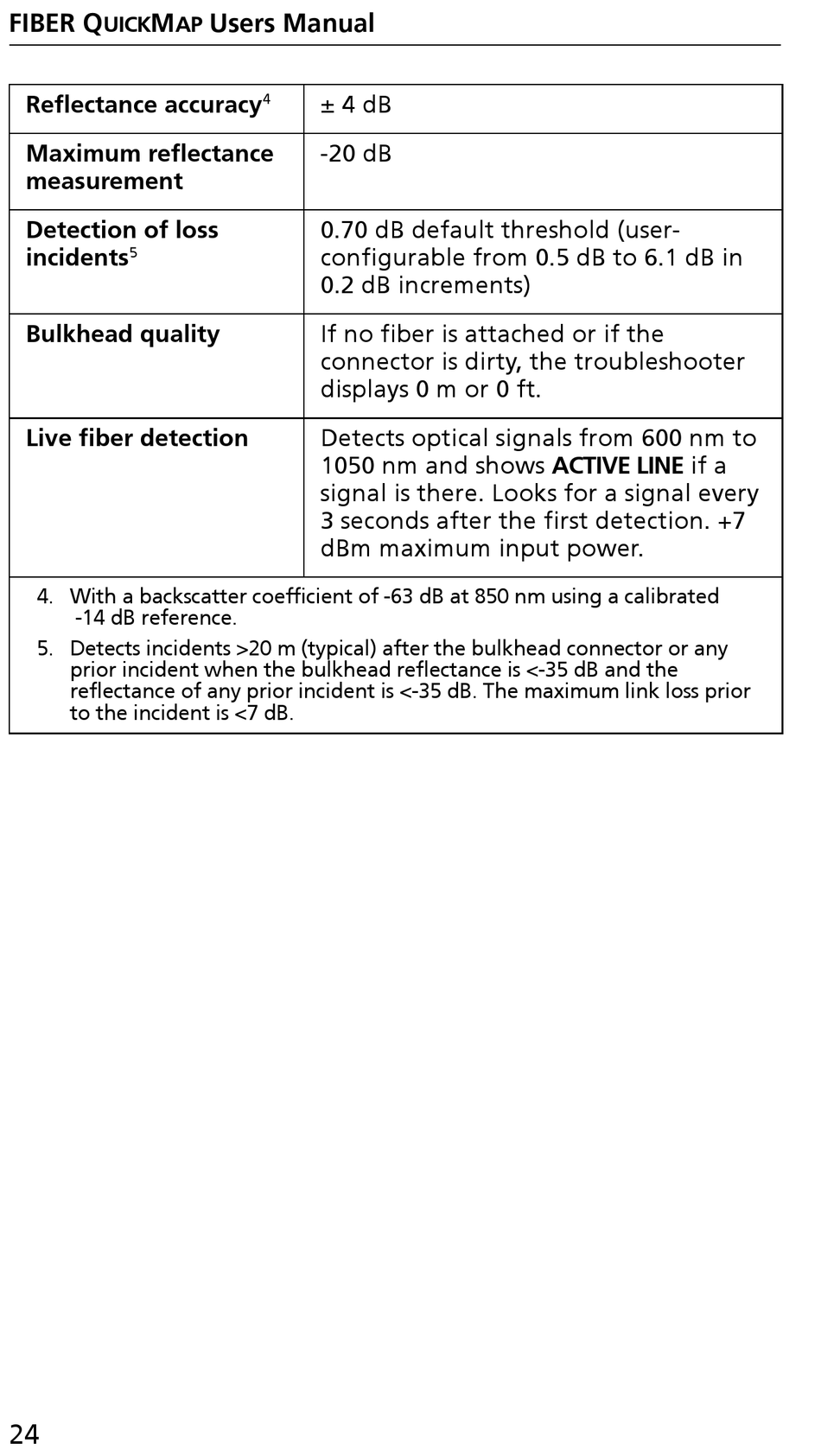

Fluke FIBER QUICKMAP User Manual page 28

FIBER Q M
UICK
Reflectance accuracy
Maximum reflectance
measurement
Detection of loss
5
incidents
Bulkhead quality
Live fiber detection
4. With a backscatter coefficient of -63 dB at 850 nm using a calibrated
-14 dB reference.
5. Detects incidents >20 m (typical) after the bulkhead connector or any
prior incident when the bulkhead reflectance is <-35 dB and the
reflectance of any prior incident is <-35 dB. The maximum link loss prior
to the incident is <7 dB.
24
Users Manual
AP
4 ± 4 dB
-20 dB
0.70 dB default threshold (user-
configurable from 0.5 dB to 6.1 dB in
0.2 dB increments)
If no fiber is attached or if the
connector is dirty, the troubleshooter
displays 0 m or 0 ft.
Detects optical signals from 600 nm to
1050 nm and shows ACTIVE LINE if a
signal is there. Looks for a signal every
3 seconds after the first detection. +7
dBm maximum input power.
