Blinking
The length of the receive
fiber is 105 m. Typically, the
reflectance of the end of a
fiber is higher than the limit.
Blinking
The end of the link. The loss of
this connection is higher than
the limit. The length of the link
(without the launch fiber) is
360.8 m.
Blinking
A bad splice on the fiber at
92.7 m caused a loss incident that
is higher than the limit.
The reflectance of the first
connection is -48 dB. The length
of the launch fiber is 105 m.

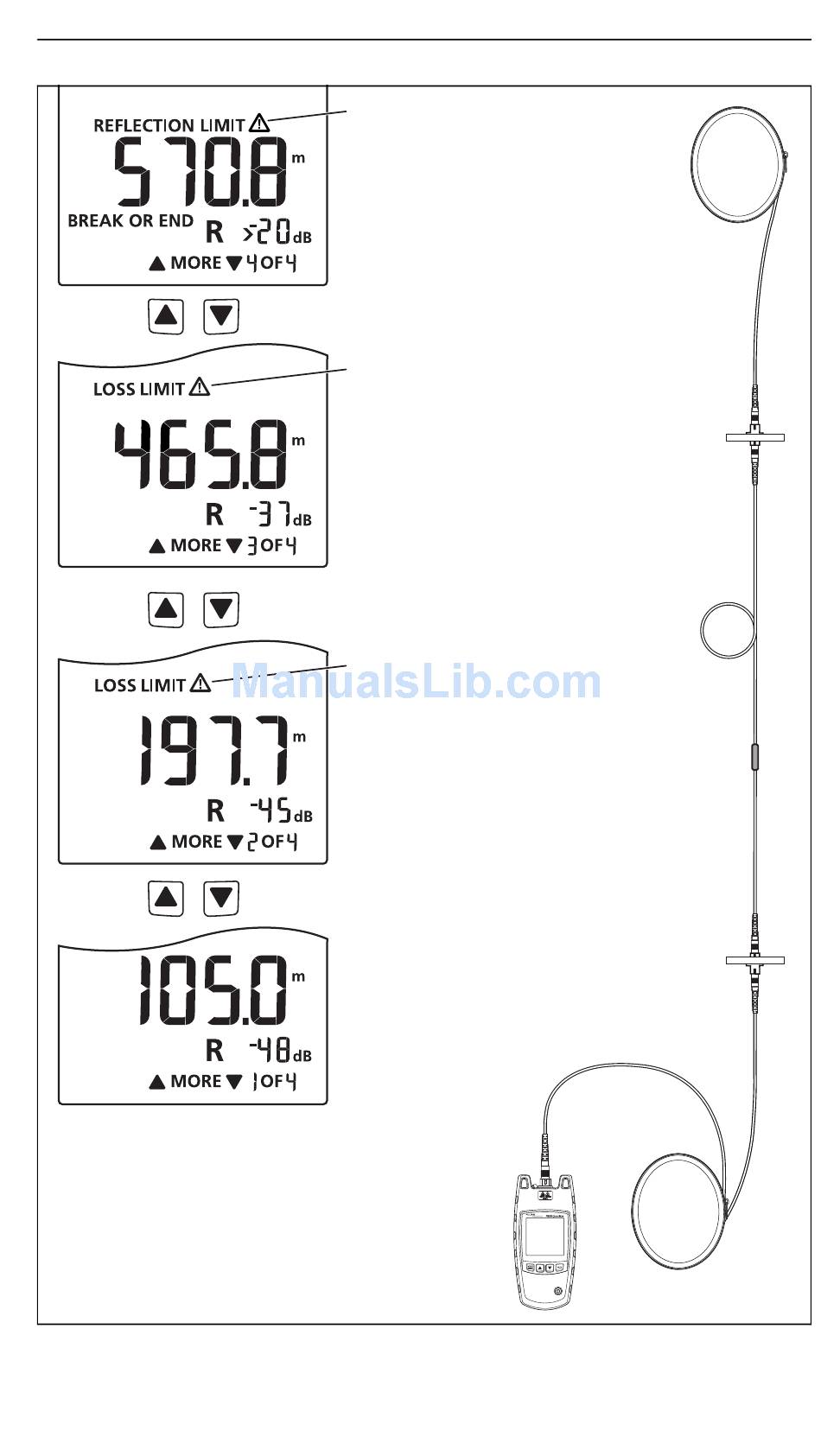

Figure 7. Examples of Results
Measurement Results
gbw02.eps
