FIBER Q
M
UICK

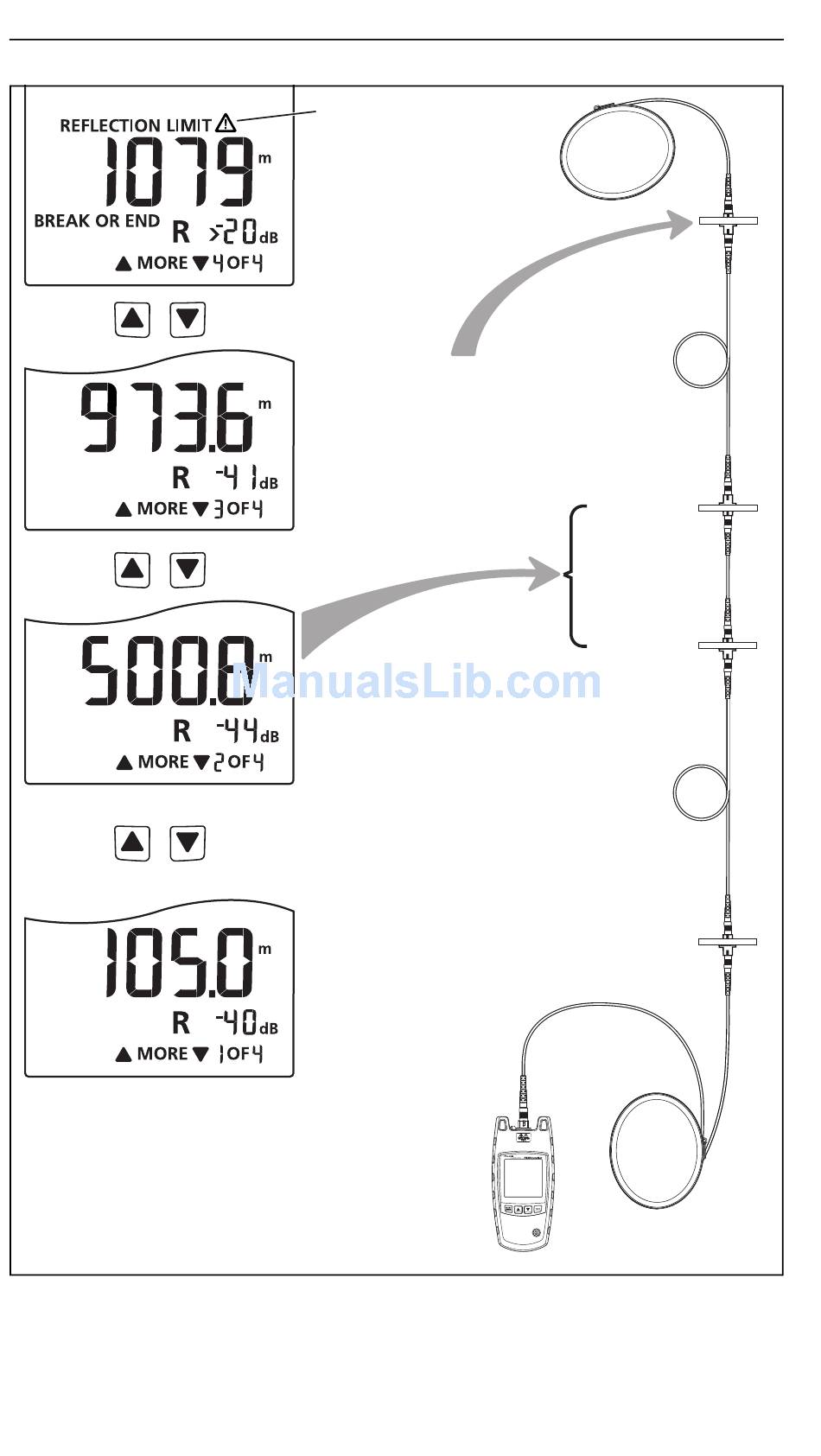

Figure 8. Results from a Link with a Short Patch Cord
18
Users Manual
AP
Blinking
The end of the receive
fiber.
The end of the link. The
length (without the launch
fiber) is 868.6 m.
The troubleshooter can
possibly show short patch
cords as one incident. This
occurs because the reflection
from the second connection is
hidden in the reflection from
the first connection.
503.6 m
500.8 m
gbw03.eps
