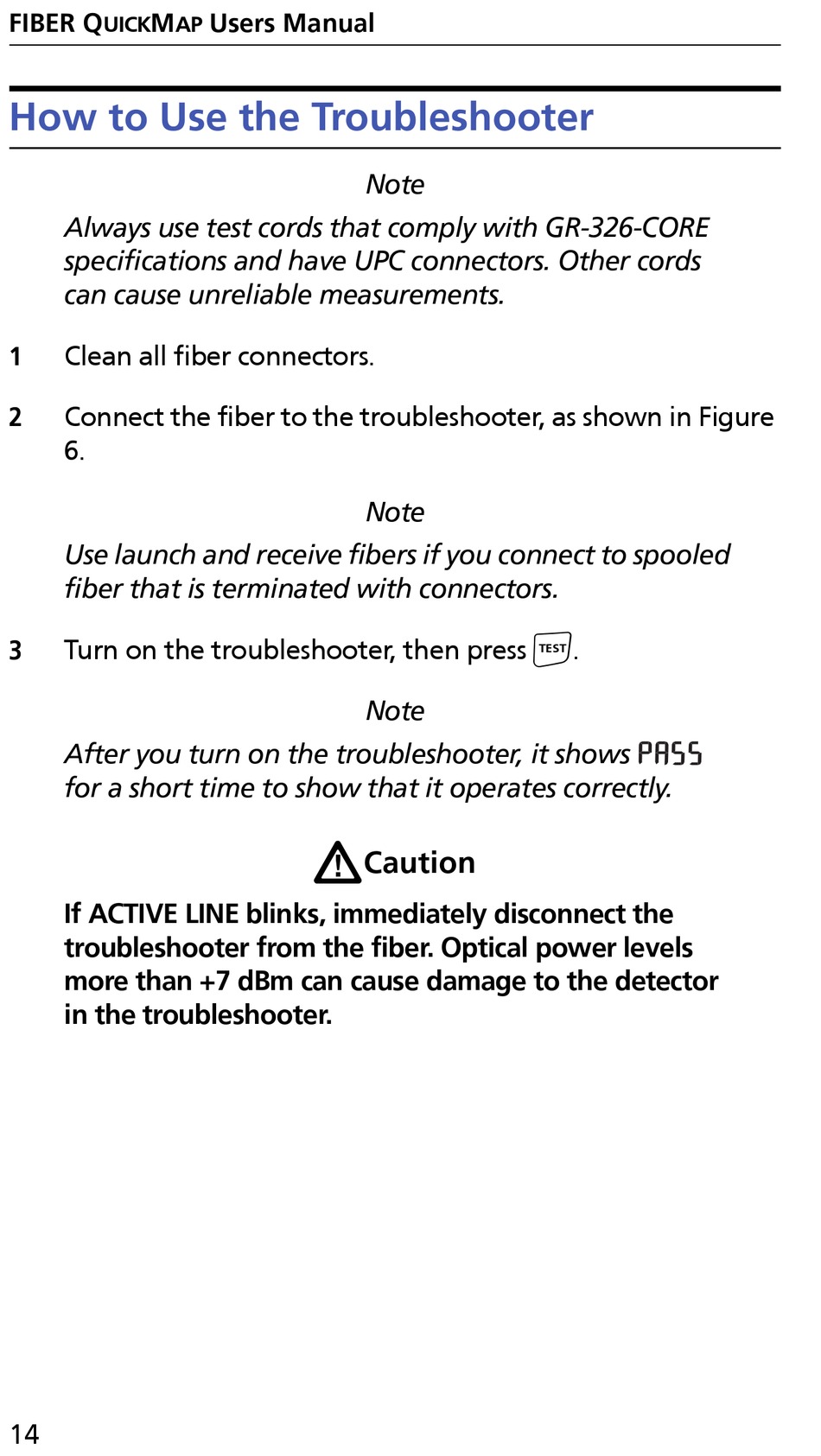

How to Use the Troubleshooter

Always use test cords that comply with GR-326-CORE

specifications and have UPC connectors. Other cords

can cause unreliable measurements.

Clean all fiber connectors.

Connect the fiber to the troubleshooter, as shown in Figure

Use launch and receive fibers if you connect to spooled

fiber that is terminated with connectors.

Turn on the troubleshooter, then press

After you turn on the troubleshooter, it shows

for a short time to show that it operates correctly.

If ACTIVE LINE blinks, immediately disconnect the

troubleshooter from the fiber. Optical power levels

more than +7 dBm can cause damage to the detector

in the troubleshooter.

Users Manual



Note

Caution


