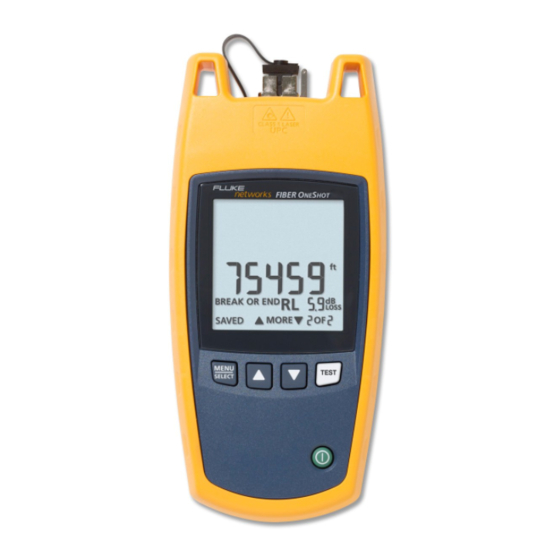

Fluke FIBER OneShot User Manual

Fluke FIBER OneShot User Manual

Length meter
Hide thumbs Also See for FIBER OneShot:

Advertisement

Quick Links

FIBER OneShot
Length Meter
Users Manual
PN 3374501
October 2009
©2009 Fluke Corporation. All rights reserved. Printed in USA.
All product names are trademarks of their respective companies.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIBER OneShot and is the answer not in the manual?

Questions and answers

Summary of Contents for Fluke FIBER OneShot

  • Page 1 FIBER OneShot ™ Length Meter Users Manual PN 3374501 October 2009 ©2009 Fluke Corporation. All rights reserved. Printed in USA. All product names are trademarks of their respective companies.
  • Page 2 LIMITED WARRANTY AND LIMITATION OF LIABILITY Fluke Networks mainframe products will be free from defects in material and workmanship for one year from the date of purchase. Parts, accessories, product repairs and services are warranted for 90 days, unless otherwise stated. Ni-Cad, Ni-MH and Li-Ion batteries, cables or other peripherals are all considered parts or accessories.
  • Page 3: Table Of Contents

    Contents Introduction ..................1 Registering Your Product .............. 1 The Fluke Networks Knowledge Base......... 1 Safety Information ................. 2 Battery Installation and Life............4 Physical Features................4 Settings .................... 7 APC/UPC ..................8 BACKLIGHT................. 8 I.O.R. (index of refraction)............8 ft/m ....................
  • Page 4 FIBER OneShot Users Manual...
  • Page 5: Introduction

    Registering Your Product When you register your product with Fluke Networks you get access to valuable information on updates, troubleshooting procedures, and other support services.
  • Page 6: Safety Information

    FIBER OneShot Users Manual Safety Information Warning or Caution: Risk of damage to or destruction of equipment or software. See explanations in the manual. Warning: Risk of electrical shock. Warning: Class 1 laser. Risk of damage to your eyes caused by hazardous radiation.
  • Page 7 Safety Information Caution To prevent damage to fiber connectors, to prevent data loss, and to make sure that your test results are as accurate as possible: • Do not connect APC connectors to the meter. An APC connector will cause damage to the fiber endface in the connector on the meter.
  • Page 8: Battery Installation And Life

    FIBER OneShot Users Manual Battery Installation and Life IEC LR6 NEDA 15A Note: Fluke Networks recommends alkaline batteries. fjy03.eps Figure 1. How to Install the Batteries The meter can do approximately 1500 tests before you must replace the batteries. Physical Features See Figure 2.
  • Page 9 Physical Features fjy04.eps Figure 2. Physical Features Do not connect APC connectors to the meter Green housing Angled ferrule fjy06.eps Figure 3. How to Identify an APC Connector...
  • Page 10 FIBER OneShot Users Manual fjy01.eps Figure 4. Display Features CheckActive shows when the meter looks for an optical ™ signal on the fiber. CheckActive and ACTIVE LINE blink if ™ there is an optical signal on the fiber. The meter will not do a test if there is an optical signal on the fiber.
  • Page 11: Settings

    Settings When the low battery symbol shows, replace the batteries soon. See page 4. The digits show the fiber length in feet or meters. Shows when you look at the setting for the backlight timer. The setting is in seconds. Shows an error number for error conditions.
  • Page 12: Apc/Upc

    FIBER OneShot Users Manual APC/UPC Angled Physical Contact/Ultra Physical Contact. If most cables you will do tests on have UPC connectors, set this to UPC. BACKLIGHT The display backlight turns off if you do not press a key for the period of time shown.
  • Page 13: The Connector Adapter

    Always clean and do an inspection on fiber connectors before you make connections. Use fiber optic solvent and optical-grade wipers or swabs to clean connectors. You can purchase these supplies from Fluke Networks. How to Clean the Connector on the Meter Turn off the meter.
  • Page 14 FIBER OneShot Users Manual Remove Unlock Ferrule and fiber endface Lock fjy02.eps Figure 5. How to Remove and Install the Connector Adapter...
  • Page 15: How To Clean Bulkhead Connectors (Sources And Patch Panels)

    Twist a dry swab around in the connector 3 to 5 times. Before you make a connection, use a fiber microscope (for example, the Fluke Networks FiberInspector Video ™ Microscope) to do an inspection on the connector.
  • Page 16: How To Use The Meter

    FIBER OneShot Users Manual How to Use the Meter Notes Always use patch cords that comply with GR-326-CORE specifications. Other patch cords can cause unreliable measurements. Do not use the meter to measure fibers that have PC connectors. PC connectors cause large reflections that the meter shows as the end of the fiber.
  • Page 17 How to Use the Meter connector only UPC to UPC APC to APC connection Note: Always use patch cords that comply with GR-325-CORE specifications. connector only UPC/UPC APC/APC connectors with an adapter fjf05.eps Figure 6. How to Make Connections...
  • Page 18: Measurement Results

    FIBER OneShot Users Manual Measurement Results The meter measures the length of the fiber. The length can be the distance to an APC or UPC connector at the end of the fiber or the distance to a break. If there is a large reflective event before the end of the fiber (larger than the dB LIMIT setting) the meter shows the distance to that event.
  • Page 19: Maintenance

    • Do not open the case. You cannot repair or replace parts in the case. • Use only replacement parts that are approved by Fluke Networks. • If you replace parts that are not specified as replacement parts, the warranty will not apply to the product and you can make the product dangerous to use.
  • Page 20: Contacting Fluke Networks

    FIBER OneShot Users Manual Contacting Fluke Networks www.flukenetworks.com support@flukenetworks.com +1-425-446-4519 • Australia: 61 (2) 8850-3333 or 61 (3) 9329 0244 • Beijing: 86 (10) 6512-3435 • Brazil: 11 3759 7600 • Canada: 1-800-363-5853 • Europe: +44-(0)1923 281 300 • Hong Kong: 852 2721-3228 •...
  • Page 21: Options And Accessories

    Options and Accessories Options and Accessories For a complete list of options and accessories go to the Fluke Networks website at www.flukenetworks.com. Fluke Networks Option or Accessory Model Number ™ VisiFault Visual Fault Locator VisiFault ™ FT500 FiberInspector Mini Video Microscope FT500 ™...
  • Page 22: Specifications

    FIBER OneShot Users Manual Specifications Specifications are typical. Operating temperature 0ºC to 50ºC with the battery Non-operating -20ºC to 60ºC temperature Operating relative 95% (10ºC to 35ºC) humidity 75% (35ºC to 40ºC) (without condensation) uncontrolled < 10ºC Vibration Random, 5 Hz to 500 Hz, MIL-PRF-...
  • Page 23 Specifications Incident type detected Display UPC or APC open BREAK OR END OF FIBER Break BREAK OR END OF FIBER Reflective incident BREAK OR END OF FIBER Poor bulkhead 0 ft/m connection (Will not measure a splice loss, connector loss, bend loss, or fiber attenuation.) LCD type Backlit black and white (segments)
  • Page 24 FIBER OneShot Users Manual Distance to first reflective open Photodiode 40 µm - 80 µm, PIN InGaAs Maximum distance 6000 meters or 9999 feet Distance accuracy ± 1 m for reflective incidents, ± 0.1% of (0 m to 3000 m or...
  • Page 25 Specifications Input connector SC with removable/cleanable adapter UPC polish Detector type InGaAs PIN photodiode used in incident detection Safety CSA C22.2 No. 61010.1.04 EN 61010-1:2001 {2nd Edition}, EN60825-1:2007 Class 1 Laser EN 61326-1, EN61000-4-2,3 80 MHz to 2.7 GHz @ 3V/m. Telephony Requirements: Class B Emissions Conforms to relevant European Union...
  • Page 26 FIBER OneShot Users Manual...
