REFLECTION LIMIT
Sets the minimum size of a reflection that the troubleshooter
shows as an incident or the end of the fiber. You can select a
value from -20 dB (larger reflection) to -45 dB (smaller
reflection) in 5 dB increments. The default is -35 dB.

The Connector Adapter

You can change the SC connector adapter to connect to LC, ST,
or FC fiber connectors. See Figure 4.
Turn only the collar on the adapter. Do not use tools to
remove or install the adapters.

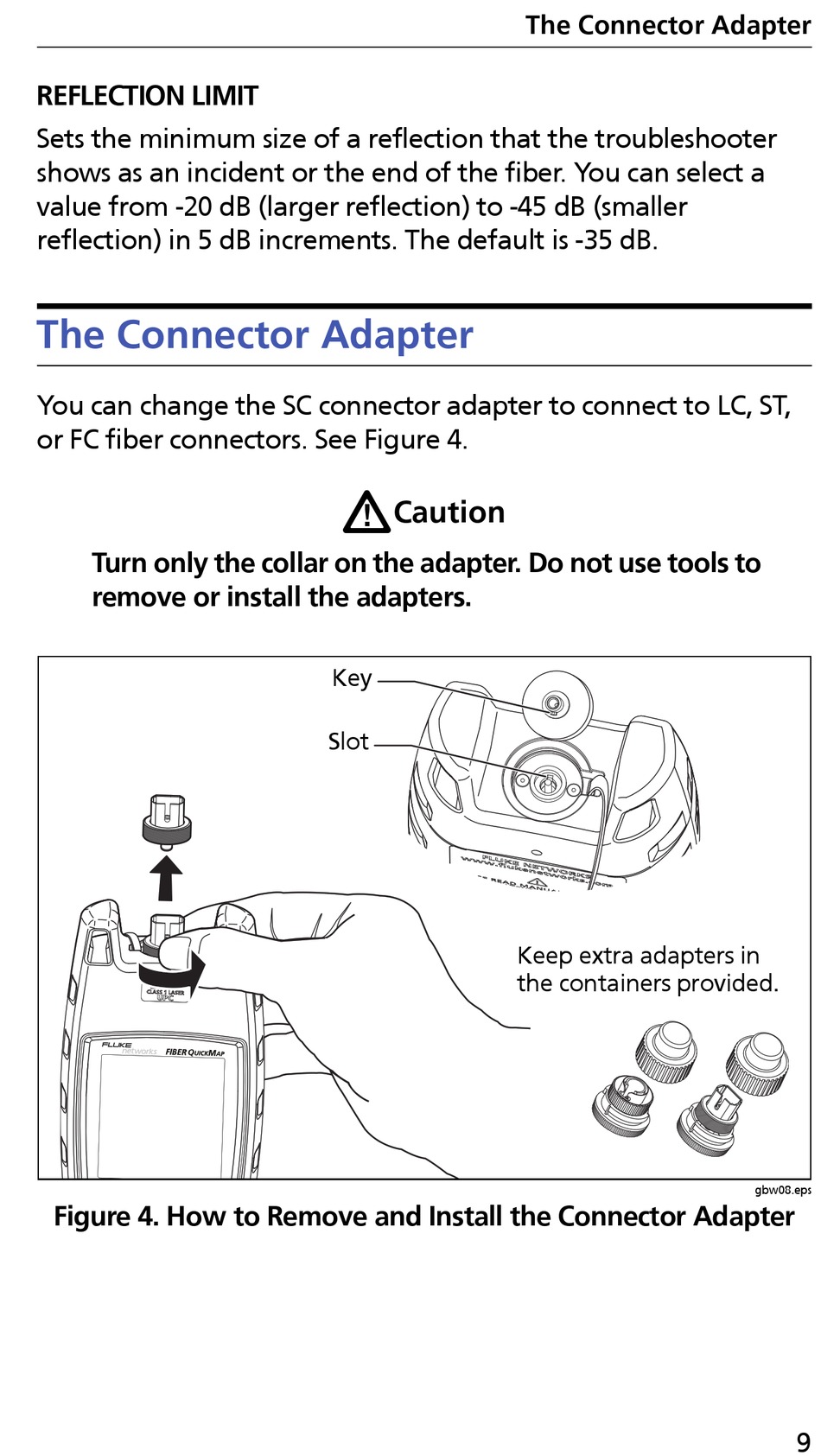

Figure 4. How to Remove and Install the Connector Adapter

Caution
Key
Slot
The Connector Adapter
Keep extra adapters in
the containers provided.
