Fluke FIBER OneShot Quick Reference Manual

FIBER OneShot
Length Meter
Quick Reference Guide
Safety Information
W *
Warning: Class 1 Laser
To prevent possible damage to your eyes caused by
hazardous radiation:
•
Do not look directly into optical connectors. Some optical
equipment emits invisible radiation that can cause
permanent damage to your eyes.
•
Do not turn on the meter unless a fiber is attached to the
port.
•
Do not use a magnifying device to look at the optical
outputs without the correct filter.
•
Use of controls, adjustments, or procedures that are not in
this manual can cause exposure to hazardous radiation.
W
Caution
To prevent damage to fiber connectors, to prevent data
loss, and to make sure that your test results are as accurate
as possible:
•
Do not connect APC connectors to the meter. An APC
connector will cause damage to the fiber endface in the
connector on the meter.
•
Use only patch cords that comply with GR-326-CORE
specifications. Other patch cords can cause unreliable
measurements.
October 2009
©2009 Fluke Corporation. All rights reserved.
All product names are trademarks of their respective companies.
•
Use the correct procedures to clean all fiber connectors
before each test. If you do not do this or if you use
incorrect procedures, you can get unreliable test results
and can cause permanent damage to the connectors.
™
•
Put protective caps on all connectors when you do not use
them.
•
Do not connect the meter to a network that is on. If you
do, the meter can cause problems in the network.
•
If ACTIVE LINE blinks, immediately disconnect the meter
from the fiber. Optical power levels more than +7 dBm can
cause damage to the detector in the meter.
Battery Installation and Life
NEDA 15A
Note: Fluke Networks recommends alkaline batteries.
How to Install the Batteries
The meter can do approximately 1500 tests before you must replace
the batteries.

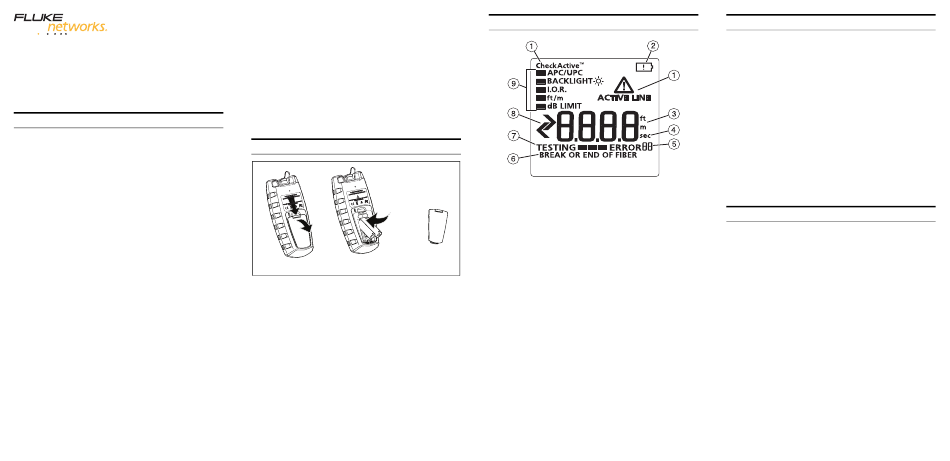

Display Features
AA
A
CheckActive ™ shows when the meter looks for an optical signal
IEC LR6
on the fiber. CheckActive
optical signal on the fiber. The meter will not do a test if there
is an optical signal on the fiber.
B
When the low battery symbol shows, replace the batteries
soon.
C
The digits show the fiber length in feet or meters.
fjy03.eps D
Shows when you look at the setting for the backlight timer.
The setting is in seconds.
E
Shows an error number for error conditions.
F
Shows when the meter completes a length measurement.
G
Shows as the meter measures length.
H J
: Shows when the length is more than the range of the
meter.
I
: Can show for short fibers when the meter cannot measure
the length accurately.
I
Settings for the meter.
Settings
To change the settings on the meter:
M
Press
1
2 To select a setting to change, press
U V
3 Use
the settings.
M
4 Press
•
APC/UPC: Angled Physical Contact/Ultra Physical Contact. If most
cables you will do tests on have UPC connectors, set this to UPC.
•
BACKLIGHT: Timer for the display backlight.
•
I.O.R.: Index of refraction.
•
ft/m: Unit for length measurements.
•
dB LIMIT: Sets the minimum size of a reflection that the meter
shows as a break or the end of the fiber when the reflection is
fjy01.eps
before the end of the fiber.
How to Clean the Connector on the Meter
™ and ACTIVE LINE blink if there is an
1 Turn off the meter.
2 Remove the connector adapter to get access to the ferrule (see
"The Connector Adapter".)
Touch the tip of an optical-grade solvent pen or swab soaked in
3
solvent to a dry, optical-grade wiper.
4 Touch a new, dry swab to the solvent on the wiper.
5 Twist the swab around against the fiber endface 3 to 5 times,
then twist a dry swab around against the fiber endface 3 to 5
times.
.
V M
, then press .
to change the setting. See below for information on
T
or to save the setting.
