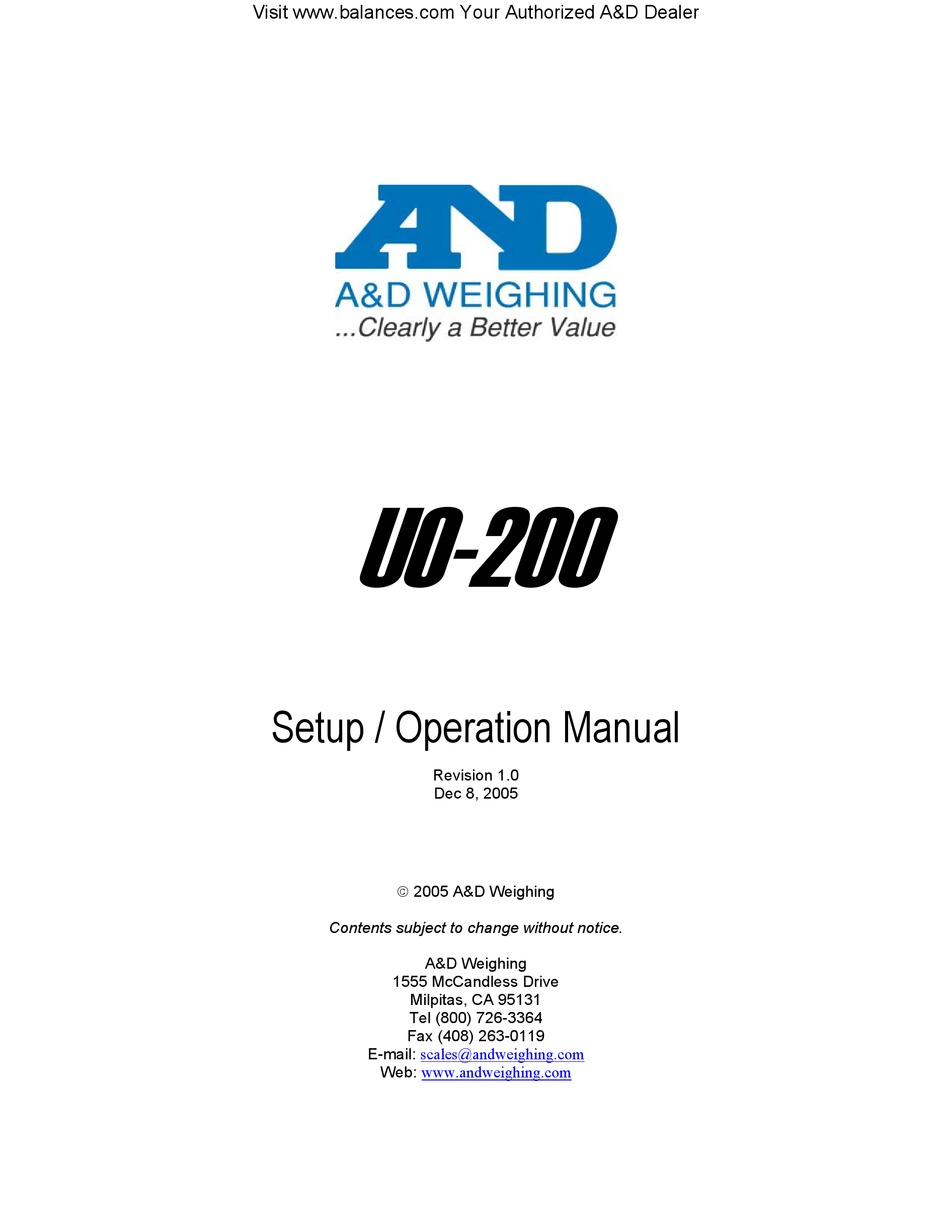

Visit www.balances.com Your Authorized A&D Dealer
UO-200
Setup / Operation Manual
Revision 1.0
Dec 8, 2005
 2005 A&D Weighing
Contents subject to change without notice.
A&D Weighing
1555 McCandless Drive
Milpitas, CA 95131
Tel (800) 726-3364
Fax (408) 263-0119
E-mail:
scales@andweighing.com
Web:
www.andweighing.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UO-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AND UO-200

Summary of Contents for AND UO-200

  • Page 1 Visit www.balances.com Your Authorized A&D Dealer UO-200 Setup / Operation Manual Revision 1.0 Dec 8, 2005  2005 A&D Weighing Contents subject to change without notice. A&D Weighing 1555 McCandless Drive Milpitas, CA 95131 Tel (800) 726-3364 Fax (408) 263-0119 E-mail: scales@andweighing.com...
  • Page 2 Visit www.balances.com Your Authorized A&D Dealer NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: Table Of Contents

    3.3.3 Notes on the User Menu .................. 3-4 3.3.4 Exiting the User Menu..................3-4 Chapter 4: Setup Menu Descriptions and Procedures ..............4-1 Setup Menu Descriptions ....................4-1 Setup Menu Procedures ....................4-2 4.2.1 Graduation Entry (F1) ..................4-2 Chapter 5: User Menu Descriptions and Procedures ..............
  • Page 4 Visit www.balances.com Your Authorized A&D Dealer Chapter 6: Calibration ........................6-1 Calibration Overview ..................... 6-1 Zero Calibration (F16) ....................6-1 Span Calibration (F17) ....................6-1 View Calibration Values (F18)..................6-2 Key-in Zero Calibration Value (F19) ................6-3 Key-in Span Calibration Value (F20) ................6-3 Chapter 7: Operation........................

  • Page 5: Chapter 1: Introduction To The Uo-200

    CHAPTER 1: INTRODUCTION TO THE UO-200 SCALE The UO-200 Scale is a 200 lb x 0.5 lb capacity scale with built in motion compensation that al- lows the user to obtain stable weight readings while the scale is moving. All setup parameters may be entered via the front panel keys, including calibration.

  • Page 6: Chapter 2: Installation

    2.1.1 CONNECTING THE WEIGH PLATFORM The UO-200 ships with a 7 ft shielded load cell cable for connected to the weigh platform’s load cell. 1. Plug the cable’s 5-pin connector into the load cell port on the rear panel of the indicator.

  • Page 7: Chapter 3: Configuration

    User menus consist of several menu selections, each with its own sub-menu of choices. To set up the UO-200, you must first enter the appropriate menu mode. Once there, four of the front panel keys become directional navigators to move around in the menus, and one key is used to save or SET the selections.

  • Page 8: Notes On The Setup Menu

    Visit www.balances.com Your Authorized A&D Dealer Figure 3-1: Setup Menu Key Assignments Grads Zero Band Zero Range Mot. Band Calib. Unit Dig. Filter Ovld. Limit Press ZERO 0.5d 1d 3d 1d 3d … 50d 0d 2% 1d 9d key to begin 100% 1.9% Dsp.

  • Page 9: User ("A") Menu

    USER (“A”) MENU 3.3.1 ENTERING THE USER MENU NOTE: The UO-200 only supports the A5 (Units Key) and A10 (Auto Power Off) functions. Please disregard the other listed functions. 1. Enter the Setup (“F”) menu by following the directions in Section 3.2.1 or 3.2.2.

  • Page 10: Notes On The User Menu

    Visit www.balances.com Your Authorized A&D Dealer Baud Rate Data Bits, Parity Serial Trans Mode Display Check Units Key Press ZERO 7O 7E 7n key to begin 1200 2400 4800 9600 19200 Serial Port Mode ID No Enable ID No Entry No of LF Auto Power Off Press ZERO...

  • Page 11: Chapter 4: Setup Menu Descriptions And Procedures

    If motion is not detected for two Motion Band 3d√ seconds or more, scale is in standstill and can process a Print or Zero command. Maximum value varies depending on local regulations. 15 d Averages weight readings to produce higher stability.

  • Page 12: Setup Menu Procedures

    Scrolling down with the ZERO key one level be- to begin sequence gins the procedure. This sub-menu will reset all parameters in the “F” and “A” menu to the Press the ZERO Factory Reset default settings. USE WITH CAUTION! key twice to exe- cute.

  • Page 13: Chapter 5: User Menu Descriptions And Procedures

    Visit www.balances.com Your Authorized A&D Dealer CHAPTER 5: USER MENU DESCRIPTIONS AND PROCEDURES NOTE: The UO-200 only supports the A5 (Units Key) and A10 (Auto Power Off) functions. Please disregard the other listed functions. USER MENU DESCRIPTIONS This section provides more detailed descriptions of the selections found in the User Menu Chart.

  • Page 14: Chapter 6: Calibration

    Setup Menu. Each procedure enters a value into the indicator's non-volatile memory - F16 the zero value (deadweight) and F17 the span value (test weight). The minimum test weight that can be used is 1% of full-scale capacity. The indicator allows for multi-point calibration in F17. These three calibration points are denoted C1-C3.

  • Page 15: View Calibration Values (F18)

    5. Repeat steps 2-4 for C2 and C3. At the conclusion of C3, the indicator reverts back up to F17. NOTE: If you wish to use only one calibration point (C1), simply press the NET/GROSS key when prompted for C2 or C3.

  • Page 16: Key-In Zero Calibration Value (F19)

    Visit www.balances.com Your Authorized A&D Dealer KEY-IN ZERO CALIBRATION VALUE (F19) Note: This procedure is intended for emergency use only in the case of non-volatile memory loss. A valid zero calibration value, obtained from a successful F16 calibration procedure, must be used.

  • Page 17: Chapter 7: Operation

    Visit www.balances.com Your Authorized A&D Dealer CHAPTER 7: OPERATION 7.1 DISPLAY The UO-200 utilizes a 6 digit LCD (Liquid Crystal Display). Typically, LCD’s are used for outdoor ap- plications while LED’s are used indoors where brightness is needed. Table 7-1 summarizes the dis- play annunciators.

  • Page 18: Keyboard

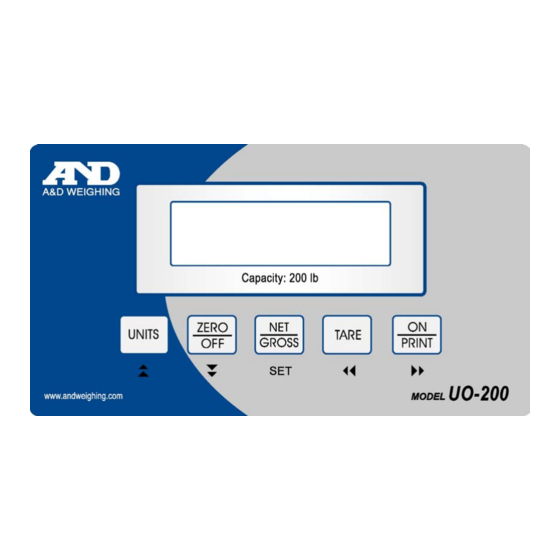

    Visit www.balances.com Your Authorized A&D Dealer 7.2 KEYBOARD The keyboard is composed of five function keys. Refer to Figures 7-2 for the overall layout and key locations. ZERO TARE UNITS GROSS PRINT FIGURE 7-2: Function Keys Layout 7.2.1 FUNCTION KEYS Units –...

  • Page 19: Taring An Item

    4. Press the TARE key. The display shows zero weight and turns the NET annunciator on. 5. Place the material to be weighed in the container and allow the weight indication to stabi- lize. 6. Read the weight shown on the display.

  • Page 20: Appendix A: Specifications

    Visit www.balances.com Your Authorized A&D Dealer APPENDIX A: SPECIFICATIONS ANALOG SPECIFICATIONS Full Scale Input Signal 10mV, including dead load 0.4 µV / grad Minimum Sensitivity - Non H-44 Minimum Sensitivity - H-44 Not applicable Input Impedance 30MΩ, typical Internal Resolution Approximately 245,000 counts at 3 mV/V Display Resolution 50,000 display division max...

  • Page 21: Appendix B: Displayed Error Codes

    Visit www.balances.com Your Authorized A&D Dealer APPENDIX B: DISPLAYED ERROR CODES CODE MODE MEANING / POSSIBLE SOLUTION Normal Operating Gross Overload. A weight greater than the rated capacity has been Mode applied to the scale. Remove the weight from the platter or try re- calibrating the scale.
