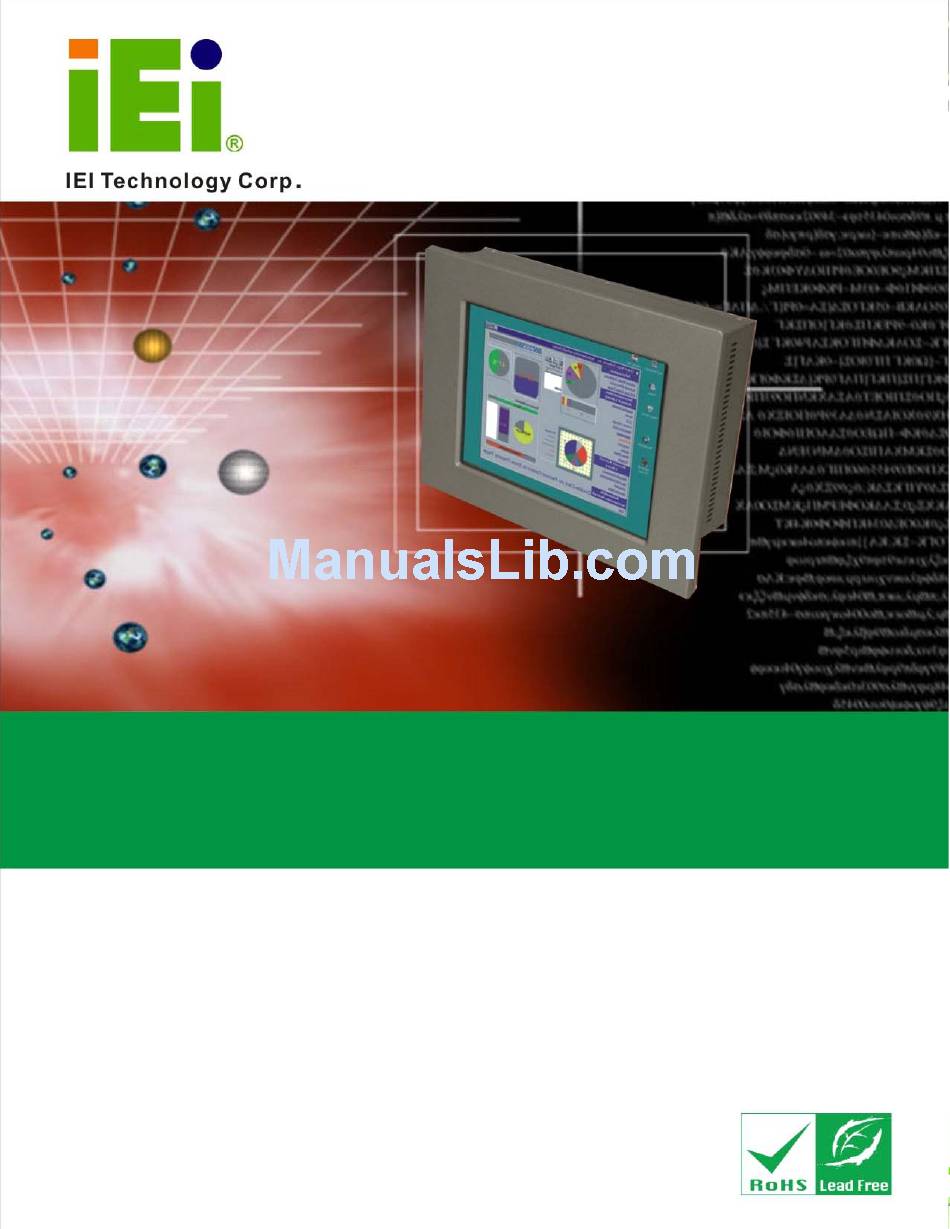

- Page 1 PPC-37xx-N270 Panel PC PPC-37xx-N270 Panel PC MODEL: PPC-37xx-N270 Panel PC with Touch Screen and Intel® Atom™ CPU Gigabit Ethernet, Two USB, Audio, RS-232/422/485, SATA RoHS Compliant, IP 65 Protection User Manual Page i Rev. 2.00 - 9 November, 2010...
- Page 2 PPC-37xx-N270 Panel PC Revision Date Version Changes 9 November, 2010 2.00 Updated for R20 version 15 October, 2009 1.03 Updated dimension drawings in Section 2.1 26 June, 2009 1.02 Added PPC-3712B-N270 dimension drawing and power supply specifications. 13 April, 2009 1.01 Added PPC-3712B-N270 series information 4 February, 2009...
- Page 3 PPC-37xx-N270 Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
-
Page 4: Table Of Contents
1.3 S ......................8 PECIFICATIONS 2 DETAILED SPECIFICATIONS ................10 2.1 D ......................11 IMENSIONS 2.1.1 PPC-3708A-N270 Dimensions .................11 2.1.2 PPC-3710A-N270 Dimensions ................ 12 2.1.3 PPC-3712A/B-N270 Dimensions..............13 2.1.4 PPC-3712B-N270 Dimensions ................ 14 2.2 I ® A ™ P ................... 15... - Page 5 PPC-37xx-N270 Panel PC 2.5.1 Monitor ......................20 2.5.2 Touch-Screen Module..................20 2.6 G ........................ 20 RAPHICS ® 2.6.1 Intel 945GSE Integrated Graphics Engine ............ 20 2.6.2 Dual-Display....................21 2.7 A ........................21 UDIO 2.8 S ....................... 22 YSTEM OWER 2.8.1 PPC-37xxA-N270 Series Power ..............22 2.8.2 PPC-3712B-N270 Power.................
- Page 6 ..................47 OUNTING THE YSTEM 4.11.1 Wall Mounting ....................47 4.11.2 Panel Mounting ....................50 4.11.2.1 PPC-3708A-N270 and PPC-3710A-N270..........50 4.11.2.2 PPC-3712A/B-N270 ................52 4.11.3 Arm Mounting ....................54 4.11.4 Cabinet and Rack Installation................ 55 4.11.4.1 PPC-3708A-N270 ................... 55 4.11.4.2 PPC-3710A-N270 and PPC-3712A/B-N270 .......... 57 4.12 R...
- Page 7 PPC-37xx-N270 Panel PC 5.3.5.1 ACPI configuration ................... 85 5.3.5.2 APM Configuration................... 86 5.3.6 Remote Configuration ..................88 5.3.7 USB Configuration................... 92 5.4 PCI/P P........................94 5.5 B ........................97 5.5.1 Boot Settings Configuration................97 5.5.2 Boot Device Priority ..................100 5.6 S .......................
- Page 8 PPC-37xx-N270 Panel PC D HAZARDOUS MATERIALS DISCLOSURE ............138 D.1 H IPB P AZARDOUS ATERIALS ISCLOSURE ABLE FOR RODUCTS ERTIFIED AS HS C 2002/95/EC W ........139 OMPLIANT NDER ITHOUT ERCURY Page viii...
- Page 9 Figure 1-7: PPC-3712B-N270 Bottom View ..................7 Figure 1-8: PPC-3712A/B-N270 Left View..................7 Figure 1-9: PPC-3712 Frame Rear View..................8 Figure 2-1: PPC-3708A-N270 Dimensions (units in mm) ............11 Figure 2-2: PPC-3710A-N270 Dimensions (units in mm) ............12 Figure 2-3: PPC-3712A/B-N270 Dimensions (units in mm) ............13 Figure 2-4: PPC-3712B-N270 Dimensions (units in mm) ............14...
- Page 10 Figure 4-20: Wall-mounting Bracket ...................48 Figure 4-21: Mount the Chassis ....................49 Figure 4-22: Secure the Chassis ....................50 Figure 4-23: Suggested Panel Cut Out Size for PPC-3708A-N270...........51 Figure 4-24: Suggested Panel Cut Out Size for PPC-3710A-N270...........51 Figure 4-25: Tighten the Panel Mounting Clamp Screws ............52 Figure 4-26: PPC-3712 Panel Mounting Kit................52...
- Page 11 PPC-37xx-N270 Panel PC Figure 6-6: Chipset Driver Installation Complete ..............113 Figure 6-7: Select the Operating System ................114 Figure 6-8: VGA Driver ......................114 Figure 6-9: GMA Driver Readme File ..................115 Figure 6-10: GMA Driver File Extraction ................. 115 Figure 6-11: GMA Driver Installation Welcome Screen ............
- Page 12 PPC-37xx-N270 Panel PC List of Tables Table 1-1: Model Variations ......................3 Table 1-2: System Specifications....................9 Table 2-1: PPC-3712B-N270 Power Supply Specifications ............23 Table 4-1: Jumpers ........................41 Table 4-2: Preconfigured Jumpers .....................41 Table 4-3: AT Power Select Jumper Settings ................42 Table 4-4: CF Card Setup Jumper Settings ................43 Table 4-5: Clear CMOS Jumper Settings..................45 Table 4-6: COM 2 Function Select Jumper Settings ..............46 Table 4-7: RS-422 Pinouts ......................46...
- Page 13 PPC-37xx-N270 Panel PC BIOS Menus Menu 1: Main ..........................66 Menu 2: Advanced ........................68 Menu 3: CPU Configuration......................69 Menu 4: IDE Configuration......................70 Menu 5: IDE Master and IDE Slave Configuration..............72 Menu 6: Super IO Configuration ....................77 Menu 7: Hardware Health Configuration ..................81 Menu 8: Power Configuration......................84 Menu 9: ACPI Configuration......................85 Menu 10:Advanced Power Management Configuration ............86...
-
Page 15: Introduction
PPC-37xx-N270 Panel PC Chapter Introduction Page 1... -
Page 16: Overview
PPC-37xx-N270 Panel PC 1.1 Overview Figure 1-1: PPC-37xx-N270 Panel PC The PPC-37xx-N270 is an industrial flat panel PC. The PPC-37xx-N270 can be used for machine control, production lines, kiosks and information stations. The PPC-37xx-N270 is preinstalled with an Intel® Atom™ CPU for applications where more computing power is needed. -
Page 17: Features
1.1.2 Model Variations The model variations are listed in Table 1-1. Memory Power 8.4” 1.6 GHz Intel® 1.0 GB 60 W power supply PPC-3708A-N270/R/1G-R20 Atom™ N270 12 V DC input 10.4” 1.6 GHz Intel® 1.0 GB 60 W power supply PPC-3710A-N270/R/1G-R20 Atom™... -
Page 18: Applications
PPC-37xx-N270 Panel PC 1.1.3 Applications The flat panel PC is designed for rigorous industrial environments where it may be exposed to both heat and moisture. Its durability and strength also makes it an ideal choice for public access computers. Some possible applications include: Automated manufacturing processes Public information gathering point 1.2 External Overview... -
Page 19: Rear Panel
PPC-37xx-N270 Panel PC 1.2.2 Rear Panel The rear panel provides access to a fan ventilation vent and four retention screw holes that support a wall-mounting bracket. Figure 1-3 shows the retention screw holes of the PPC-3712A/B-N270. Figure 1-3: PPC-3712A/B-N270 Wall-Mounting Bracket Retention Screw Holes 1.2.3 Bottom Panel The following is a list of the bottom panel peripheral device connectors on the PPC-37xx-N270. -
Page 20: Figure 1-4: Ppc-3708A-N270 Bottom View
PPC-37xx-N270 Panel PC Figure 1-4: PPC-3708A-N270 Bottom View Figure 1-5: PPC-3710A-N270 Bottom View Figure 1-6: PPC-3712A/B-N270 Bottom View Page 6... -
Page 21: Side Panel
PPC-37xx-N270 Panel PC Figure 1-7: PPC-3712B-N270 Bottom View 1.2.4 Side Panel The both sides panel of the flat panel PC contain some vents for ventilation. The left side panel of PPC-3712 also provides access to the slim type CD-ROM bay (Figure 1-8). Figure 1-8: PPC-3712A/B-N270 Left View 1.2.5 Frame An aluminum frame surrounds the TFT LCD screen. -
Page 22: Specifications
PPC-37xx-N270 Panel PC Figure 1-9: PPC-3712 Frame Rear View 1.3 Specifications The technical specifications for the PPC-3708A, PPC-3710A and PPC-3712A/B system are listed in Table 1-2. SPECIFICATION PPC-3708A-N270 PPC-3710A-N270 PPC-3712A/B-N270 Front Panel Aluminum Front Panel Chassis Heavy-duty Steel LCD Panel 8.4”... -
Page 23: Table 1-2: System Specifications
PPC-37xx-N270 Panel PC SPECIFICATION PPC-3708A-N270 PPC-3710A-N270 PPC-3712A/B-N270 Memory Preinstalled 1 GB DDR2 SDRAM SO-DIMM memory module (system max. 2 GB) Display Support Dual Display Expansion Slot One PCIe mini card slot Drive Bay 1 x 2.5” HDD bay 1 x 2.5” HDD bay 1 x slim type CD-ROM 1 x 2.5”... -
Page 24: Detailed Specifications
PPC-37xx-N270 Panel PC Chapter Detailed Specifications Page 10... -
Page 25: Dimensions
PPC-37xx-N270 Panel PC 2.1 Dimensions Dimensions for the PPC-37xx-N270 models are shown in the subsections below. 2.1.1 PPC-3708A-N270 Dimensions The dimensions of the PPC-3708A-N270 flat panel PC are shown in Figure 2-1 below. Figure 2-1: PPC-3708A-N270 Dimensions (units in mm) Page 11... -
Page 26: Ppc-3710A-N270 Dimensions
PPC-37xx-N270 Panel PC 2.1.2 PPC-3710A-N270 Dimensions The dimensions of the PPC-3710A-N270 flat panel PC are shown in Figure 2-2 below. Figure 2-2: PPC-3710A-N270 Dimensions (units in mm) Page 12... -
Page 27: Ppc-3712A/B-N270 Dimensions
PPC-37xx-N270 Panel PC 2.1.3 PPC-3712A/B-N270 Dimensions The dimensions of the PPC-3712A/B-N270 flat panel PC are shown in Figure 2-3 below. Figure 2-3: PPC-3712A/B-N270 Dimensions (units in mm) Page 13... -
Page 28: Ppc-3712B-N270 Dimensions
PPC-37xx-N270 Panel PC 2.1.4 PPC-3712B-N270 Dimensions The dimensions of the PPC-3712B-N270 flat panel PC are shown in Figure 2-4 below. Figure 2-4: PPC-3712B-N270 Dimensions (units in mm) Page 14... -
Page 29: Intel® Atom™ Processor
PPC-37xx-N270 Panel PC 2.2 Intel® Atom™ Processor A 45nm N270 Intel® Atom™ processor is installed in the system. The processor has a CPU speed of 1.6 GHz and a 533 MHz front side bus (FSB). The processor also comes with a 512 KB L2 cache and a 1.6 GHz L2 cache speed. Some of the features of the Intel® Atom™... -
Page 30: Additional Memory
PPC-37xx-N270 Panel PC 2.3.1.2 Additional Memory The Intel® 945GSE is capable of supporting one 200-pin 2.0 GB (max.) 533 MHz or 400 MHz DDR2 SDRAM SO-DIMM. If additional memory is required, please contact an IEI sales representative and discuss the necessary system requirement. 2.3.2 Storage Capacity The PPC-37xx-N270 series supports an easily installed CompactFlash®... -
Page 31: External Peripheral Interface Connectors
PPC-37xx-N270 Panel PC 2.4 External Peripheral Interface Connectors The following section describes the external peripheral interface connectors on the bottom panel of the subsystem. 2.4.1 Serial Port Connectors The PPC-37xx-N270 has three serial ports. Two of these ports (COM1 and COM3) are RS-232 only port. -
Page 32: Lan Connectivity
PPC-37xx-N270 Panel PC 2.4.2 LAN Connectivity The PPC-37xx-N270 has two RJ-45 LAN connectors on the bottom panel. Figure 2-8: PPC-3708A RJ-45 Ethernet Connectors The PCIe lane from the Intel® ICH7 chipset of the PPC-37xx-N270 is interfaced to the Realtek RTL8111CP PCIe gigabit Ethernet (GbE) controllers. The RTL8111CP controllers are then connected directly to the RJ-45 connectors on the bottom panel and provides external GbE connectivity. -
Page 33: Keyboard And Mouse Connectivity
PPC-37xx-N270 Panel PC Figure 2-9: PPC-3708A External USB Ports 2.4.4 Keyboard and Mouse Connectivity The PS/2 keyboard/mouse connector on the bottom panel interface to a super I/O chipset on the motherboard that connects through the LPC bus to the ICH7-M southbridge chipset. -
Page 34: N270 Front Side
PPC-37xx-N270 Panel PC 2.5 PPC-37xx-N270 Front Side 2.5.1 Monitor A LCD screen is installed on the front of the PPC-37xx-N270 series. The monitor maximum resolution is varied in different PPC-37xx-N270 models. The screen is shown in Figure 2-11 below. Figure 2-11: LCD Screen 2.5.2 Touch-Screen Module A controller for the 4-wire/5-wire resistive touch screen is installed on the motherboard. -
Page 35: Dual-Display
PPC-37xx-N270 Panel PC Figure 2-12: PPC-3708A VGA Connector 2.6.2 Dual-Display The system supports dual display capabilities. The second display device can be connected to the PPC-37xx-N270 through the VGA connector described above. 2.7 Audio The integrated AC’97 Audio compliant audio controller on the Intel® ICH7 Southbridge is connected to a 5.1 channel audio kit with RealTek ALC655 audio codec. -
Page 36: System Power
PPC-37xx-N270 Panel PC 2.8 System Power 2.8.1 PPC-37xxA-N270 Series Power The standard system is shipped with a 90 V to 264 V AC power adapter that has a maximum power output of 60 W. The power adapter has a 12 V DC output connector. The PPC-37xxA-N270 series has one 12 V power input connector on the bottom panel. -
Page 37: Table 2-1: Ppc-3712B-N270 Power Supply Specifications
PPC-37xx-N270 Panel PC 268,000 hrs 170,000 hrs MTBF 152.4 mm x 89 mm x 39 mm 152.4 mm x 89 mm x 39 mm Dimensions Table 2-1: PPC-3712B-N270 Power Supply Specifications Page 23... -
Page 38: Unpacking
PPC-37xx-N270 Panel PC Chapter Unpacking Page 24... -
Page 39: Unpacking
PPC-37xx-N270 Panel PC 3.1 Unpacking To unpack the flat panel PC, follow the steps below: WARNING! The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the flat panel PC has been properly installed. -
Page 40: Packing List
PPC-37xx-N270 Panel PC 3.1.1 Packing List The PPC-37xx-N270 flat panel PC is shipped with the following components: Quantity Item Image Standard PPC-37xx-N270 series Power adapter (P/N: 63000-FSP060DBAB1554-RS) Power cord (P/N: 32702-000200-100-RS) KB/MS PS/2 Y-cable (P/N: 32000-000138-RS) Mini jumper pack (2.0mm) (P/N:33100-000033-RS) Screw kit (P/N: 19600-000205-RS) - Page 41 PPC-37xx-N270 Panel PC Wall Mount Kit (P/N: WK-190MS-R10) Panel mounting kit Optional Stand (P/N: STAND-150-RS) Rack Mount Kit (P/N: ARM-11-RS) If any of these items are missing or damaged, contact the distributor or sales representative immediately. Page 27...
-
Page 42: Installation
PPC-37xx-N270 Panel PC Chapter Installation Page 28... -
Page 43: Anti-Static Precautions
PPC-37xx-N270 Panel PC 4.1 Anti-static Precautions WARNING: Failure to take ESD precautions during the maintenance of the PPC-37xx-N270 result permanent damage PPC-37xx-N270 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PPC-37xx-N270. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the PPC-37xx-N270 is accessed internally, or any other electrical component is handled, the following anti-static precautions are strictly adhered Wear an anti-static wristband: - Wearing a simple anti-static wristband can... -
Page 44: Preinstalled Components
PPC-37xx-N270 Panel PC Anti-static Discharge: If a user open the rear panel of the flat panel PC, to configure the jumpers or plug in added peripheral devices, ground themselves first and wear and anti-static wristband. 4.3 Preinstalled Components The following components are all preinstalled. Motherboard TFT LCD screen 1.0 GB DDR2 memory module... -
Page 45: Remove The
PPC-37xx-N270 Panel PC 4.5 Remove the Back Cover 4.5.1 PPC-3708 Back Cover Removal The back cover of the PPC-3708 is secured to the chassis with seven retention screws, five on the rear panel and two on the top panel (Figure 4-1). Remove the seven retention screws and lift the cover off the PPC-3708. -
Page 46: Ppc-3712 Back Cover Removal
PPC-37xx-N270 Panel PC 4.5.3 PPC-3712 Back Cover Removal The back cover is secured to the chassis with nine retention screws, six on the rear panel and three on the top panel (Figure 4-3). Remove the nine retention screws and lift the cover off the PPC-3712. -
Page 47: Hdd Installation
PPC-37xx-N270 Panel PC Insert the CF card. Gently insert the CF card into the socket making sure the Step 4: socket pins are properly inserted into the socket. See Figure 4-4. Step 0: Figure 4-4: CF Card Installation 4.8 HDD Installation 4.8.1 PPC-3708 HDD Installation To install the HDD into the PPC-3708, please follow the steps below: Remove the back cover. -
Page 48: Figure 4-5: Ppc-3708 Hdd Bracket Retention Screws (Tope Panel)
PPC-37xx-N270 Panel PC Figure 4-5: PPC-3708 HDD Bracket Retention Screws (Tope Panel) Figure 4-6: PPC-3708 HDD Bracket Retention Screws (Inside) Attach the HDD bracket to the HDD. To do this, align the four retention screw Step 3: holes in the HDD bracket with the retention screw holes on the bottom of the HDD. -
Page 49: Ppc-3710 Hdd Installation
PPC-37xx-N270 Panel PC Connect the SATA cable from the motherboard to the rear of the HDD.Step 0: Step 5: 4.8.2 PPC-3710 HDD Installation To install the HDD into the PPC-3710, please follow the steps below: Remove the back cover. See Section 4.5.2 above. Step 1: Remove the HDD bracket from the PPC-3710. -
Page 50: Ppc-3712 Hdd Installation
PPC-37xx-N270 Panel PC Figure 4-9: PPC-3710 HDD Retention Screws Install the HDD into the PPC-3710 by aligning the retention screw holes in the Step 4: HDD bracket with the retention screw holes on the panel PC. Insert the four retention screws. Connect the SATA cable from the motherboard to the rear of HDD.Step 0: Step 5:... -
Page 51: Figure 4-10: Ppc-3712 Hdd Bracket Retention Screws
PPC-37xx-N270 Panel PC Figure 4-10: PPC-3712 HDD Bracket Retention Screws Install the HDD into the PPC-3712 by aligning the retention screw holes in the Step 4: base of the HDD brackets with the retention screw holes on the metal sheet. Insert the four retention screws, two into the base of each HDD bracket (Figure 4-11.) Figure 4-11: PPC-3712 HDD Retention Screws... -
Page 52: Cd Drive Installation (Ppc-3712A/B-N270 Only)
PPC-37xx-N270 Panel PC 4.9 CD Drive Installation (PPC-3712A/B-N270 Only) To install the CD drive into the PPC-3712, please follow the steps below: Attach the CD drive adapter to the CD drive by aligning the two retention screw Step 1: holes in the CD drive adapter with the retention screw holes on the rear side of the CD drive. -
Page 53: Figure 4-13: Ppc-3712 Cd Drive Bracket
PPC-37xx-N270 Panel PC Figure 4-13: PPC-3712 CD Drive Bracket Remove the CD drive cover bracket by removing the four retention screws Step 4: shown in Figure 4-14. Figure 4-14: CD Drive Cover Bracket Retention Screws Page 39... -
Page 54: Jumper Settings
PPC-37xx-N270 Panel PC Attach the CD drive bracket to the CD drive. To do this, align the four retention Step 5: screw holes in the CD drive bracket with the retention screw holes on the side of the CD drive. Insert four retention screws into the bracket on both sides of the HDD. -
Page 55: Access The Jumpers
PPC-37xx-N270 Panel PC Description Label Type AT Power Mode Setting ATXCTL1 2-pin header CF Card Setting JCF1 2-pin header Clear CMOS J_CMOS1 3-pin header COM2 Mode Setting 6-pin header Table 4-1: Jumpers 4.10.1 Access the Jumpers To access the jumpers, remove the back panel. To remove the back panel, please refer to Section 4.5. -
Page 56: At Power Select Jumper Settings
PPC-37xx-N270 Panel PC 4.10.3 AT Power Select Jumper Settings NOTE: The AT Power Select Jumper is the same as the ATX Enable connector. Jumper Label: ATXCTl1 3-pin header Jumper Type: See Table 4-3 Jumper Settings: See Figure 4-16 Jumper Location: The AT Power Select jumper specifies the systems power mode as AT or ATX. -
Page 57: Cf Card Setup
PPC-37xx-N270 Panel PC Figure 4-16: AT Power Select Jumper Location 4.10.4 CF Card Setup Jumper Label: JCF1 2-pin header Jumper Type: See Table 4-4 Jumper Settings: See Figure 4-17 Jumper Location: The CF Card Setup jumper sets the CF Type I card or CF Type II cards as either the slave device or the master device. -
Page 58: Clear Cmos Jumper
PPC-37xx-N270 Panel PC Figure 4-17: CF Card Setup Jumper Location 4.10.5 Clear CMOS Jumper Jumper Label: J_CMOS1 3-pin header Jumper Type: T able 4-5 Jumper Settings: Jumper Location: F igure 4-18 If the PPC-37xx-N270 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. -
Page 59: Com 2 Function Select Jumper
PPC-37xx-N270 Panel PC AT Power Select Description Short 1 - 2 Keep CMOS Setup Default Short 2 - 3 Clear CMOS Setup Table 4-5: Clear CMOS Jumper Settings The location of the clear CMOS jumper is shown in F igure 4-18 below. Figure 4-18: Clear CMOS Jumper 4.10.6 COM 2 Function Select Jumper Jumper Label:... -
Page 60: Com2 Rs-422 And Rs-485 Pinouts
PPC-37xx-N270 Panel PC Short 5-6 RS-485 Table 4-6: COM 2 Function Select Jumper Settings The COM 2 Function Select jumper location is shown in Figure 4-19. Figure 4-19: COM 2 Function Select Jumper Location 4.10.6.1 COM2 RS-422 and RS-485 Pinouts The pinouts for RS-422 and RS-485 operation of external serial port COM 2 are detailed below. -
Page 61: Mounting The System
PPC-37xx-N270 Panel PC 4.11 Mounting the System WARNING! When mounting the flat panel PC onto an arm, onto the wall or onto a panel, it is better to have more than one person to help with the installation to make sure the flat panel PC does not fall down and get damaged. -
Page 62: Figure 4-20: Wall-Mounting Bracket
PPC-37xx-N270 Panel PC Figure 4-20: Wall-mounting Bracket Insert the four monitor mounting screws provided in the wall mounting kit into the Step 6: four screw holes on the real panel of the monitor and tighten until the screw shank is secured against the rear panel (Figure 4-21). Align the mounting screws on the monitor rear panel with the mounting holes on Step 1: the bracket. -
Page 63: Figure 4-21: Mount The Chassis
PPC-37xx-N270 Panel PC Figure 4-21: Mount the Chassis Secure the panel PC with the wall-mounting kit. To do this, stick the protective Step 3: cushion to the wall-mounting kit first. Then, put the wall-mounting kit on the top panel of the panel PC. Carefully mark the location of the wall-mounting kit screw holes on the wall. -
Page 64: Panel Mounting
Figure 4-22: Secure the Chassis 4.11.2 Panel Mounting 4.11.2.1 PPC-3708A-N270 and PPC-3710A-N270 To mount the PPC-3708A-N270 or PPC-3710A-N270 flat panel PC into a panel, please follow the steps below. Select the position in the panel to mount the panel PC. -
Page 65: Figure 4-23: Suggested Panel Cut Out Size For Ppc-3708A-N270
PPC-37xx-N270 Panel PC Figure 4-23: Suggested Panel Cut Out Size for PPC-3708A-N270 Figure 4-24: Suggested Panel Cut Out Size for PPC-3710A-N270 Slide the flat panel computer through the previously cut hole. The chassis at the Step 3: rear of the flat panel should slide easily through the hole. Only stop sliding the panel through the hole when the back of the front aluminum frame is flush against the panel. -
Page 66: Ppc-3712A/B-N270
PPC-37xx-N270 Panel PC Tighten the screws that pass through the panel mounting clamps until the plastic Step 5: caps at the front of all the screws are firmly secured to the panel (Figure 4-25). Figure 4-25: Tighten the Panel Mounting Clamp Screws 4.11.2.2 PPC-3712A/B-N270 To mount the PPC-3712A/B-N270 flat panel PC into a panel, please follow the steps below. -
Page 67: Figure 4-27: Suggested Panel Cut Out Size For Ppc-3712A/B-N270
PPC-37xx-N270 Panel PC Cut out a section from the panel that corresponds to the dimensions of the flat Step 3: panel PC chassis. The panel section that is cut out must be smaller than the size of the aluminum frame that surrounds the 12.1” TFT LCD panel but just large enough for the chassis to fit through (Figure 4-27). -
Page 68: Arm Mounting
PPC-37xx-N270 Panel PC Figure 4-28: Tighten the Panel Mounting Clamp Screws 4.11.3 Arm Mounting The flat panel PC is VESA (Video Electronics Standards Association) compliant and can be mounted on an arm with a 100 mm interface pad. To mount the flat panel PC on an arm, please follow the steps below. -
Page 69: Cabinet And Rack Installation
To do this, please follow the steps below. 4.11.4.1 PPC-3708A-N270 Slide the rear chassis of the PPC-3708A-N270 flat panel PC through the Step 1: rack/cabinet bracket until the aluminum frame is flush against the front of the bracket (Figure 4-30). -
Page 70: Figure 4-30: The Rack/Cabinet Bracket
(Figure 4-31). Figure 4-31: Secure the PPC-3708A-N270 Rack/Cabinet Bracket Slide the PPC-3708A-N270 flat panel PC with the attached rack/cabinet bracket Step 4: into a rack or cabinet (Figure 4-32). -
Page 71: Ppc-3710A-N270 And Ppc-3712A/B-N270
PPC-37xx-N270 Panel PC Figure 4-32: Install into a Rack/Cabinet Once the flat panel PC with the attached rack/cabinet bracket has been properly Step 5: inserted into the rack or cabinet, secure the front of the rack/cabinet bracket to the front of the rack or cabinet (Figure 4-32). 4.11.4.2 PPC-3710A-N270 and PPC-3712A/B-N270 The back of the aluminum frame surrounding the LCD screen has retention Step 1:... -
Page 72: Rear Panel Connectors
Secure the rack/cabinet bracket to the PPC-3712A/B-N270 flat panel PC by Step 4: inserting the retention screws (Figure 4-33). Figure 4-33: Secure the Rack/Cabinet Bracket Follow Step 4 and Step 5 of the PPC-3708A-N270 Cabinet and Rack Step 5: Installation procedures to complete the whole installation process.Step 0: 4.12 Rear Panel Connectors... -
Page 73: Serial Device Connection
PPC-37xx-N270 Panel PC Locate the RJ-45 connectors on the bottom panel of the PPC-37xx-N270. Step 1: Align the connectors. Align the RJ-45 connector on the LAN cable with one of Step 2: the RJ-45 connectors on the bottom panel of the PPC-37xx-N270. See Figure 4-34. -
Page 74: Usb Device Connection
PPC-37xx-N270 Panel PC Figure 4-35: Serial Device Connector Secure the connector. Secure the serial device connector to the external Step 3: interface by tightening the two retention screws on either side of the connector. S t e p 0 : 4.12.4 USB Device Connection To connect a USB 2.0 or USB 1.1 device, please follow the instructions below. -
Page 75: Vga Monitor Connection
PPC-37xx-N270 Panel PC Figure 4-36: USB Device Connection Insert the device connector. Once aligned, gently insert the USB device Step 3: connector into the onboard connector. Step 0: 4.12.5 VGA Monitor Connection The PPC-37xx-N270 has a single female DB-15 connector on the external peripheral interface panel. -
Page 76: System Maintenance
PPC-37xx-N270 Panel PC Once the connectors are properly aligned with the Step 3: Insert the VGA connector. insert the male connector from the VGA screen into the female connector on the PPC-37xx-N270. See Figure 4-37. Figure 4-37: VGA Connector Secure the connector. Secure the DB-15 VGA connector from the VGA Step 4: monitor to the external interface by tightening the two retention screws on either side of the connector. -
Page 77: Bios Screens
PPC-37xx-N270 Panel PC Chapter BIOS Screens Page 63... -
Page 78: Introduction
PPC-37xx-N270 Panel PC 5.1 Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed. -
Page 79: Getting Help
PPC-37xx-N270 Panel PC F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 /F3 key Change color from total three colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 5-1: BIOS Navigation Keys 5.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the... -
Page 80: Main
PPC-37xx-N270 Panel PC 5.2 Main The Main BIOS menu ( B IOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main System Overview The System Overview lists a brief summary of different system components. The fields in System Overview cannot be changed. -
Page 81: Advanced
PPC-37xx-N270 Panel PC System Memory: Displays the auto-detected system memory. Size: Lists memory size The System Overview field also has two user configurable fields: System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. -
Page 82: Cpu Configuration
PPC-37xx-N270 Panel PC BIOS Menu 2: Advanced 5.3.1 CPU Configuration Use the CPU Configuration menu ( B IOS Menu 3) to view detailed CPU specifications and configure the CPU. Page 68... -
Page 83: Ide Configuration
PPC-37xx-N270 Panel PC BIOS Menu 3: CPU Configuration The CPU Configuration menu ( B IOS Menu 3) lists the following CPU details: Manufacturer: Lists the name of the CPU manufacturer Brand String: Lists the brand name of the CPU being used Frequency: Lists the CPU processing speed FSB Speed: Lists the FSB speed Cache L1: Lists the CPU L1 cache size... -
Page 84: Ata/Ide Configurations [Compatible]
PPC-37xx-N270 Panel PC BIOS Menu 4: IDE Configuration ATA/IDE Configurations [Compatible] Use the ATA/IDE Configurations option to configure the ATA/IDE controller. Disables the on-board ATA/IDE controller. Disabled Configures the on-board ATA/IDE controller to be in Compatible compatible mode. In this mode, a SATA channel will replace one of the IDE channels. -
Page 85: Ide Master, Ide Slave
PPC-37xx-N270 Panel PC Only the SATA drives are enabled. SATA Only The IDE drives are enabled on the Primary SATA Pri, PATA Sec EFAULT IDE channel. The SATA drives are enabled on the Secondary IDE channel. The IDE drives are enabled on the primary PATA Only and secondary IDE channels. -
Page 86: Auto-Detected Drive Parameters
PPC-37xx-N270 Panel PC BIOS Menu 5: IDE Master and IDE Slave Configuration Auto-Detected Drive Parameters The “grayed-out” items in the left frame are IDE disk drive parameters automatically detected from the firmware of the selected IDE disk drive. The drive parameters are listed as follows: Device: Lists the device type (e.g. -
Page 87: Type [Auto]
PPC-37xx-N270 Panel PC interrupt if block mode is not used. Block mode allows transfers of up to 64 KB per interrupt. PIO Mode: Indicates the PIO mode of the installed device. Async DMA: Indicates the highest Asynchronous DMA Mode that is supported. -
Page 88: Block (Multi Sector Transfer) [Auto]
PPC-37xx-N270 Panel PC Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the maximum drive capacity is 137 GB. BIOS is prevented from using the LBA mode control on Disabled the specified channel. -
Page 89: Dma Mode [Auto]
PPC-37xx-N270 Panel PC PIO mode 4 selected with a maximum transfer rate of 16.6MBps (This setting generally works with all hard disk drives manufactured after 1999. For other disk drives, such as IDE CD-ROM drives, check the specifications of the drive.) DMA Mode [Auto] Use the DMA Mode BIOS selection to adjust the DMA mode options. -
Page 90: Super Io Configuration
PPC-37xx-N270 Panel PC 80-conductor ATA cable is used.) Ultra DMA mode 4 selected with a maximum data transfer UDMA4 rate of 66.6MBps (To use this mode, it is required that an 80-conductor ATA cable is used.) Ultra DMA mode 5 selected with a maximum data transfer UDMA5 rate of 99.9MBps (To use this mode, it is required that an 80-conductor ATA cable is used.) -
Page 91: Parallel Port Address [Disabled]
PPC-37xx-N270 Panel PC BIOS Menu 6: Super IO Configuration Parallel Port Address [Disabled] Use the Parallel Port Address option to select the parallel port base address. No base address is assigned to the Parallel Port Disabled EFAULT Parallel Port I/O port address is 378 Parallel Port I/O port address is 278 Parallel Port I/O port address is 3BC Parallel Port Mode [Normal]... -
Page 92: Parallel Port Irq [Irq7]
PPC-37xx-N270 Panel PC port mode (EPP). The EPP mode supports bi-directional communication between the system and the parallel port device and the transmission rates between the two are much faster than the Normal mode. The parallel port operates in the extended ECP+EPP capabilities port (ECP) mode. -
Page 93: Serial Port2 Address [2F8/Irq3]
PPC-37xx-N270 Panel PC Use the Serial Port1 Mode option to select the transmitting and receiving mode for the first serial port. Serial Port 1 mode is normal Normal EFAULT Serial Port 1 mode is IrDA IrDA Serial Port 1 mode is ASK IR ASK IR Serial Port2 Address [2F8/IRQ3] Use the Serial Port2 Address option to select the Serial Port 2 base address. -
Page 94: Hardware Health Configuration
PPC-37xx-N270 Panel PC Serial port 3 I/O port address is 2F0 Serial port 3 I/O port address is 2E0 Serial Port3 IRQ [11] Use the Serial Port3 IRQ option to select the interrupt address for serial port 3. Serial port 3 IRQ address is 10 Serial port 3 IRQ address is 11 EFAULT Serial Port4 Address [2E8]... -
Page 95: Cpu Fan Mode Setting [Full On Mode]
PPC-37xx-N270 Panel PC BIOS Menu 7: Hardware Health Configuration CPU FAN Mode Setting [Full On Mode] Use the CPU FAN Mode Setting option to configure the second fan. Fan is on all the time Full On Mode EFAULT Fan is off when the temperature is low Automatic mode enough. -
Page 96: Cpu Temp. Limit Of Off [000]
PPC-37xx-N270 Panel PC When the CPU FAN Mode Setting option is in the PWM Manual Mode, the following parameters can be set. CPU Fan PWM control CPU Temp. Limit of OFF [000] WARNING: Setting this value too high may cause the fan to stop when the CPU is at a high temperature and therefore cause the system to be damaged. -
Page 97: Cpu Fan Start Pwm [070]
PPC-37xx-N270 Panel PC and enter a decimal number between 000 and 127. The temperature range is specified below. Minimum Value: 0°C Maximum Value: 127°C CPU Fan Start PWM [070] The Fan 3 Start PWM option can only be set if the CPU FAN Mode Setting option is set to Automatic Mode. -
Page 98: Power Configuration
PPC-37xx-N270 Panel PC CPU Temperature System Temperature Fan Speeds: The CPU cooling fan speed is monitored. CPU Fan Speed Voltages: The following system voltages are monitored CPU Core +1.05V +3.30V +12.0 V +1.5V +1.8V 5VSB VBAT 5.3.5 Power Configuration The Power Configuration menu ( B IOS Menu 8) configures the Advanced Configuration and Power Interface (ACPI) and Power Management (APM) options. -
Page 99: Acpi Configuration
PPC-37xx-N270 Panel PC 5.3.5.1 ACPI configuration The ACPI Configuration menu ( B IOS Menu 9) configures the Advanced Configuration and Power Interface (ACPI). BIOS Menu 9: ACPI Configuration Suspend Mode [S1(POS)] Use the Suspend Mode BIOS option to specify the sleep state the system enters when it is not being used. -
Page 100: Apm Configuration
PPC-37xx-N270 Panel PC 5.3.5.2 APM Configuration The APM Configuration menu (BIOS Menu 10) allows the advanced power management options to be configured. BIOS Menu 10:Advanced Power Management Configuration Restore on AC Power Loss [Last State] Use the Restore on AC Power Loss BIOS option to specify what state the system returns to if there is a sudden loss of power to the system. -
Page 101: Resume On Keyboard/Mouse [Disabled]
PPC-37xx-N270 Panel PC Use the Power Button Mode BIOS to specify how the power button functions. When the power button is pressed the system is either On/Off EFAULT turned on or off When the power button is pressed the system goes into Suspend suspend mode Resume on Keyboard/Mouse [Disabled]... -
Page 102: Remote Configuration
PPC-37xx-N270 Panel PC activity Resume On RTC Alarm [Disabled] Use the Resume On RTC Alarm option to specify the time the system should be roused from a suspended state. The real time clock (RTC) cannot generate a wake Disabled EFAULT event If selected, the following appears with values that Enabled... -
Page 103: Remote Access [Disabled]
PPC-37xx-N270 Panel PC BIOS Menu 11: Remote Access Configuration [Advanced] Remote Access [Disabled] Use the Remote Access option to enable or disable access to the remote functionalities of the system. Remote access is disabled. Disabled EFAULT Remote access configuration options shown below Enabled appear: Serial Port Number... -
Page 104: Vt-Utf8 Combo Key Support
PPC-37xx-N270 Panel PC VT-UTF8 Combo Key Support These configuration options are discussed below. Serial Port Number [COM1] Use the Serial Port Number option allows to select the serial port used for remote access. System is remotely accessed through COM1 COM1 EFAULT System is remotely accessed through COM2 COM2... -
Page 105: Flow Control [None]
PPC-37xx-N270 Panel PC Flow Control [None] Use the Flow Control option to report the flow control method for the console redirection application. No control flow, None EFAULT Hardware is set as the console redirection Hardware Software is set as the console redirection Software Redirection After BIOS POST [Always] Use the Redirection After BIOS POST option to specify when console redirection should... -
Page 106: Usb Configuration
PPC-37xx-N270 Panel PC on the standard PC 101-key layout, however. The VT-UTF8 convention makes available additional keys that are not provided by VT100 for the PC 101 keyboard. Disables the VT-UTF8 terminal keys Disabled EFAULT Enables the VT-UTF8 combination key. Support for Enabled ANSI/VT100 terminals Sredir Memory Display Delay [Disabled]... -
Page 107: Usb Functions [Enabled]
PPC-37xx-N270 Panel PC BIOS Menu 12: USB Configuration USB Functions [Enabled] Use the USB Function option to enable or disable the USB controllers. USB controllers are enabled Disabled USB controllers are disabled Enabled EFAULT USB 2.0 Controller [Enabled] The USB 2.0 Controller BIOS option enables or disables the USB 2.0 controller USB function disabled Disabled USB function enabled... -
Page 108: Pci/Pnp
PPC-37xx-N270 Panel PC The controller is capable of operating at full speed FullSpeed 12 Mb/s The controller is capable of operating at high speed HiSpeed EFAULT 480 Mb/s Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. -
Page 109: Irq# [Available]
PPC-37xx-N270 Panel PC BIOS Menu 13: PCI/PnP Configuration IRQ# [Available] Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral device. The specified IRQ is available to be used by Available EFAULT PCI/PnP devices The specified IRQ is reserved for use by Legacy ISA Reserved devices Available IRQ addresses are:... -
Page 110: Dma Channel# [Available]
PPC-37xx-N270 Panel PC IRQ 14 IRQ 15 DMA Channel# [Available] Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP device. The specified DMA is available to be used by Available EFAULT PCI/PnP devices The specified DMA is reserved for use by Legacy Reserved ISA devices Available DMA Channels are:... -
Page 111: Boot
PPC-37xx-N270 Panel PC 5.5 Boot Use the Boot menu ( B IOS Menu 14) to configure system boot options. BIOS Menu 14: Boot 5.5.1 Boot Settings Configuration Use the Boot Settings Configuration menu ( B IOS Menu 14) to configure advanced system boot options. -
Page 112: Quick Boot [Enabled]
PPC-37xx-N270 Panel PC BIOS Menu 15: Boot Settings Configuration Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process. No POST procedures are skipped Disabled Some POST procedures are skipped to decrease Enabled EFAULT the system boot time... -
Page 113: Addon Rom Display Mode [Force Bios]
PPC-37xx-N270 Panel PC AddOn ROM Display Mode [Force BIOS] The AddOn ROM Display Mode option allows add-on ROM (read-only memory) messages to be displayed. Allows the computer system to force a third party Force BIOS EFAULT BIOS to display during system boot. Allows the computer system to display the Keep Current information during system boot. -
Page 114: Boot Device Priority
PPC-37xx-N270 Panel PC 5.5.2 Boot Device Priority Use the Boot Device Priority menu ( B IOS Menu 16) to specify the boot sequence from the available devices. The following options are available: Boot Device Boot Device Boot Device BIOS Menu 16: Boot Device Priority Settings Page 100... -
Page 115: Security
PPC-37xx-N270 Panel PC 5.6 Security Use the Security menu ( B IOS Menu 17) to set system and user passwords. BIOS Menu 17: Security Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed. -
Page 116: Chipset
PPC-37xx-N270 Panel PC password. After the password has been added, Install appears next to Change User Password. 5.7 Chipset Use the Chipset menu ( B IOS Menu 18) to access the NorthBridge and SouthBridge configuration menus WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction. -
Page 117: North Bridge Chipset Configuration
PPC-37xx-N270 Panel PC 5.7.1 North Bridge Chipset Configuration Use the North Bridge Chipset Configuration menu ( B IOS Menu 18) to configure the Northbridge chipset settings. BIOS Menu 19:North Bridge Chipset Configuration Memory Hole [Disabled] The Memory Hole reserves the memory space between 15MB and 16MB for ISA expansion cards that require a specified area of memory to work properly. -
Page 118: Internal Graphics Mode Select [Enable, 8Mb]
PPC-37xx-N270 Panel PC Internal Graphics Mode Select [Enable, 8MB] The Internal Graphic Mode Select option determines the amount of system memory that can be used by the Internal graphics device. Disable 1MB of memory used by internal graphics device Enable, 1MB 8MB of memory used by internal graphics device Enable, 8MB EFAULT... -
Page 119: Boot Display Device [Crt]
PPC-37xx-N270 Panel PC Boot Display Device [CRT] The Boot Display Device BIOS option selects the display device the system uses when it boots. The available options are listed below: Auto EFAULT LFP1 LVDS Panel Type Use the LVDS Panel Type to determine the LCD panel resolution. Configuration options are listed below: 640 x 480 18b 800 x 480 18b... -
Page 120: Southbridge Configuration
PPC-37xx-N270 Panel PC TV type is set to PAL TV type is set to SECAM SECAM TV type is set to SMPTE240M SMPTE240M TV type is set to ITU-R television ITU-R television TV type is set to SMPTE260M SMPTE260M TV type is set to SMPTE295M SMPTE295M TV type is set to SMPTE296M SMPTE296M... -
Page 121: Exit
PPC-37xx-N270 Panel PC Audio controller configured as Azalia Azalia The on-board AC’97 audio controller is enabled. AC’97 Audio Only The on-board audio controller is disabled. All Disabled EFAULT 5.8 Exit Use the Exit menu ( B IOS Menu 21) to load default BIOS values, optimal failsafe values and to save configuration changes. -
Page 122: Discard Changes And Exit
PPC-37xx-N270 Panel PC Discard Changes and Exit Use the Discard Changes and Exit option to exit the BIOS configuration setup program without saving the changes made to the system. Discard Changes Use the Discard Changes option to discard the changes and remain in the BIOS configuration setup program. -
Page 123: Driver Installation
PPC-37xx-N270 Panel PC Chapter Driver Installation Page 109... -
Page 124: Available Software Drivers
PPC-37xx-N270 Panel PC 6.1 Available Software Drivers NOTE: The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. You may visit the IEI website or contact technical support for the latest updates. The following drivers can be installed on the system. -
Page 125: Chipset Driver Installation
PPC-37xx-N270 Panel PC Figure 6-1: Available Drivers Select the driver to install from the list in Figure 6-1. Step 5: 6.3 Chipset Driver Installation To install the chipset driver, please follow the steps below: Select the INF driver from the list in Figure 6-1. Step 1: A new window opens (Figure 6-2). -
Page 126: Figure 6-3: Chipset Driver Installation Welcome Screen
PPC-37xx-N270 Panel PC Double click the infinst_Autol icon in Figure 6-2. Step 3: The welcome screen in Figure 6-3 appears. Step 4: Figure 6-3: Chipset Driver Installation Welcome Screen Click N in Figure 6-3 to continue the installation process. Step 5: The license agreement in Figure 6-4 appears. -
Page 127: Intel ® Graphics Media Accelerator Driver
PPC-37xx-N270 Panel PC Figure 6-5: Chipset Driver Readme File Information Click N in Figure 6-5 to start the driver installation. Step 9: After the driver installation process is complete, a confirmation screen Step 10: (Figure 6-6) appears. Figure 6-6: Chipset Driver Installation Complete ®... -
Page 128: Figure 6-7: Select The Operating System
PPC-37xx-N270 Panel PC A new window opens (Figure 6-7). Step 2: Figure 6-7: Select the Operating System Select the operating system from those shown in Figure 6-7. Step 3: A new window appears (Figure 6-8). Step 4: Figure 6-8: VGA Driver Click the installation program icon in Figure 6-8. -
Page 129: Figure 6-9: Gma Driver Readme File
PPC-37xx-N270 Panel PC The Readme information file shown in Figure 6-9 appears. Step 6: Figure 6-9: GMA Driver Readme File Click N to extract the GMA driver files. See Figure 6-10. Step 7: Figure 6-10: GMA Driver File Extraction The welcome screen shown in Figure 6-11 appears. Step 8: Page 115... -
Page 130: Figure 6-11: Gma Driver Installation Welcome Screen
PPC-37xx-N270 Panel PC Figure 6-11: GMA Driver Installation Welcome Screen To continue the installation process, click N Step 9: The license agreement in Figure 6-12 appears. Step 10: Figure 6-12: GMA Driver License Agreement Click the Y in Figure 6-12 to continue. Step 11: The installation notice shown in Figure 6-13 appears. -
Page 131: Broadcom Lan Driver (For Gbe Lan) Installation
PPC-37xx-N270 Panel PC Figure 6-13: GMA Driver Installing Notice A confirmation screen shown in Figure 6-14 appears. Step 13: Figure 6-14: GMA Driver Installation Complete After selecting when to restart the computer in Figure 6-14, click F Step 14: INISH 6.5 Broadcom LAN Driver (for GbE LAN) Installation To install the Broadcom LAN driver, please follow the steps below. -
Page 132: Figure 6-15: Access Windows Control Panel
PPC-37xx-N270 Panel PC Figure 6-15: Access Windows Control Panel Double click the System icon (Figure 6-16). Step 2: Figure 6-16: Double Click the System Icon Double click the Device Manager tab (Figure 6-17). Step 3: Page 118... -
Page 133: Figure 6-17: Double Click The Device Manager Tab
PPC-37xx-N270 Panel PC Figure 6-17: Double Click the Device Manager Tab A list of system hardware devices appears (Figure 6-18). Step 4: Figure 6-18: Device Manager List Double click the listed device that has question marks next to it. (This means Step 5: Windows does not recognize the device). -
Page 134: Figure 6-19: Search For Suitable Driver
PPC-37xx-N270 Panel PC Figure 6-19: Search for Suitable Driver Select “Specify a Location” in the Locate Driver Files window (Figure 6-20). Step 7: Click N to continue. Figure 6-20: Locate Driver Files Select the proper OS folder under the “X:\3-LAN\BROADCOM BCM57xx Step 8: Drivers”... -
Page 135: Realtek Ac`97 Audio Driver (Alc665) Installation
PPC-37xx-N270 Panel PC Figure 6-21: Location Browsing Window Click OK to continue. A driver files location menu window appears. Click N Step 9: continue. The driver is installed.Step 0: 6.6 Realtek AC`97 Audio Driver (ALC665) Installation To install the Realtek AC `97 audio driver, please follow the steps below. 6.6.1 BIOS Setup Enter the BIOS setup. -
Page 136: Figure 6-22: Cd 4-Audio\Ac-Kit08R\Windows Folder
PPC-37xx-N270 Panel PC Figure 6-22: CD 4-AUDIO\AC-KIT08R\Windows Folder Double-click the Setup.exe file to begin the driver installation process. Step 3: Once you double click the Setup icon, the install shield wizard for the audio Step 4: driver starts. See Figure 6-23. Figure 6-23: AC`97 Audio Driver Install Shield Wizard Starting The Realtek Audio Setup prepares the install shield to guide you through the Step 5:... -
Page 137: Figure 6-24: Ac`97 Audio Driver Setup Preparation
PPC-37xx-N270 Panel PC Figure 6-24: AC`97 Audio Driver Setup Preparation After the install shield is prepared, the welcome screen shown in Figure 6-25 Step 6: appears. To continue the installation process, click the “N ” button. The install shield starts to configure the new software as shown in Figure 6-25. Figure 6-25: AC`97 Audio Driver Welcome Screen At this stage the “Digital Signal Not Found”... -
Page 138: Figure 6-26: Ac`97 Audio Driver Digital Signal
PPC-37xx-N270 Panel PC Figure 6-26: AC`97 Audio Driver Digital Signal After clicking the “Y ” button in Figure 6-26, the installation of the driver begins Step 8: (Figure 6-27). Figure 6-27: AC`97 Audio Driver Installation Begins After the driver installation process is complete, a confirmation screen shown in Step 9: Figure 6-28 appears. -
Page 139: Figure 6-28: Ac`97 Audio Driver Installation Complete
PPC-37xx-N270 Panel PC Figure 6-28: AC`97 Audio Driver Installation Complete The confirmation screen shown in Figure 6-28 allows you to restart the Step 10: computer immediately after the installation is complete or to restart the computer later. For the settings to take effect the computer must be restarted. Once you have decided when to restart the computer, click the “F ”... -
Page 140: A Safety Precautions
PPC-37xx-N270 Panel PC Appendix Safety Precautions Page 126... -
Page 141: Safety Precautions
PPC-37xx-N270 Panel PC WARNING: The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the PPC-37xx-N270. A.1 Safety Precautions Please follow the safety precautions outlined in the sections that follow: A.1.1 General Safety Precautions Please ensure the following safety precautions are adhered to at all times. -
Page 142: Anti-Static Precautions
PPC-37xx-N270 Panel PC A.1.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the PPC-37xx-N270 result permanent damage PPC-37xx-N270 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PPC-37xx-N270. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the PPC-37xx-N270 is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to. -
Page 143: Product Disposal
PPC-37xx-N270 Panel PC A.1.3 Product Disposal CAUTION: Risk of explosion if battery is replaced by and incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations. Outside the European Union - If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method. -
Page 144: Cleaning Tools
PPC-37xx-N270 Panel PC Except for the LCD panel, never spray or squirt liquids directly onto any other components. To clean the LCD panel, gently wipe it with a piece of soft dry cloth or a slightly moistened cloth. The interior of the PPC-37xx-N270 does not require cleaning. Keep fluids away from the PPC-37xx-N270 interior. -
Page 145: Bbios Options
PPC-37xx-N270 Panel PC Appendix BIOS Options Page 131... - Page 146 PPC-37xx-N270 Panel PC Below is a list of BIOS configuration options in the BIOS chapter. System Overview .........................66 System Time [xx:xx:xx] .......................67 System Date [xx/xx/xx] ......................67 ATA/IDE Configurations [Compatible]................70 Legacy IDE Channels [PATA Pri, SATA Sec] ..............70 ...
- Page 147 PPC-37xx-N270 Panel PC Restore on AC Power Loss [Last State] ................86 Power Button Mode [On/Off]....................86 Resume on Keyboard/Mouse [Disabled] ................87 Resume on Ring [Disabled] ....................87 Resume on PCI-Express WAKE# [Enabled]..............87 Resume On RTC Alarm [Disabled]..................88 ...
- Page 148 PPC-37xx-N270 Panel PC Change Supervisor Password ..................101 Change User Password....................101 Memory Hole [Disabled] ....................103 Internal Graphics Mode Select [Enable, 8MB] ............... 104 DVMT Mode Select [DVMT Mode]..................104 DVMT/FIXED Memory ....................... 104 ...
-
Page 149: C Watchdog Timer
PPC-37xx-N270 Panel PC Appendix Watchdog Timer Page 135... - Page 150 PPC-37xx-N270 Panel PC NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
- Page 151 PPC-37xx-N270 Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. EXAMPLE PROGRAM: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...
- Page 152 PPC-37xx-N270 Panel PC Appendix Hazardous Materials Disclosure Page 138...
- Page 153 PPC-37xx-N270 Panel PC D.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
- Page 154 PPC-37xx-N270 Panel PC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Biphenyls Diphenyl (Pb) (Hg) (Cd) Chromium (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply Assemblies Battery This toxic or hazardous substance is contained in all of the homogeneous materials for the part is...
- Page 155 PPC-37xx-N270 Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 Page 141...
Need help?
Do you have a question about the PPC-3708A-N270 and is the answer not in the manual?
Questions and answers
