PPC-F06B-BT Panel PC
PPC-F06B-BT Panel PC
MODEL:
PPC-F06B-BT
Industrial Panel PC with Intel® Celeron® Processor N2807,
Touchscreen, PCIe Mini, USB 3.0, USB 2.0, RS-232,
RS-422/485, Dual PCIe GbE, 9 V ~ 30 V DC-in
IP 65 Compliant Front Panel and RoHS Compliant
User Manual
Page I
Rev. 1.03 – December 13, 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-F06B-BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology PPC-F06B-BT

Summary of Contents for IEI Technology PPC-F06B-BT

  • Page 1 PPC-F06B-BT Panel PC PPC-F06B-BT Panel PC MODEL: PPC-F06B-BT Industrial Panel PC with Intel® Celeron® Processor N2807, Touchscreen, PCIe Mini, USB 3.0, USB 2.0, RS-232, RS-422/485, Dual PCIe GbE, 9 V ~ 30 V DC-in IP 65 Compliant Front Panel and RoHS Compliant...
  • Page 2 PPC-F06B-BT Panel PC Revision Date Version Changes December 13, 2017 1.03 Updated Section 1.8: Specifications Updated Section 2.3: Optional Items August 8, 2016 1.02 Added Section 3.8: Wireless LAN Module Installation (Optional) June 1, 2016 1.01 Updated I/O panel photos Updated Chapter 4: BIOS Setup Added Section 3.15: OS Installation...
  • Page 3 PPC-F06B-BT Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 PPC-F06B-BT Panel PC Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 5: Table Of Contents

    PPC-F06B-BT Panel PC Table of Contents 1 INTRODUCTION ......................1 1.1 O ........................2 VERVIEW 1.2 F ........................3 EATURES 1.3 F ......................3 RONT ANEL 1.4 R ....................... 4 ANEL 1.5 S ......................4 ANELS 1.6 B ......................5...
  • Page 6 PPC-F06B-BT Panel PC 3.11 M ..................27 OUNTING THE YSTEM 3.11.1 Wall Mounting ....................27 3.11.2 Panel Mounting ....................29 3.11.3 Rack Mounting ....................31 3.11.4 Arm Mounting ....................33 3.11.5 Stand Mounting ....................34 3.12 P ................... 35 OWERING...
  • Page 7 PPC-F06B-BT Panel PC 4.4.1.1 Internal IGD Configuration ............... 59 4.4.2 South Bridge Configuration ................61 4.5 S ......................... 62 ECURITY 4.6 B ........................63 4.7 S & E ......................66 5 INTERFACE CONNECTORS ................... 68 5.1 P ..............69 ERIPHERAL...
  • Page 8 PPC-F06B-BT Panel PC C SAFETY PRECAUTIONS ..................89 C.1 S ..................... 90 AFETY RECAUTIONS C.1.1 General Safety Precautions ................90 C.1.2 Anti-static Precautions ..................91 C.1.3 Product Disposal ..................... 92 C.2 M ............93 AINTENANCE AND LEANING RECAUTIONS C.2.1 Maintenance and Cleaning ................93 C.2.2 Cleaning Tools ....................
  • Page 9 PPC-F06B-BT Panel PC List of Figures Figure 1-1: PPC-F06B-BT Series Panel PC .................. 2 Figure 1-2: Front View ........................3 Figure 1-3: Rear View ........................4 Figure 1-4: Side View........................4 Figure 1-5: Bottom Panel ....................... 5 Figure 1-6: PPC-F06B-BT Dimensions (mm) ................6 Figure 3-1: Back Cover Retention Screws .................
  • Page 10 PPC-F06B-BT Panel PC Figure 3-26: Stand Mounting (Stand-B08) .................. 35 Figure 3-27: Powering on the System ..................35 Figure 3-28: Reset Button Location .................... 36 Figure 3-29: Clear CMOS Button Location ................. 36 Figure 3-30: BIOS Option–OS Selection ..................37 Figure 3-31: Keypad AP .......................
  • Page 11 PPC-F06B-BT Panel PC List of Tables Table 1-1: System Specifications ....................8 Table 2-1: Packing List ......................... 11 Table 2-2: Optional Items ......................12 Table 3-1: RS-232 Serial Port (COM1) Pinouts ................24 Table 3-2: COM1 Serial Port Pin 9 Setting Jumper Settings ............ 25 Table 3-3: RS-422/485 Serial Port Pinouts .................
  • Page 12 PPC-F06B-BT Panel PC List of BIOS Menus BIOS Menu 1: Main ........................43 BIOS Menu 2: Advanced ......................46 BIOS Menu 3: ACPI Settings ....................... 46 BIOS Menu 4: F81866 Super IO Configuration ................47 BIOS Menu 5: Serial Port n Configuration Menu ............... 48 BIOS Menu 6: F81866 H/W Monitor .....................

  • Page 13: Introduction

    PPC-F06B-BT Panel PC Chapter Introduction Page 1...

  • Page 14: Overview

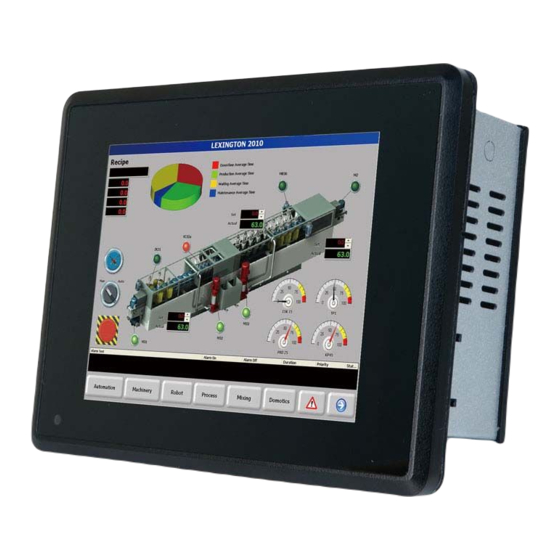

    1.1 Overview Figure 1-1: PPC-F06B-BT Series Panel PC The PPC-F06B-BT series is a quad-core Intel® Celeron® processor N2807 powered flat bezel panel PC with a rich variety of functions and peripherals. The rugged and trendy design can be applied in harsh industrial environments and enriches aesthetic experience at the same time.

  • Page 15: Features

    USB 3.0, two USB 2.0 and audio line-out jack  Optional wireless LAN module  RoHS compliant 1.3 Front Panel The front side of the PPC-F06B-BT (Figure 1-2) is a flat panel LCD screen surrounded by an aluminum frame. Figure 1-2: Front View Page 3...

  • Page 16: Rear Panel

    PPC-F06B-BT Panel PC 1.4 Rear Panel The rear panel has four VESA mounting holes and several retention screws. The VESA mounting holes are circled in the following diagrams. Figure 1-3: Rear View 1.5 Side Panels Each side panel has one knockout hole for optional wireless LAN antenna and two pre-formed holes for panel/rack mounting clamps.

  • Page 17: Bottom Panel

    PPC-F06B-BT Panel PC 1.6 Bottom Panel The bottom panel has the following interfaces:  1 x Power input connector  1 x Power button  1 x Power LED indicator  2 x USB 3.0 connectors  2 x USB 2.0 connectors ...

  • Page 18: Dimensions

    PPC-F06B-BT Panel PC 1.7 Dimensions Figure 1-6: PPC-F06B-BT Dimensions (mm) Page 6...

  • Page 19: Specifications

    PPC-F06B-BT Panel PC 1.8 Specifications The technical specifications for the PPC-F06B-BT system are listed in Table 1-1. PPC-F06B-BT LCD Display 5.7” (4:3) Max. Resolution 640 (W) x 480 (H) Brightness 550 cd/m Contrast Ratio 800:1 LCD Color 262K Pixel Pitch (mm) 0.18 (H) x 0.18 (V)

  • Page 20: Table 1-1: System Specifications

    PPC-F06B-BT Panel PC PPC-F06B-BT 36W power adapter Power Adapter Input: 90V - 264V AC, 50/60Hz Output: 12V DC Power Consumption 24 W 2 x GbE (RJ-45) 2 x USB 3.0 2 x USB 2.0 1 x RS-232 (DB-9) 1 x RS-422/485 (DB-9)

  • Page 21: Unpacking

    PPC-F06B-BT Panel PC Chapter Unpacking Page 9...

  • Page 22: Unpacking

    Pull the plastic cover off the panel PC. Step 6: Make sure all the components listed in the packing list are present. Step 0: 2.2 Packing List The PPC-F06B-BT panel PC is shipped with the following components: Quantity Item Image PPC-F06B-BT panel PC...

  • Page 23: Table 2-1: Packing List

    PPC-F06B-BT Panel PC Quantity Item Image Power adapter (36 W, 12 V DC input) Power cord (part number varies by regions) Screws for VESA mounting Screws for mSATA module installation Screws Touch pen User manual and driver CD One Key Recovery CD...

  • Page 24: Optional Items

    PPC-F06B-BT Panel PC 2.3 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image (P/N: ARM-11-RS) Panel mount kit (P/N: FPK-07-R10) Stand (P/N:STAND-100-RS) Stand for VESA 75 (P/N: STAND-B08) VESA 75 wall mount kit...

  • Page 25: Installation

    PPC-F06B-BT Panel PC Chapter Installation Page 13...

  • Page 26: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PPC-F06B-BT. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the PPC-F06B-BT is accessed internally, or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 27: Preinstalled Components

    PPC-F06B-BT Panel PC  Mounting: The PPC-F06B-BT is a heavy device. When mounting the system onto a rack, panel, wall or arm, please make sure that at least two people are assisting with the procedure.  Anti-static Discharge: If a user open the rear panel of the panel PC, to configure the jumpers or plug in added peripheral devices, ground themselves first and wear an anti-static wristband.

  • Page 28: Removing The

    PPC-F06B-BT. Figure 3-1: Back Cover Retention Screws 3.6 SATA DOM Installation The SATA connector on the motherboard of the PPC-F06B-BT supports SATA DOM. To install a SATA DOM, please follow the steps below. NOTE: When purchasing the SATA DOM, please ensure that it is in horizontal orientation.

  • Page 29: Figure 3-2: Sata Connector Location

    Connect the SATA DOM with the SATA connector on the motherboard to install it. Either high-profile or low-profile SATA DOM can be installed into the PPC-F06B-BT. Figure 3-5 shows that the system is installed with a high-profile SATA DOM. Figure 3-3: SATA DOM Installation Step 4: Replace the back cover and secure it with retention screws.

  • Page 30: Msata Module Installation

    PPC-F06B-BT Panel PC 3.7 mSATA Module Installation The PCIe Mini card slot on the motherboard of the PPC-F06B-BT supports mSATA module. To install an mSATA module, please follow the steps below. Step 1: Remove the back cover. See Section 3.5.

  • Page 31: Wireless Lan Module Installation (Optional)

    Remove the back cover. See Section 3.5. Step 2: Remove the two knockouts for antenna installation. The two knockouts are located on the side panels of the PPC-F06B-BT, one on each side. Figure 3-6: Knockout for Wireless Antenna (Left Side Panel) Page 19...

  • Page 32: Figure 3-7: Pcie Mini Slot Location

    PPC-F06B-BT Panel PC Step 3: Locate the PCIe Mini slot (Figure 3-7). Figure 3-7: PCIe Mini Slot Location Step 4: Remove the retention screw and the standoff for the half-size PCIe Mini card as shown in Figure 3-8. Figure 3-8: Removing Screw and Standoff...

  • Page 33: Figure 3-9: Installing The Standoff

    PPC-F06B-BT Panel PC Step 5: Install the previously removed standoff to the screw hole for the half-size PCIe Mini card (Figure 3-9). Figure 3-9: Installing the Standoff Step 6: Line up the notch on the WLAN module with the notch on the slot. Slide the WLAN module into the slot at an angle of about 20º...

  • Page 34: Figure 3-11: Securing Wlan Module

    PPC-F06B-BT Panel PC Step 7: Secure the WLAN module with the previously removed retention screw (Figure 3-11). Figure 3-11: Securing WLAN Module Step 8: Connect the two RF cables to the antenna connectors on the WLAN module (Figure 3-12). Figure 3-12: Connecting RF Cables...

  • Page 35: Figure 3-13: Securing Sma Connector And External Antenna Installation

    PPC-F06B-BT Panel PC Step 9: Remove the nut and washer from the SMA connector at the other end of the RF cable. Step 10: Insert the SMA connector to the antenna connector holes on the top panel. Step 11: Secure the SMA connector by inserting the washer and tightening it with nut.

  • Page 36: Serial Port Configuration And Connection

    PPC-F06B-BT Panel PC 3.9 Serial Port Configuration and Connection The PPC-F06B-BT series has two serial ports, including one RS-232 port and one RS-422/484 port. The port locations are shown in Figure 3-14. The pinouts and jumper settings of the serial ports are listed in the following sections.

  • Page 37: Rs-422/485 Serial Port Pinouts (Com2)

    PPC-F06B-BT Panel PC Description Short 1-2 COM1 RI Pin use +12 V Short 3-4 COM1 RI Pin use RI (Default) Short 5-6 COM1 RI Pin use +5 V Table 3-2: COM1 Serial Port Pin 9 Setting Jumper Settings The COM1 Serial Port Pin 9 Setting jumper location is shown in Figure 3-15 below.

  • Page 38: At/Atx Mode Selection

    Manufacturing shop flow 3.10.2 ATX Power Mode With the ATX mode selected, the PPC-F06B-BT panel PC goes in a standby mode when it is turned off. The panel PC can be easily turned on via network or a power switch in standby mode.

  • Page 39: Mounting The System

    The mounting methods are described in the following sections. 3.11.1 Wall Mounting To mount the PPC-F06B-BT panel PC onto a wall, please follow the steps below. Step 1: Attach the wall mounting kit to the mounting surface with the included screws.

  • Page 40: Figure 3-18: Hook Onto Wall Mounting Kit

    PPC-F06B-BT Panel PC Figure 3-18: Hook onto Wall Mounting Kit WARNING: Please use the M4 screws provided in the package for the rear panel. If the screw is missing, the thread depth of the replacement screw should be not more than 4 mm.

  • Page 41: Panel Mounting

    S t e p 0 : Figure 3-19: Tighten Retention Screw 3.11.2 Panel Mounting To mount the PPC-F06B-BT panel PC into a panel, please follow the steps below. Step 1: Select the position on the panel to mount the PPC-F06B-BT.

  • Page 42: Figure 3-20: Panel Cutout Dimensions

    PPC-F06B-BT Panel PC Figure 3-20: Panel Cutout Dimensions Step 3: Slide the PPC-F06B-BT through the hole until the aluminum frame is flush against the panel. Step 4: Insert the mounting clamps into the mounting brackets and pre-formed holes along the edges of the PPC-F06B-BT, behind the aluminum frame (Figure 3-21).

  • Page 43: Rack Mounting

    PPC-F06B-BT Panel PC 3.11.3 Rack Mounting The PPC-F06B-BT flat panel PC can be installed into a cabinet or rack. The installation procedures are similar to the panel mounting installation. To do this, please follow the steps below: NOTE: When purchasing the cabinet/rack installation bracket, make sure it is compatible with both the PPC-F06B-BT flat panel PC and the rack/cabinet into which the PPC-F06B-BT is installed.

  • Page 44: Figure 3-23: Secure The Rack/Cabinet Bracket

    PPC-F06B-BT Panel PC Figure 3-23: Secure the Rack/Cabinet Bracket Step 4: Slide the PPC-F06B-BT with the attached rack/cabinet bracket into a rack or cabinet (Figure 3-24). Figure 3-24: Install into a Rack/Cabinet Step 5: Once the flat panel PC with the attached rack/cabinet bracket has been properly...

  • Page 45: Arm Mounting

    PPC-F06B-BT Panel PC 3.11.4 Arm Mounting The PPC-F06B-BT is VESA (Video Electronics Standards Association) compliant and can be mounted on an arm with a 75 mm interface pad. To mount the PPC-F06B-BT on an arm, please follow the steps below. Step 1: The arm is a separately purchased item.

  • Page 46: Stand Mounting

    PPC-F06B-BT Panel PC Figure 3-25: Arm Mounting (ARM-11-RS) 3.11.5 Stand Mounting To mount the PPC-F06B-BT using the stand mounting kit, please follow the steps below. Step 1: Locate the screw holes on the rear of the PPC-F06B-BT. This is where the bracket will be attached.

  • Page 47: Powering On The System

    Connect the power cord to the power adapter. Connect the other end of the power cord to a power source. Step 2: Connect the power adapter to the power connector of the PPC-F06B-BT. Step 3: Locate the power button on the I/O panel.

  • Page 48: Reset The System

    Figure 3-28: Reset Button Location 3.14 Clear CMOS If the PPC-F06B-BT fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, push the clear CMOS button for three seconds, then restart the system. To access the clear CMOS button, the back cover must be removed.

  • Page 49: Os Installation

    Visit the IEI website or contact technical support for the latest updates. All the drivers for the PPC-F06B-BT are on the utility CD that came with the system. The utility CD contains drivers for Windows 7 and Windows 8 operating systems. Please select the corresponding drivers for the system.

  • Page 50: Keypad Ap

    PPC-F06B-BT Panel PC The following drivers can be installed on the Windows 7 operating system:  Chipset  I/O driver  Graphics (Intel® EMGD)   USB 3.0   Audio  Keypad AP The following drivers can be installed on the Windows 8 operating system: ...

  • Page 51: System Maintenance

    PPC-F06B-BT Panel PC 3.17 System Maintenance If the components of the PPC-F06B-BT fail, they must be replaced. Please contact the system reseller or vendor to purchase the replacement parts. NOTE: A user cannot replace a motherboard. If the motherboard fails it must be shipped back to IEI to be replaced.

  • Page 52: Bios Setup

    PPC-F06B-BT Panel PC Chapter BIOS Setup Page 40...

  • Page 53: Introduction

    PPC-F06B-BT Panel PC 4.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 54: Getting Help

    PPC-F06B-BT Panel PC Function Increase the numeric value or make changes Decrease the numeric value or make changes Page up Move to the next page Page down Move to the previous page Main Menu – Quit and do not save changes into CMOS...

  • Page 55: Bios Menu Bar

    PPC-F06B-BT Panel PC 4.1.5 BIOS Menu Bar The menu bar on top of the BIOS screen has the following main items:  Main – Changes the basic system configuration.  Advanced – Changes the advanced system settings.  Chipset – Changes the chipset settings.

  • Page 56: Bios Information

    PPC-F06B-BT Panel PC  BIOS Information The BIOS Information lists a brief summary of the BIOS. The fields in BIOS Information cannot be changed. The items shown in the system overview include:  BIOS Vendor: Installed BIOS vendor  Core Version: Current BIOS version ...

  • Page 57: Advanced

    PPC-F06B-BT Panel PC  System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. 4.3 Advanced Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices...

  • Page 58: Acpi Settings

    PPC-F06B-BT Panel PC Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit > ACPI Settings System ACPI Parameters. > F81866 Super IO Configuration > F81866 H/M Monitor > RTC Wake Settings >...

  • Page 59: F81866 Super Io Configuration

    PPC-F06B-BT Panel PC  ACPI Sleep State [S3 (Suspend to RAM)] Use the ACPI Sleep State option to specify the sleep state the system enters when it is not being used.  S3 (Suspend to The caches are flushed and the CPU is powered...

  • Page 60: Serial Port N Configuration

    PPC-F06B-BT Panel PC 4.3.2.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 5) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced Serial Port 1 Configuration Enable or Disable Serial...

  • Page 61: Serial Port [Enabled]

    PPC-F06B-BT Panel PC  IO=3F8h; Serial Port I/O port address is 3F8h and the IRQ=3, 4 interrupt address is IRQ3, 4  Serial Port I/O port address is 2F8h and the IO=2F8h; interrupt address is IRQ3, 4 IRQ=3, 4 ...

  • Page 62: F81866 H/W Monitor

    PPC-F06B-BT Panel PC  IO=2E8h; Serial Port I/O port address is 2E8h and the IRQ=3, 4 interrupt address is IRQ3, 4 4.3.3 F81866 H/W Monitor The F81866 H/W Monitor menu (BIOS Menu 6) shows the operating temperatures and voltages. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc.

  • Page 63: Rtc Wake Settings

    PPC-F06B-BT Panel PC +3.3V +3.3VSB 4.3.4 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 7) configures RTC wake event. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced Wake system with Fixed Time [Disabled] Enable or disable System wake on alarm event.

  • Page 64: Serial Port Console Redirection

    PPC-F06B-BT Panel PC  Enabled If selected, the following appears with values that can be selected: *Wake up every day *Wake up date *Wake up hour *Wake up minute *Wake up second After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off.

  • Page 65: Iei Feature

    PPC-F06B-BT Panel PC  Console Redirection [Disabled] Use Console Redirection option to enable or disable the console redirection function.  Disabled the console redirection function Disabled EFAULT  Enabled the console redirection function Enabled 4.3.6 IEI Feature Use the IEI Feature (BIOS Menu 10) to configure One Key Recovery function.

  • Page 66: Cpu Configuration

    PPC-F06B-BT Panel PC 4.3.7 CPU Configuration Use the CPU Configuration (BIOS Menu 10) to view detailed CPU specifications and configure the CPU. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced CPU Configuration When enabled, a VMM can utilize the additional Intel(R) Celeron(R) CPU N2807 @ 1.58GHz...

  • Page 67: Intel Virtualization [Disabled]

    PPC-F06B-BT Panel PC  L2 Cache: Lists the amount of storage space on the L2 cache.  L3 Cache: Lists the amount of storage space on the L3 cache.  64-bit: Indicates if 64-bit OS is supported by the CPU.

  • Page 68: Ide Configuration

    PPC-F06B-BT Panel PC 4.3.8 IDE Configuration Use the IDE Configuration menu (BIOS Menu 11) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced IDE Configuration...

  • Page 69: Usb Configuration

    PPC-F06B-BT Panel PC 4.3.9 USB Configuration Use the USB Configuration menu (BIOS Menu 12) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 70: Chipset

    PPC-F06B-BT Panel PC  Disabled Legacy USB support disabled  Legacy USB support disabled if no USB devices are Auto connected 4.4 Chipset Use the Chipset menu (BIOS Menu 13) to access the North Bridge and South Bridge configuration menus.

  • Page 71: North Bridge Configuration

    PPC-F06B-BT Panel PC 4.4.1 North Bridge Configuration Use the North Bridge menu (BIOS Menu 14) to configure the north bridge chipset. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Chipset > Intel IGD Configuration Config Intel IGD Settings...

  • Page 72: Dvmt Pre-Allocated [256M]

    PPC-F06B-BT Panel PC  DVMT Pre-Allocated [256M] Use the DVMT Pre-Allocated option to specify the amount of system memory that can be used by the internal graphics device.  64 MB of memory used by internal graphics device  128 MB of memory used by internal graphics...

  • Page 73: South Bridge Configuration

    PPC-F06B-BT Panel PC 4.4.2 South Bridge Configuration Use the South Bridge menu (BIOS Menu 16) to configure the south bridge chipset. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Chipset Auto Power Button Status [Disabled (ATX)] Select AC power state...

  • Page 74: Security

    PPC-F06B-BT Panel PC  Enabled The High Definition Audio controller is enabled. EFAULT 4.5 Security Use the Security menu (BIOS Menu 17) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced...

  • Page 75: Boot

    PPC-F06B-BT Panel PC 4.6 Boot Use the Boot menu (BIOS Menu 18) to configure system boot options. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Boot Configuration Select the keyboard...

  • Page 76: Quiet Boot [Enabled]

    PPC-F06B-BT Panel PC  Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots.  Normal POST messages displayed Disabled  OEM Logo displayed instead of POST messages Enabled EFAULT  UEFI Boot [Disabled] Use the UEFI Boot BIOS option to enable or disable UEFI boot.

  • Page 77: Launch Pxe Oprom [Disabled]

    PPC-F06B-BT Panel PC  Launch PXE OpROM [Disabled] Use the Launch PXE OpROM option to enable or disable boot option for legacy network devices.  Disabled Ignore all PXE Option ROMs EFAULT  Enabled Load PXE Option ROMs  Option ROM Messages [Force BIOS] Use the Option ROM Messages option to set the Option ROM display mode.

  • Page 78: Save & Exit

    PPC-F06B-BT Panel PC 4.7 Save & Exit Use the Save & Exit menu (BIOS Menu 19) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Main...

  • Page 79: Save As User Defaults

    PPC-F06B-BT Panel PC  Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults.  Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options.

  • Page 80: Interface Connectors

    PPC-F06B-BT Panel PC Chapter Interface Connectors Page 68...

  • Page 81: Peripheral Interface Connectors

    PPC-F06B-BT Panel PC 5.1 Peripheral Interface Connectors The PPC-F06B-BT panel PC motherboard comes with a number of peripheral interface connectors and configuration jumpers. The connector locations are shown in Figure 5-1 and Figure 5-2. The Pin 1 locations of the on-board connectors are also indicated in the diagram below.

  • Page 82: Internal Peripheral Connectors

    PPC-F06B-BT Panel PC Figure 5-2: Main Board Layout Diagram (Solder Side) 5.2 Internal Peripheral Connectors Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. The table below shows a list of the peripheral interface connectors on the motherboard.

  • Page 83: Audio Connector (Audio1)

    PPC-F06B-BT Panel PC Connector Type Label Power LED connector 3-pin wafer PW_LED1 SATA DOM connector 7-pin connector SATA1 SATA power connector 2-pin wafer SATA_PWR1 Serial port connector (RS-422/485) 4-pin wafer COM2 SPI flash connector 6-pin wafer JSPI1 Touch panel connector...

  • Page 84: Inverter Connector (Inv_Cn1)

    PPC-F06B-BT Panel PC 5.2.3 Inverter Connector (INV_CN1) PIN NO. DESCRIPTION +12V +12V BACKLIGHT ENABLE LCD_BKLCTL Table 5-4: Inverter Connector (INV_CN1) Pinouts 5.2.4 LCD Connector (PANEL1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION VSYNC HSYNC DOTCLK Table 5-5: LCD Connector (PANEL1) Pinouts...

  • Page 85: Mcu Connector (Jspi2)

    PPC-F06B-BT Panel PC 5.2.5 MCU Connector (JSPI2) PIN NO. DESCRIPTION MCLR ICSPCLK ICSPDAT Table 5-6: MCU Connector (JSPI2) Pinouts 5.2.6 PCIe Mini Connector (M_PCIE1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# VCC3 1.5V PCIE_CLK# PCIE_CLK PCIRST# PCIE_RXN(SATA_RX+) VCC3 PCIE_RXP(SATA_RX-) 1.5V...

  • Page 86: Power Input Connector (Cn1)

    PPC-F06B-BT Panel PC VCC3 1.5V VCC3 Table 5-7: PCIe Mini Connector (M_PCIE1) Pinouts 5.2.7 Power Input Connector (CN1) PIN NO. DESCRIPTION +12V +12V Table 5-8: Power Input Connector (CN1) Pinouts 5.2.8 Power LED Connector (PW_LED1) PIN NO. DESCRIPTION PW_LED +5V...

  • Page 87: Sata Power Connector (Sata_Pwr1)

    PPC-F06B-BT Panel PC Table 5-10: SATA Connector (SATA1) Pinouts 5.2.10 SATA Power Connector (SATA_PWR1) PIN NO. DESCRIPTION Table 5-11: SATA Power Connector (SATA_PWR1) Pinouts 5.2.11 Serial Port Connector, RS-422/485 (COM2) PIN NO. DESCRIPTION RXD422- RXD422+ TXD422+/TXD485+ TXD422-/TXD485- Table 5-12: Serial Port Connector (COM2) Pinouts 5.2.12 SPI Flash Connector (JSPI1)

  • Page 88: Touch Panel Connector (Touch1)

    PPC-F06B-BT Panel PC 5.2.13 Touch Panel Connector (TOUCH1) PIN NO. DESCRIPTION SENSE Table 5-14: Touch Panel Connector (TOUCH1) Pinouts 5.2.14 USB 2.0 Connector (TOUCH_USB1) PIN NO. DESCRIPTION DATA1- DATA1+ Table 5-15: USB 2.0 Connector (TOUCH_USB1) Pinouts 5.2.15 USB 2.0 Connector (TOUCH_USB2) PIN NO.

  • Page 89: Vga Connector (Vga_Con1)

    PPC-F06B-BT Panel PC 5.2.16 VGA Connector (VGA_CON1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION   DDCDA   GREEN DDCLK   BLUE   HSYNC   VSYNC Table 5-17: VGA Connector (VGA_CON1) Pinouts 5.3 External Interface Panel Connectors The table below lists the rear panel connectors on the motherboard.

  • Page 90: Ethernet Connectors (Lan1 & Lan2)

    PPC-F06B-BT Panel PC 5.3.1 Ethernet Connectors (LAN1 & LAN2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION MDI0+ MDI3- MDI0- +3.3Vsus MDI1+ ACT-1 MDI1- LINNK1000 +3.3sus LINNK1000 +3.3sus MDI2+ MDI2- MDI3+ Table 5-19: Ethernet Connectors (LAN1 & LAN2) Pinouts 5.3.2 Power Connector (CN2) Table 5-20: Power Connector (CN2) Pinouts 5.3.3 RS-232 Serial Port (COM1)

  • Page 91: Usb 2.0 Connectors (Usb1)

    PPC-F06B-BT Panel PC 5.3.4 USB 2.0 Connectors (USB1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DATA- DATA- DATA+ DATA+ Table 5-22: USB 2.0 Connectors (USB1) Pinouts 5.3.5 USB 3.0 Connectors (USB_CON1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION +5Vsus +5Vsus DATA1- DATA2-...

  • Page 92: A Regulatory Compliance

    PPC-F06B-BT Panel PC Appendix Regulatory Compliance Page 80...
  • Page 93 PPC-F06B-BT Panel PC DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives:  EMC Directive (2004/108/EC, 2014/30/EU)  Low-Voltage Directive (2006/95/EC, 2014/35/EU)  RoHS II Directive (2011/65/EU, 2015/863/EU) If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
  • Page 94 PPC-F06B-BT Panel PC Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2014/53/EU. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ...
  • Page 95 PPC-F06B-BT Panel PC Româna [Romanian] IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 2014/53/EU. Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 2014/53/EU.
  • Page 96 PPC-F06B-BT Panel PC FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:  This device may not cause harmful interference, and  This device must accept any interference received, including interference that may cause undesired operation.
  • Page 97 PPC-F06B-BT Panel PC CHINA ROHS The label on the product indicates the estimated “Environmentally Friendly Use Period” (EFUP). This is an estimate of the number of years that these substances would “not leak undergo abrupt change.” This product contain replaceable sub-assemblies/components which have a shorter EFUP such as batteries and lamps.

  • Page 98: B Bios Configuration Options

    PPC-F06B-BT Panel PC Appendix BIOS Configuration Options Page 86...

  • Page 99: Bios Configuration Options

    PPC-F06B-BT Panel PC B.1 BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 4. BIOS Information ......................... 44 CPU Information ........................44 Memory Information ......................44 TXE Information ........................44 System Date [xx/xx/xx] ......................44 System Time [xx:xx:xx] .......................
  • Page 100 PPC-F06B-BT Panel PC Launch PXE OpROM [Disabled] ..................65 Option ROM Messages [Force BIOS] ................. 65 Save Changes and Reset ....................66 Discard Changes and Reset ....................66 Restore Defaults ........................66 Save as User Defaults ......................67 Restore User Defaults ......................67...

  • Page 101: C Safety Precautions

    PPC-F06B-BT Panel PC Appendix Safety Precautions Page 89...

  • Page 102: Safety Precautions

     Electric shocks can occur if the PPC-F06B-BT chassis is opened when it is running. To avoid risk of electric shock, this device must only be connected to a supply mains with protective earth.

  • Page 103: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PPC-F06B-BT. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the PPC-F06B-BT is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to.

  • Page 104: Product Disposal

    PPC-F06B-BT Panel PC C.1.3 Product Disposal CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations.  Outside the European Union–If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

  • Page 105: Maintenance And Cleaning Precautions

    Always make sure your hands are dry when unplugging the power cable. C.2.1 Maintenance and Cleaning Prior to cleaning any part or component of the PPC-F06B-BT, please read the details below.  Except for the LCD panel, never spray or squirt liquids directly onto any other components.
  • Page 106 PPC-F06B-BT Panel PC  Water or rubbing alcohol–A cloth moistened with water or rubbing alcohol can be used to clean the device.  Using solvents–The use of solvents is not recommended when cleaning the device as they may damage the plastic parts.

  • Page 107: D Watchdog Timer

    PPC-F06B-BT Panel PC Appendix Watchdog Timer Page 95...
  • Page 108 PPC-F06B-BT Panel PC NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.

  • Page 109: Example Program

    PPC-F06B-BT Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BX, 05 ;time-out value is 5 seconds ;...

  • Page 110: E Hazardous Materials Disclosure

    PPC-F06B-BT Panel PC Appendix Hazardous Materials Disclosure Page 98...
  • Page 111 PPC-F06B-BT Panel PC The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 112 PPC-F06B-BT Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T 11363-2006 (现由 GB/T 26572-2011 取代) 标准规定的限量要求以下。...

Table of Contents
